StarTech.com Seriel adapter USB 2.0 480Mbps Kabling
Startech USB to Serial Hub - 16 Port - COM Port Retention - Rack Mount and Daisy Chainable - FTDI USB to RS232 Hub (ICUSB23216FD) - Seriel adapter - USB 2.0 - RS-232 x 16 - sort
-
Product no 991309943
Model ICUSB23216FD
Brand StarTech.com
EAN 0065030864763
Weight 2.22 kg
-
Product information and specifications are guiding only. Without notice, these can be subject to change by the manufacturer. This applies for product images as well.
| General | |
|---|---|
| Device Type | Serial adapter |
| Form Factor | Rack-mountable |
| Interface (Bus) Type | USB 2.0 |
| Localization | Australia, North America, United Kingdom, Europe |
| Networking | |
| Connectivity Technology | Wired |
| Data Link Protocol | RS-232 |
| Data Transfer Rate | 480 Mbps |
| Features | 128-byte FIFO |
| Ports | RS-232 x 16 |
| Status Indicators | Transmit, receive |
| Processor / Memory | |
| Processor | FTDI FT232RL |
| Expansion / Connectivity | |
| Interfaces | 16 x RS-232 - 9 pin D-Sub (DB-9) (front) | 1 x USB 2.0 - 4 pin USB Type B (front) |
| Miscellaneous | |
| Cables Included | 1 x USB cable | 1 x power adapter |
| Color | Black |
| Compliant Standards | FCC, RoHS, WEEE, RCM |

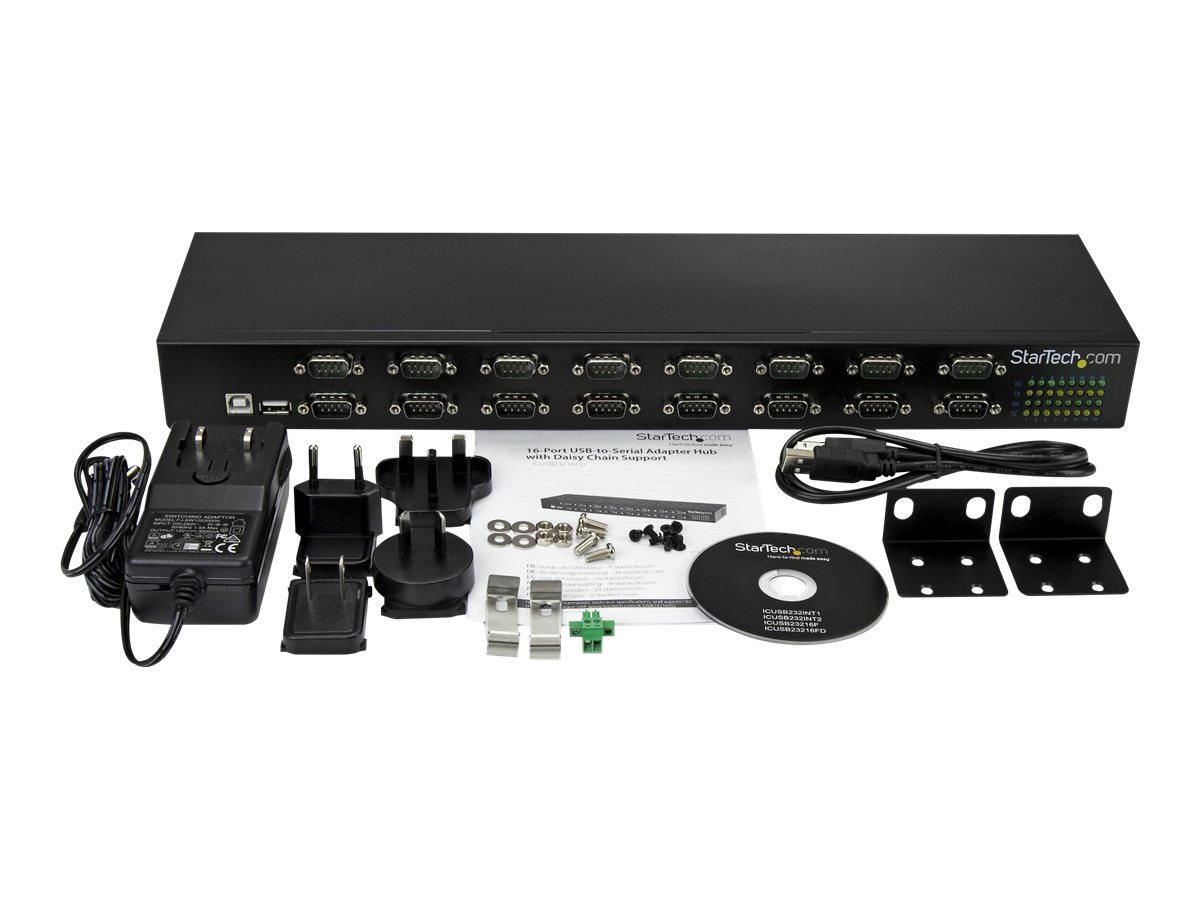

| Included Accessories | 2 rack mount brackets, rack mounting screws, DIN rail mounting screws, DIN rail mounting brackets |
| Power | |
| Voltage Required | AC 120/230 V / DC 12 V |
| Software / System Requirements | |
| OS Required | Microsoft Windows 98 Second Edition, Microsoft Windows XP Embedded, Microsoft Windows Server 2003, Microsoft Windows CE 5.0, Microsoft Windows CE 4.2, Microsoft Windows Server 2008 R2, Microsoft Windows CE 6.0, Microsoft Windows Server 2012, Microsof |
| Software Included | Drivers & Utilities |
| Dimensions & Weight | |
| Depth | 43 cm |
| Height | 4.5 cm |
| Weight | 1.52 kg |
| Width | 12 cm |
| Manufacturer Warranty | |
| Service & Support | Limited warranty - 2 years |
| Environmental Parameters | |
| Humidity Range Operating | 5 - 85% |
| Max Operating Temperature | 80 °C |
| Min Operating Temperature | -10 °C |
