StarTech.com Seriel adapter PCI Express x1

StarTech.com 4 Port PCI Express PCIe Serial Combo Card - Seriel adapter - PCI Express x1 - RS-232, RS-422, RS-485 - 4 porte - for P/N: BNDTB10GI, BNDTB210GSFP, BNDTB310GNDP, BNDTB410GSFP, BNDTB4M2E1, BNDTBUSB3142

  • Product no 988493158

    Model PEX4S232485

    Brand StarTech.com

    EAN 0065030849357

    Weight 0.39 kg

  • Product information and specifications are guiding only. Without notice, these can be subject to change by the manufacturer. This applies for product images as well.
Produktbeskrivelse StarTech.com 4 Port PCI Express PCIe Serial Combo Card - seriel adapter - PCI Express x1 - 4 porte
Enhedstype Seriel adapter
Model Indstikskort
Grænseflade (bus) type PCI Express x1
Dimensioner (B x D x H) 2 cm x 7 cm x 12.5 cm
Vægt 67.4 g
Antal porte 4 porte
Dataforbindelsesprotokol RS-232, RS-422, RS-485
Systemkrav Microsoft Windows Server 2003, Microsoft Windows Server 2008 R2, Microsoft Windows Server 2012, Microsoft Windows Server 2016, Microsoft Windows 2000/XP/Vista/7/8/8.1/10
Producentgaranti Begrænset livtidsgaranti
Designet for P/N: BNDTB10GI, BNDTB1394B3, BNDTB210GSFP, BNDTB310GNDP, BNDTB410GSFP, BNDTB4M2E1, BNDTBUSB3142, TB31PCIEX16
General
Device Type Serial adapter - 4 ports
Form Factor Plug-in card
Interface (Bus) Type PCI Express x1
Networking
Connectivity Technology Wired
Data Link Protocol RS-232, RS-422, RS-485
Expansion / Connectivity
Compatible Slots 1 x PCI Express x1
Interfaces 2 x RS-232 - 9 pin D-Sub (DB-9) (on cable) | 2 x RS-422/485 - 9 pin D-Sub (DB-9) (on cable)
Miscellaneous
Compliant Standards FCC, RoHS

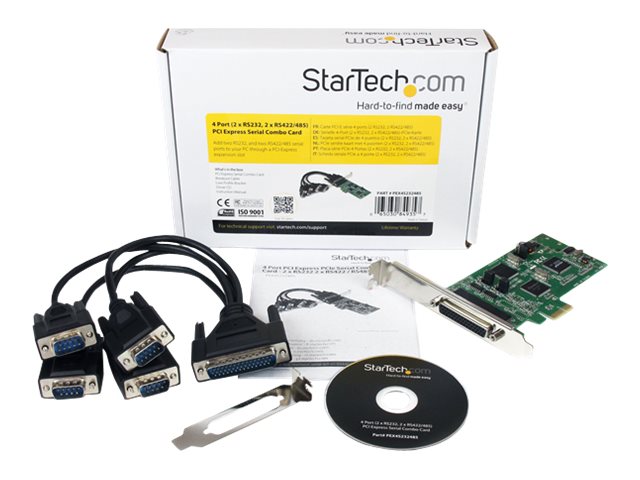

Included Accessories Low-profile bracket
Software / System Requirements
OS Required Microsoft Windows Server 2003, Microsoft Windows Server 2008 R2, Microsoft Windows Server 2012, Microsoft Windows Server 2016, Microsoft Windows 2000/XP/Vista/7/8/8.1/10
Dimensions & Weight
Depth 7 cm
Height 12.5 cm
Weight 67.4 g
Width 2 cm
Manufacturer Warranty
Service & Support Limited warranty - lifetime
Environmental Parameters
Humidity Range Operating 20 - 80%
Max Operating Temperature 100 °C
Min Operating Temperature 0 °C
Compatibility Information
Designed For P/N: BNDTB10GI, BNDTB1394B3, BNDTB210GSFP, BNDTB310GNDP, BNDTB410GSFP, BNDTB4M2E1, BNDTBUSB3142, TB31PCIEX16

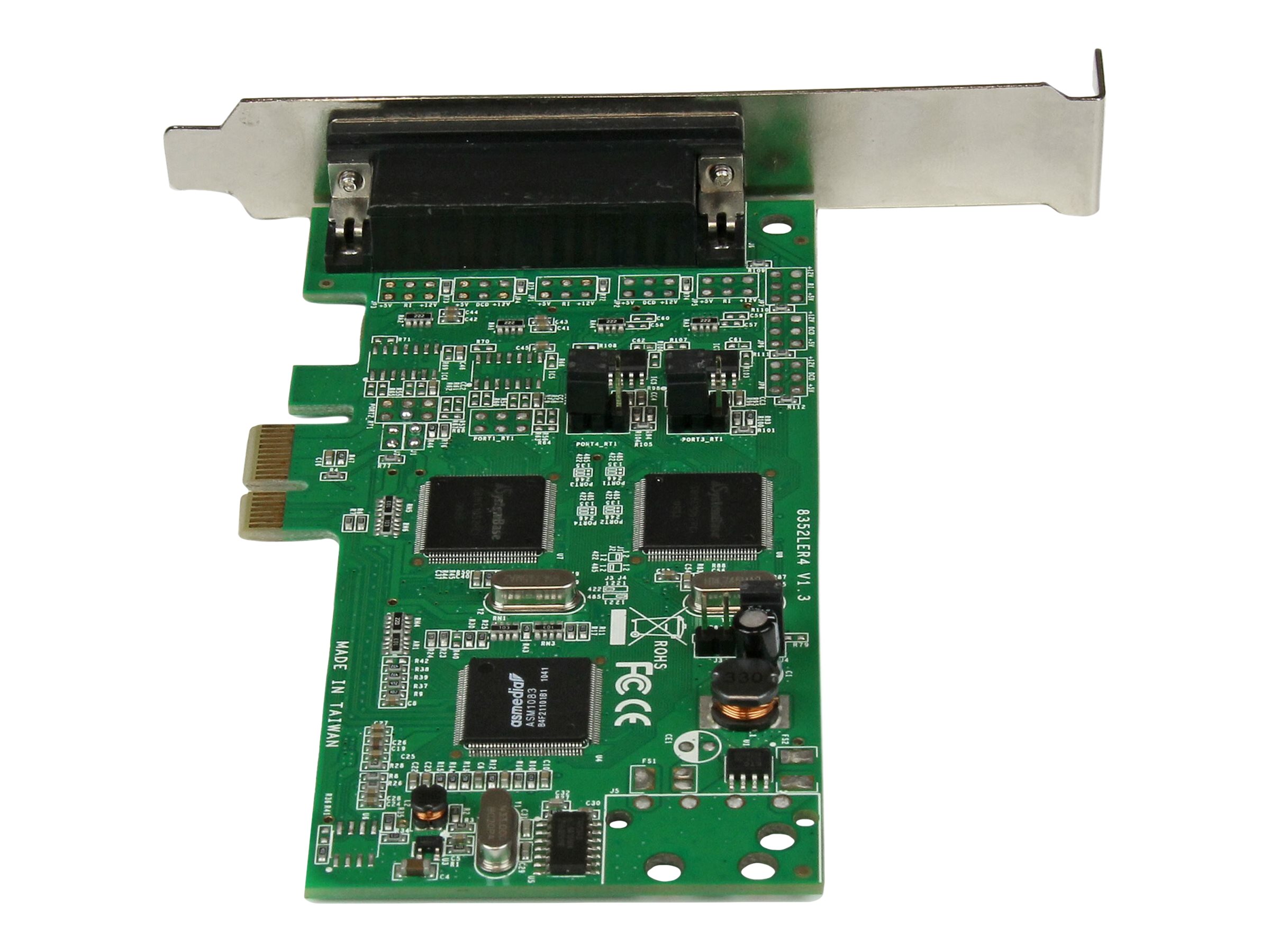

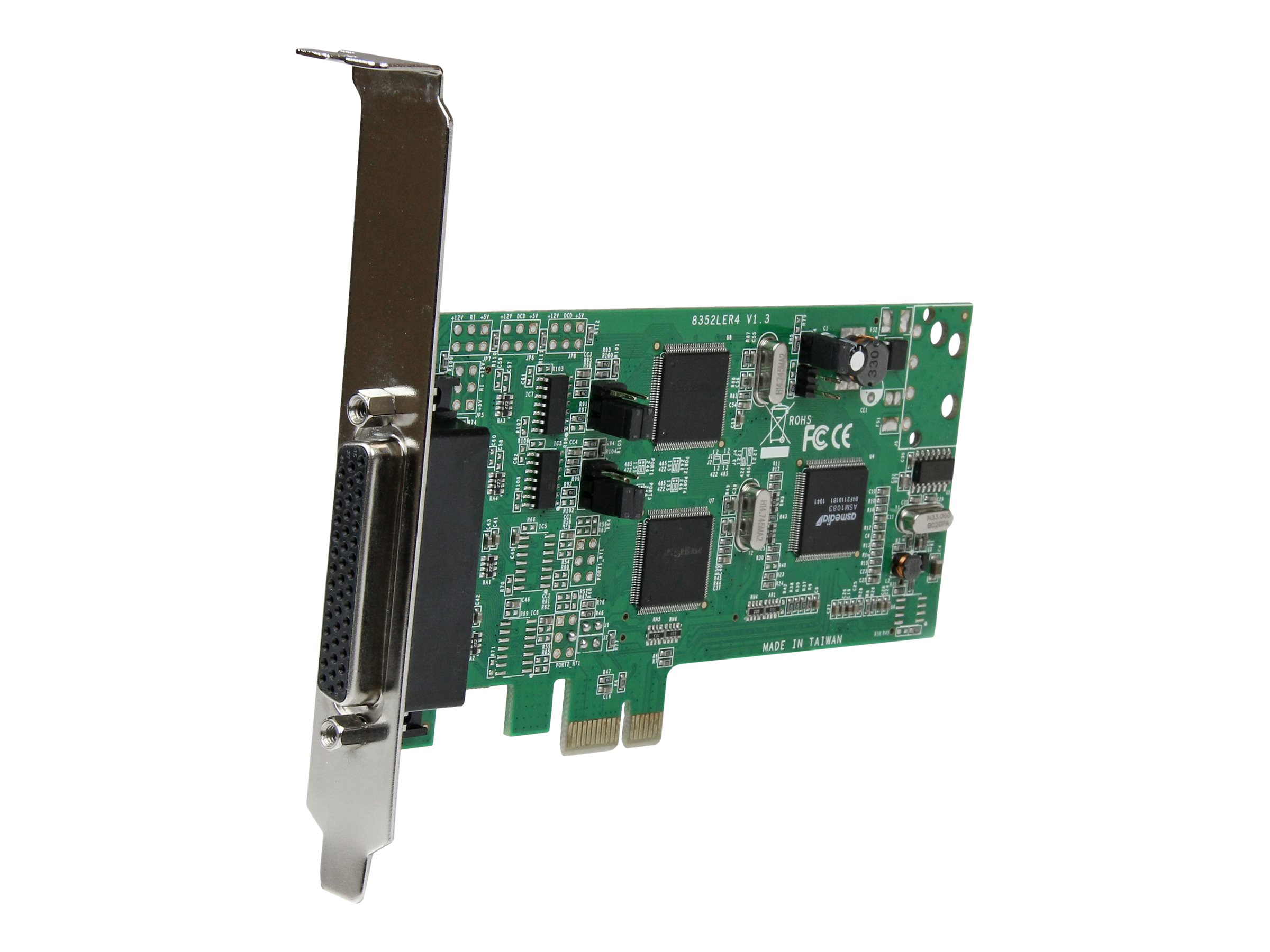

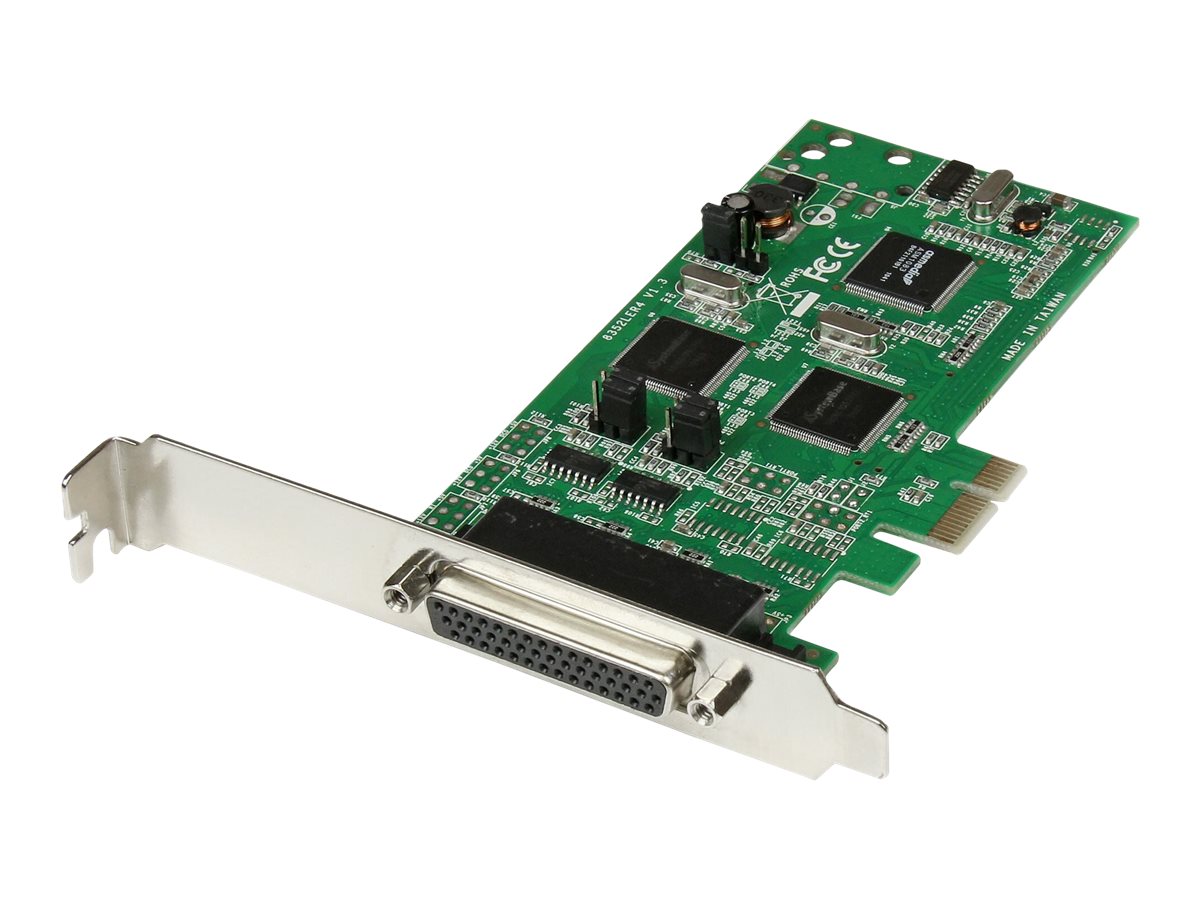

Add two RS232, and two RS422/485 serial ports to your PC through a PCI-Express expansion slot

  • 4 port (2 x RS232, 2 x RS422/485) serial combo card
  • RS232 data transfer rates up to 460 Kbps
  • Supports 2-Wire / 4-Wire RS485 modes
  • 256-byte deep FIFO per transmitter and receiver
  • Standard and low-profile bracket included
  • Compliant with PCI-Express Specification 1.0a
  • Supports PCI Power Management 1.1
Add two RS232, and two RS422/485 serial ports to your PC through a PCI-Express expansion slot
slide {0} of {1}, zoom in, Add two RS232, and two RS422/485 serial ports to your PC through a PCI-Express expansion slot
slide {0} of {1}, zoom in, Add two RS232, and two RS422/485 serial ports to your PC through a PCI-Express expansion slot
slide {0} of {1}, zoom in, Add two RS232, and two RS422/485 serial ports to your PC through a PCI-Express expansion slot
slide {0} of {1}, zoom in, Add two RS232, and two RS422/485 serial ports to your PC through a PCI-Express expansion slot
slide {0} of {1}, zoom in, Add two RS232, and two RS422/485 serial ports to your PC through a PCI-Express expansion slot
slide {0} of {1}, zoom in, Add two RS232, and two RS422/485 serial ports to your PC through a PCI-Express expansion slot
slide {0} of {1}, zoom in, Add two RS232, and two RS422/485 serial ports to your PC through a PCI-Express expansion slot
Allows for communication with multiple devices over mixed protocols

Allows for communication with multiple devices over mixed protocols

This PCI express serial card is a single card solution that is compatible with nearly any serial communication protocol, supporting RS-232, RS-422, RS-485 2-wire or RS-485 4-wire operating modes.

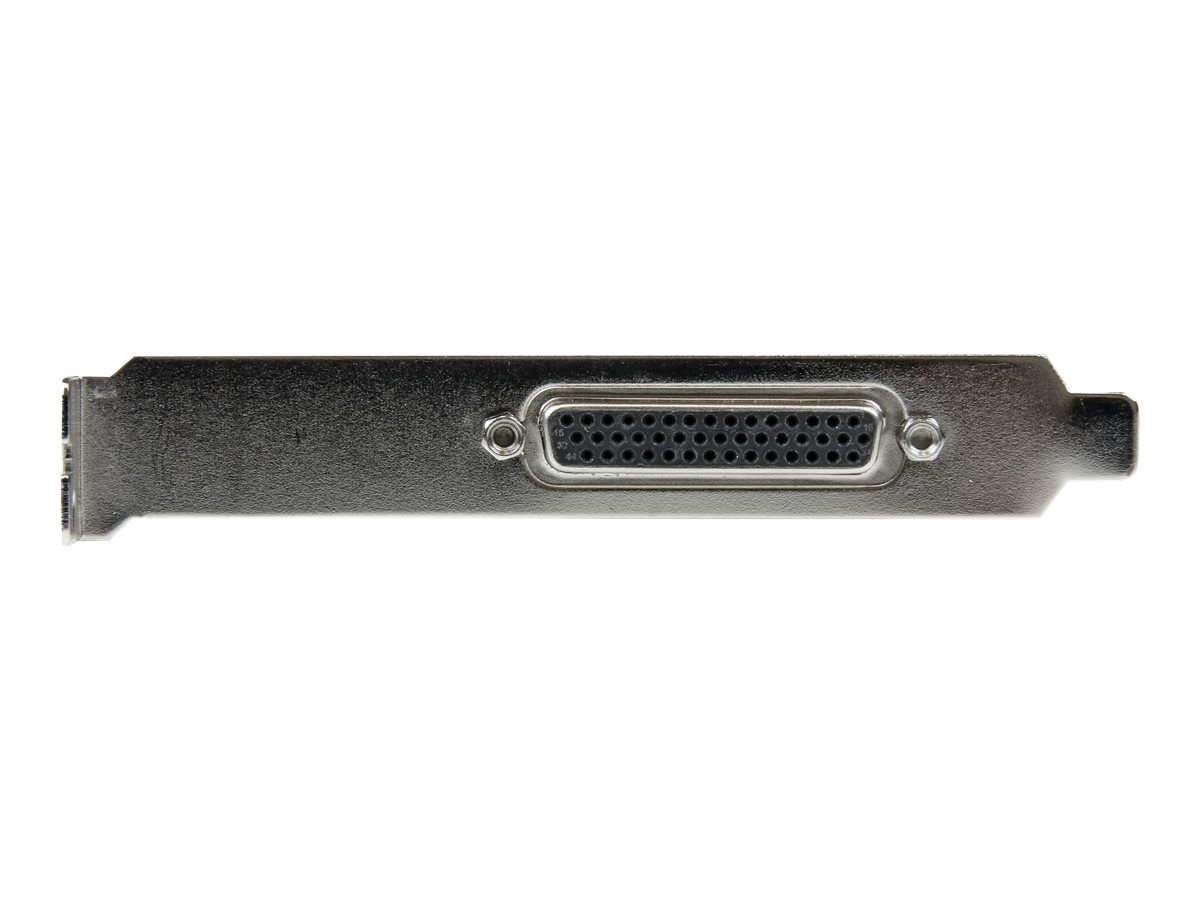

Includes both low profile/half-height and full profile brackets to ensure fitment into a broad range of system form factors

Includes both low profile/half-height and full profile brackets to ensure fitment into a broad range of system form factors

A flexible solution for adding serial ports to full-sized, or small form factor systems, the 4-port serial card includes both low and full profile brackets.

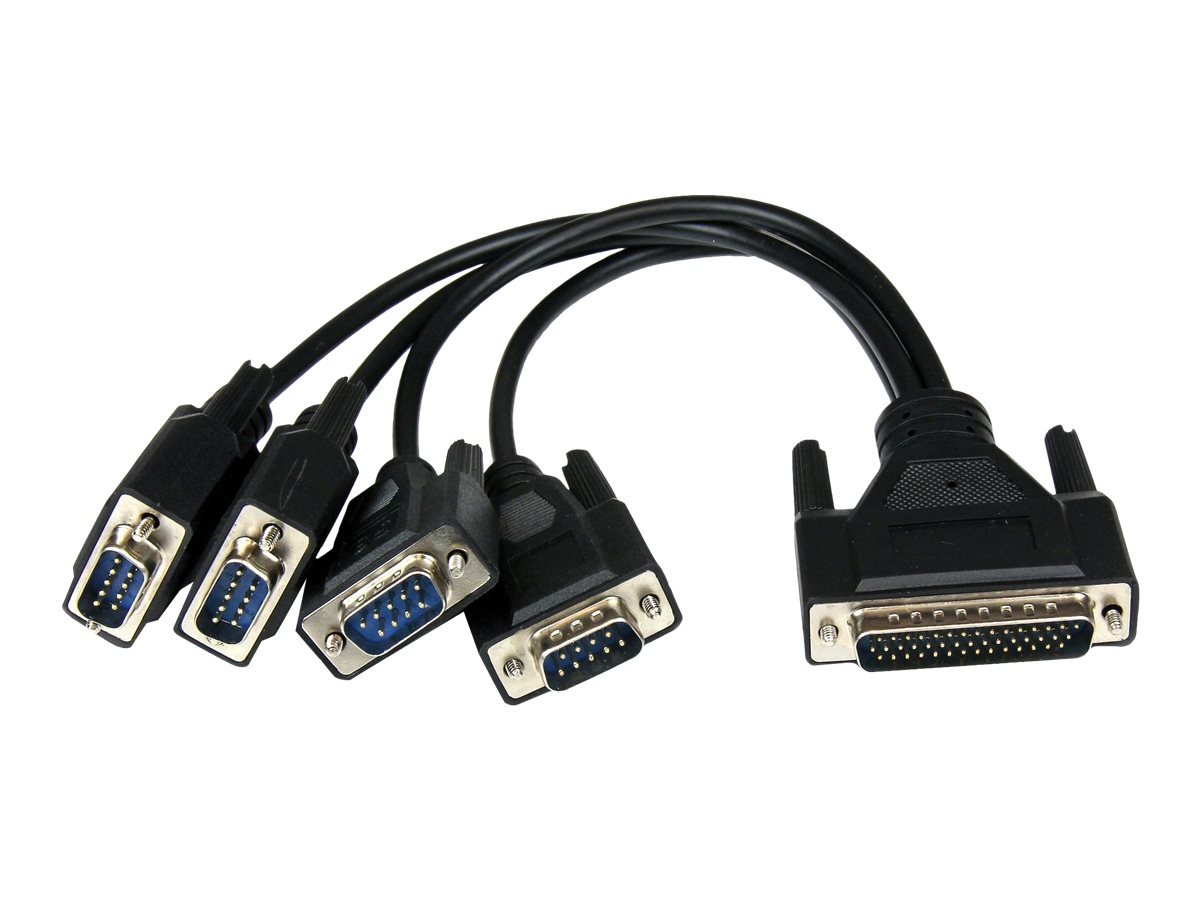

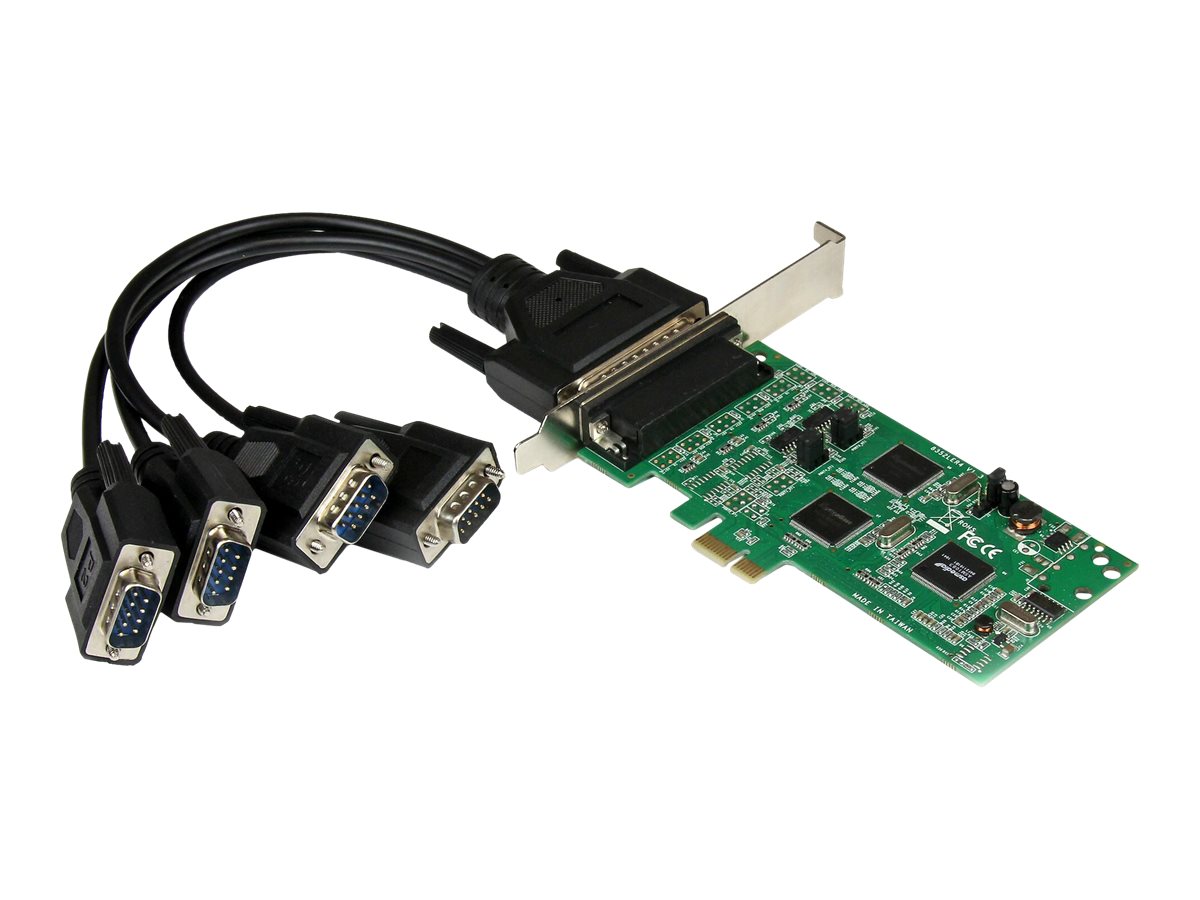

The included breakout cable saves expense as an all-in-one solution, and allows the addition of multiple serial ports through a single PCI Express slot

The included breakout cable saves expense as an all-in-one solution, and allows the addition of multiple serial ports through a single PCI Express slot

The included breakout cable helps to avoid cluttered connections.

Applications

  • Monitor and control industrial machines on an assembly line or in a production environment
  • POS retail applications in grocery stores, and any other retail store to control keyboards, cash drawers, receipt printers, card readers/card swipes, scales, and elevated displays on poles
  • Bank teller workstations in either full profile or low profile versions to control their serial devices such as cash drawers, card readers / card swipes, printers, keypads / pinpads, pen pads
  • Self-service automated machines and kiosks to control serial devices such as scales, touchscreens, magnetic card readers, bar code scanners, receipt printers, label printers
