Produktbeskrivelse
|
Startech 2-port PCI Express RS232 Serial Adapter Card, PCIe RS232 Serial Host Controller Card, PCIe to Dual Serial DB9 COM Port Card, 16950 UART, Expansion Card, Windows, macOS, Linux - Full/Low-Profile (PEX2S953) - seriel adapter - PCI Express x1 - RS-232 x 2
|
|
Enhedstype
|
Seriel adapter
|
|
Model
|
Indstikskort
|
|
Grænseflade (bus) type
|
PCI Express x1
|
|
PCI-specifikationsrevision
|
PCIe 1.1
|
|
Porte
|
RS-232 x 2
|
|
Dimensioner (B x D x H)
|
7.5 cm
|
|
Dataforbindelsesprotokol
|
RS-232
|
|
Dataoverførselshastighed
|
921.6 Kbps
|
|
Processor
|
ASIX AX99100
|
|
Systemkrav
|
Microsoft Windows Server 2003, Microsoft Windows Server 2008 R2, Microsoft Windows Server 2012, Microsoft Windows Server 2012 R2, Microsoft Windows 7 / 8 / 8.1 / 10, Microsoft Windows Server 2016, kun Linux 2.4.x - 2.6.x LTS versioner
|
|
Producentgaranti
|
Begrænset livtidsgaranti
|
Effective Friday, July 3, 2026, the office will close at 4:30 PM on Fridays. From Monday to Thursday, Sales contact hours remain unchanged from 9:00 AM to 5:00 PM, while contact hours for Accounting, Purchasing, and RMA remain unchanged in general.
To gain full access to our webshop, find our entire product range and see our prices, you need to be logged in.
Log in to your account here or sign up as a customer here.
StarTech.com Seriel adapter PCI Express x1 921.6Kbps
Startech 2-port PCI Express RS232 Serial Adapter Card, PCIe RS232 Serial Host Controller Card, PCIe to Dual Serial DB9 COM Port Card, 16950 UART, Expansion Card, Windows, macOS, Linux - Full/Low-Profile (PEX2S953) - Seriel adapter - PCI Express x1 - RS-232 x 2
Specifications
Full specifications
|
General
|
|
|---|---|
|
Device Type
|
Serial adapter
|
|
Form Factor
|
Plug-in card
|
|
Interface (Bus) Type
|
PCI Express x1
|
|
PCI Specification Revision
|
PCIe 1.1
|
|
Networking
|
|
|
Connectivity Technology
|
Wired
|
|
Data Link Protocol
|
RS-232
|
|
Data Transfer Rate
|
921.6 Kbps
|
|
Features
|
Full duplex mode, 256-byte FIFO
|
|
Ports
|
RS-232 x 2
|
|
Processor / Memory
|
|
|
Processor
|
ASIX AX99100
|
|
Expansion / Connectivity
|
|
|
Interfaces
|
2 x RS-232 - 9 pin D-Sub (DB-9) | 1 x SATA power - 15 pin Serial ATA power (internal)
|
|
Miscellaneous
|
|
|
Compliant Standards
|
WHQL, FCC, RoHS, WEEE
|
|
Included Accessories
|
2 x low-profile bracket
|
|
Software / System Requirements
|
|
|
OS Required
|
Microsoft Windows Server 2003, Microsoft Windows Server 2008 R2, Microsoft Windows Server 2012, Microsoft Windows Server 2012 R2, Microsoft Windows 7 / 8 / 8.1 / 10, Microsoft Windows Server 2016, Linux 2.4.x - 2.6.x LTS versions only
|
|
Dimensions & Weight
|
|
|
Depth
|
7.5 cm
|
|
Dimensions & Weight (Shipping)
|
|
|
Shipping Weight
|
146.4 g
|
|
Manufacturer Warranty
|
|
|
Service & Support
|
Limited warranty - lifetime
|
|
Environmental Parameters
|
|
|
Humidity Range Operating
|
5 - 85%
|
|
Max Operating Temperature
|
80 °C
|
|
Min Operating Temperature
|
-10 °C
|
Media
.jpg)
.jpg)
.jpg)
.jpg)
.jpg)
.jpg)

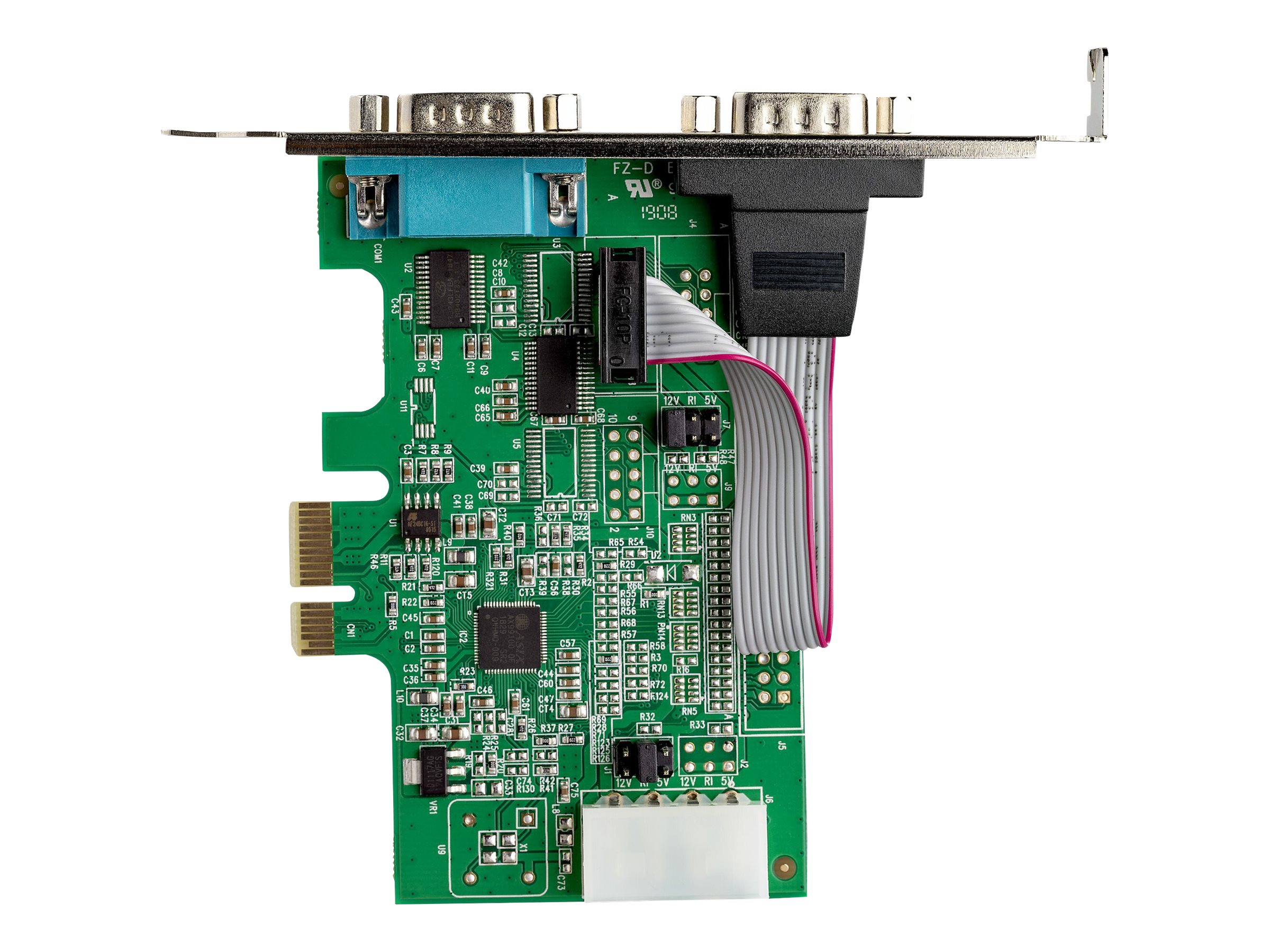

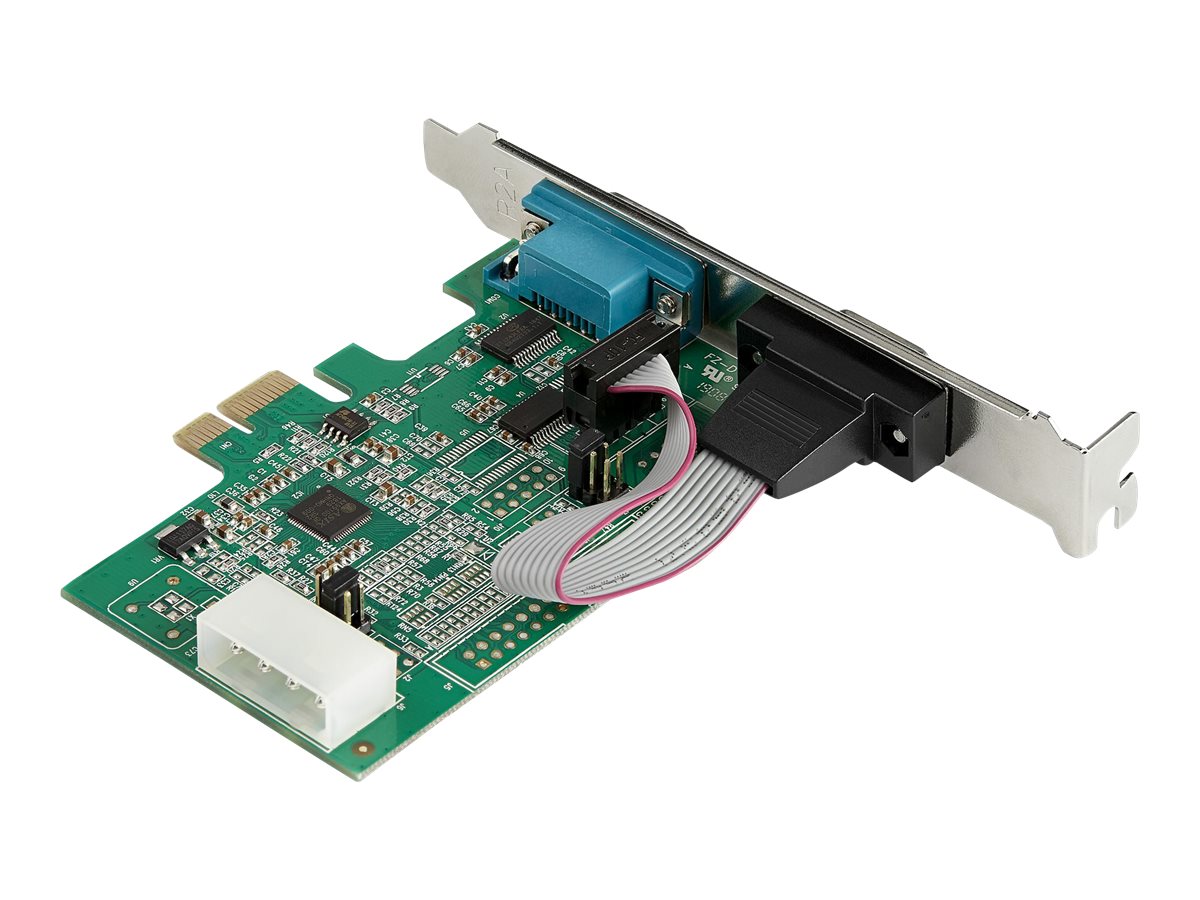

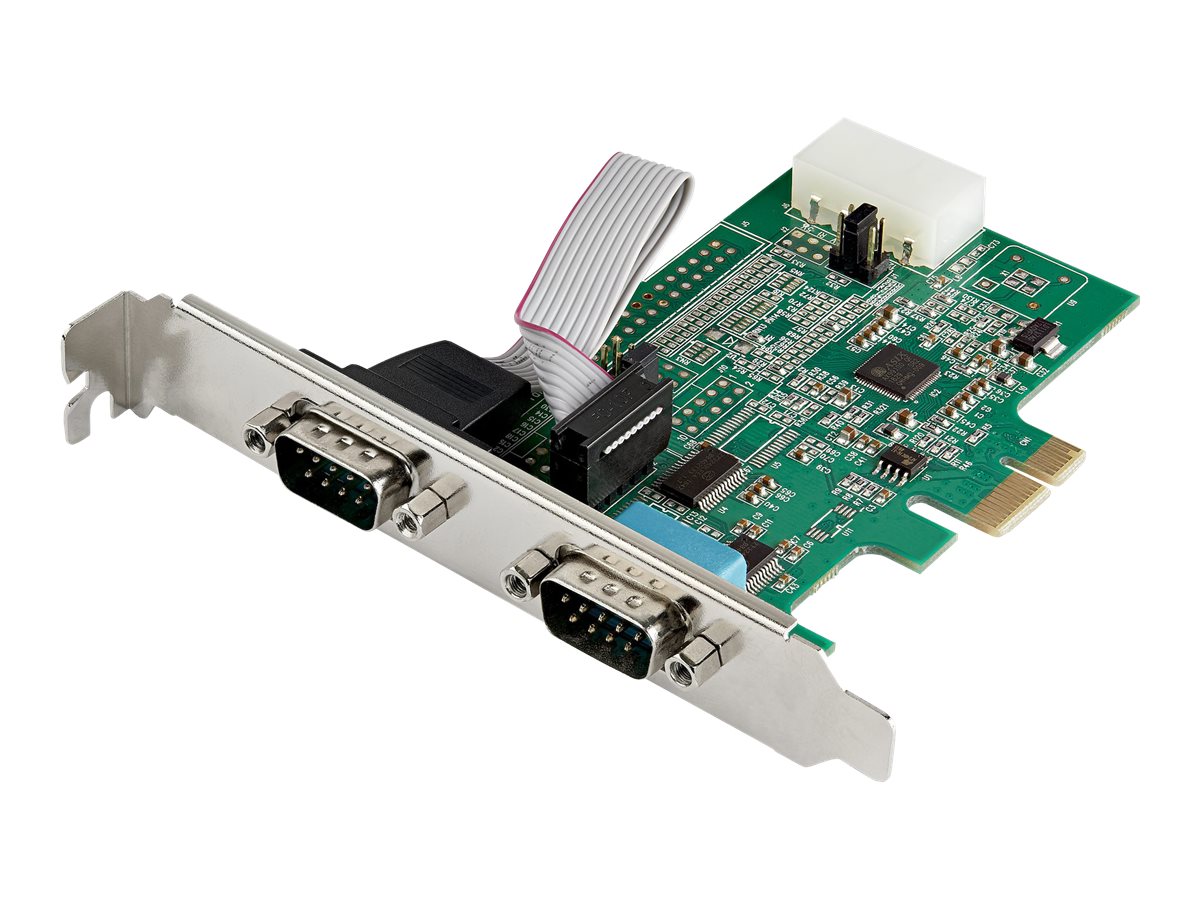

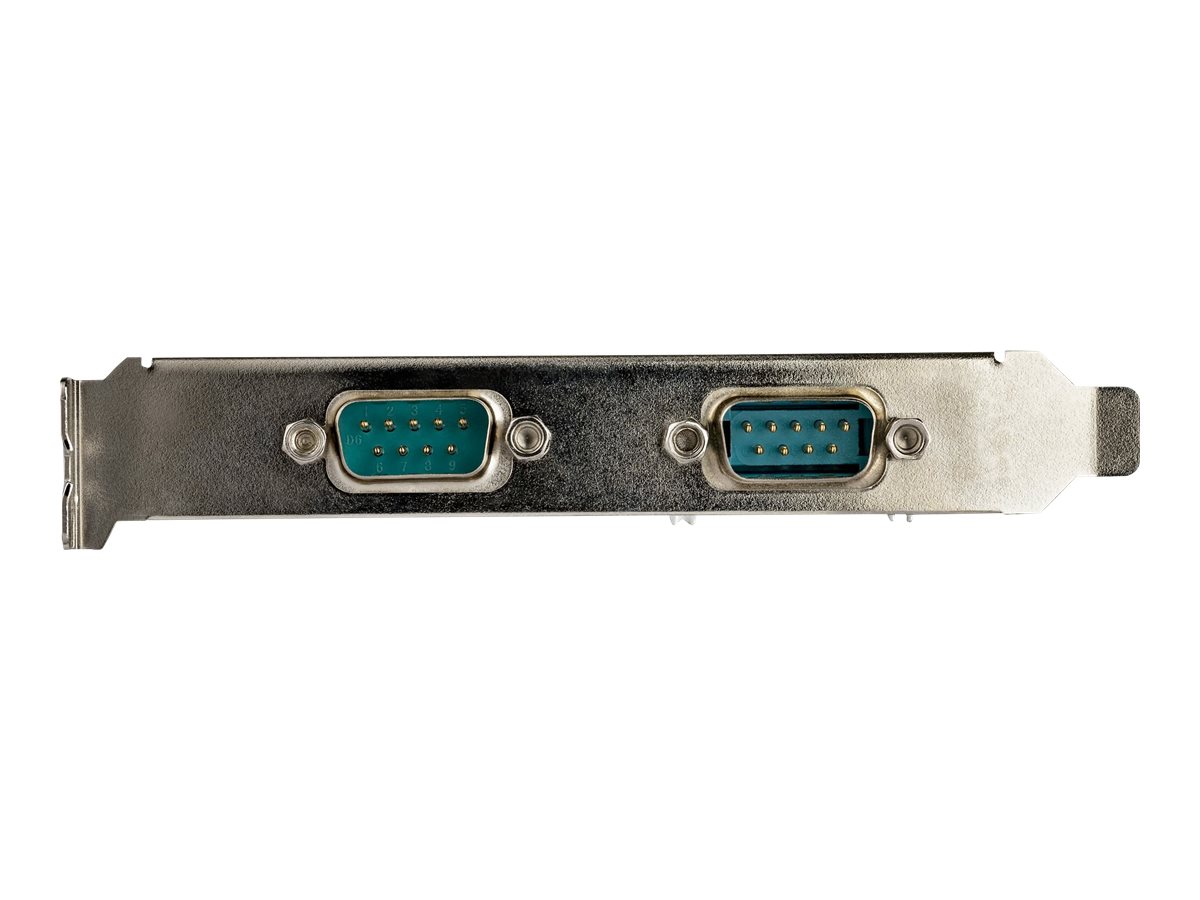

This multiport PCI Express RS232 serial adapter card lets you add two RS232 (DB9) serial ports to your computer through a PCI Express (PCIe) slot, as if they were native serial ports. The dual port PCIe serial card enables you to interact with serial devices, such as card readers, printers, PIN pads, and modems, at speeds of up to 921.6 Kbps.
Maximum Compatibility
With broad OS support, including for Windows and Linux, this 2 port PCI E serial card is easy to integrate into mixed environments. The card comes pre-configured with a full-profile bracket, and includes optional low-profile brackets, so installation is easy regardless of the case form factor. This card is a direct replacement for PEX2S952.
Experience Optimal Technology
This PCIe to serial adapter supports the following features:
- Industry standard 16950 UART compatible
- Supports max baud rate of up-to 921.6 Kbps
- Provides 5/12V power output on Pin 9 when external power is connected
- 256-byte depth FIFO cache per transmitter and receiver
- Supports 9, 8, 7, 6, 5 data bits (one per port)
- Asix AX99100 chipset
- Base PCI Express 1.1 compliant

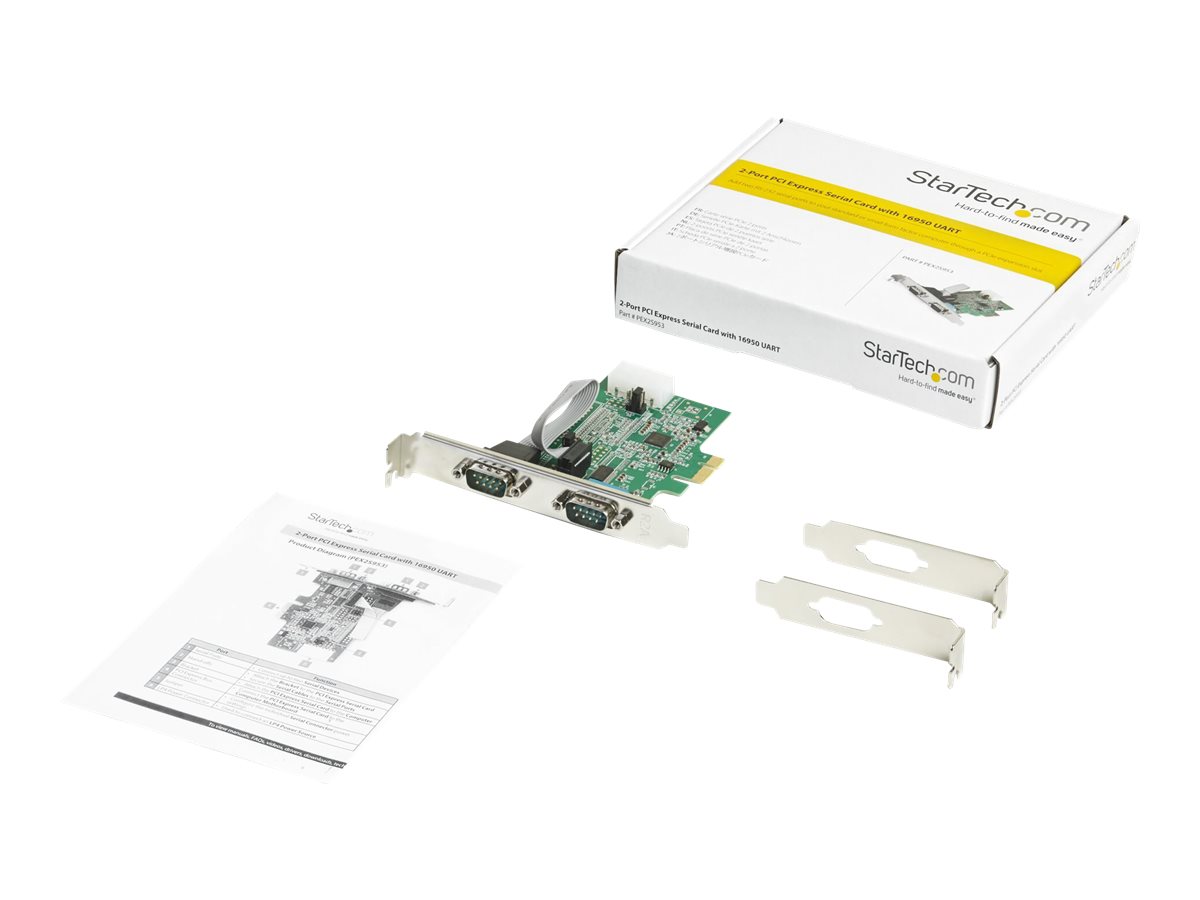

- Low and full-profile brackets included
The Choice of IT Pros Since 1985
StarTech.com conducts thorough compatibility and performance testing on all our products to ensure we are meeting or exceeding industry standards and providing high-quality products to IT Professionals. Our local StarTech.com Technical Advisors have broad product expertise and work directly with our StarTech.com Engineers to provide support for our customers both pre and post-sales.
PEX2S953 is backed by a StarTech.com lifetime warranty and free lifetime technical support.
