Produktbeskrivelse
|
Startech 8-Port PCI Express RS232 Serial Adapter Card, PCIe RS232 Serial Card, 16C1050 UART, Low Profile Serial DB9 Controller/Expansion Card, 15kV ESD Protection, Windows/Linux - Full Profile Bracket Incl - seriel adapter - PCIe - RS-232 x 8 - TAA-kompatibel
|
|
Enhedstype
|
Seriel adapter
|
|
Model
|
Indstikskort - lavprofil
|
|
Grænseflade (bus) type
|
PCI Express
|
|
Porte
|
RS-232 x 8
|
|
Dimensioner (B x D x H)
|
6.7 cm x 14.3 cm x 2 cm
|
|
Vægt
|
120 g
|
|
Kabeltype
|
Seriel RS-232
|
|
Processor
|
ASMedia ASM1083
|
|
Farve
|
Gul
|
|
Systemkrav
|
Microsoft Windows 98 Second Edition / Windows 2000, Microsoft Windows Server 2003, Microsoft Windows CE 5.0, Microsoft Windows Server 2008 R2, Microsoft Windows Server 2012, Microsoft Windows XP / 7 / 8.1 / 10, Microsoft Windows Server 2016, Linux 2.4.x to 4.11.x LTS versions only, Microsoft Windows Server 2019
|
|
TAA kompatibel
|
Ja
|
|
Producentgaranti
|
Begrænset livtidsgaranti
|
We are continuously resolving any minor issues that may arise. Thank you for your patience.
To gain full access to our webshop, find our entire product range and see our prices, you need to be logged in.
Log in to your account here or sign up as a customer here.
StarTech.com Seriel adapter PCI Express
Startech 8-Port PCI Express RS232 Serial Adapter Card, PCIe RS232 Serial Card, 16C1050 UART, Low Profile Serial DB9 Controller/Expansion Card, 15kV ESD Protection, Windows/Linux - Full Profile Bracket Incl - Seriel adapter - PCIe lavprofil - RS-232 x 8 - gul - TAA-kompatibel
Specifications
Full specifications
|
General
|
|
|---|---|
|
Device Type
|
Serial adapter
|
|
Form Factor
|
Plug-in card - low profile
|
|
Interface (Bus) Type
|
PCI Express
|
|
Networking
|
|
|
Cabling Type
|
Serial RS-232
|
|
Connectivity Technology
|
Wired
|
|
Features
|
16550 UART support, 256-byte FIFO
|
|
Ports
|
RS-232 x 8
|
|
Processor / Memory
|
|
|
Processor
|
ASMedia ASM1083
|
|
Expansion / Connectivity
|
|
|
Interfaces
|
8 x RS-232 - 9 pin D-Sub (DB-9)
|
|
Miscellaneous
|
|
|
Color
|
Yellow
|
|
Compliant Standards
|
FCC, RoHS, WEEE, REACH
|
|
Included Accessories
|
Full-height bracket
|
|
TAA Compliant
|
Yes
|
|
Software / System Requirements
|
|
|
OS Required
|
Microsoft Windows 98 Second Edition / Windows 2000, Microsoft Windows Server 2003, Microsoft Windows CE 5.0, Microsoft Windows Server 2008 R2, Microsoft Windows Server 2012, Microsoft Windows XP / 7 / 8.1 / 10, Microsoft Windows Server 2016, Linux 2.
|
|
Dimensions & Weight
|
|
|
Depth
|
14.3 cm
|
|
Height
|
2 cm
|
|
Weight
|
120 g
|
|
Width
|
6.7 cm
|
|
Dimensions & Weight (Shipping)
|
|
|
Shipping Depth
|
19.2 cm
|
|
Shipping Height
|
7 cm
|
|
Shipping Weight
|
700 g
|
|
Shipping Width
|
29 cm
|
|
Manufacturer Warranty
|
|
|
Service & Support
|
Limited warranty - lifetime
|
|
Environmental Parameters
|
|
|
Humidity Range Operating
|
5 - 95%
|
|
Max Operating Temperature
|
55 °C
|
|
Min Operating Temperature
|
0 °C
|
Media
.jpg)
.jpg)
.jpg)
.jpg)
.jpg)
.jpg)
.jpg)

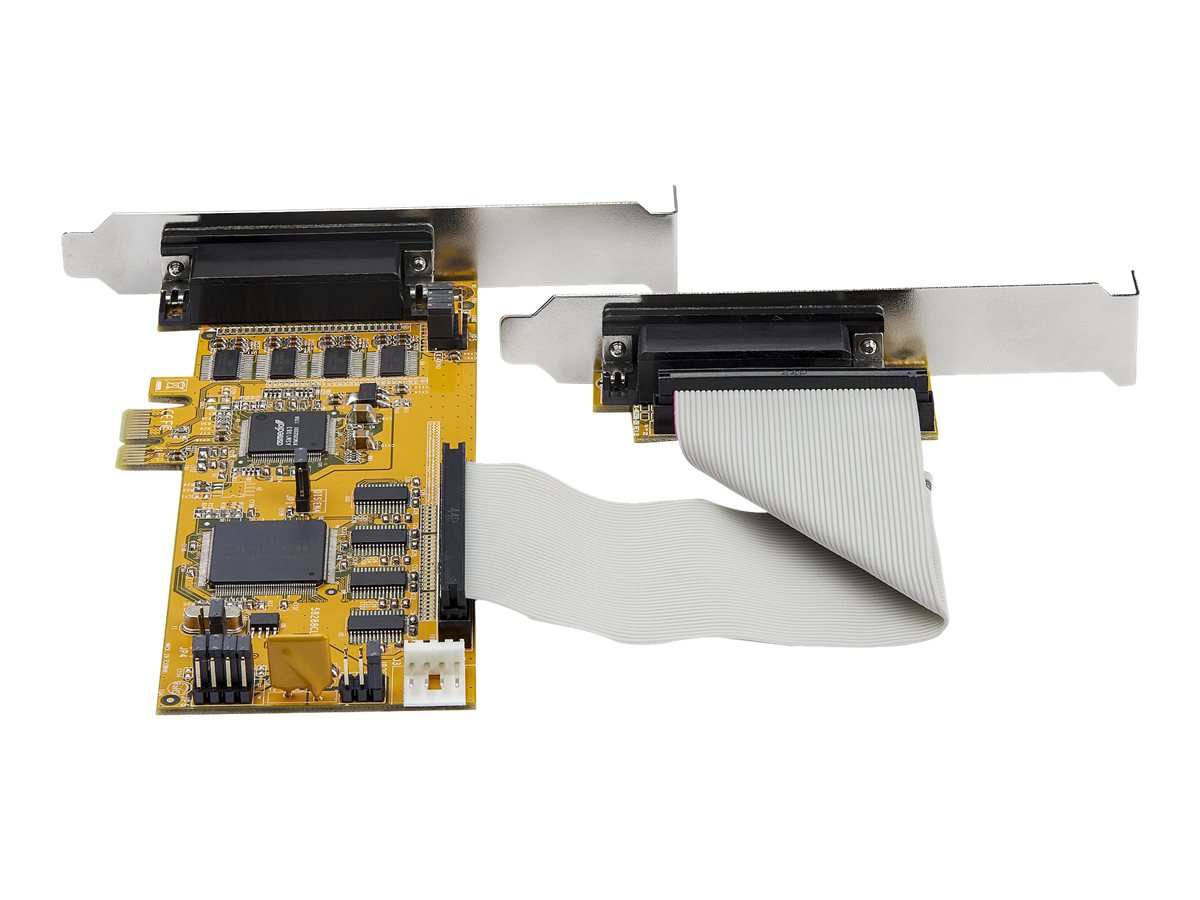

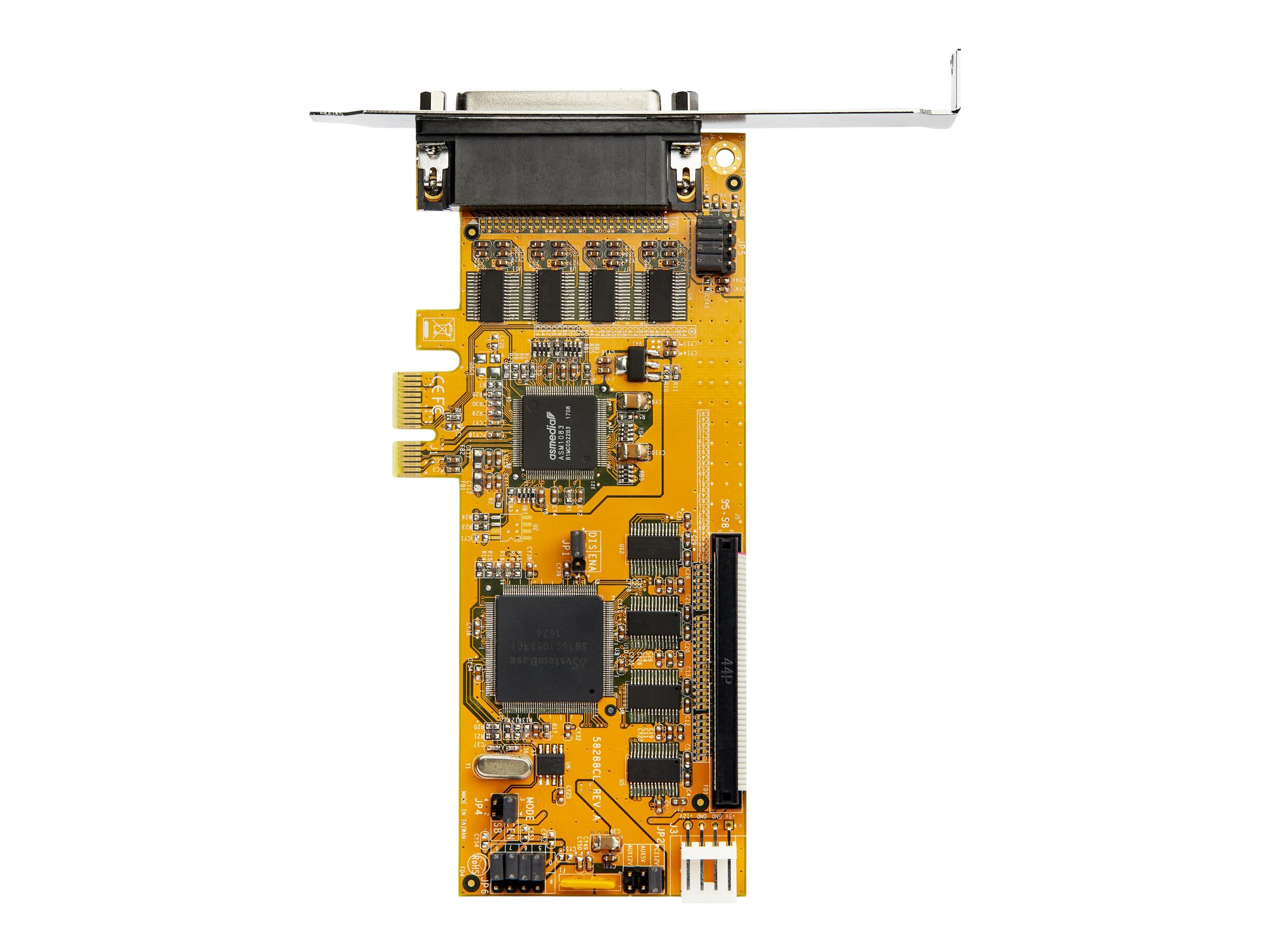

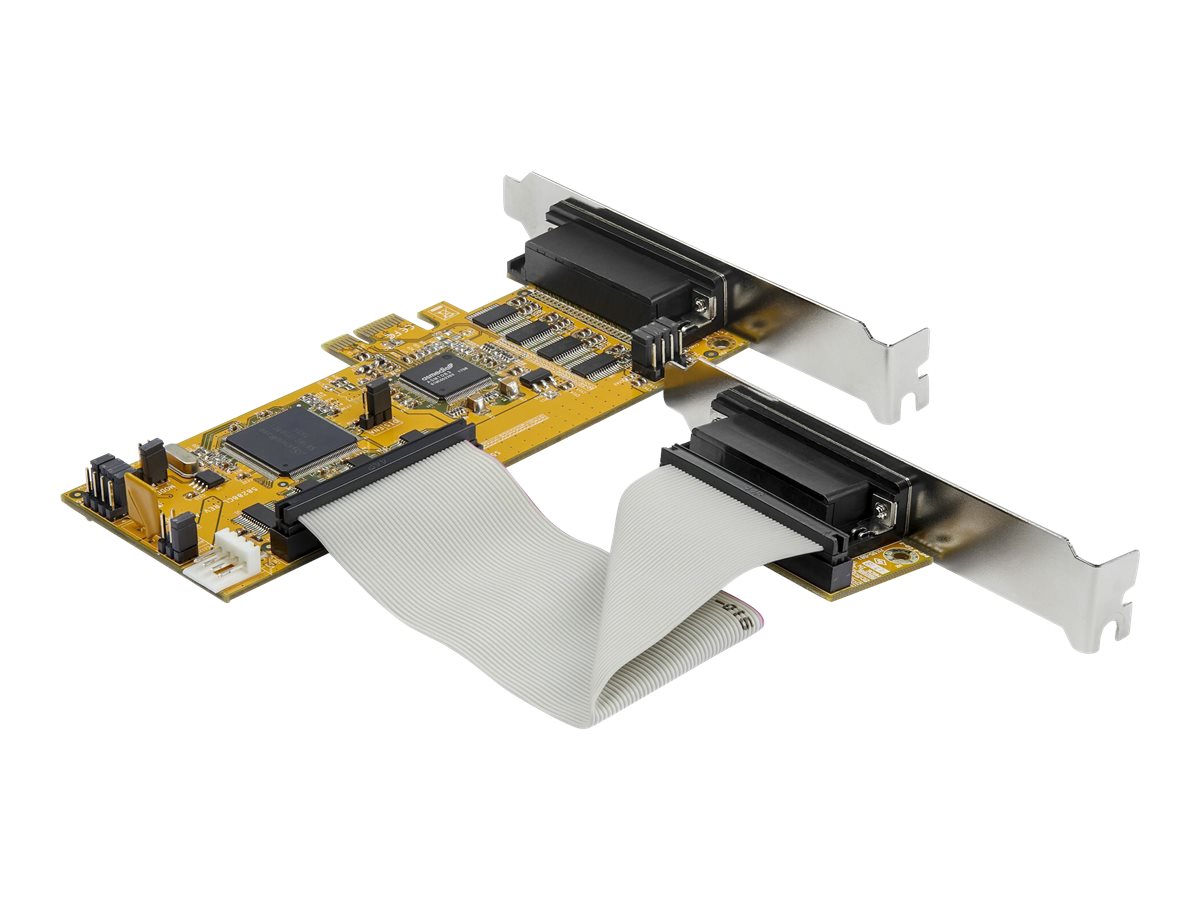

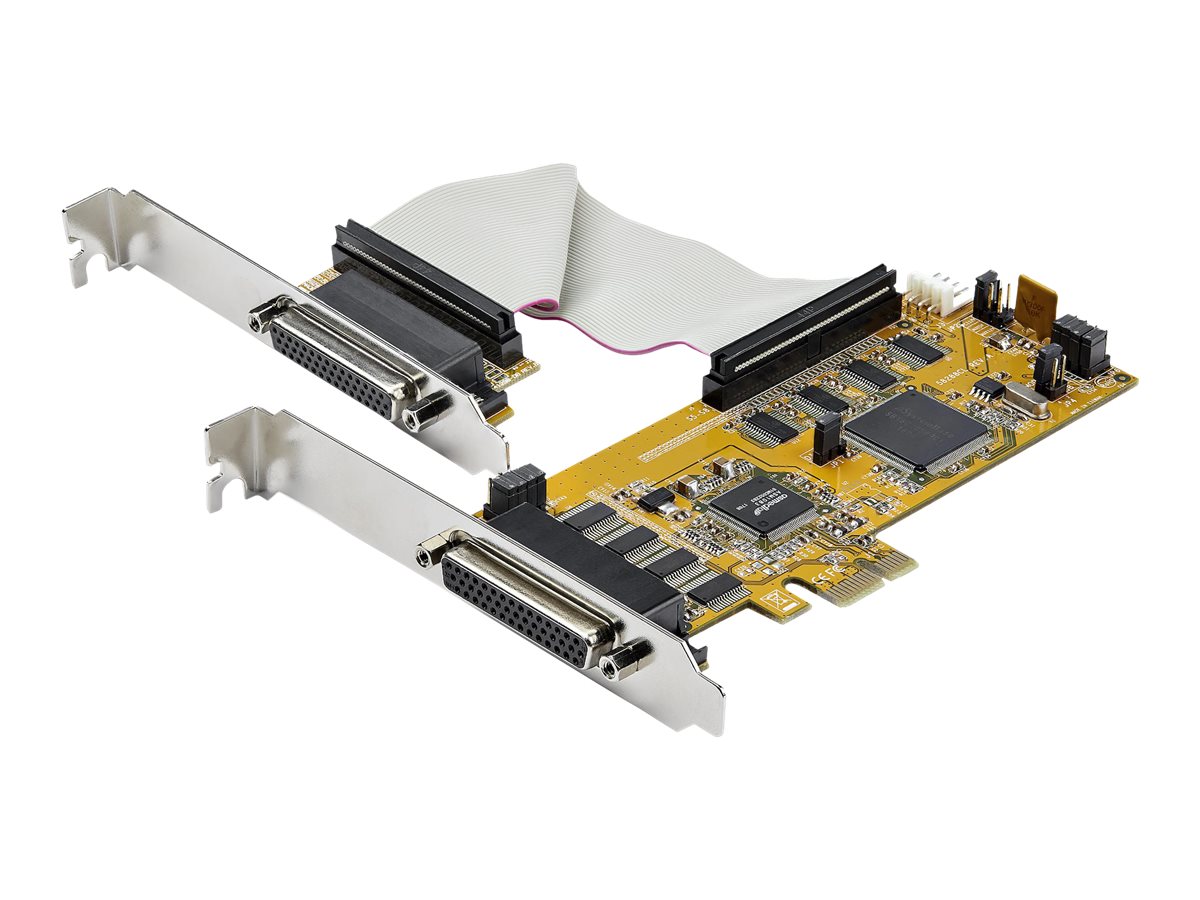

Add eight RS-232 DB9 serial ports to your desktop computer, through two PCIe expansion card slots. This PCI express serial card, with two breakout cables, provides you with multiple ports to connect a wide variety of serial peripherals, at speeds of up to 921.4 Kbps.
Connect your Peripherals with 8 Serial Ports

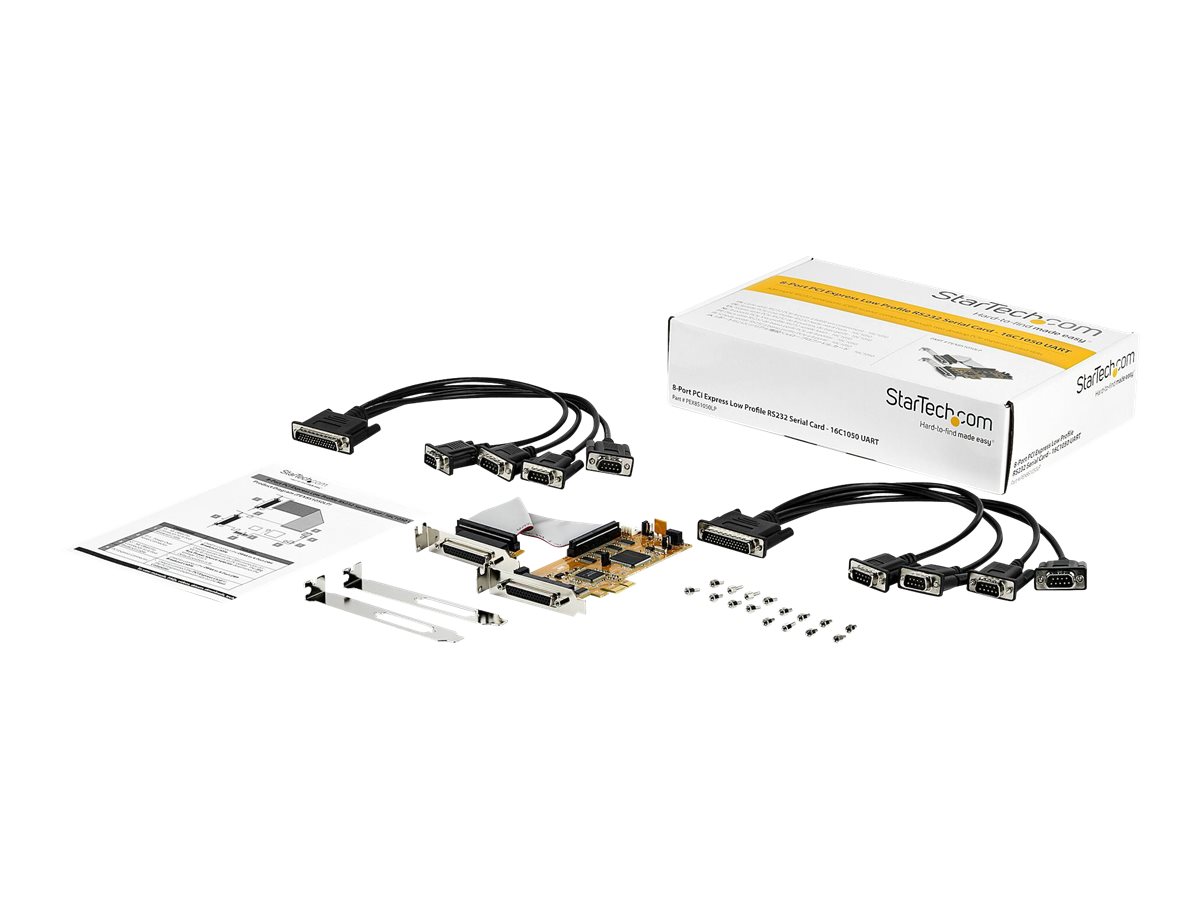

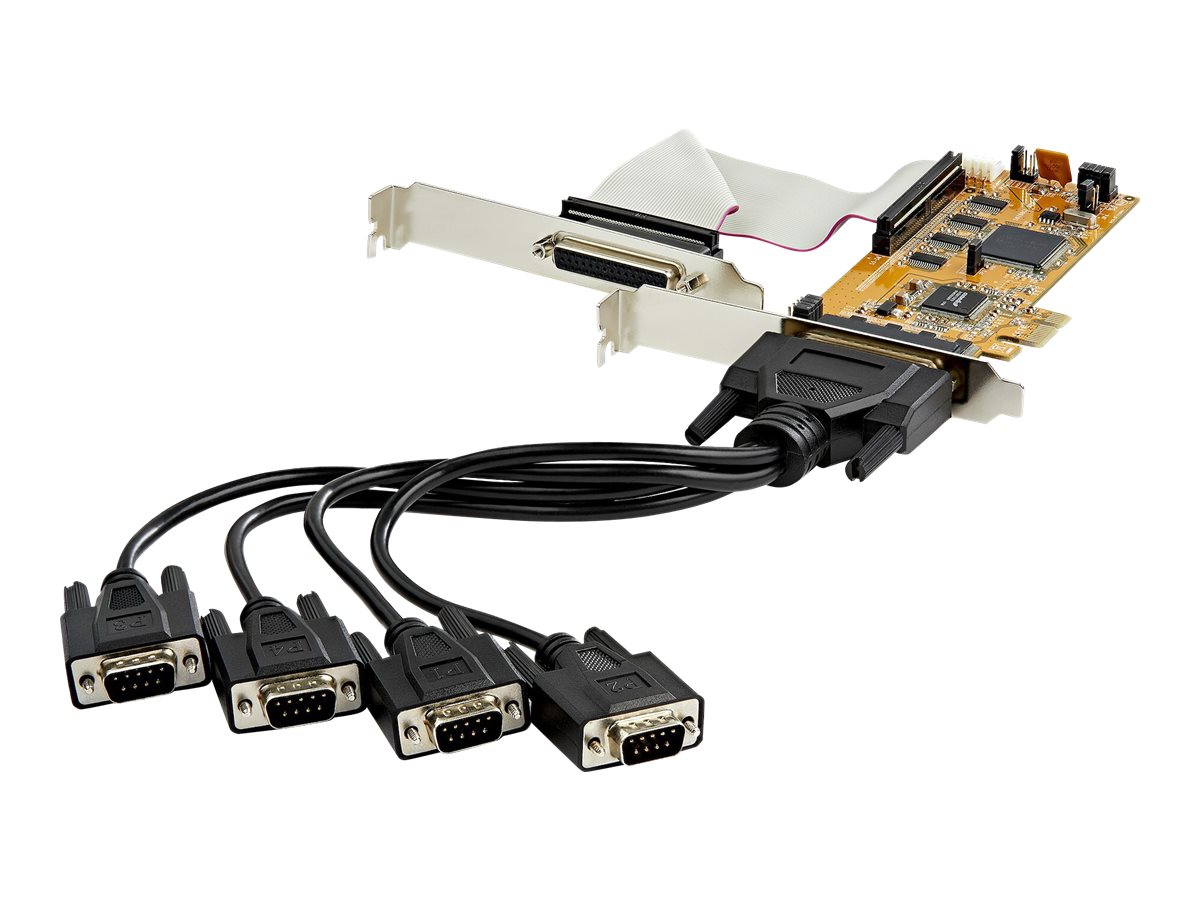

The PCI express serial port card makes it easy to add serial ports to connect your peripherals including printers, scanners, credit/debit card readers, PIN pads and modems, industrial controls and more. The 8 port PCIe serial card includes 2 breakout cables - each with 4 DB9 connectors.
Versatile Use

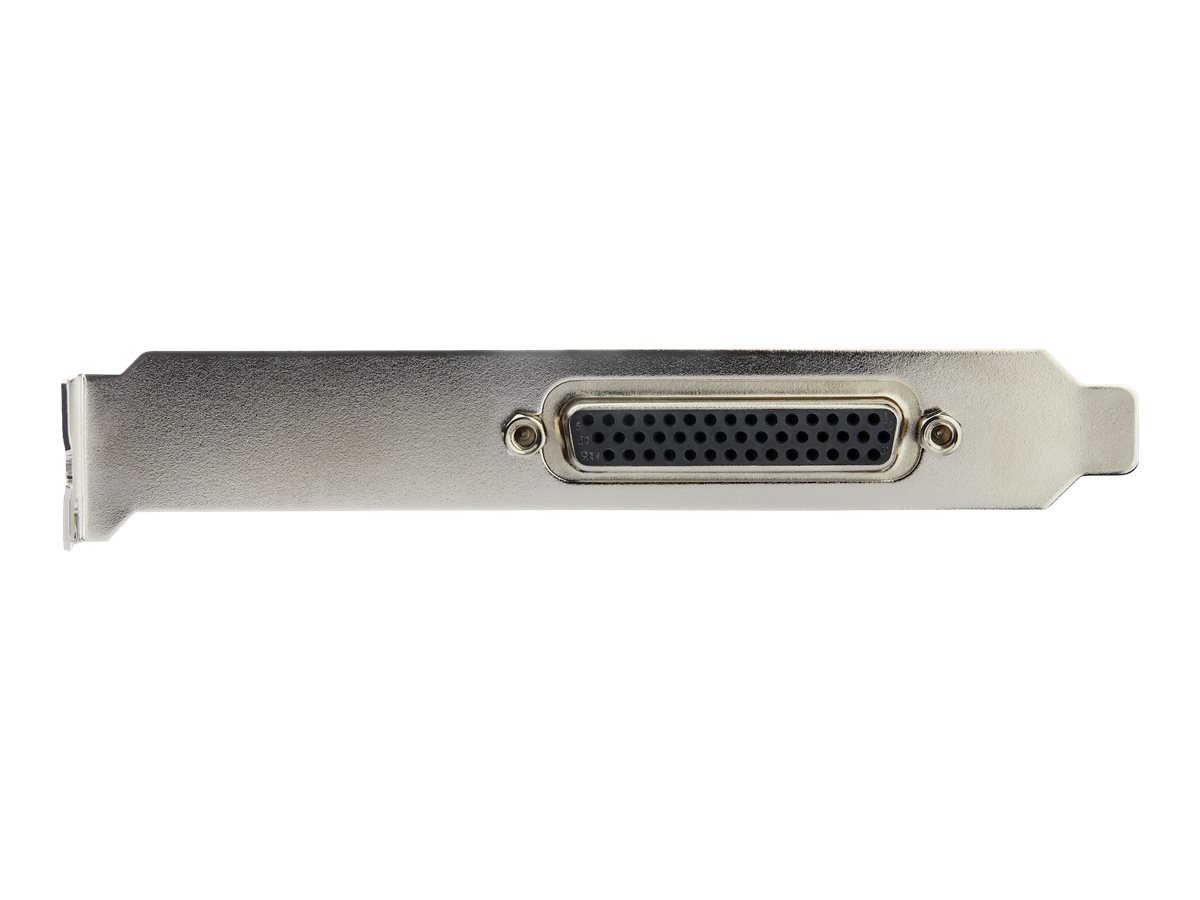

The low profile PCIe serial card is the ideal choice for adding serial ports, even when space is at a premium. The DB9 serial card is designed to fit into small form factor and standard computer cases. The card comes pre-configured with a low-profile bracket, and includes two optional full-profile brackets, so installation is easy regardless of the case form factor.
Maximum Compatibility
With broad OS support, including for Windows and Linux, this PCI Express card is easy to integrate into mixed environments.
PEX8S1050LP is backed by a StarTech.com lifetime warranty and free lifetime technical support.
