StarTech.com Ramme Sort

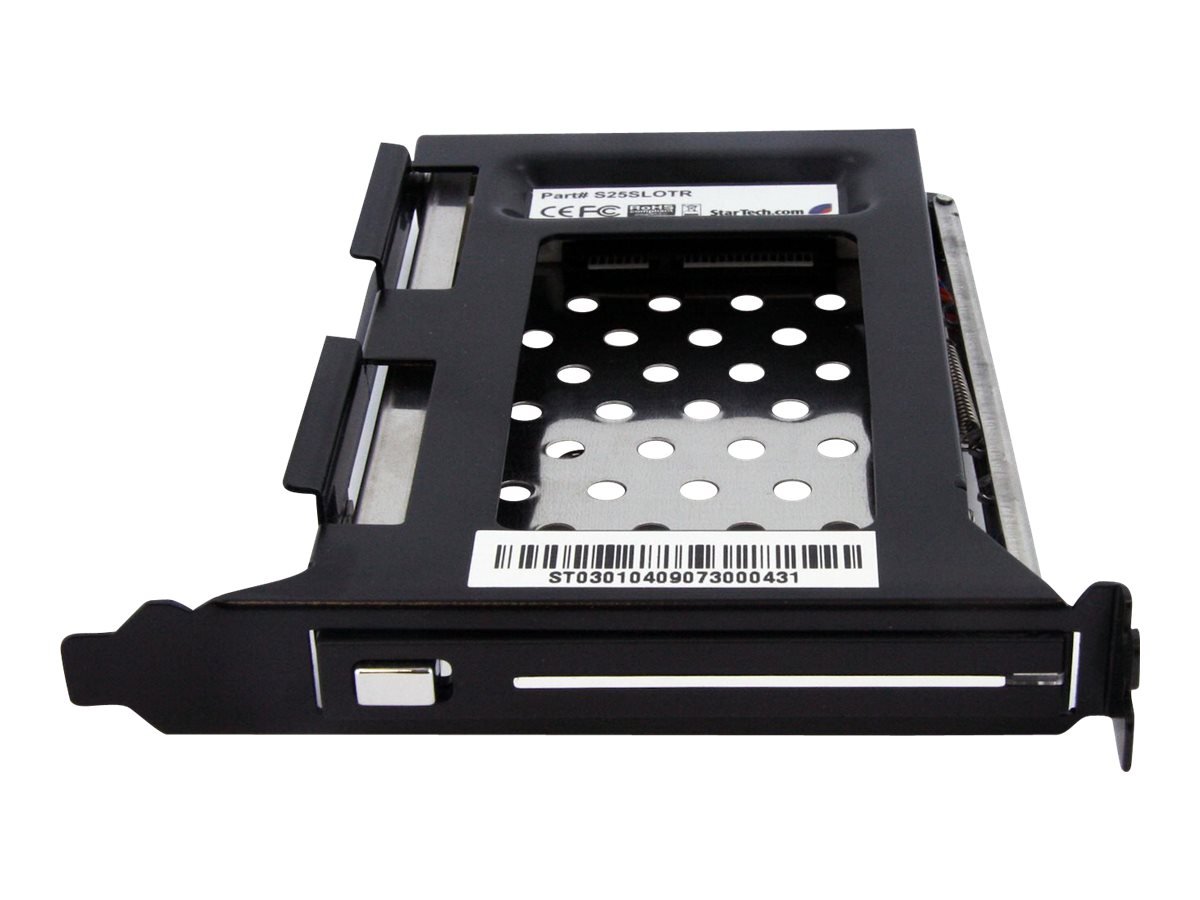

Startech 2.5in SATA Removable Hard Drive Bay for PC Expansion Slot - Storage bay adapter - black - S25SLOTR - Ramme - sort

Varenummer: 988492394
Model: S25SLOTR
EAN: 0065030836074
Brand:
StarTech.com
Vægt: 0.24 kg

Specifications

Produktbeskrivelse
Startech 2.5in SATA Removable Hard Drive Bay for PC Expansion Slot - Storage bay adapter - black - S25SLOTR - ramme
Enhedstype
Ramme
Farve
Sort
Udvidelses-båse
1 x hot-swap - 2.5"
Produktmateriale
Aluminium, stål
Dimensioner (B x D x H)
14.5 cm x 2.1 cm x 12 cm
Vægt
158 g
Producentgaranti
2 års garanti
Specifications

Full specifications

General
Color
Black
Device Type
Storage bay adapter
Product Material
Aluminum, steel
Expansion / Connectivity
Bays
1 x hot-swap - 2.5"
Compatible Slots
1 x PCI
Connections
1 storage - Serial ATA-300 - 22 pin Serial ATA
Interfaces
1 x SATA 3Gb/s - SATA combo
Miscellaneous

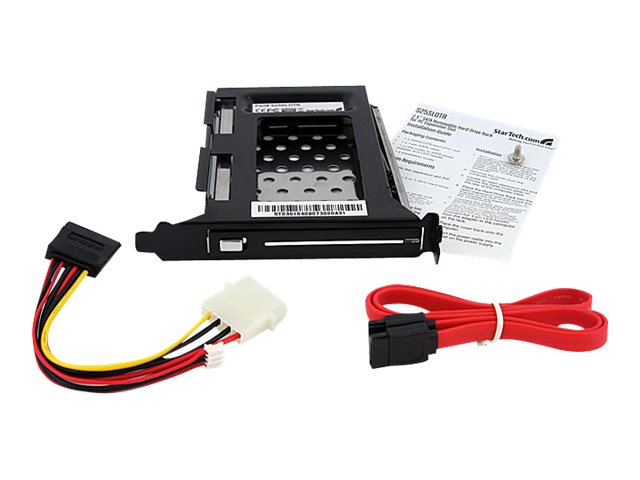

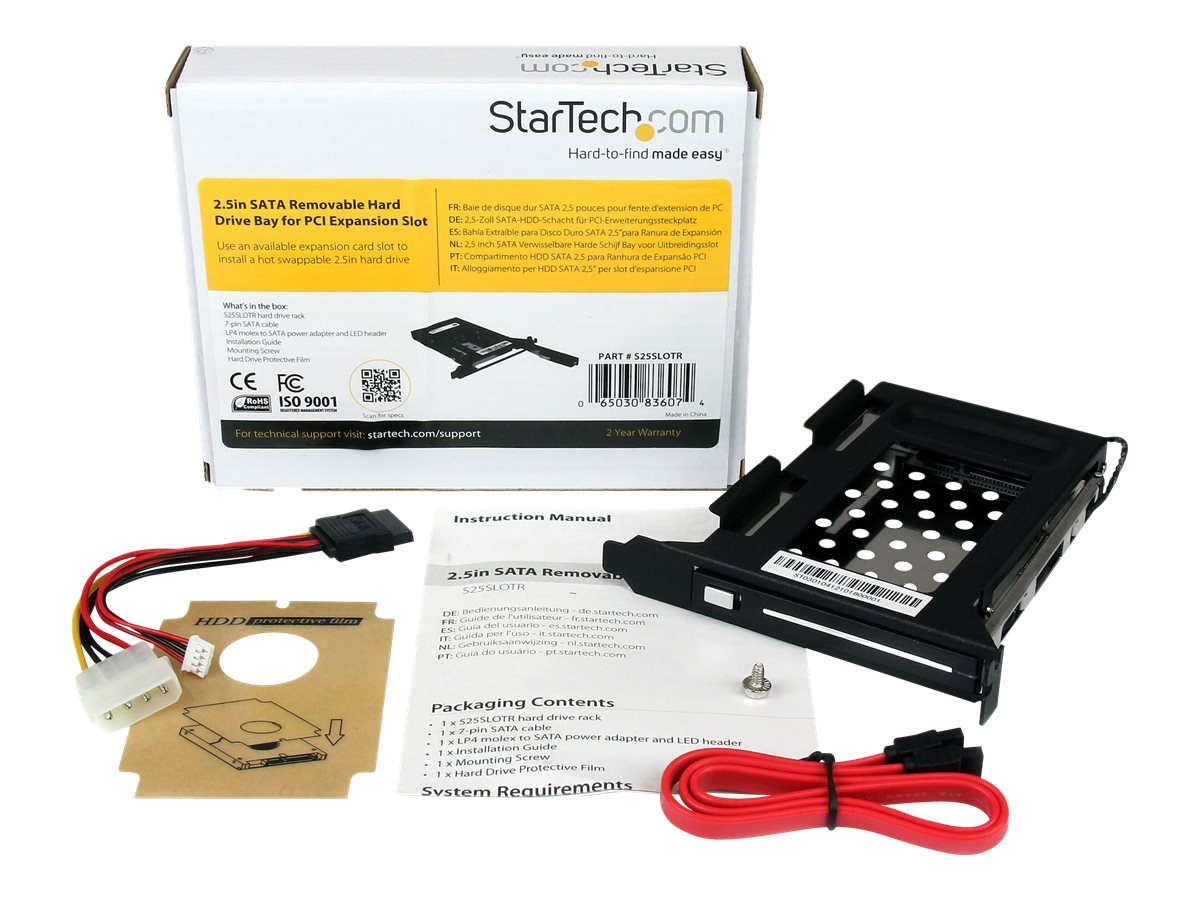

Cables Included
1 x Serial ATA cable - internal
Compliant Standards
FCC, RoHS
Manufacturer Warranty
Service & Support
Limited warranty - 2 years
Dimensions & Weight
Depth
2.1 cm
Height
12 cm
Weight
158 g
Width
14.5 cm
Environmental Parameters
Humidity Range Operating
0 - 80%
Max Operating Temperature
55 °C
Min Operating Temperature
0 °C

Media

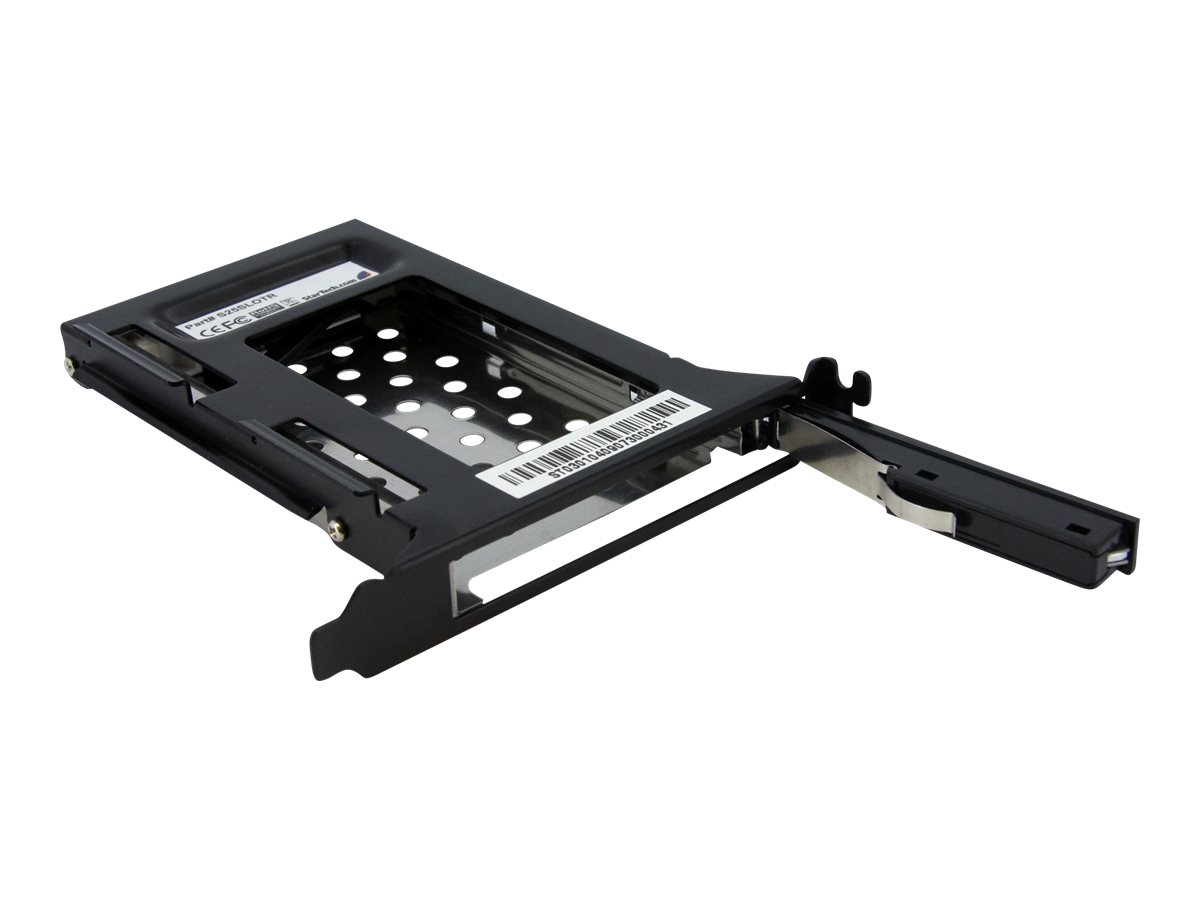

Use an available expansion card slot to install a hot swappable 2.5in hard drive

  • Fits a 2.5" SATA drive into a rear full profile expansion card slot
  • Trayless design: drive is not mounted into a tray or enclosure
  • Latching drive door
  • 50,000+ insertion rating
  • Vented aluminum and steel construction
  • Door mounted Power/Activity LED indicator
  • Support for SATA revision I/II/III (1.5/3.0/6.0 Gbps)
  • Supports 2.5" form factor SATA hard drives (HDD) and solid state drives (SSD)
  • Plug-and-Play and Hot-Swap compatible
Use an available expansion card slot to install a hot swappable 2.5in hard drive
slide {0} of {1}, zoom in, Use an available expansion card slot to install a hot swappable 2.5in hard drive
slide {0} of {1}, zoom in, Use an available expansion card slot to install a hot swappable 2.5in hard drive
slide {0} of {1}, zoom in, Use an available expansion card slot to install a hot swappable 2.5in hard drive
slide {0} of {1}, zoom in, Use an available expansion card slot to install a hot swappable 2.5in hard drive

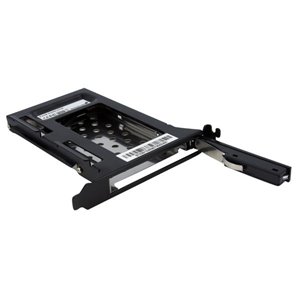

Utilize a free expansion card slot to add a removable 2.5" SATA hard drive bay

Utilize a free expansion card slot to add a removable 2.5" SATA hard drive bay

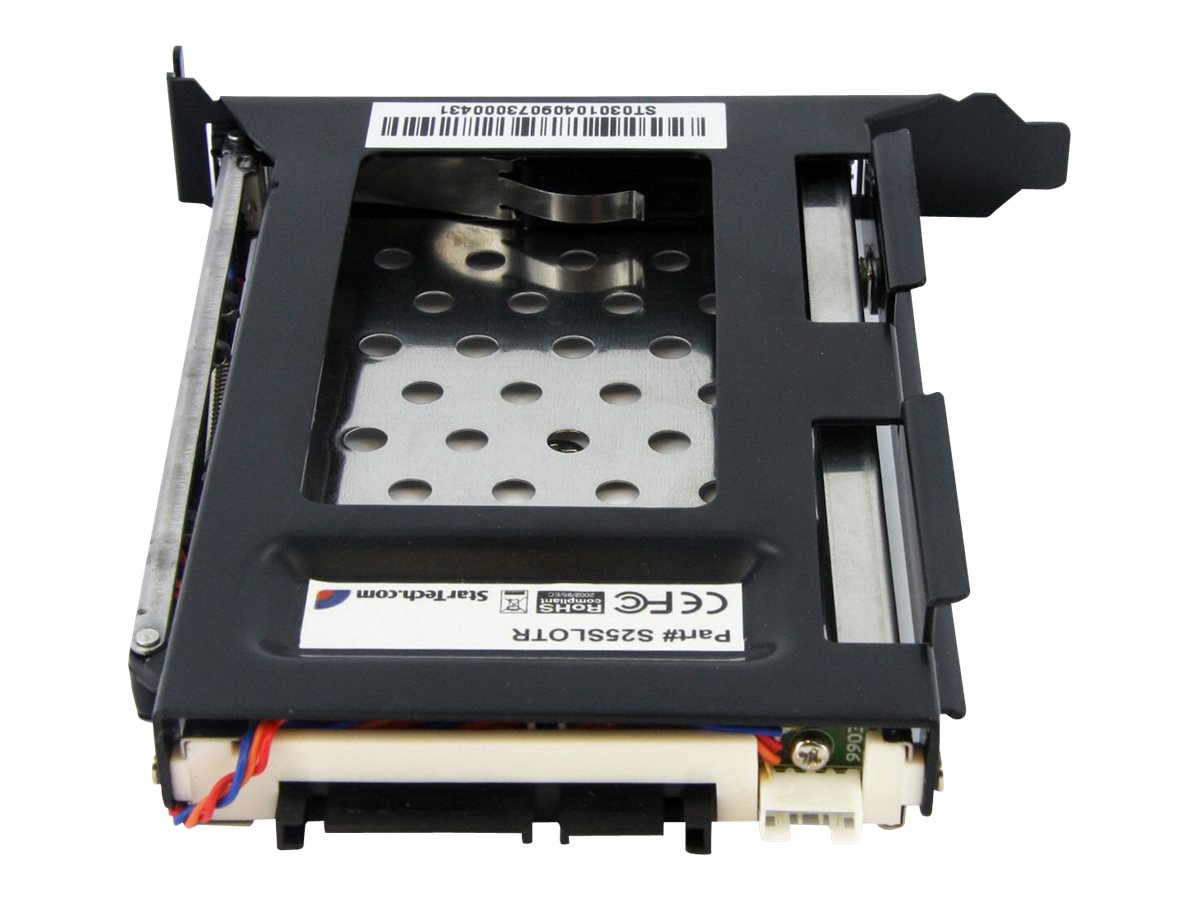

The S25SLOTR Trayless Hard Drive Rack can be installed into an available (full profile) PCI expansion card slot, providing easy access to a bare 2.5" SATA hard drive or solid state drive (SSD) from the rear panel of a computer case.

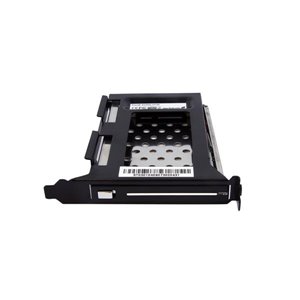

Vented aluminum/steel design and a 50,000+ insertion rating ensures reliability of the drive and drive rack

Vented aluminum/steel design and a 50,000+ insertion rating ensures reliability of the drive and drive rack

Once installed in a PCI slot (and accompanying rear panel bracket), installing a 2.5" SATA HDD is as simple as inserting it into the trayless rack. To remove the hard drive, simply hit the eject button to unlock the access door, allowing the drive to be pulled out of the computer without having to dismount the drive.

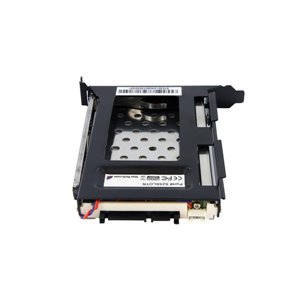

Maximize performance, with file transfer speeds up to 6Gbps when paired with SATA III HDD and controller

Maximize performance, with file transfer speeds up to 6Gbps when paired with SATA III HDD and controller

To maximize performance and utilize the full speed potential of your SATA III hard drives, this HDD Backplane supports SATA III for transfer speeds up to 6 Gbps when paired with a compatible controller.

Applications

  • Add additional storage capabilities to a computer with no more internal or external drive bays
  • Add removable storage to the rear of a system, where it is less noticeable or accessible to unauthorized users
  • Add removable storage to small form factor chassis' with no standard 3.5/5.25" drive bays
  • Add additional hot-swap bays to a server or workstation computer
  • System builders who need to image drives quickly and efficiently
  • Environments where drives need to be replaced/removed regularly, without external protection for the drives required after removal
  • Be able to replace/remove individual drives from a storage array with minimal or no system down time
