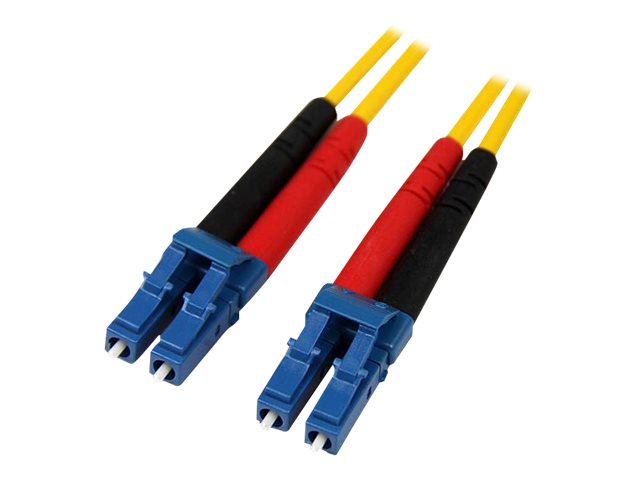

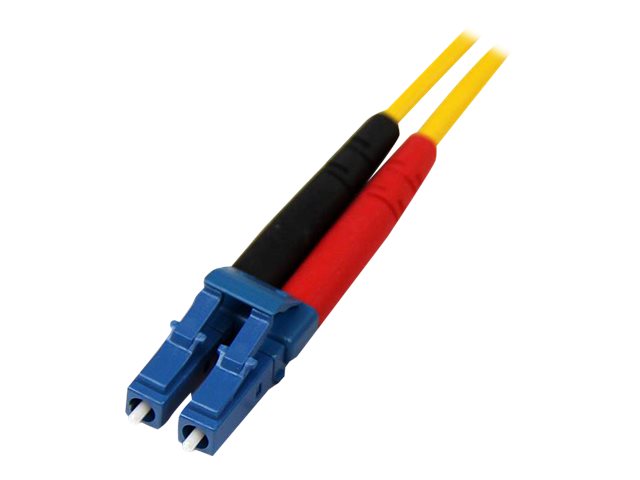

StarTech.com Patchkabel Fiberoptik OS1 4m

Startech 4m Fiber Optic Cable - Single-Mode Duplex 9/125 - LSZH - LC/LC - OS1 - LC to LC Fiber Patch Cable (SMFIBLCLC4) - Patchkabel - LC enkelttilstand (han) til LC enkelttilstand (han) - 4 m - fiberoptik - duplex - 9 / 125 micron - OS1 - formet - gul - for P/N: SFP100BBXDST, SFP100BBXUST, SFP10GBBXDST, SFP10GBBXUST, SFP10GBLRST, SFP10GBZRST

Varenummer: 988493404
Model: SMFIBLCLC4
EAN: 0065030853026
Brand:
StarTech.com
Vægt: 0.07 kg

Specifications

Produktbeskrivelse
Startech 4m Fiber Optic Cable - Single-Mode Duplex 9/125 - LSZH - LC/LC - OS1 - LC to LC Fiber Patch Cable (SMFIBLCLC4) - patchkabel - 4 m - gul
Type
Patchkabel - OS1
Teknologi
Duplex fiberoptik
Egenskaber
Formet
Kabel længde
4 m
Længde
4 m.
Diameter af kore / belægning
9 / 125 micron
Forbindelsesled
2 x LC enkelttilstand - han
Stikforbindelse (anden ende)
2 x LC enkelttilstand - han
Farve
Gul
Producentgaranti
Begrænset livtidsgaranti
Designet for
P/N: GLCEXSMDST, GLCLHSMDSTTA, GLCLXSMRGDST, GLCZXSMRGDST, JD119BST, MASFP1GBLX10, QSFP40GLR4S, QSFP40GLR4ST, QSFP40LR4ST, QSFP40SR4ST, SFP100BBXDST, SFP100BBXUST, SFP100BEXST, SFP100BLHST, SFP100BLXST, SFP100BZXST, SFP10GBBXDST, SFP10GBBXUST, SFP10GBERST, SFP10GBLRST, SFP10GBZRST, SFP1GELXST
Specifications

Full specifications

General
Color
Yellow
Core / Cladding Diameter
9 / 125 micron
Features
Molded
Jacket Material
Low Smoke Zero Halogen (LSZH)
Length
4 m
Network Cable Type
Patch cable - OS1
Technology
Duplex fiber optic
Connectivity
Connector
2 x LC single-mode - male
Connector (Second End)
2 x LC single-mode - male
Miscellaneous
Compliant Standards
RoHS
Manufacturer Warranty
Service & Support
Limited lifetime warranty
Compatibility Information
Designed For
P/N: ET91000SM10, ET91000SM20, EXSFP1GELXST, GLCEXSMDST, GLCLHSM10PST, GLCLHSMD10ST, GLCLHSMDST, GLCLHSMDSTTA, GLCLXSMRGDST, GLCZXSMRGDST, J4859C10PKST, J4859CST, JD119BST, MASFP1GBLX10, QSFP40GLR4S, QSFP40GLR4ST, QSFP40LR4ST, QSFP40SR4ST, SFP100BBXD

Media

Connect fiber network devices for high-speed transfers with LSZH rated cable

  • 2x LC SM male connectors
  • OS1 (9/125)
  • LSZH (Low-Smoke, Zero-Halogen) cable jacket
  • Attenuation loss meets or exceeds industry standards
  • Molded connectors

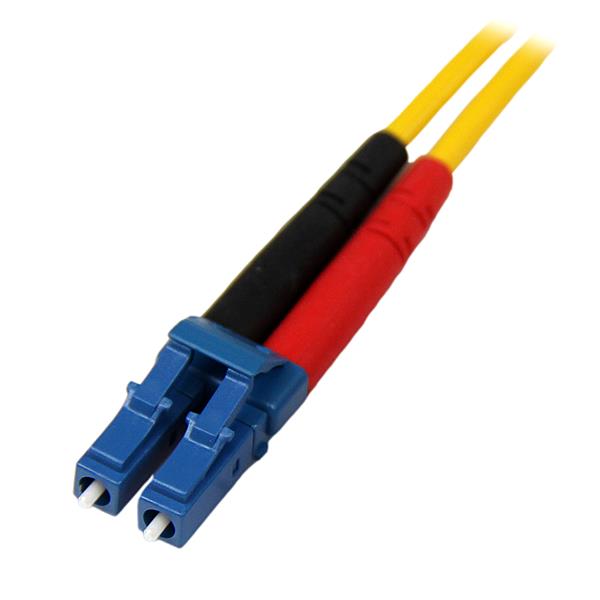

Connect fiber network devices for high-speed transfers with LSZH rated cable
slide {0} of {1}, zoom in, Connect fiber network devices for high-speed transfers with LSZH rated cable
slide {0} of {1}, zoom in, Connect fiber network devices for high-speed transfers with LSZH rated cable
Connect fiber network devices for high-speed transfers with LSZH rated cable

Support for duplex single-mode applications.

The SMFIBLCLC4 4m LC to LC Single-Mode Duplex Fiber Cable features 9/125 micron fiber for high-speed, high bandwidth data transmissions over Gigabit Ethernet and Fiber Channel networks, with support for duplex single-mode applications.

Suitable for installations under restrictive building codes, with LSZH rating

This LC-LC patch cable is housed in a LSZH (Low-Smoke, Zero-Halogen) flame retardant jacket, to ensure minimal smoke, toxicity and corrosion when exposed to high sources of heat, in the event of a fire – an ideal solution for use in industrial settings, central offices and schools, as well as residential settings where building codes are a consideration.

Guaranteed reliability

Each Duplex 9/125 (OS1) Single-Mode Fiber Patch Cable is individually tested and certified to be within acceptable optical insertion loss limits for guaranteed compatibility and 100% reliability, and is backed by StarTech.com lifetime warranty.

Applications

  • Use in Gigabit Ethernet and Fiber Channel applications
  • Ideal solution for data applications requiring high speed data transmission
  • Broadband systems
  • Telecommunication/Data communication
  • Fiber Connections in Patch Panels, Hubs, Switches, Routers
