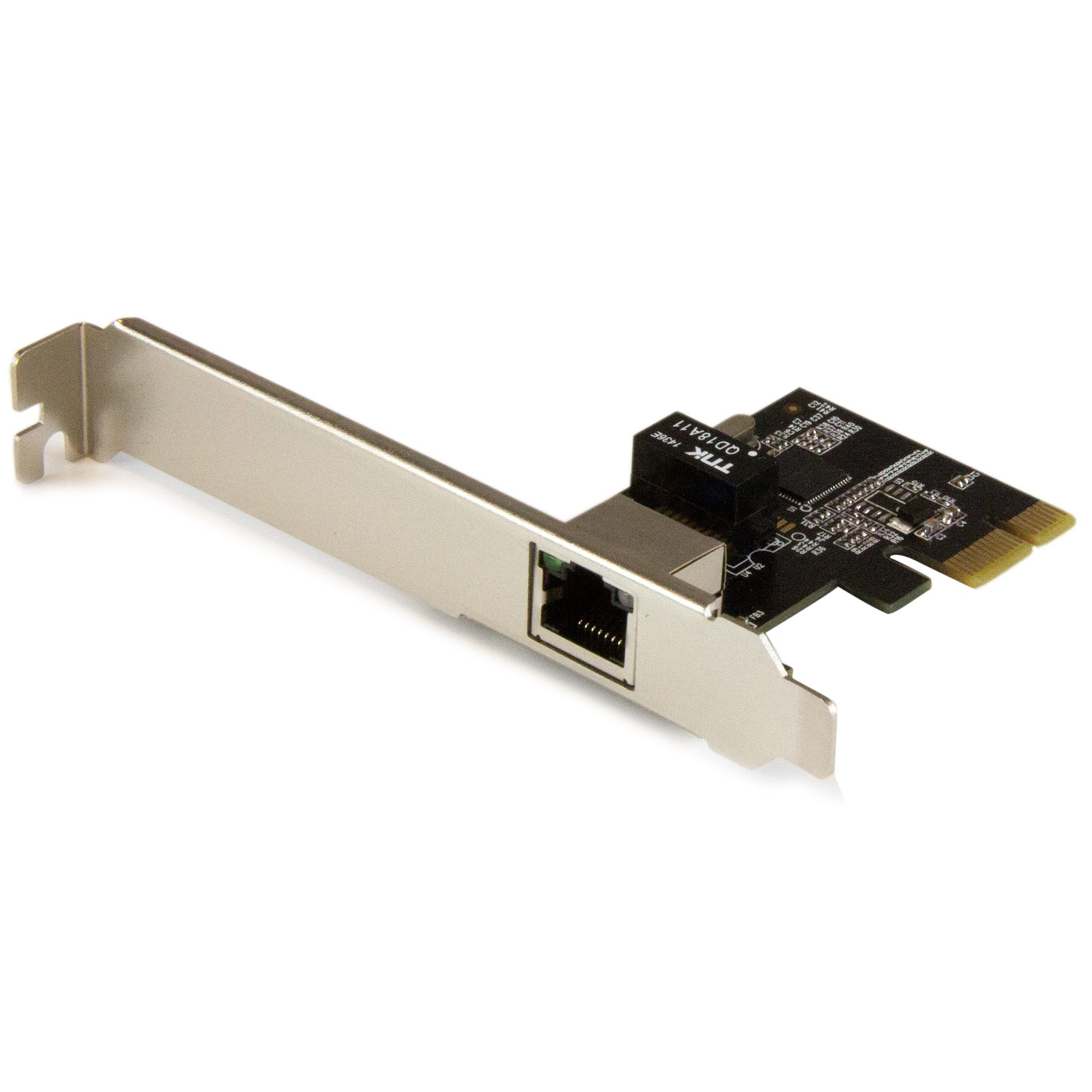

StarTech.com Netværksadapter PCI Express x1 1Gbps

StarTech.com 1-Port Gigabit Ethernet Network Card - PCI Express, Intel I210 NIC - Single Port PCIe Network Adapter Card with Intel Chipset (ST1000SPEXI) - Netværksadapter - PCIe lavprofil - 1GbE - 1000Base-T - sort

  • Product no 989866303

    Model ST1000SPEXI

    Brand StarTech.com

    EAN 0065030861038

    Weight 0.1 kg

  • Product information and specifications are guiding only. Without notice, these can be subject to change by the manufacturer. This applies for product images as well.
Produktbeskrivelse StarTech.com 1-Port Gigabit Ethernet Network Card - PCI Express, Intel I210 NIC - Single Port PCIe Network Adapter Card with Intel Chipset (ST1000SPEXI) - netværksadapter - PCIe
Enhedstype Netværksadapter
Model Indstikskort - lavprofil
Grænseflade (bus) type PCI Express x1
Dimensioner (B x D x H) 6.6 cm x 12 cm x 1.8 cm
Vægt 35 g
Kabeltype Ethernet 10Base-T, Ethernet 100Base-TX, Ethernet 1000Base-T
Dataforbindelsesprotokol 1GbE
Dataoverførselshastighed 1 Gbps
Præstation Videresendelsespræstation (fuld duplex): 2 Gbps
Kapacitet Jumbo-rammestørrelse: 9000
Processor Intel I210-AT
Overensstemmelsesstandarder IEEE 802.3, IEEE 802.3u, IEEE 802.1Q, IEEE 802.3ab, IEEE 802.3x
Farve Sort
Systemkrav Microsoft Windows Server 2008 R2, Microsoft Windows Server 2012 R2, Microsoft Windows 7 / 8 / 8.1 / 10, Microsoft Windows Server 2016, Linux 2.4.x to 4.11.x LTS versions only, Microsoft Windows Server 2019
Producentgaranti 2 års garanti
General
Device Type Network adapter
Form Factor Plug-in card - low profile
Interface (Bus) Type PCI Express x1
Networking
Cabling Type Ethernet 10Base-T, Ethernet 100Base-TX, Ethernet 1000Base-T
Capacity Jumbo frame size: 9000
Compliant Standards IEEE 802.3, IEEE 802.3u, IEEE 802.1Q, IEEE 802.3ab, IEEE 802.3x
Connectivity Technology Wired
Data Link Protocol Gigabit Ethernet
Data Transfer Rate 1 Gbps
Features Full duplex capability, auto-uplink (auto MDI/MDI-X), Jumbo Frames support
Performance Forwarding performance (full duplex): 2 Gbps
Status Indicators Port status, link/activity
Processor / Memory
Processor Intel I210-AT
Expansion / Connectivity
Interfaces 1 x network - RJ-45
Miscellaneous
Color Black
Compliant Standards FCC, RoHS
Included Accessories Low-profile bracket
Power
Power Consumption Operational 0.8 Watt
Software / System Requirements
OS Required Microsoft Windows Server 2008 R2, Microsoft Windows Server 2012 R2, Microsoft Windows 7 / 8 / 8.1 / 10, Microsoft Windows Server 2016, Linux 2.4.x to 4.11.x LTS versions only, Microsoft Windows Server 2019
Dimensions & Weight
Depth 12 cm
Height 1.8 cm
Weight 35 g
Width 6.6 cm
Manufacturer Warranty
Service & Support Limited warranty - 2 years
Environmental Parameters
Humidity Range Operating 20 - 80%
Max Operating Temperature 50 °C
Min Operating Temperature 5 °C

Add Gigabit Ethernet to a client, server or workstation through a PCI Express slot

  • Add a 10/100/1000 RJ-45 Ethernet port to a client, server or desktop through one PCIe slot
  • Intel I210-AT chipset
  • PXE network boot
  • Fully compliant with IEEE 802.3, IEEE 802.3u, IEEE 802.3ab
  • Auto MDIX support
  • Auto negotiation support
  • Wake-on-LAN support
  • Up to 9K jumbo frame support
  • IEEE802.3az Energy Efficient Ethernet (EEE)
  • Supports IEEE 802.1Q VLAN tagging
  • Supports Audio-Video Bridging
  • Full or low-profile (LP bracket included) installation
  • Full duplex support
Add Gigabit Ethernet to a client, server or workstation through a PCI Express slot
slide {0} of {1}, zoom in, Add Gigabit Ethernet to a client, server or workstation through a PCI Express slot
slide {0} of {1}, zoom in, Add Gigabit Ethernet to a client, server or workstation through a PCI Express slot
slide {0} of {1}, zoom in, Add Gigabit Ethernet to a client, server or workstation through a PCI Express slot
slide {0} of {1}, zoom in, Add Gigabit Ethernet to a client, server or workstation through a PCI Express slot
slide {0} of {1}, zoom in, Add Gigabit Ethernet to a client, server or workstation through a PCI Express slot
The performance and reliability you demand in network connectivity

The performance and reliability you demand in network connectivity

This Gigabit Ethernet network card utilizes the Intel® I210-AT chipset, designed to deliver the power, performance and enhanced capabilities you need for dependable network connections to your server or computer. Compliant with IEEE 802.3/u/ab standards, the network card provides an effective upgrade or replacement network port with maximum throughput up to 1000Mbps in each direction (2000 Mbps total) - up to ten times faster than 10/100 Ethernet.
A versatile and cost-effective solution

A versatile and cost-effective solution

Compatible with a broad range of operating systems, this versatile PCIe Gigabit NIC is ideal for many business applications requiring upgrades to servers or workstations, adding feature-rich Gigabit networking.  It’s a cost-effective way to upgrade your server or computer from a 10/100 Ethernet port to a Gigabit Ethernet port, or add an Ethernet port to take advantage of advanced features such as VLAN tagging, Jumbo Frames, Wake-On LAN and Auto MDIX.
Easy installation

Easy installation

With a dual-profile design, the PCI Express network card installs easily into a wide range of computer/server chassis, regardless of form factor. The card comes equipped with a full-sized bracket, and includes a low profile/half-height installation bracket that you can use as needed.

Applications

  • Upgrades to servers or workstations in need of enhanced performance, advanced features and greater reliability
  • Upgrade a 10/100 Ethernet port on your computer to GbE network capability
  • Add GbE networking capabilities to an old system that doesn't have an Ethernet port
  • Add an additional Ethernet port to a workstation or server computer for redundancy
