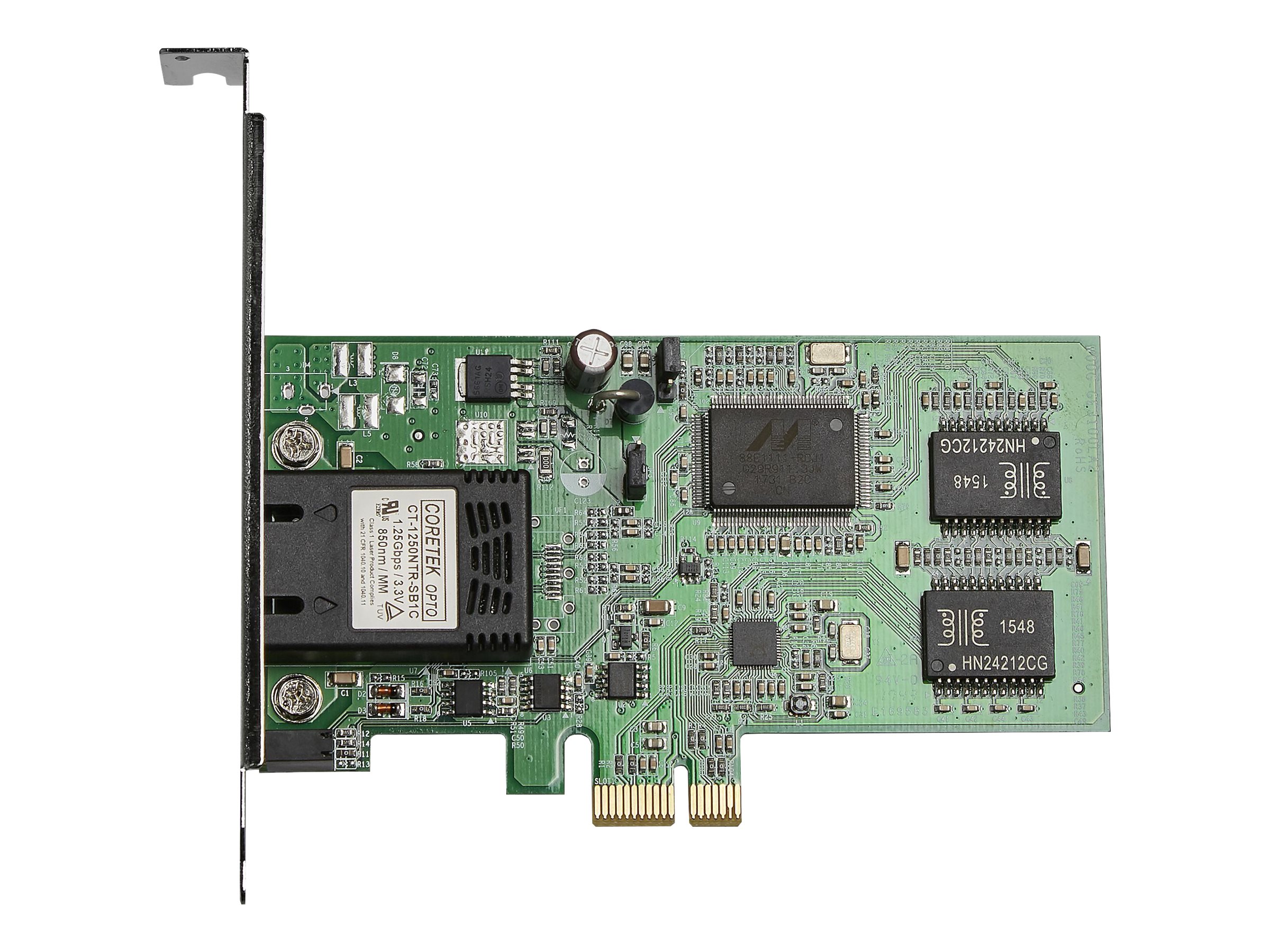

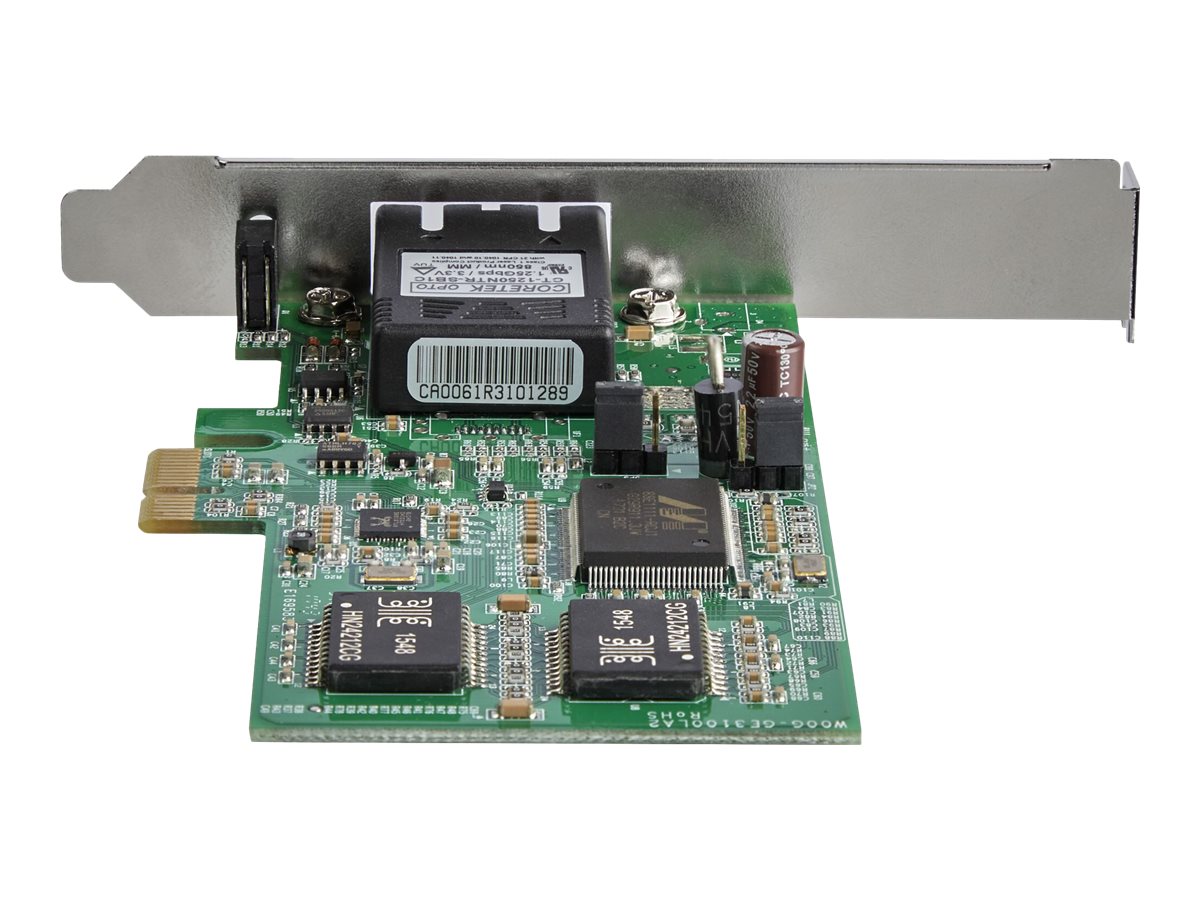

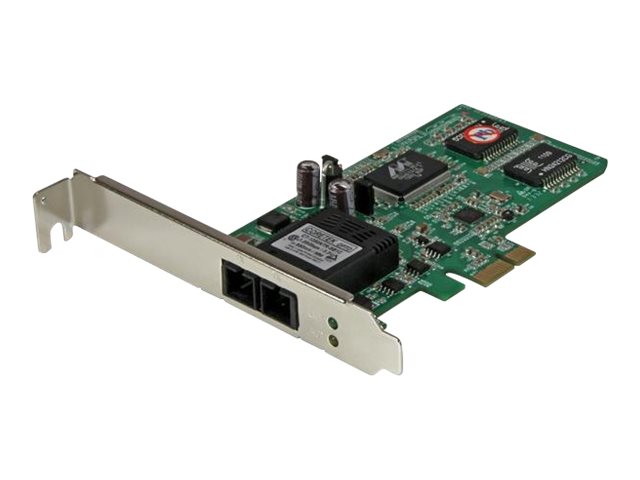

StarTech.com Netværksadapter PCI Express x1 1Gbps

Startech PCI Express Gigabit Ethernet Multimode SC Fiber Network Card - Netværksadapter - PCI Express x1 - 1000Base-FX

Varenummer: 989034877
Model: PEX1000MMSC2
EAN: 0065030857703
Brand:
StarTech.com
Vægt: 0.2 kg

Specifications

Produktbeskrivelse
Startech PCI Express Gigabit Ethernet Multimode SC Fiber Network Card - netværksadapter - PCI Express x1 - 1000Base-FX
Enhedstype
Netværksadapter
Model
Indstikskort
Grænseflade (bus) type
PCI Express x1
PCI-specifikationsrevision
PCIe 1.0
Porte
1000Base-FX
Dimensioner (B x D x H)
1.9 cm x 11.8 cm x 11.8 cm
Vægt
70 g
Kabeltype
Ethernet 1000Base-FX
Dataforbindelsesprotokol
Fibre Channel
Dataoverførselshastighed
1 Gbps
Systemkrav
Microsoft Windows Server 2003, Microsoft Windows Server 2008 R2, Microsoft Windows Server 2012, Microsoft Windows Server 2012 R2, Apple MacOS X 10.5 - 10.9, Microsoft Windows XP / Vista / 7 / 8 / 8.1 / 10, Microsoft Windows Server 2016, Microsoft Windows Hyper-V Server, Linux 2.4.x to 4.11.x LTS versions only, Microsoft Windows Server 2019
Producentgaranti
2 års garanti
Specifications

Full specifications

General
Device Type
Network adapter
Form Factor
Plug-in card
Interface (Bus) Type
PCI Express x1
PCI Specification Revision
PCIe 1.0
Networking
Cabling Type
Ethernet 1000Base-FX
Connectivity Technology
Wired
Data Link Protocol
Fibre Channel
Data Transfer Rate
1 Gbps
Features
Full duplex capability, 48KB packet buffer
Ports
1000Base-FX
Status Indicators
Link/activity
Expansion / Connectivity
Interfaces
1 x 1000Base-FX - SC multi-mode - x 2
Miscellaneous
Compliant Standards
FCC, RoHS
Included Accessories
Low-profile bracket
Power
Power Consumption Operational
3.2 Watt
Software / System Requirements
OS Required
Microsoft Windows Server 2003, Microsoft Windows Server 2008 R2, Microsoft Windows Server 2012, Microsoft Windows Server 2012 R2, Apple MacOS X 10.5 - 10.9, Microsoft Windows XP / Vista / 7 / 8 / 8.1 / 10, Microsoft Windows Server 2016, Microsoft Win
Software Included
Drivers & Utilities
Dimensions & Weight
Depth
11.8 cm
Height
11.8 cm
Weight
70 g
Width
1.9 cm
Manufacturer Warranty
Service & Support
Limited warranty - 2 years
Environmental Parameters
Humidity Range Operating
5 - 95% (non-condensing)
Max Operating Temperature
45 °C
Min Operating Temperature
0 °C

Media

Connect a PCI Express-based desktop or rackmount PC directly to a Gigabit multimode SC fiber optic network

  • Maximum fiber distance of 550m
  • Supports Full/Half-duplex Auto-Negotiation
  • Includes low-profile/half-height installation bracket
  • Compliant with IEEE802.3z 1000Base-SX, IEEE 802.1Q VLAN Tagging, IEEE 802.1P Layer 2 Priority Encoding, IEEE 802.3x full duplex flow control
  • Supports RFC 1157 SNMP v1 for remote management
  • Jumbo Frame Support
  • Supports PCI Message Signaled Interrupt (MSI)
  • Preboot Execution Environment (PXE) 2.1
  • Supports Wake-on-LAN remote wake-up
Connect a PCI Express-based desktop or rackmount PC directly to a Gigabit multimode SC fiber optic network
slide {0} of {1}, zoom in, Connect a PCI Express-based desktop or rackmount PC directly to a Gigabit multimode SC fiber optic network
slide {0} of {1}, zoom in, Connect a PCI Express-based desktop or rackmount PC directly to a Gigabit multimode SC fiber optic network
slide {0} of {1}, zoom in, Connect a PCI Express-based desktop or rackmount PC directly to a Gigabit multimode SC fiber optic network
slide {0} of {1}, zoom in, Connect a PCI Express-based desktop or rackmount PC directly to a Gigabit multimode SC fiber optic network
slide {0} of {1}, zoom in, Connect a PCI Express-based desktop or rackmount PC directly to a Gigabit multimode SC fiber optic network
No electromagnetic interference and less data corruption, through a direct fiber-to-desktop connection

No electromagnetic interference and less data corruption, through a direct fiber-to-desktop connection

With fiber connectivity, your network is not susceptible to electronic interference, which can be problematic with standard RJ45 copper networks, making this fiber card ideal for secure network setups.
Fiber network infrastructure is reliable and secure

Fiber network infrastructure is reliable and secure

Perfect for integrating into new or existing fiber infrastructure over great distances, this card delivers full Gigabit bandwidth to your computer up to 550 meters away from your network source, using multimode 50/125 micron duplex SC fiber cable.

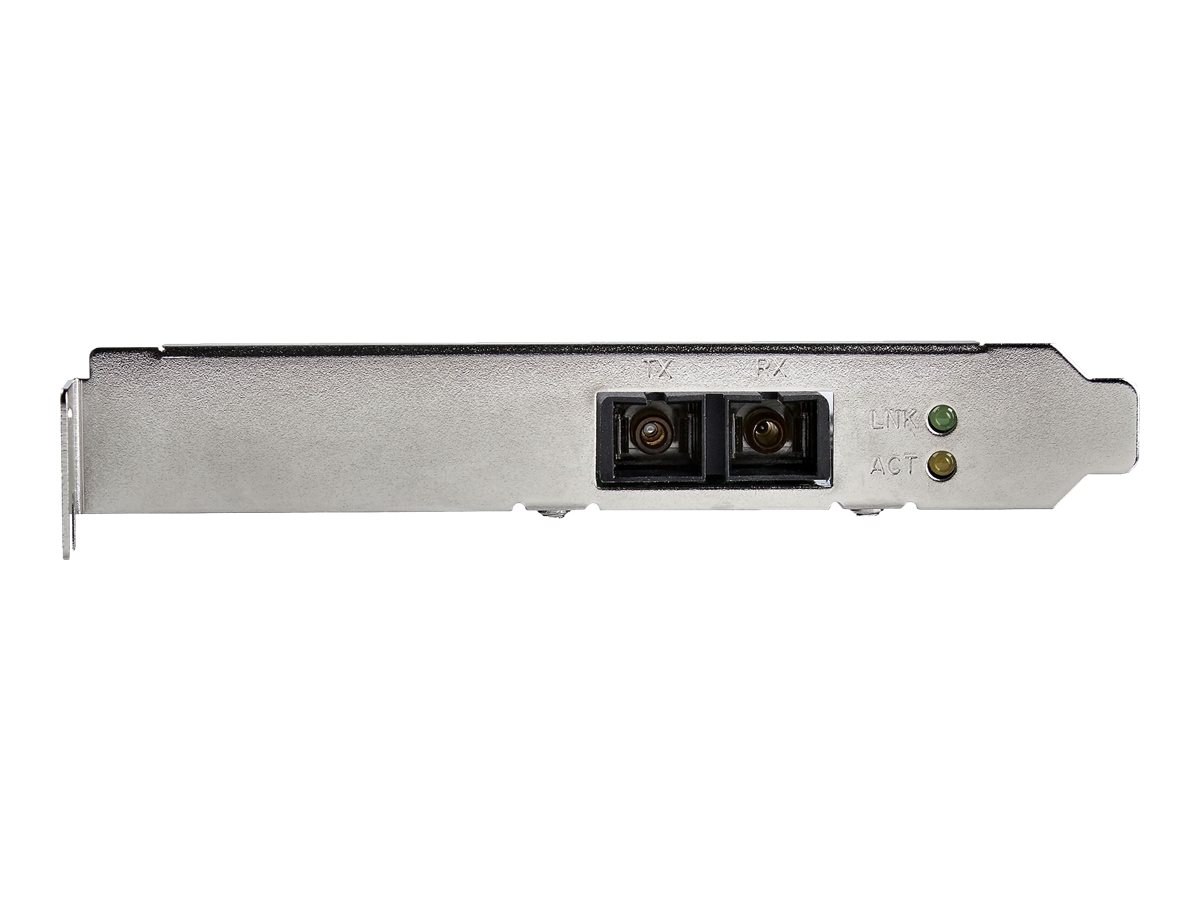

Fits into full or low-profile/small form factor (SFF) systems, with a dual profile design

Fits into full or low-profile/small form factor (SFF) systems, with a dual profile design

The card is equipped with a standard profile bracket and includes a low-profile/half-height bracket, making it easy to install in small form-factor computers or 1U server and rackmount applications

Applications

  • Ideal for reliable and secure setups - a direct fiber connection means no electromagnetic interference, which can be a problem with copper-based network cards
  • Perfect for remote embedded industrial monitoring systems, and high-speed video surveillance
  • Provide full Gigabit bandwidth to a remote terminal over long distances, extends a network connection further than typical copper cabling
