Produktbeskrivelse
|
Startech 1 Port PCIe Network Card - Low Profile - RJ45 Port - Realtek RTL8111H Chipset - Ethernet Network Card - NIC Server Adapter Network Card (ST1000SPEX2L) - netværksadapter - PCI Express x1 - Gigabit Ethernet x 1
|
|
Enhedstype
|
Netværksadapter
|
|
Model
|
Indstikskort - lavprofil
|
|
Grænseflade (bus) type
|
PCI Express x1
|
|
Porte
|
Gigabit Ethernet x 1
|
|
Dimensioner (B x D x H)
|
6.5 cm x 6.79 cm
|
|
Vægt
|
36 g
|
|
Kabeltype
|
Ethernet 10Base-T, Ethernet 100Base-TX, Ethernet 1000Base-T
|
|
Dataforbindelsesprotokol
|
10Mb LAN, 100Mb LAN, 1GbE
|
|
Dataoverførselshastighed
|
1 Gbps
|
|
Processor
|
1 x Realtek Semiconductor RTL8111E
|
|
Systemkrav
|
Microsoft Windows Server 2003, Microsoft Windows Server 2008 R2, Microsoft Windows Server 2012, Microsoft Windows Server 2012 R2, Apple MacOS X 10.6 - 10.9, Microsoft Windows Server 2016, Microsoft Windows 2000/XP/Vista/7/8/8.1/10, Linux 2.4.x to 4.11.x LTS versions only, Microsoft Windows Server 2019
|
|
Producentgaranti
|
2 års garanti
|
Effective Friday, July 3, 2026, the office will close at 4:30 PM on Fridays. From Monday to Thursday, Sales contact hours remain unchanged from 9:00 AM to 5:00 PM, while contact hours for Accounting, Purchasing, and RMA remain unchanged in general.
To gain full access to our webshop, find our entire product range and see our prices, you need to be logged in.
Log in to your account here or sign up as a customer here.
StarTech.com Netværksadapter PCI Express x1 1Gbps
Startech 1 Port PCIe Network Card - Low Profile - RJ45 Port - Realtek RTL8111H Chipset - Ethernet Network Card - NIC Server Adapter Network Card (ST1000SPEX2L) - Netværksadapter - PCI Express x1 lavprofil - Gigabit Ethernet x 1
Specifications
Full specifications
|
General
|
|
|---|---|
|
Device Type
|
Network adapter
|
|
Form Factor
|
Plug-in card - low profile
|
|
Interface (Bus) Type
|
PCI Express x1
|
|
Networking
|
|
|
Cabling Type
|
Ethernet 10Base-T, Ethernet 100Base-TX, Ethernet 1000Base-T
|
|
Connectivity Technology
|
Wired
|
|
Data Link Protocol
|
Ethernet, Fast Ethernet, Gigabit Ethernet
|
|
Data Transfer Rate
|
1 Gbps
|
|
Features
|
Full duplex capability, auto-uplink (auto MDI/MDI-X)
|
|
Ports
|
Gigabit Ethernet x 1
|
|
Status Indicators
|
Port transmission speed, link/activity
|
|
Processor / Memory
|
|
|
Processor
|
1 x Realtek Semiconductor RTL8111E
|
|
Expansion / Connectivity
|
|
|
Interfaces
|
1 x 1000Base-T - RJ-45
|
|
Miscellaneous
|
|
|
Compliant Standards
|
FCC, RoHS
|
|
Included Accessories
|
Full-height bracket
|
|
Software / System Requirements
|
|
|
OS Required
|
Microsoft Windows Server 2003, Microsoft Windows Server 2008 R2, Microsoft Windows Server 2012, Microsoft Windows Server 2012 R2, Apple MacOS X 10.6 - 10.9, Microsoft Windows Server 2016, Microsoft Windows 2000/XP/Vista/7/8/8.1/10, Linux 2.4.x to 4.1
|
|
Software Included
|
Drivers & Utilities
|
|
Dimensions & Weight
|
|
|
Depth
|
6.79 cm
|
|
Weight
|
36 g
|
|
Width
|
6.5 cm
|
|
Manufacturer Warranty
|
|
|
Service & Support
|
Limited warranty - 2 years
|
|
Environmental Parameters
|
|
|
Humidity Range Operating
|
10 - 90%
|
|
Max Operating Temperature
|
70 °C
|
|
Min Operating Temperature
|
0 °C
|
Media
.jpg)
.jpg)
.jpg)
.jpg)
.jpg)

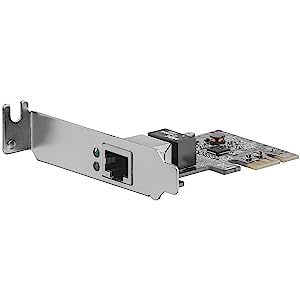

Add a 10/100/1000Mbps Ethernet port to any PC through a PCI Express slot
The Low-Profile PCIe Gigabit Network Card adds a 10/100/1000 Mbps compatible RJ45 Ethernet port to a PCI Express-enabled client, server or workstation, providing a convenient addition or replacement networking interface.
Compliant with IEEE 802.3/u/ab standards, and with support for 9K Jumbo Frames, VLAN tagging and Wake on LAN (WOL), this versatile Gigabit NIC/Server Adapter offers effective network performance.
The card comes pre-configured with a low-profile/half-height installation bracket and includes a standard profile bracket for installation in a wide range of computer/server chassis, regardless of form factor.
