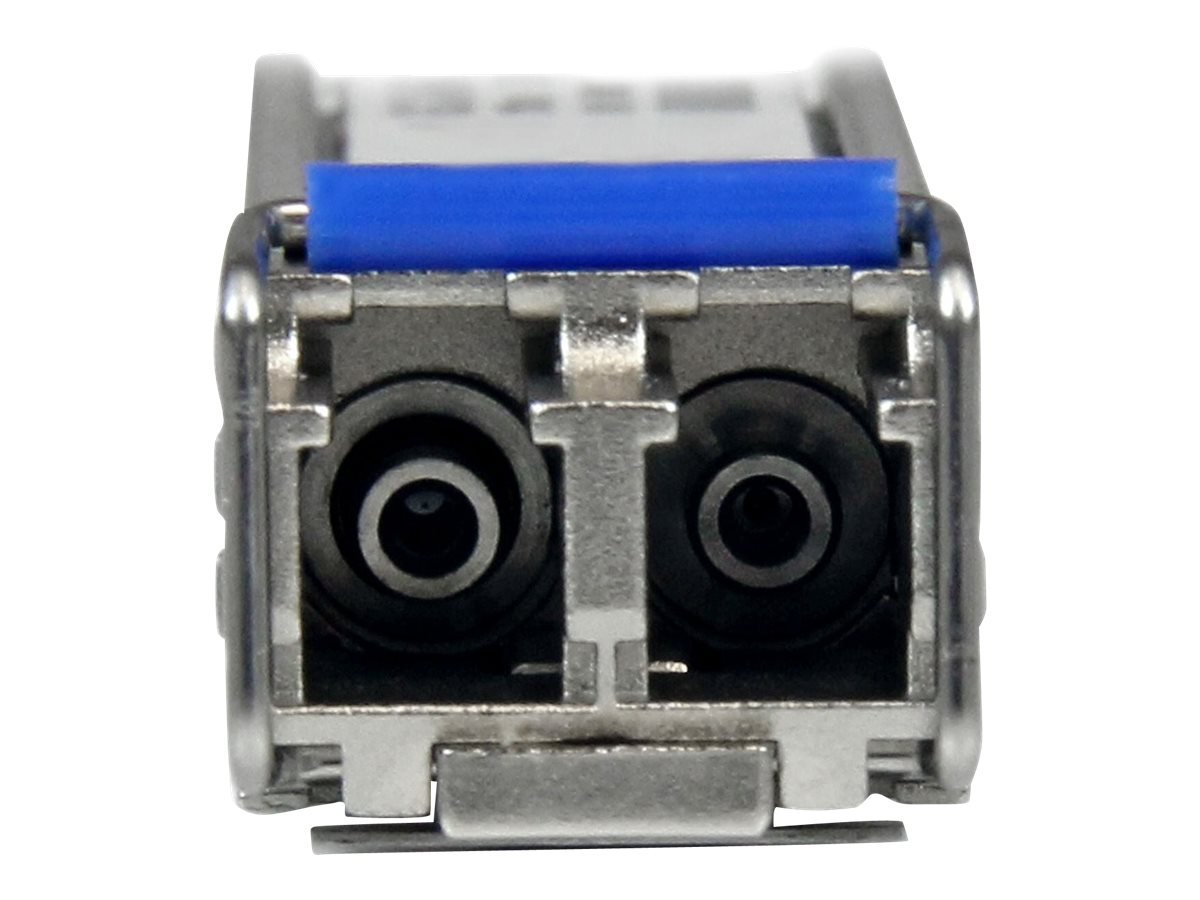

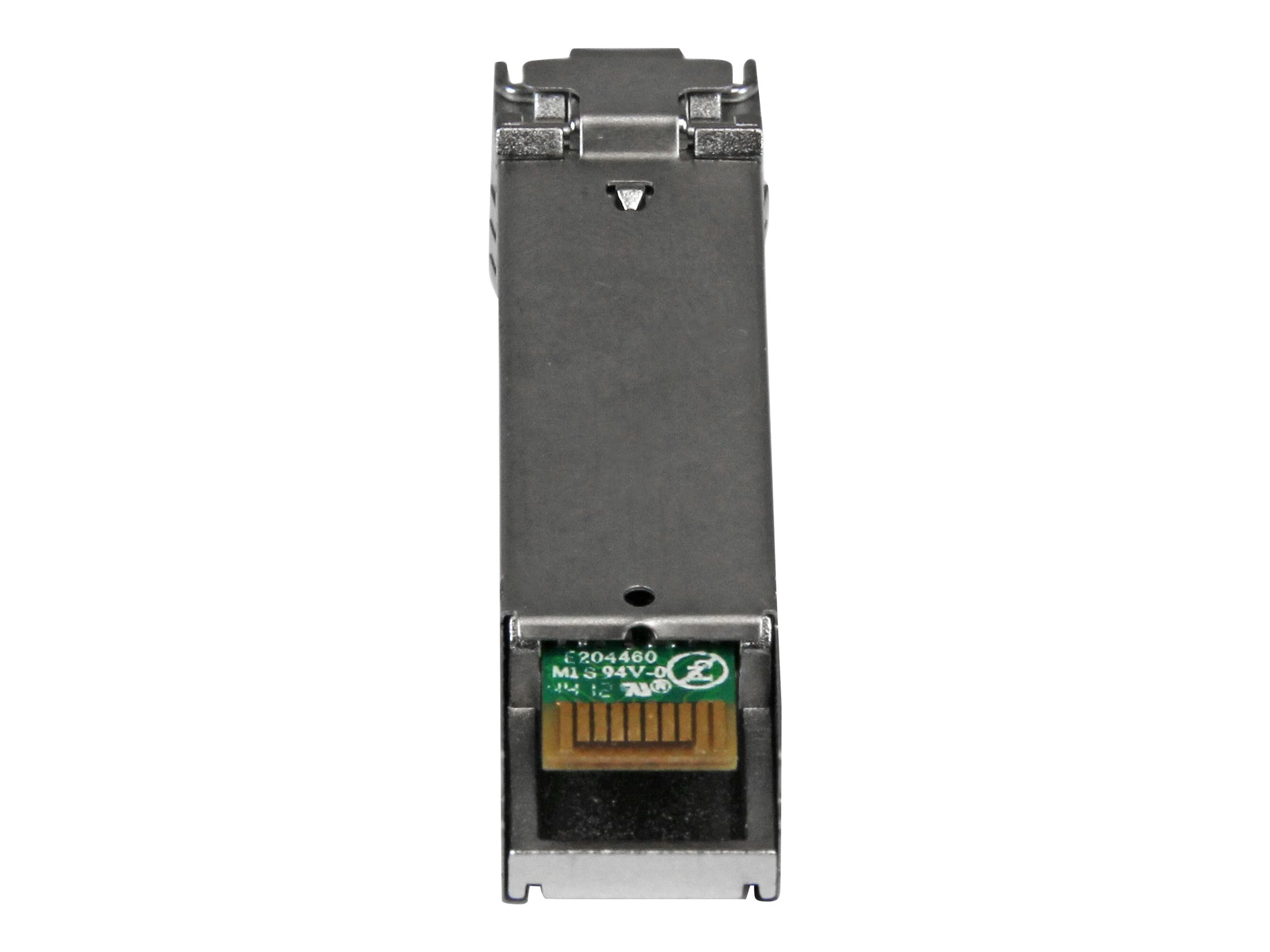

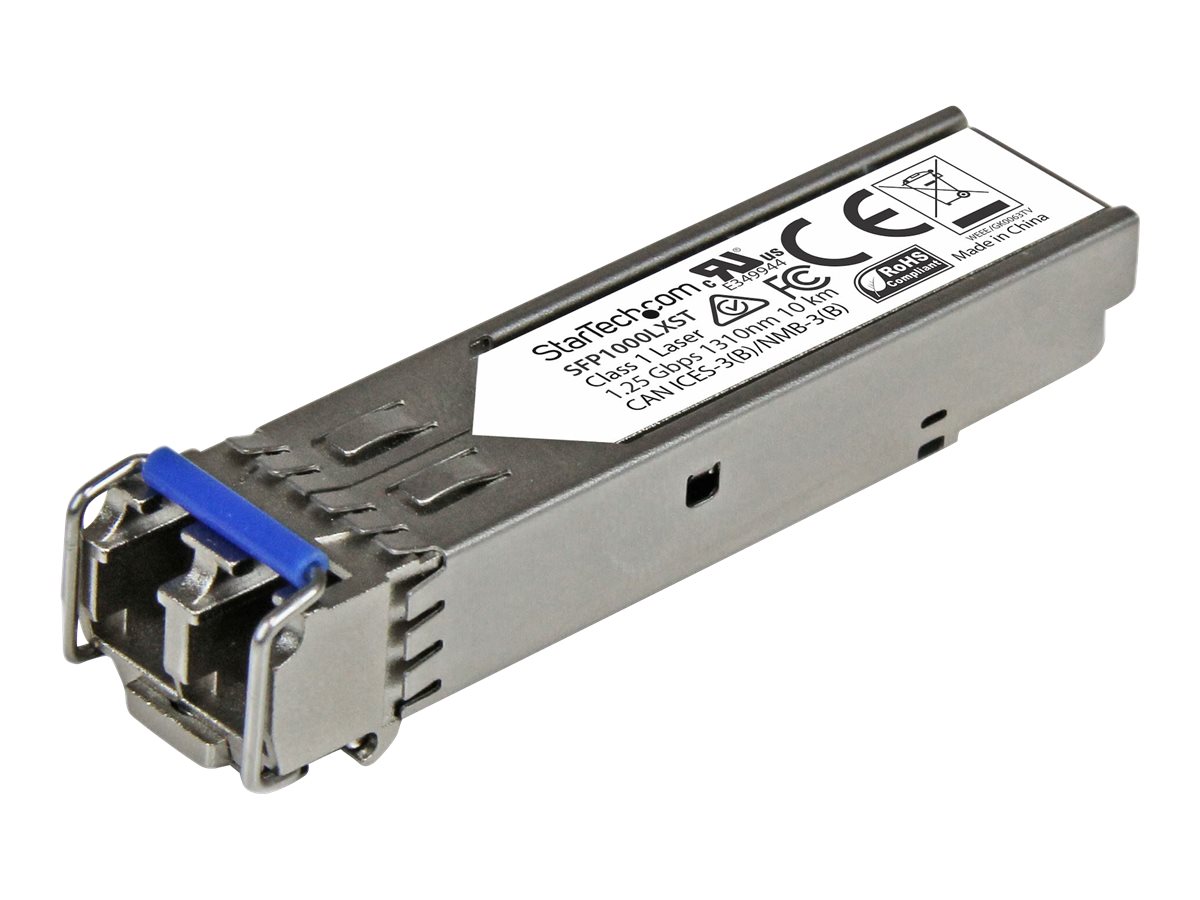

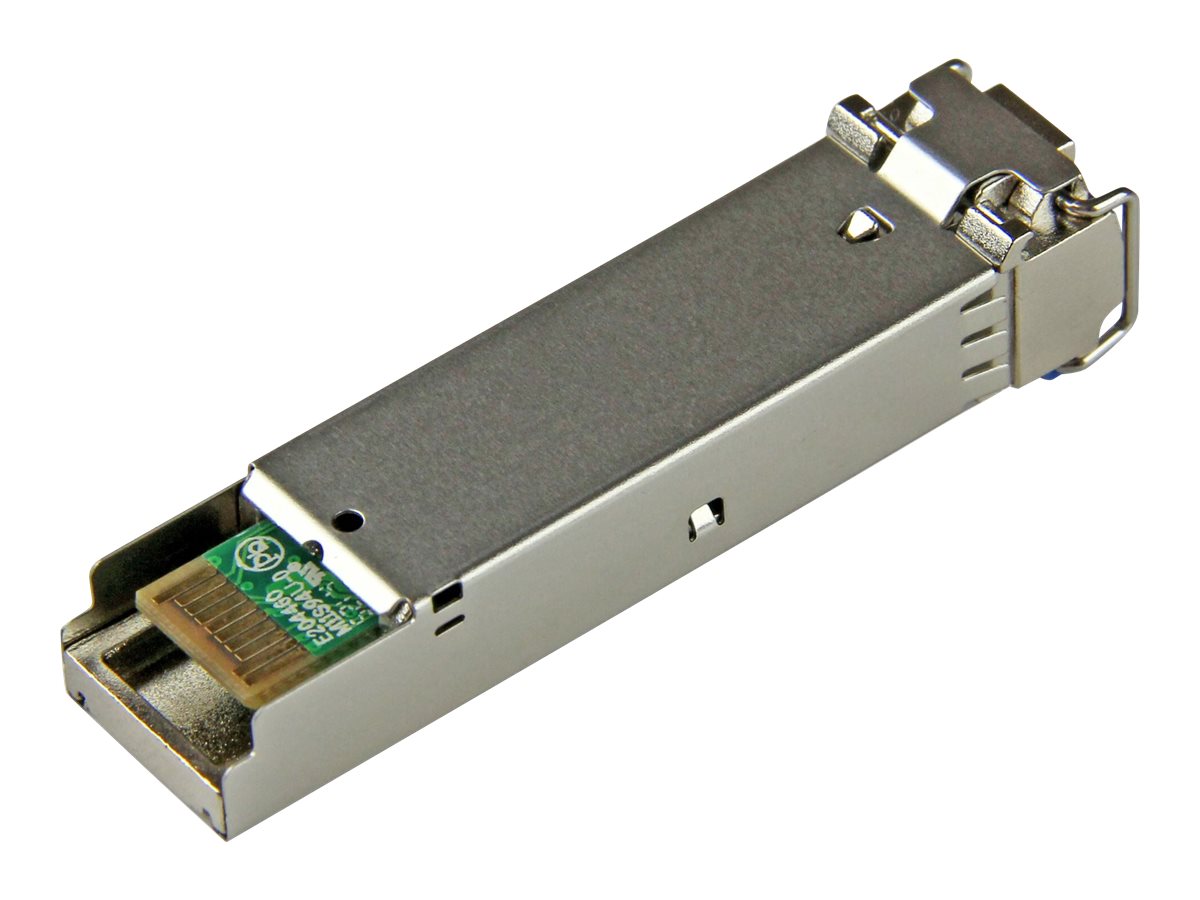

StarTech.com MSA Uncoded SFP Module - 1000BASE-LX - 1GE SFP 1GbE Single Mode Fiber (SMF) Optic Transceiver - 10km DDM SFP (mini-GBIC) transceiver modul Gigabit Ethernet

Startech MSA Uncoded Compatible SFP Module, 1000BASE-LX, 1GbE Single Mode (SMF) Fiber Optic Transceiver, 1GE Gigabit Ethernet SFP, LC Connector, 10km, 1310nm, DDM, Mini GBIC Module - Lifetime Warranty (SFP1000LXST) - SFP (mini-GBIC) transceiver modul - 1GbE - 1000Base-LX - LC enkelttilstand - op til 10 km - 1310 nm - for P/N: US1GA30SFP, US1GC30SFP

Varenummer: 993158499
Model: SFP1000LXST
EAN: 0065030873420
Brand:
StarTech.com
Vægt: 0.05 kg

Specifications

Produktbeskrivelse
Startech MSA Uncoded Compatible SFP Module, 1000BASE-LX, 1GbE Single Mode (SMF) Fiber Optic Transceiver, 1GE Gigabit Ethernet SFP, LC Connector, 10km, 1310nm, DDM, Mini GBIC Module - Lifetime Warranty (SFP1000LXST) - SFP (mini-GBIC) transceiver modul - 1GbE
Enhedstype
SFP (mini-GBIC) transceiver modul - LC enkelttilstand
Model
Indstiksmodul
Kabeltype
1000Base-LX
Dataoverførselshastighed
1.25 Gbps
Optisk bølgelængde
1310 nm
Dataforbindelsesprotokol
1GbE
Maks. overføringsafstand
10 km
Dimensioner (B x D x H)
1.39 cm x 5.84 cm x 1.26 cm
Vægt
30 g
Producentgaranti
Begrænset livtidsgaranti
Designet for
P/N: US1GA30SFP, US1GC30SFP
Specifications

Full specifications

General
Color
Silver
Device Type
SFP (mini-GBIC) transceiver module
Form Factor
Plug-in module
Networking
Cabling Type
1000Base-LX
Compliant Standards
IEEE 802.3z
Connectivity Technology
Wired
Data Link Protocol
GigE
Data Transfer Rate
1.25 Gbps
Features
Full duplex mode, Digital Optical Monitoring (DOM) support, Digital Diagnostics Monitoring (DDM)
Max Transfer Distance
10 km
Optical Wave Length
1310 nm
Expansion / Connectivity
Interfaces
1 x Ethernet 1000Base-LX - LC single-mode x 2
Miscellaneous
Compliant Standards
FCC, RoHS, WEEE, MSA, RCM
Dimensions & Weight
Depth
5.84 cm
Height
1.26 cm
Weight
30 g
Width
1.39 cm
Manufacturer Warranty
Service & Support
Limited warranty - lifetime
Environmental Parameters
Humidity Range Operating
5 - 95%
Max Operating Temperature
70 °C
Min Operating Temperature
0 °C
Compatibility Information
Designed For
P/N: US1GA30SFP, US1GC30SFP
