StarTech.com - Mbps Industrial Networking Solution - IP30-rated Energy Efficient Internet (IES5102) Switch 5-porte 10/100
Startech 5-Port Ethernet Switch - 10/100Mbps Industrial Networking Solution - IP30-rated Energy Efficient Internet Switch (IES5102) - Switch - ikke administreret - 5 x 10/100 - DIN monterbar på skinne - for P/N: NETRS2322P
Specifications
|
Produktbeskrivelse
|
Startech 5-Port Ethernet Switch - 10/100Mbps Industrial Networking Solution - IP30-rated Energy Efficient Internet Switch (IES5102) - switch - 5 porte - ikke administreret
|
|
Enhedstype
|
Switch - 5 porte - ikke administreret
|
|
Undertype
|
Fast Ethernet
|
|
Porte
|
5 x 10/100
|
|
Egenskaber
|
Datatransport, auto-negotiation, auto-uplink (auto MDI/MDI-X), gem og send, halv dupleksmodus, fuld dupleksmodus, QoS, Jumbo Frames support, plastisk husning, Energy Efficient Ethernet, 56 KB pakkebuffer
|
|
Overensstemmelsesstandarder
|
IEEE 802.3, IEEE 802.3u, IEEE 802.3x, IEEE 802.3az
|
|
Dimensioner (B x D x H)
|
11 cm x 7 cm x 2.5 cm
|
|
Vægt
|
148 g
|
|
Farve
|
Sort
|
|
Producentgaranti
|
2 års garanti
|
|
Designet for
|
P/N: NETRS2322P
|
Full specifications
|
General
|
|
|---|---|
|
Compliant Standards
|
IEEE 802.3, IEEE 802.3u, IEEE 802.3x, IEEE 802.3az
|
|
Device Type
|
Switch - 5 ports - unmanaged
|
|
Enclosure Type
|
DIN rail mountable
|
|
Features
|
Flow control, auto-negotiation, auto-uplink (auto MDI/MDI-X), store and forward, half duplex mode, full duplex mode, Quality of Service (QoS), Jumbo Frames support, plastic housing, Energy Efficient Ethernet, 56KB packet buffer
|
|
Ports
|
5 x 10/100
|
|
Status Indicators
|
Power, active, link/activity
|
|
Subtype
|
Fast Ethernet
|
|
Expansion / Connectivity
|
|
|
Interfaces
|
4 x 100Base-TX RJ-45 | 1 x 100Base-TX RJ-45 uplink
|
|
Power
|
|
|
Power Consumption Operational
|
2.12 Watt
|
|
Power Device
|
External power adapter
|
|
Miscellaneous
|
|
|
Color
|
Black
|
|
Compliant Standards
|
EN 61000-4-4, EN 61000-4-2, EN 61000-4-3, EN 61000-4-6, EN 61000-4-5, FCC, EN 61000-6-2, RoHS, EN 61000-4-8, EN 61000-6-4, IEC 60068-2-27, IEC 60068-2-6, IP30
|
|
Included Accessories
|
3-pin power terminal block
|
|
MTBF
|
1,179,133 hours
|
|
Dimensions & Weight
|
|
|
Depth
|
7 cm
|
|
Height
|
2.5 cm
|
|
Weight
|
148 g
|
|
Width
|
11 cm
|
|
Manufacturer Warranty
|
|
|
Service & Support
|
Limited warranty - 2 years
|
|
Environmental Parameters
|
|
|
Humidity Range Operating
|
10 - 90% (non-condensing)
|
|
Humidity Range Storage
|
10 - 90% (non-condensing)
|
|
Max Operating Temperature
|
60 °C
|
|
Max Storage Temperature
|
85 °C
|
|
Min Operating Temperature
|
-10 °C
|
|
Min Storage Temperature
|
-25 °C
|
|
Compatibility Information
|
|
|
Designed For
|
P/N: NETRS2322P
|
Media

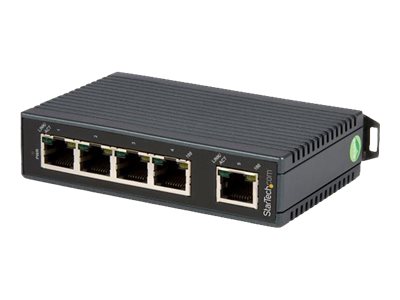

Expand your network connectivity with this rugged unmanaged 10/100Mbps switch
- Network up to 5 Ethernet devices, even in industrial settings, with a robust IP30-rated switch
- Wide-range 12-48V DC terminal block input
- Easy installation with an integrated DIN rail bracket
.jpg)
.jpg)
.jpg)
.jpg)
.jpg)
.jpg)
.jpg)
.jpg)
Conquer the tough demands of industrial environments
Designed with a rugged IP30-rated housing, the network switch delivers maximum performance even in harsh industrial conditions. Its wide-range terminal block input gives you the flexibility to power the switch as required, based on your own power input source, while its wide operating temperature range keeps your network running smoothly..jpg)

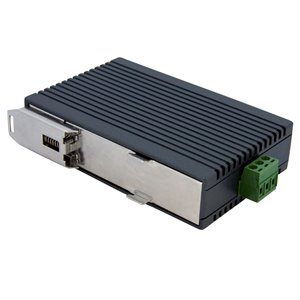

Get up and running in no time
This industrial Ethernet switch is easy to install, with an attached metal bracket for DIN rail mounting on equipment racks and cabinets.Now you can eliminate the hassle of troubleshooting mismatched speed and duplex settings. This switch gives you full/half-duplex auto-negotiation and auto MDI/MDIX operation, enabling you to connect your network devices quickly and easily with little to no configuration required.
.jpg)
Reduce your energy costs with Energy-Efficient Ethernet
With lower overall power consumption, the Ethernet switch enhances your energy efficiency, in turn helping you reduce monthly costs.Applications
- Well suited for networks in demanding industrial applications such as warehouses and factories
- A great way to enhance network connectivity, adding small workgroups to an existing network
- Install in a server rack or cabinet in a network room or test lab environment
.jpg)
.jpg)
