StarTech.com Lagringskabinet

StarTech.com 4-Bay USB 3.0 to SATA Hard Drive Docking Station, USB Hard Drive Dock, External 2.53.5 SATA III (6Gbps) SSDHDD Docking Station, Hot-Swappable Hard Drive Bay - Dual 40mm Fans, Top-Loading - Lagringskabinet - 4 bays (SATA-600) - for P/N: SVA12DN4NEUA

  • Product no 988854838

    Model SDOCK4U33

    Brand StarTech.com

    EAN 0065030857932

    Weight 2.36 kg

  • Product information and specifications are guiding only. Without notice, these can be subject to change by the manufacturer. This applies for product images as well.
Produktbeskrivelse StarTech.com 4-Bay USB 3.0 to SATA Hard Drive Docking Station, USB Hard Drive Dock, External 2.53.5 SATA III (6Gbps) SSDHDD Docking Station, Hot-Swappable Hard Drive Bay - Dual 40mm Fans, Top-Loading - lagringskabinet
Enhedstype Lagringskabinet
Farve Sort
Installeret udstyr/antal moduler 0 (installeret) / 4 (maks.)
Understøttede drev SATA-600
OS nødvendig Linux, Apple MacOS X 10.6, Microsoft Windows Vista (32/64 bits), Microsoft Windows Server 2008 (32/64-bits), Microsoft Windows Server 2003 (32/64-bits), Google Chrome OS, Apple MacOS X Lion 10.7, Apple OS X 10.8 Mountain Lion, Apple OS X 10.9 Mavericks, Microsoft Windows XP / 7 / 8 / 8.1 (32/64 bits)
Effekt AC 120/230 V
Dimensioner (B x D x H) 17.12 cm x 29.05 cm x 8.73 cm
Vægt 1.028 kg
Producentgaranti 2 års garanti
Designet for P/N: SVA12DN4NEUA
General
Device Type Storage enclosure
Enclosure Color Black
Chassis
Installed Devices / Modules Qty
Supported Devices / Modules Qty 4
Supported Drives SATA-600
Processor
CPU No CPU
Expansion / Connectivity
Expansion Bays 4 (total) / 4 (free) x external - 2.5" / 3.5" shared
Interfaces 1 x USB 3.0 - 9 pin USB Type B | 4 x SATA 6Gb/s - 22 pin Serial ATA
System Requirements
OS Required Linux, Apple MacOS X 10.6, Microsoft Windows Vista (32/64 bits), Microsoft Windows Server 2008 (32/64-bits), Microsoft Windows Server 2003 (32/64-bits), Google Chrome OS, Apple MacOS X Lion 10.7, Apple OS X 10.8 Mountain Lion, Apple OS X 10.9 Maveric
Miscellaneous
Cables Included 1 x USB cable
Compliant Standards FCC, RoHS
Power
Power Device External power adapter
Voltage Required AC 120/230 V
Dimensions & Weight
Depth 29.05 cm
Height 8.73 cm
Weight 1.028 kg
Width 17.12 cm
Manufacturer Warranty
Service & Support Limited warranty - 2 years
Environmental Parameters
Humidity Range Operating 20 - 80%
Max Operating Temperature 35 °C
Min Operating Temperature 5 °C
Compatibility Information
Designed For P/N: SVA12DN4NEUA

Connect and swap four 2.5/3.5” SATA III (6 Gbps) drives through USB 3.0 with UASP

  • Supports SATA III (6 Gbps) and UASP for optimal performance
  • Independently powered SATA controllers
  • Built-in dual 40 mm cooling fan
  • Compatible with SATA revision I/II/III (1.5/3.0/6.0 Gbps) drives
  • Compatible with USB 3.0/2.0/1.1 (5 Gbps / 480 Mbps / 1.5 Mbps)
  • Supports both 2.5" and 3.5" form factor hard drives (HDD) and solid state drives (SSD)
  • Quad-bay, top slot-loading design with drive doors
Connect and swap four 2.5/3.5” SATA III (6 Gbps) drives through USB 3.0 with UASP
slide {0} of {1}, zoom in, Connect and swap four 2.5/3.5” SATA III (6 Gbps) drives through USB 3.0 with UASP0:38
slide {0} of {1}, zoom in, Connect and swap four 2.5/3.5” SATA III (6 Gbps) drives through USB 3.0 with UASP
slide {0} of {1}, zoom in, Connect and swap four 2.5/3.5” SATA III (6 Gbps) drives through USB 3.0 with UASP
slide {0} of {1}, zoom in, Connect and swap four 2.5/3.5” SATA III (6 Gbps) drives through USB 3.0 with UASP
slide {0} of {1}, zoom in, Connect and swap four 2.5/3.5” SATA III (6 Gbps) drives through USB 3.0 with UASP
slide {0} of {1}, zoom in, Connect and swap four 2.5/3.5” SATA III (6 Gbps) drives through USB 3.0 with UASP
slide {0} of {1}, zoom in, Connect and swap four 2.5/3.5” SATA III (6 Gbps) drives through USB 3.0 with UASP
Hassle-free operation with independent SATA controllers

Hassle-free operation with independent SATA controllers

Get the most out of your SATA III (Gbps) solid state drives and hybrid drives with this UASP (USB Attached SCSI Protocol) enhanced hard drive docking station. With performance up to 70% faster than conventional USB 3.0 when paired with a UASP-enabled host controller, UASP ensures high performance by reducing bottleneck. See our UASP testing results below for further details.

The hard drive dock features independently-powered SATA connectors for each individual drive, ensuring you can operate drives separately. This gives you the freedom to hot-swap one drive while transferring data to another, saving you time. Plus, the built-in fans keep your drives running cool, ensuring optimal performance and helps to prevent premature drive failure.
Support for all the leading operating systems

Support for all the leading operating systems

To ensure compatibility with your computer system, the SDOCK4U33 supports all of the leading operating systems, including: Microsoft Windows® (8/7/Vista/XP/Server 2008/Server 2003), Apple® OSX (10.9/10.8/10.7/10.6), Linux, and Google Chrome OS™.

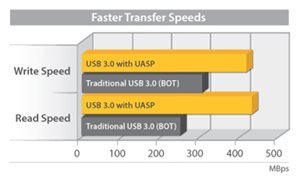

Improved data transfer performance with UASP

Improved data transfer performance with UASP

UASP is supported in Windows 8, Mac OSX (10.8 or above), and Linux. In testing, UASP performs with a 70% faster read speed and 40% faster write speed over traditional USB 3.0 at peak performance.

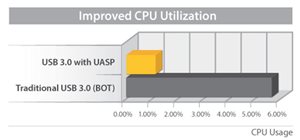

Improved CPU performance with UASP

Improved CPU performance with UASP

At the same peak in testing UASP also shows an 80% reduction in required processor resources.

Testing results were obtained using an Intel® Ivy Bridge system, a UASP-enabled StarTech.com Enclosure, and a SATA III solid state drive.

SDOCK4U33 is backed by a StarTech.com 2-year warranty and free lifetime technical support.

Applications

  • System builders and I.T. specialists who need quick access to drives for imaging
  • Backup data quickly to an external drive for archiving
  • Transferring data from one hard drive to another
  • Technicians who test or benchmark multiple hard drives
  • Backup important data and easily take the drive to an offsite location for safekeeping
Connect and swap four 2.5/3.5” SATA III (6 Gbps) drives through USB 3.0 with UASP
