Produktbeskrivelse
|
Startech HDMI 2.0 Switch - 4 Port - 4K 60Hz - HDMI Automatic Video Switch Box - Multi Port Hub w/ 1 In 4 Out Functionality (VS421HD20) - video-/audioswitch - 4 porte
|
|
Enhedstype
|
Video-/audioswitch - 4 porte
|
|
Undertype
|
HDMI
|
|
Porte
|
4 x HDMI
|
|
Egenskaber
|
4K opløsningssupport, 7,1 kanals audiosupport
|
|
Effekt
|
AC 120/230 V 0.4 A
|
|
Dimensioner (B x D x H)
|
5.1 cm x 12.3 cm x 2 cm
|
|
Vægt
|
152 g
|
|
Farve
|
Sort
|
|
Lokalisering
|
Australien, New Zealand, Nordamerika, United Kingdom, Europa
|
|
Producentgaranti
|
2 års garanti
|
|
Designet for
|
P/N: SVA5H2NEUA
|
Effective Friday, July 3, 2026, the office will close at 4:30 PM on Fridays. From Monday to Thursday, Sales contact hours remain unchanged from 9:00 AM to 5:00 PM, while contact hours for Accounting, Purchasing, and RMA remain unchanged in general.
To gain full access to our webshop, find our entire product range and see our prices, you need to be logged in.
Log in to your account here or sign up as a customer here.
StarTech.com HDMI 2.0 - 4 Port - 4K 60Hz - HDMI Automatic Video Box - Multi Port Hub w/ 1 In 4 Out Functionality (VS421HD20) Video-/audioswitch HDMI
Startech HDMI 2.0 Switch - 4 Port - 4K 60Hz - HDMI Automatic Video Switch Box - Multi Port Hub w/ 1 In 4 Out Functionality (VS421HD20) - Video-/audioswitch - 4 x HDMI - desktop - for P/N: SVA5H2NEUA
Specifications
Full specifications
|
General
|
|
|---|---|
|
Device Type
|
Video/audio switch - 4 ports
|
|
Enclosure Type
|
Desktop
|
|
Features
|
4K resolution support, 7.1 channel audio support
|
|
Max Resolution
|
3840 x 2160 @ 60 Hz
|
|
Ports
|
4 x HDMI
|
|
Status Indicators
|
Port status, power
|
|
Subtype
|
HDMI
|
|
Expansion / Connectivity
|
|
|
Interfaces
|
4 x HDMI input Type A | 1 x HDMI output Type A
|
|
Power
|
|
|
Electric Current Required
|
0.4 A
|
|
Power Device
|
External power adapter
|
|
Voltage Required
|
AC 120/230 V
|
|
Miscellaneous
|
|
|
Color
|
Black
|
|
Compliant Standards
|
FCC, RoHS, HDCP 2.2
|
|
Included Accessories
|
Remote control
|
|
Localization
|
Australia, New Zealand, North America, United Kingdom, Europe
|
|
Dimensions & Weight
|
|
|
Depth
|
12.3 cm
|
|
Height
|
2 cm
|
|
Weight
|
152 g
|
|
Width
|
5.1 cm
|
|
Manufacturer Warranty
|
|
|
Service & Support
|
Limited warranty - 2 years
|
|
Environmental Parameters
|
|
|
Humidity Range Operating
|
10 - 85%
|
|
Humidity Range Storage
|
10 - 85%
|
|
Max Operating Temperature
|
40 °C
|
|
Max Storage Temperature
|
80 °C
|
|
Min Operating Temperature
|
0 °C
|
|
Min Storage Temperature
|
-10 °C
|
|
Compatibility Information
|
|
|
Designed For
|
P/N: SVA5H2NEUA
|
Media
Switch between four HDMI video sources on a single display with support for Ultra HD resolutions
- Astonishing picture quality with support for 4K 60Hz
- Hassle-free operation with automatic 4-port switching and an IR remote control included
- 7.1 surround sound
- Front-panel toggle-switch button
.jpg)
.jpg)
.jpg)
.jpg)
.jpg)
.jpg)
.jpg)

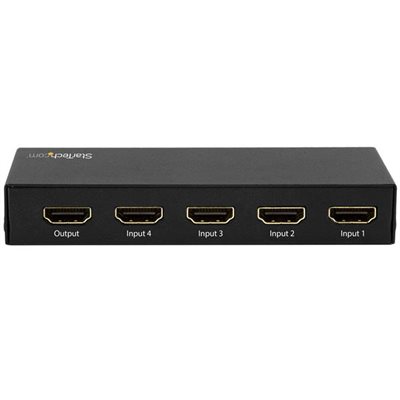

Astonishing picture quality with support for Ultra HD 4K at 60Hz
The HDCP 2.2 HDMI switch lets you harness the High Dynamic Range (HDR) capability of your HDMI 2.0 video sources and deliver it to your UHD 4K60 display. Unlike many 4K switches that only support a 30Hz refresh rate, this switch works with HDMI 2.0 displays with output resolutions of up to 3840 x 2160p at 60Hz.Don't be fooled by a clever spin on old technology. Many HDMI switches support 4K but will only work at a 30Hz refresh rate, or claim support for 60Hz but heavily compress their signal to a lower 4:2:0 chroma subsampling in order to work at inferior bitrates. This 4K 60Hz HDMI switch uses the latest components to offer full support for your HDMI 2.0 equipment, supporting true 4K resolution at 60Hz with 4:4:4 chroma subsampling. Support for HDMI 2.0 devices means this switch can transmit bandwidth up to 18Gbps, making it ideal for high-resolution computer tasks.
.jpg)

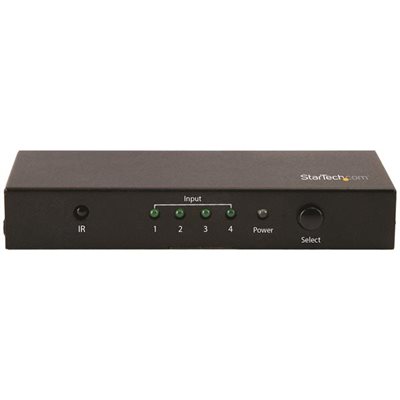

Hassle-free Operation with automatic switching
This switch ensures effortless operation with automatic switching that detects and selects a newly connected device. It's perfect for automatically switching to a 4K media player such as a 4K UHD Blu-ray™ player as soon as it's switched on. In your classroom or office boardroom, the automatic switch makes it easy to share your projector between multiple sources, which encourages on-the-fly collaboration among colleagues.Applications
- Share 4K60 display with four different video sources
- Collaborate on the fly with colleagues, by connecting multiple users to the same display and switching between input devices
- Use in digital signage applications to display multiple source devices at different times
