StarTech.com FireWire adapter PCI Express Mini Card 800Mbps
-
Product no 988492627
Model MPEX1394B3
Brand StarTech.com
EAN 0065030842914
Weight 0.2 kg
-
Product information and specifications are guiding only. Without notice, these can be subject to change by the manufacturer. This applies for product images as well.
| Produktbeskrivelse | StarTech.com 3 Port 2b 1a 1394 Mini PCI Express FireWire Card Adapter - FireWire adapter - PCIe Mini Card - FireWire 800 - 2 ports + 1 x FireWire - MPEX1394B3 - FireWire adapter - PCIe Mini Card - 2 porte |
| Enhedstype | FireWire adapter |
| Model | Indstikskort |
| Grænseflade (bus) type | PCI Express Mini Card |
| Dimensioner (B x D x H) | 3 cm x 5 cm x 0.4 cm |
| Vægt | 6.8 g |
| Antal porte | 2 porte |
| Ekstra ports | 1 x IEEE 1394 (FireWire) |
| Dataforbindelsesprotokol | FireWire 800 |
| Dataoverførselshastighed | 800 Mbps |
| Systemkrav | Microsoft Windows Server 2003, Microsoft Windows Server 2008 R2, Microsoft Windows Server 2012, Microsoft Windows Server 2016, Microsoft Windows 2000/XP/Vista/7/8/8.1/10, Microsoft Windows Server 2019, Apple MacOS X 10.6 - 10.15, Apple macOS 11.0, Apple macOS 12.0, Microsoft Windows 11, kun Linux 3.5.x eller senere LTS-versioner, Apple macOS 13.0 |
| Producentgaranti | 2 års garanti |
| General | |
|---|---|
| Device Type | FireWire adapter - 2 ports |
| Form Factor | Plug-in card |
| Interface (Bus) Type | PCI Express Mini Card |
| Networking | |
| Auxiliary Ports | 1 x IEEE 1394 (FireWire) |
| Connectivity Technology | Wired |
| Data Link Protocol | IEEE 1394b (FireWire 800) |
| Data Transfer Rate | 800 Mbps |
| Expansion / Connectivity | |
| Compatible Slots | 1 x PCI Express Mini Card - full-length |
| Interfaces | 2 x FireWire 800 - 9 pin FireWire 800 | 1 x FireWire - 6 pin FireWire |
| Miscellaneous | |
| Compliant Standards | FCC, RoHS |
| Software / System Requirements | |
| OS Required | Microsoft Windows Server 2003, Microsoft Windows Server 2008 R2, Microsoft Windows Server 2012, Microsoft Windows Server 2016, Microsoft Windows 2000/XP/Vista/7/8/8.1/10, Microsoft Windows Server 2019, Apple MacOS X 10.6 - 10.15, Apple macOS 11.0, Ap |
| Dimensions & Weight | |
| Depth | 5 cm |
| Height | 0.4 cm |
| Weight | 6.8 g |
| Width | 3 cm |
| Manufacturer Warranty | |
| Service & Support | Limited warranty - 2 years |
| Environmental Parameters | |
| Max Operating Temperature | 70 °C |
| Min Operating Temperature | 0 °C |
.jpg)
.jpg)
.jpg)
.jpg)
.jpg)
.jpg)
.jpg)

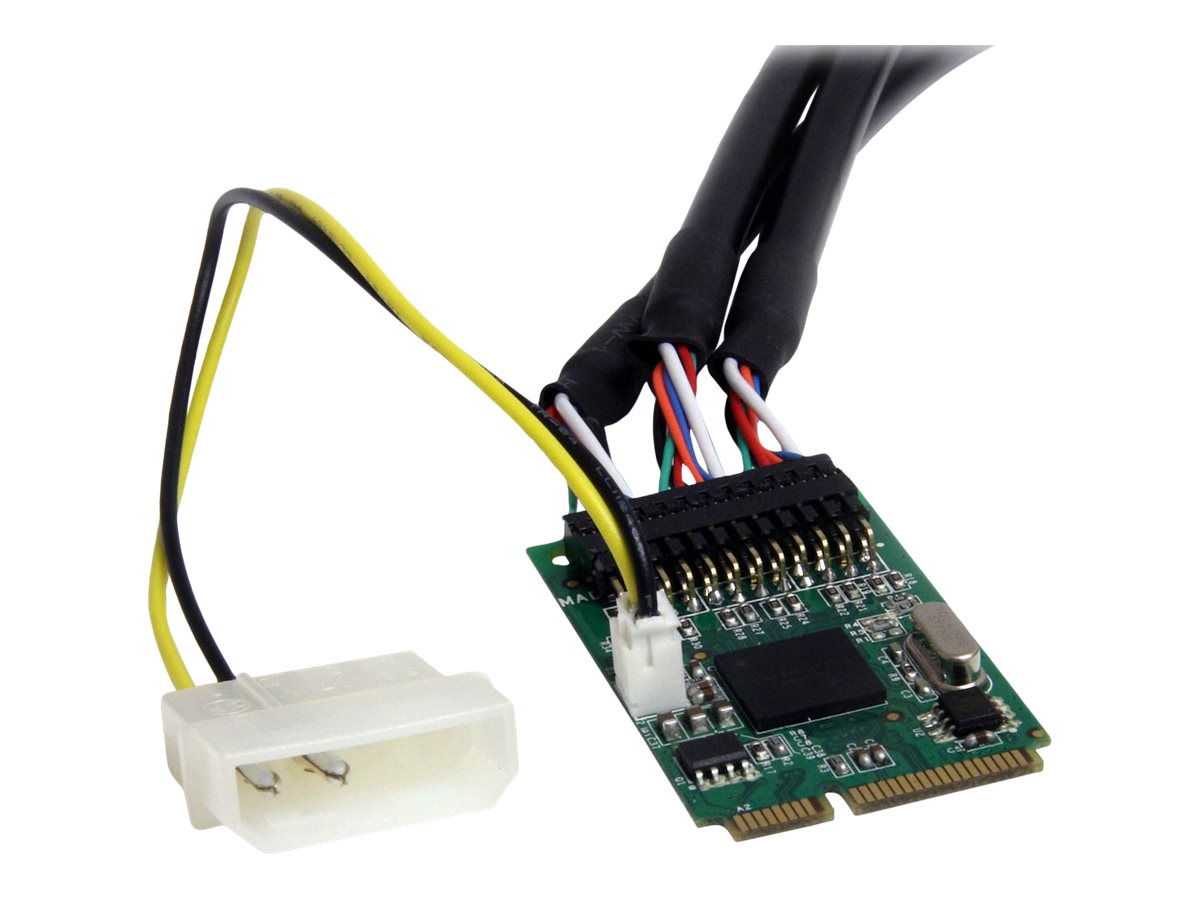

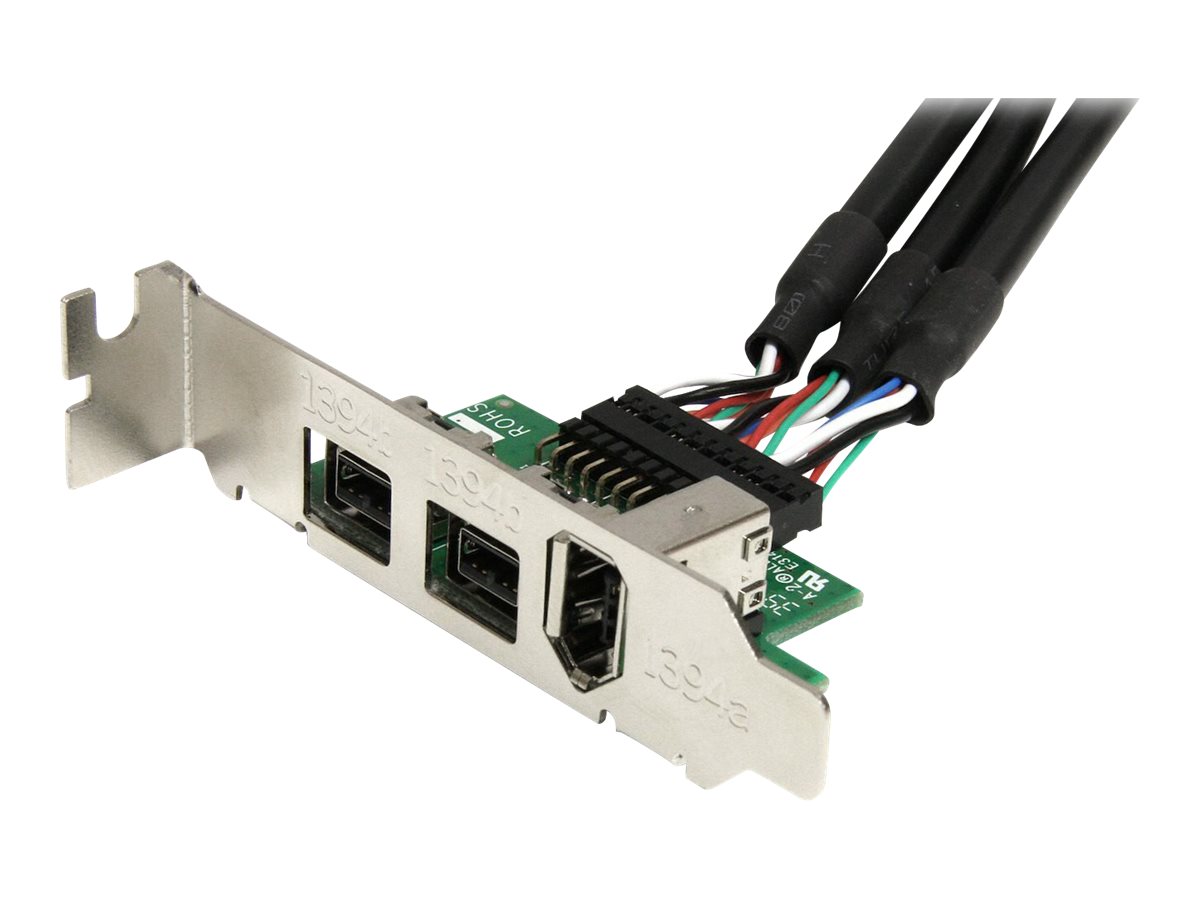

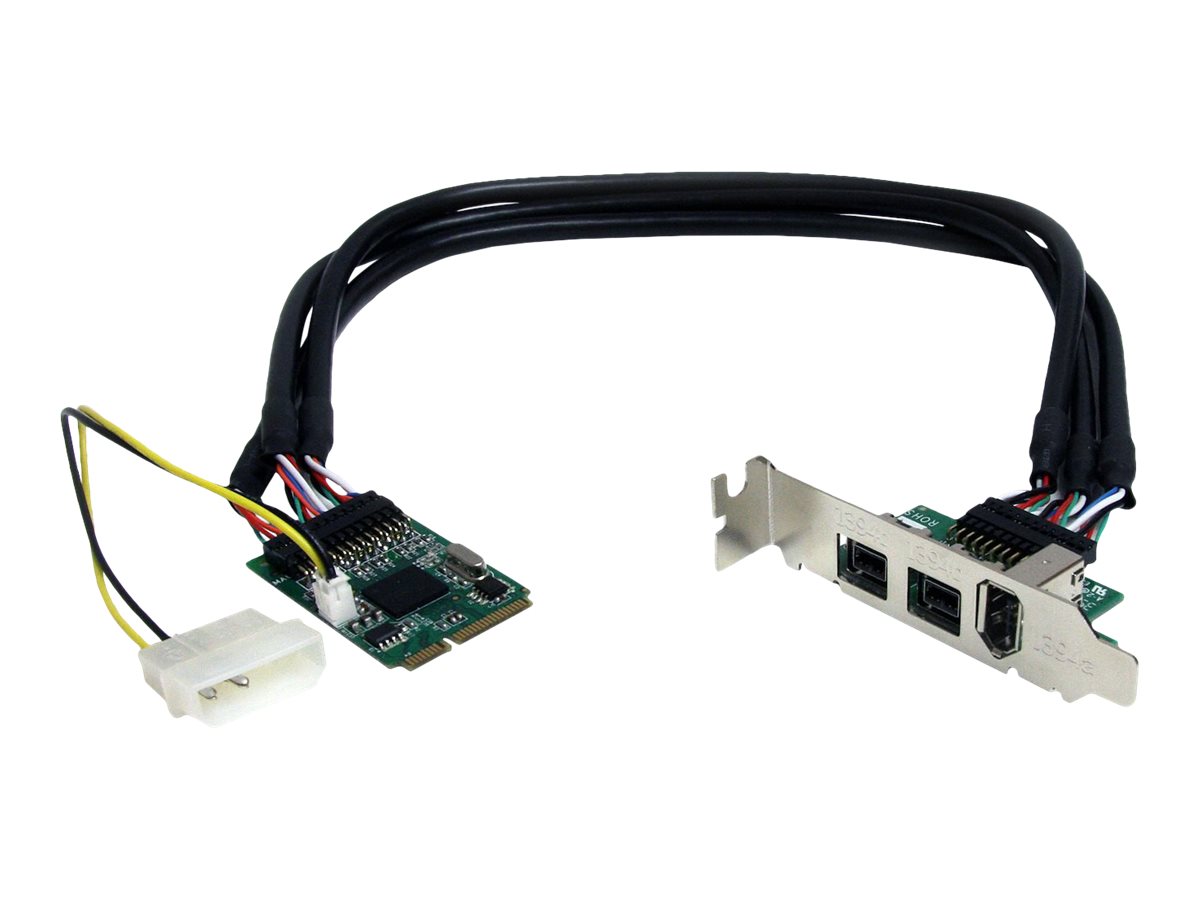

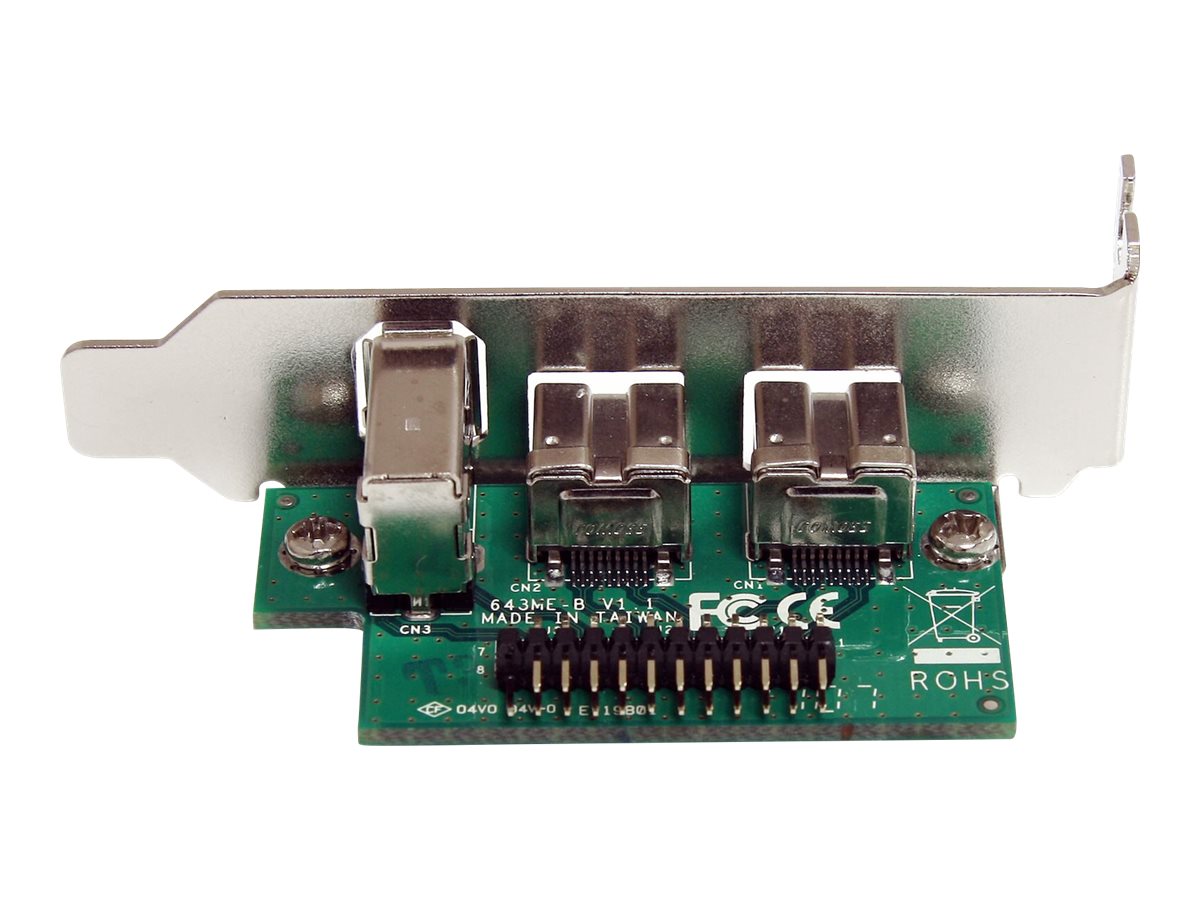

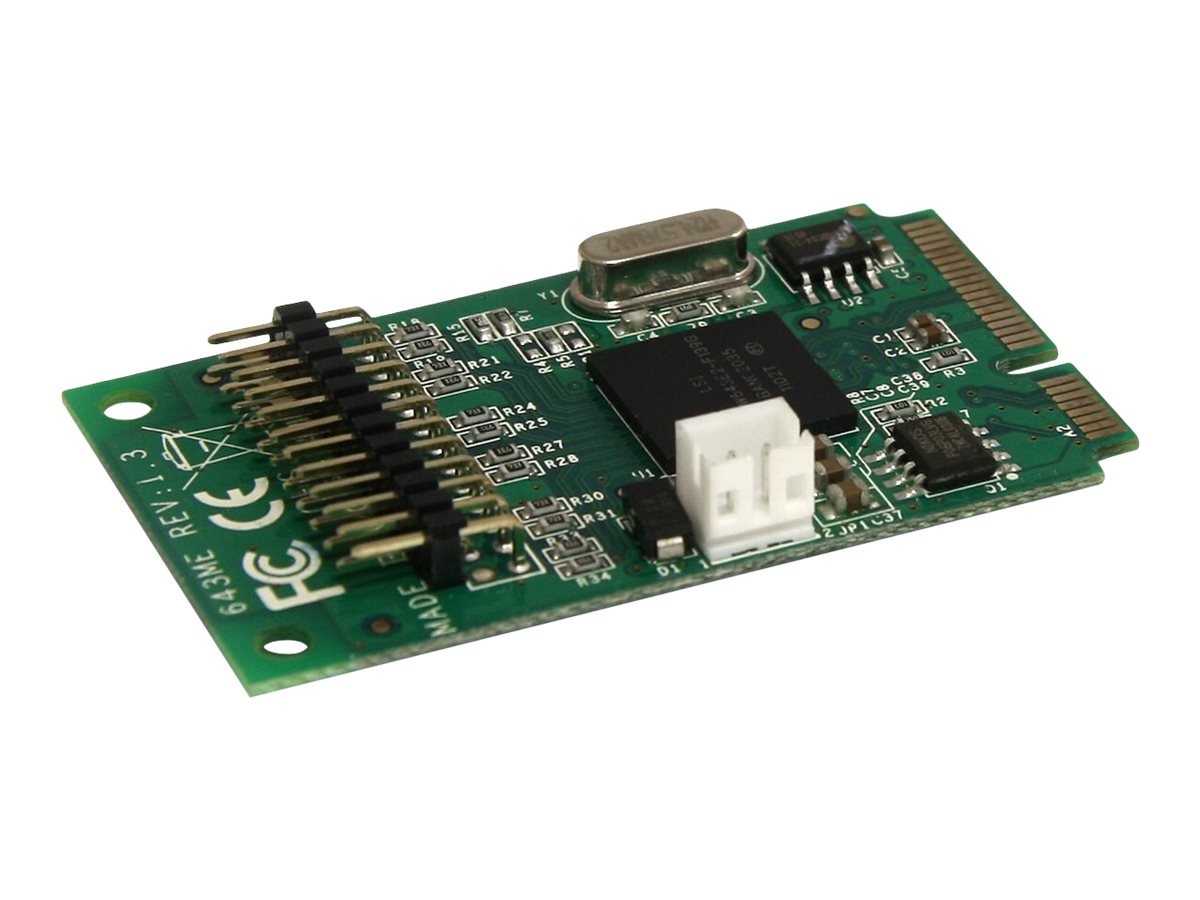

The MPEX1394B3 3-Port Mini PCI Express FireWire Card is a PCI Express to FireWire-800/FireWire-400 adapter that enables you to add external FireWire connectivity on very small form factor or embedded systems. The PCIe FireWire card provides two FireWire-800 ports and one FireWire-400 port, this adapter card supports the latest external FireWire storage devices at data transfer speeds of up to 800 Mbps.
Using the Mini PCI Express (Mini Card) form factor, this adapter card is designed for use in the latest very small form factor computer systems, such as Mini-ITX or custom embedded solutions where a full-sized PCI Express card would not fit.
Backed by a StarTech.com 2-year warranty and free lifetime technical support.
.jpg)
