StarTech.com Ekspansionsmodul PCI Express 1.1 x1 921.6Kbps

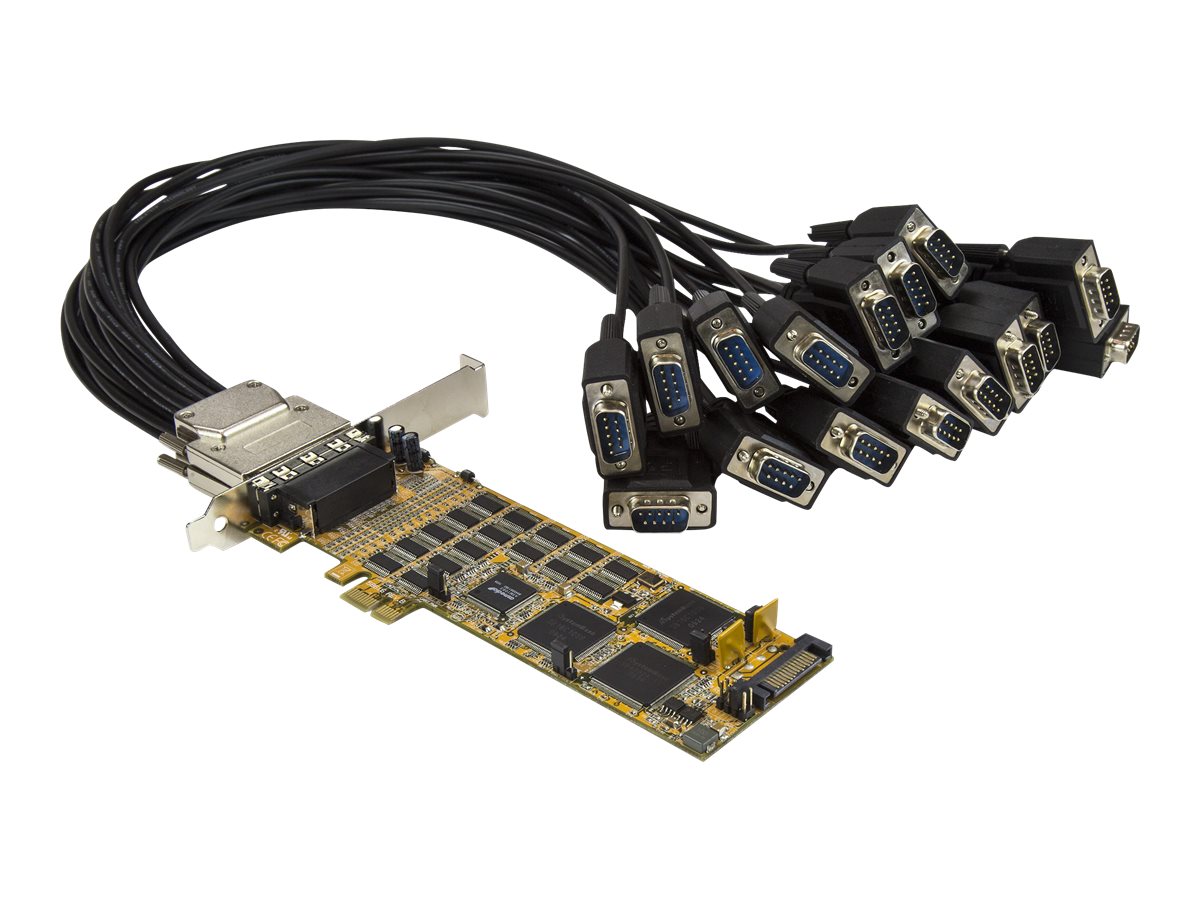

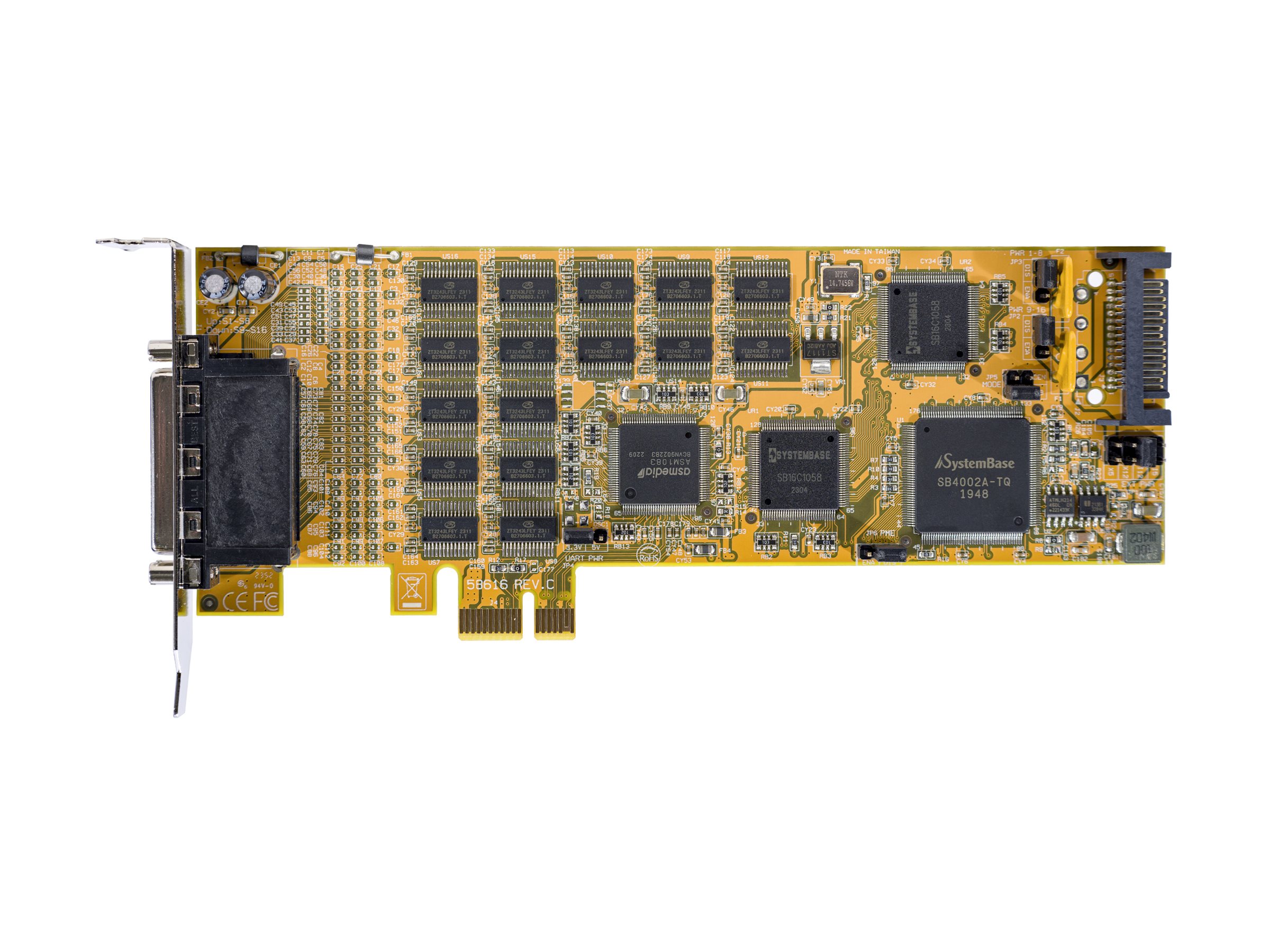

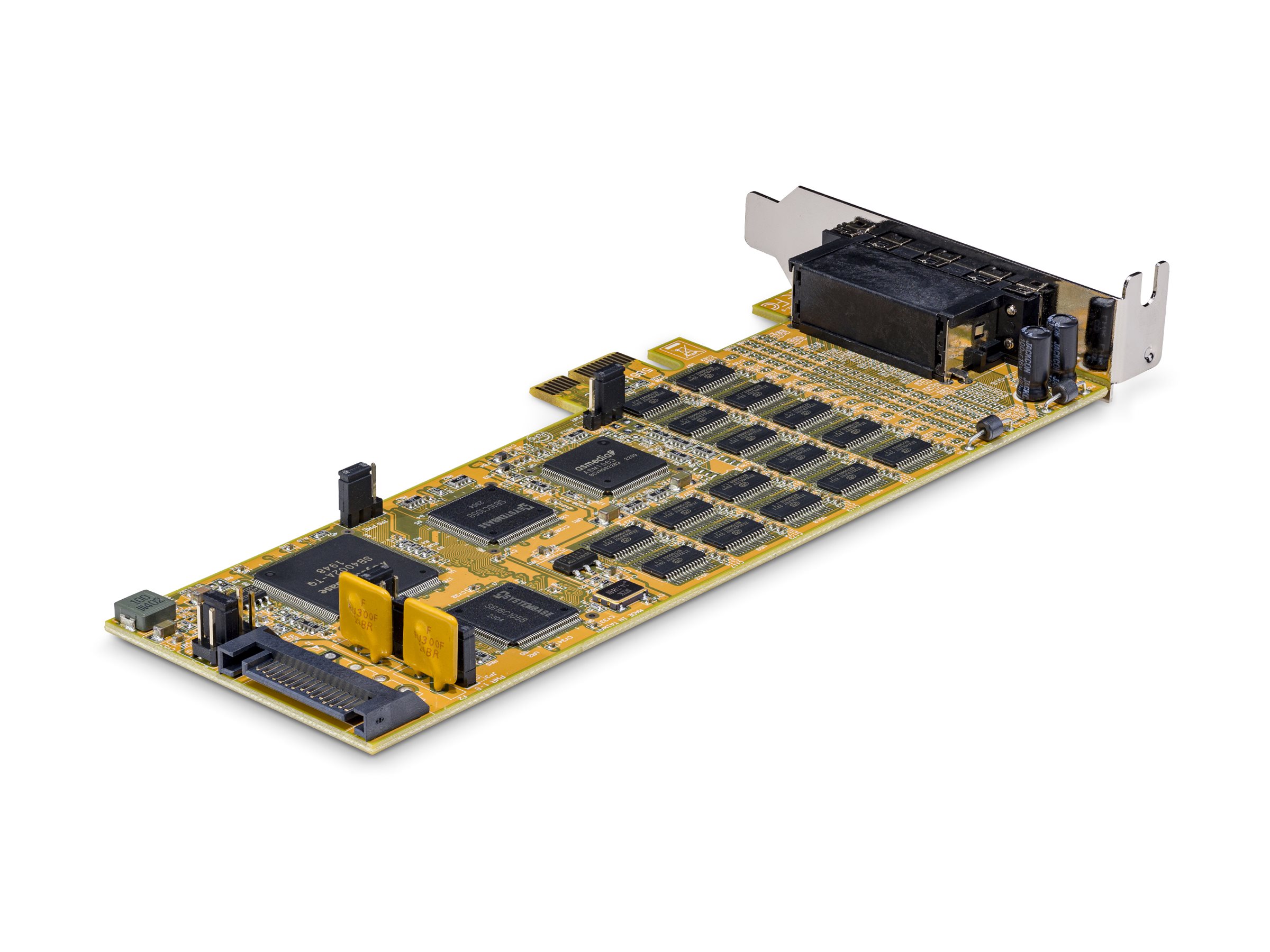

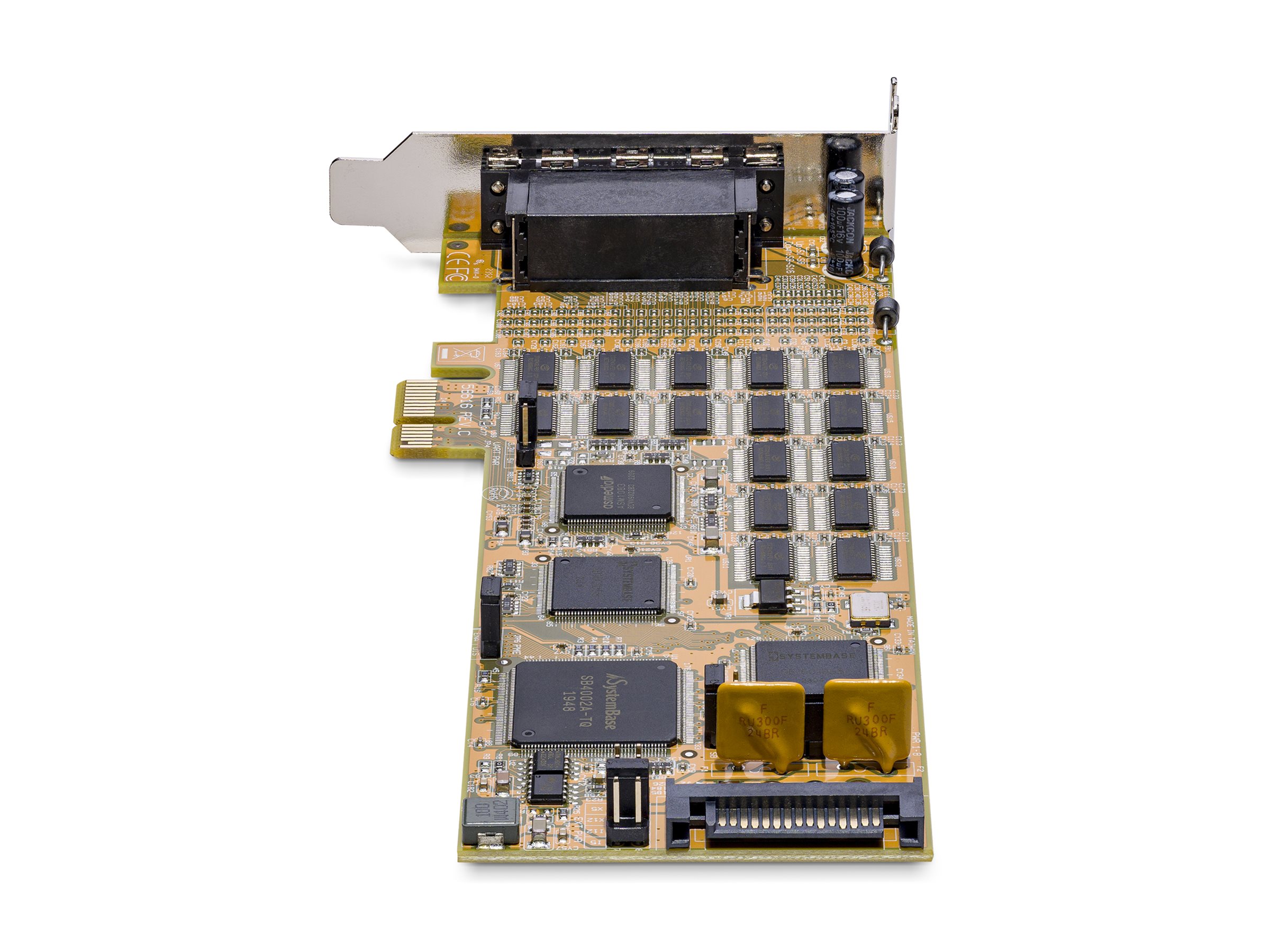

StarTech.com 16 Port PCI Express Serial Card - High-Speed PCIe Serial Card - Ekspansionsmodul - PCIe 1.1 lavprofil - RS-232 x 2 - gul

  • Product no 992523653

    Model PEX16S550LP

    Brand StarTech.com

    EAN 0065030868228

    Weight 1.01 kg

  • Product information and specifications are guiding only. Without notice, these can be subject to change by the manufacturer. This applies for product images as well.
Produktbeskrivelse StarTech.com 16 Port PCI Express Serial Card - High-Speed PCIe Serial Card - ekspansionsmodul - PCIe 1.1 - RS-232 x 2
Enhedstype Ekspansionsmodul
Model Indstikskort - lavprofil
Grænseflade (bus) type PCI Express 1.1 x1
PCI-specifikationsrevision PCIe 1.1
Porte RS-232 x 2
Dimensioner (B x D x H) 2.2 cm x 16.77 cm x 6.8 cm
Vægt 70 g
Dataforbindelsesprotokol RS-232
Dataoverførselshastighed 921.6 Kbps
Farve Gul
Systemkrav Microsoft Windows Server 2003, Microsoft Windows Server 2008 R2, Microsoft Windows Server 2012, Microsoft Windows Server 2012 R2, Microsoft Windows 7 / 8 / 8.1 / 10, Microsoft Windows Server 2016, Linux 2.6.x til 4.2.x LTS versioner
General
Device Type Expansion module
Form Factor Plug-in card - low profile
Interface (Bus) Type PCI Express 1.1 x1
PCI Specification Revision PCIe 1.1
Networking
Connectivity Technology Wired
Data Link Protocol RS-232
Data Transfer Rate 921.6 Kbps
Ports RS-232 x 2
Expansion / Connectivity

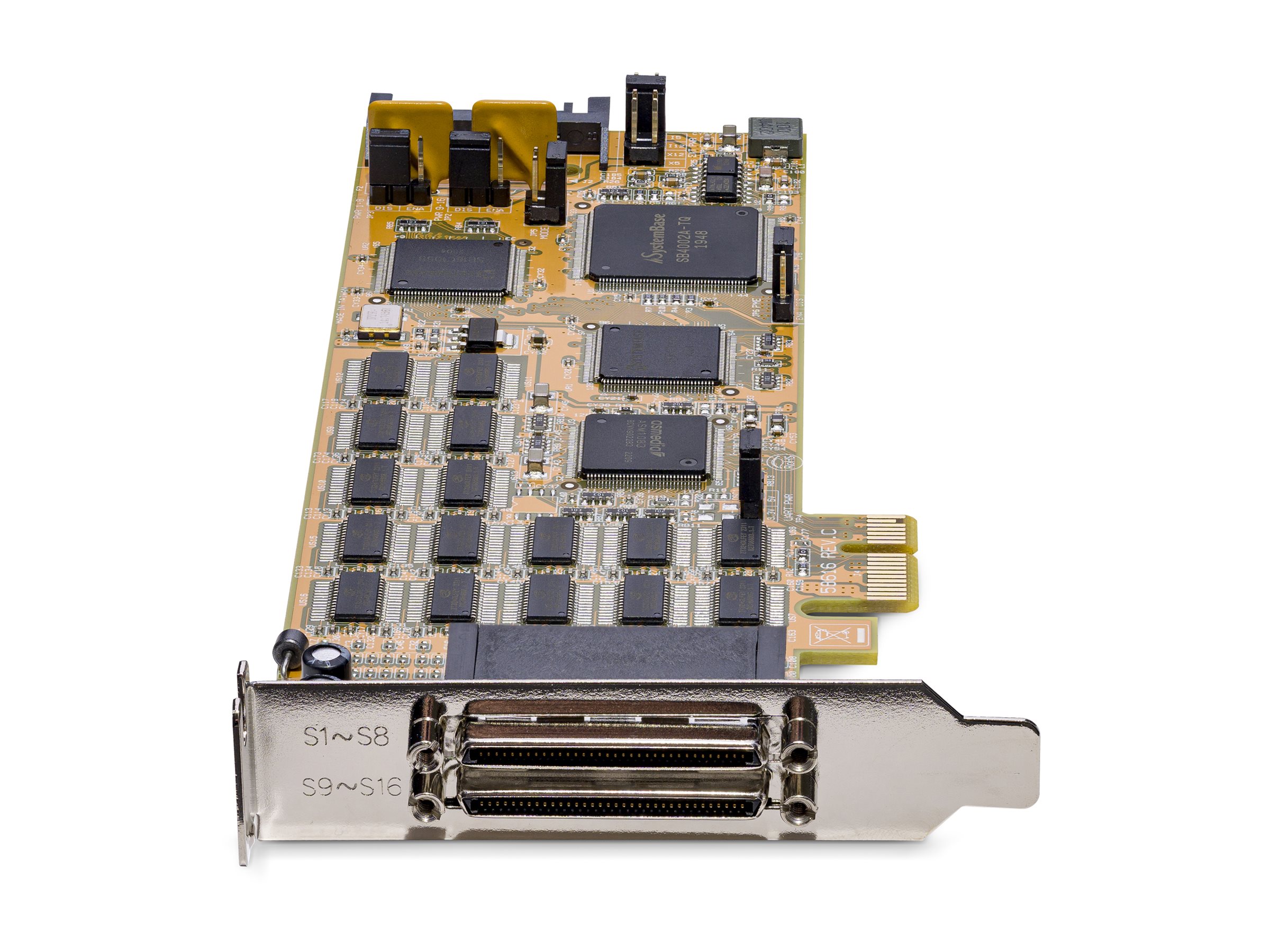

Interfaces 2 x RS-232 - 68 pin VHDCI (mini-Centronics)
Miscellaneous

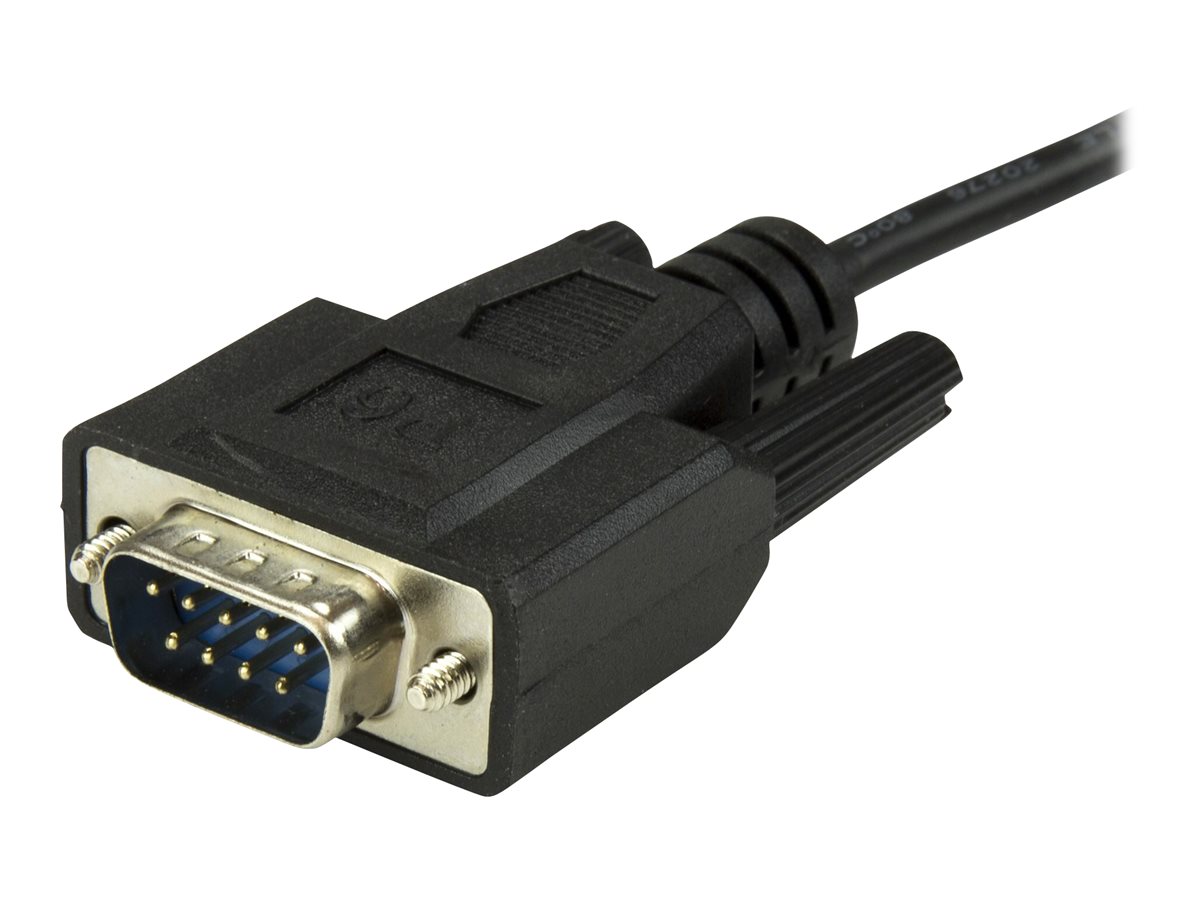

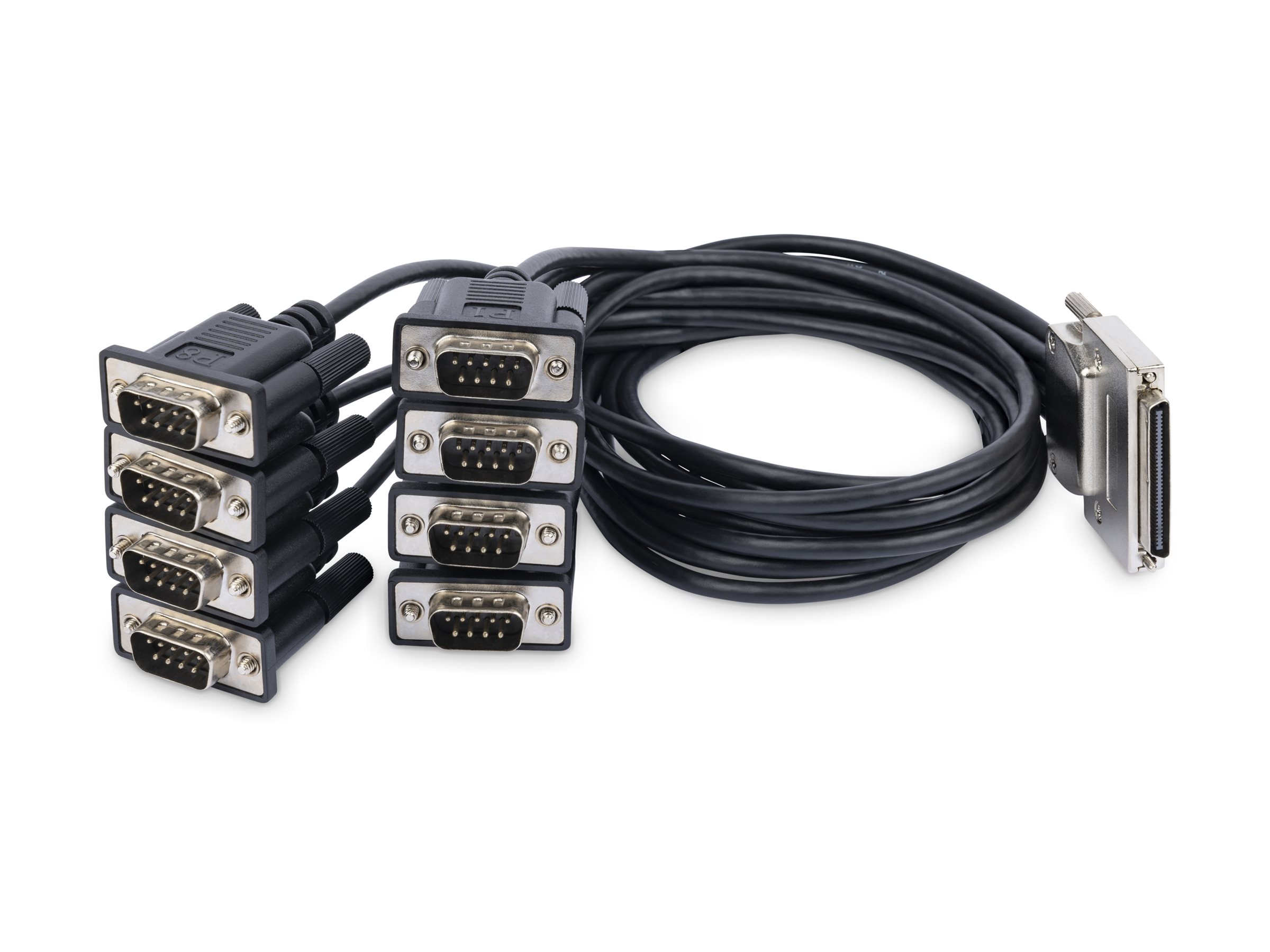

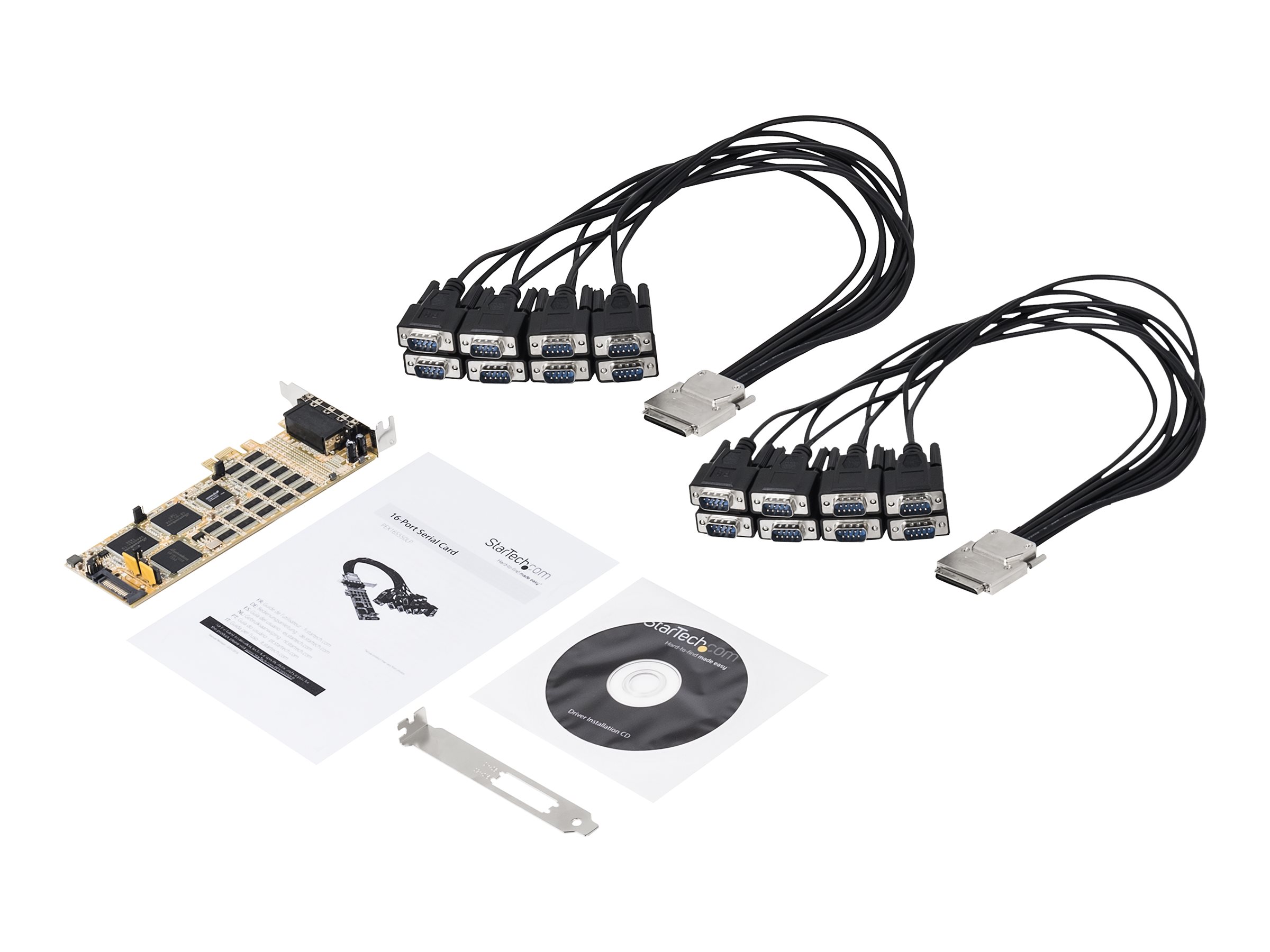

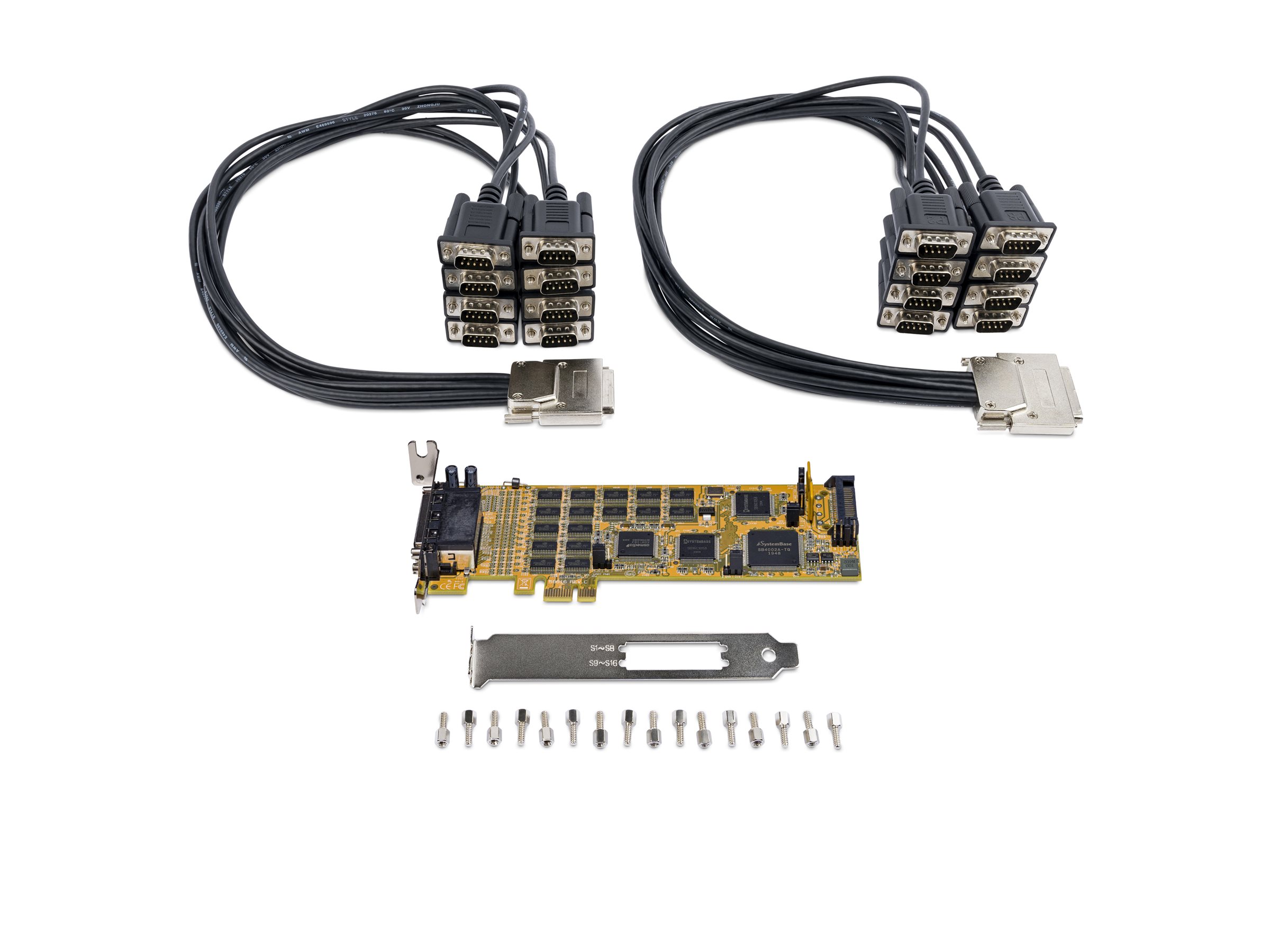

Cables Included 2 x VHDCI to 8 x DB-9 cable (external)
Color Yellow
Compliant Standards FCC, RoHS, WEEE, RCM
Included Accessories Low-profile bracket
Software / System Requirements
OS Required Microsoft Windows Server 2003, Microsoft Windows Server 2008 R2, Microsoft Windows Server 2012, Microsoft Windows Server 2012 R2, Microsoft Windows 7 / 8 / 8.1 / 10, Microsoft Windows Server 2016, Linux 2.6.x to 4.2.x LTS versions
Dimensions & Weight
Depth 16.77 cm
Height 6.8 cm
Weight 70 g
Width 2.2 cm
Environmental Parameters
Humidity Range Operating 10 - 90% (non-condensing)
Max Operating Temperature 55 °C
Min Operating Temperature 0 °C

Add 16 RS232 serial ports (DB9) to your low or full-profile computer, through a PCI Express slot

  • 16 DB9 RS232 ports from a single PCIe slot
  • Enables high-speed serial communication with data transfer rates up to 921.6 Kbps
  • Compatible with low- and full-profile desktop computers or servers
  • Fully compliant with PCI Express 1.0a/1.1 specification, compatible with 1x, 2x, 4x, 8x, and 16x PCIe bus
  • +/-15kV ESD protection
  • Selectable power output (5V or 12V ) on pin 9 for the serial port
  • Data Bits: 5, 6, 7, or 8-bit characters
  • Windows and Linux support
Add 16 RS232 serial ports (DB9) to your low or full-profile computer, through a PCI Express slot
slide {0} of {1}, zoom in, Add 16 RS232 serial ports (DB9) to your low or full-profile computer, through a PCI Express slot
slide {0} of {1}, zoom in, Add 16 RS232 serial ports (DB9) to your low or full-profile computer, through a PCI Express slot
slide {0} of {1}, zoom in, Add 16 RS232 serial ports (DB9) to your low or full-profile computer, through a PCI Express slot
slide {0} of {1}, zoom in, Add 16 RS232 serial ports (DB9) to your low or full-profile computer, through a PCI Express slot
slide {0} of {1}, zoom in, Add 16 RS232 serial ports (DB9) to your low or full-profile computer, through a PCI Express slot
slide {0} of {1}, zoom in, Add 16 RS232 serial ports (DB9) to your low or full-profile computer, through a PCI Express slot

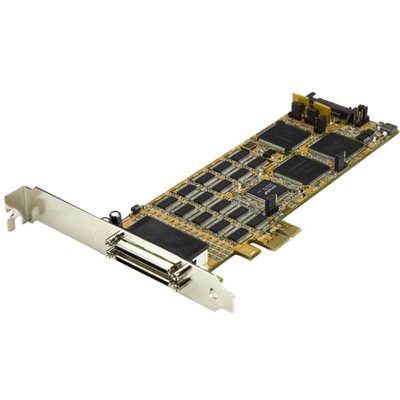

Add 16 RS232 ports through one PCIe slot

Add 16 RS232 ports through one PCIe slot

You can install the serial card to add 16 high-performance DB9 RS232 serial ports from a single PCIe slot. With two breakout cables of 8 ports each, the PCIe serial card maximizes the density of DB9 RS232 ports on a server or desktop computer. It’s ideal for system upgrades in a wide range of applications, including manufacturing equipment, POS equipment, security devices such as surveillance cameras, and environment or building control systems.

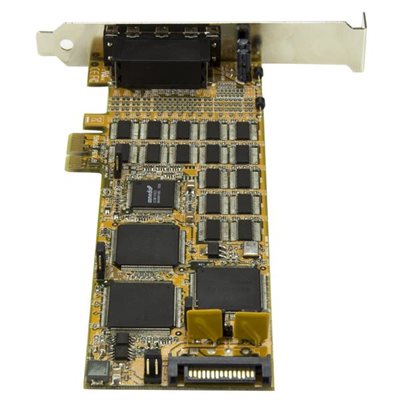

High-speed serial communication

High-speed serial communication

The PCIe serial card delivers high-performance, high-speed serial communication, with support for data transfer rates of up to 921.6 Kbps.

Easy installation

Easy installation

The serial card is easy to install and configure, and compatible with a broad range of Windows® and Linux® operating systems. The card features IRQ sharing and supports plug-and-play serial device connections, which makes it convenient and easy to connect serial devices. It includes a low-profile bracket making it compatible with both full profile and low profile PC chassis slots.

Applications

  • Control/monitoring of surveillance/security cameras and systems
  • Industrial automation for factory/manufacturing floors
  • Self-service automated machines and kiosks (in customer-facing areas such as grocery stores or airports) to control serial devices such as scales, touchscreens, magnetic card readers, bar code scanners, receipt printers, label printers
  • POS applications to control keyboards, cash drawers, receipt printers, card readers/card swipes, scales, and elevated displays on poles
  • Bank teller workstations in either full-profile or low-profile versions to control their serial devices such as cash drawers, card readers/card swipes, printers, keypads/PIN pads, pen pads
