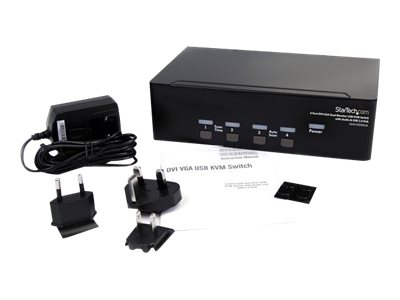

StarTech.com 4 Port DVI VGA Dual Monitor KVM USB Audio and USB 2.0 Hub (SV431DDVDUA) KVM / audio / USB switch Desktop
StarTech.com 4 Port DVI VGA Dual Monitor KVM Switch USB with Audio and USB 2.0 Hub (SV431DDVDUA) - KVM / audio / USB switch - 4 x KVM / audio / USB - 1 lokalbruger - desktop - for P/N: IM12D1500P, SVA12M2NEUA, SVA12M5NA, USBDVI4N1A6, USBVGA4N1A10, USBVGA4N1A6
-
Product no 988492445
Model SV431DDVDUA
Brand StarTech.com
EAN 0065030835701
Weight 1.8 kg
-
Product information and specifications are guiding only. Without notice, these can be subject to change by the manufacturer. This applies for product images as well.
| Produktbeskrivelse | StarTech.com 4 Port DVI VGA Dual Monitor KVM Switch USB with Audio and USB 2.0 Hub (SV431DDVDUA) - KVM / audio / USB switch - 4 porte |
| Enhedstype | KVM / audio / USB switch - 4 porte |
| Undertype | KVM |
| Porte | 4 x KVM / audio / USB |
| Antal KVM-brugere | 1 lokalbruger |
| Egenskaber | Indbygget 2-ports USB 2.0-hub, HDCP kompatibel |
| Dimensioner (B x D x H) | 22 cm x 13 cm x 6 cm |
| Vægt | 1.2 kg |
| Farve | Sort |
| Producentgaranti | 3 års garanti |
| Designet for | P/N: IM12D1500P, SV431RACK, SVA12M2NEUA, SVA12M5NA, USBDVI4N1A10, USBDVI4N1A6, USBVGA4N1A10, USBVGA4N1A6 |
| General | |
|---|---|
| Device Type | KVM / audio / USB switch - 4 ports |
| Enclosure Type | Desktop |
| Features | Built-in 2-port USB 2.0 hub, HDCP compliant |
| Keyboard / Mouse Interface | USB |
| KVM Local Users Qty | 1 local user |
| Max Resolution | 1920 x 1440 |
| Ports | 4 x KVM / audio / USB |
| Subtype | KVM |
| Expansion / Connectivity | |
| Interfaces | 1 x VGA HD-15 | 1 x DVI-D | 4 x USB 2.0 Type A | 2 x audio mini-jack | 4 x VGA HD-15 | 4 x DVI-D | 4 x audio mini-jack | 4 x USB 2.0 Type B |
| Power | |
| Power Device | External power adapter |
| Miscellaneous | |
| Color | Black |
| Compliant Standards | FCC, RoHS |
| Dimensions & Weight | |
| Depth | 13 cm |
| Height | 6 cm |
| Weight | 1.2 kg |
| Width | 22 cm |
| Manufacturer Warranty | |
| Service & Support | Limited warranty - 3 years |
| Environmental Parameters | |
| Max Operating Temperature | 40 °C |
| Min Operating Temperature | 0 °C |
| Compatibility Information | |
| Designed For | P/N: IM12D1500P, SV431RACK, SVA12M2NEUA, SVA12M5NA, USBDVI4N1A10, USBDVI4N1A6, USBVGA4N1A10, USBVGA4N1A6 |
Share a keyboard and mouse as well as 1 VGA and 1 DVI displays/monitors between 4 multimedia computers
- Direct channel selection and operation using front panel push-button or keyboard hotkeys
- Supports a maximum digital resolution of 1920 x 1200 and analog of 1920 x 1440; Recommended resolution is 1920 x 1200
- OS independent (no drivers or software required)
- Independent or simultaneous audio switching
- Full support for plug-n-play peripherals
- Rugged, all-metal chassis for use in harsh environments

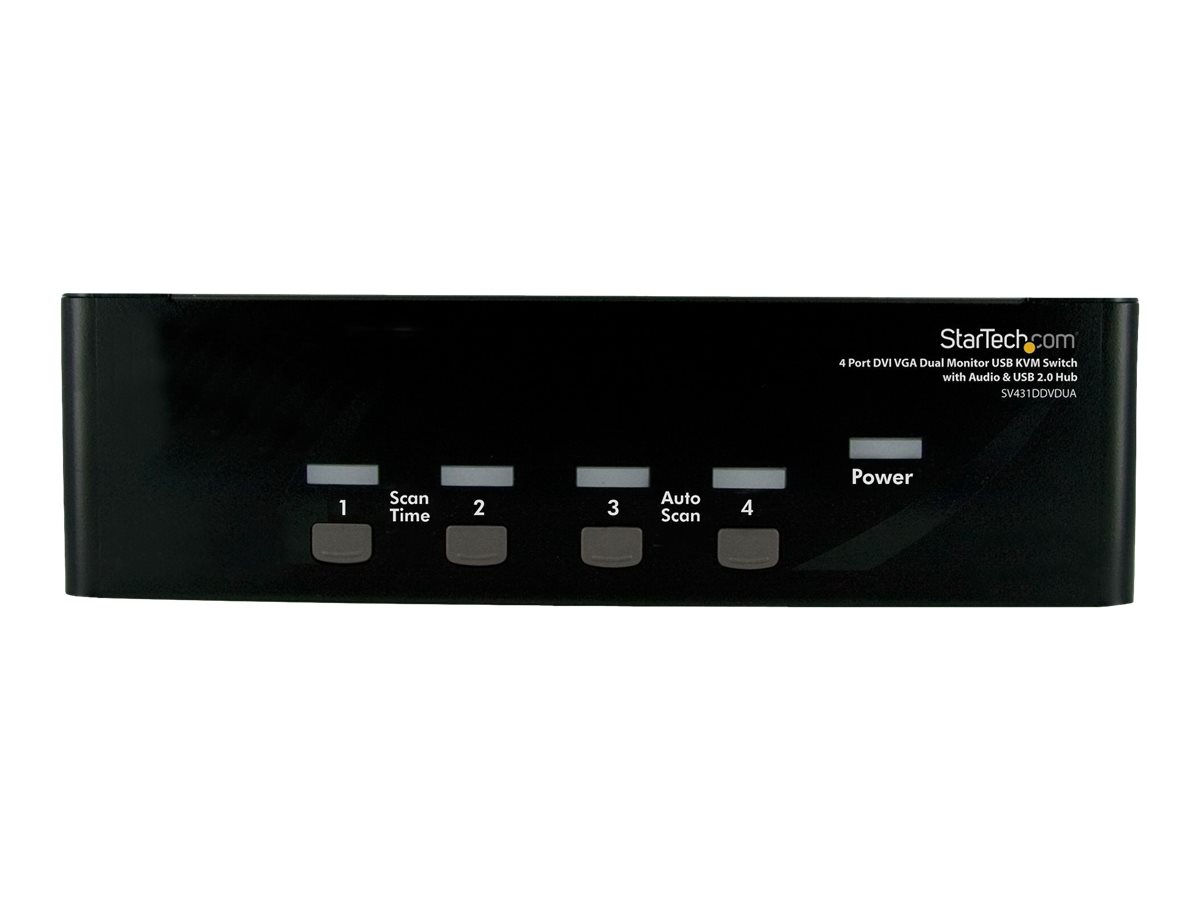

- Status LED display for easy port status monitoring
- USB style keyboard and mouse, plus two other USB 2.0 peripherals can be shared between up to two computers
- Tone indicator for computer switching
- Selectable time intervals for auto scan
- Rear function key to adjust video strength
- HDCP compliant
- Support DDC2B emulation and EDID pass through, which allows the display adapter to recognize and auto configure screens to match the display capabilities
- Supports Dual Monitor/Flat Panel Displays [1 x DVI + 1 x VGA]
.jpg)
.jpg)
.jpg)
.jpg)
.jpg)

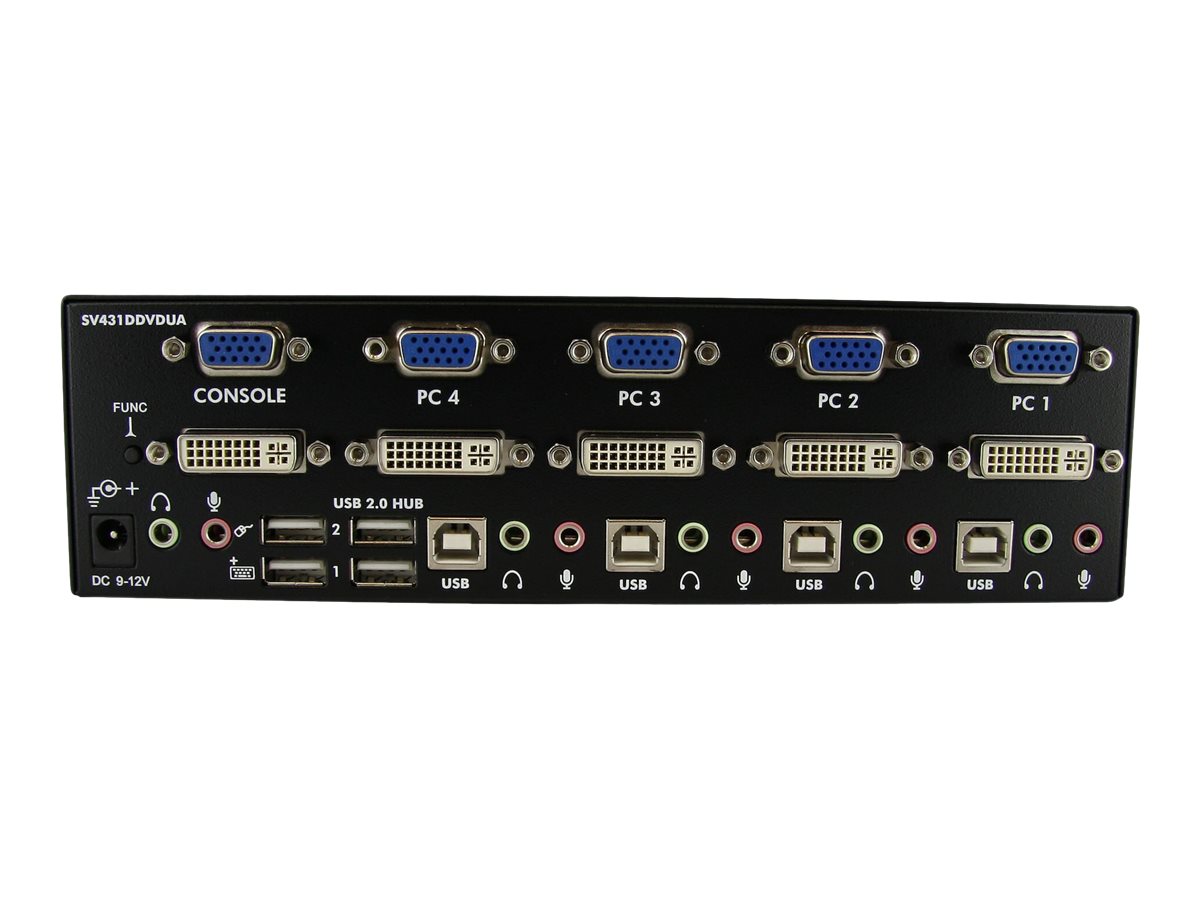

High-resolution DVI and VGA ports support almost any dual display scenario
This dual view KVM switch provides 1 VGA and 1 DVI-I port per computer connection for high-resolution video, as well as audio switching capability between connected computers..jpg)
Integrated USB 2.0 hub and Mic/Audio ports allow the user to have full multimedia control of two computers and share USB peripherals
The DVI/VGA KVM switch features an integrated 2-port USB hub that allows USB 2.0 peripherals to be shared between connected computers, and offers a compact design with a rugged metal chassis for durable performance..jpg)
Absolutely no software or drivers required providing a completely OS independent KVM solution
The SV431DDVDUA 4-port DVI VGA dual monitor KVM switch lets you control 4 Dual Display computers using a single USB mouse and keyboard peripheral set.Applications
- Perfect solution for desktops, workstations and servers with both VGA and DVI-digital ports, allowing a user to take advantage of dual monitor configurations
- Ideal for financial/banking industries, graphic designers, engineers, multi-media designers, and industries using CAD/CAM applications, where high resolution dual monitor units are needed
- Suitable for use in environments with electromagnetic interference, based on sturdy metal design
- Versatile support for setups where one machine is DVI & VGA, and the other is VGA & VGA (with available adapters)
.jpg)
.jpg)
