StarTech.com 2x M.2 SATA SSD Controller Card - PCIe - PCI Express M.2 SATA III Controller - NGFF Card Adapter (PEX2M2) Lagringskontrol

Startech 2x M.2 SATA SSD Controller Card - PCIe - PCI Express M.2 SATA III Controller - NGFF Card Adapter (PEX2M2) - Lagringskontrol - M.2 - M.2 Card / SATA 6Gb/s - PCIe 2.0 x2 - for P/N: BNDTB10GI, BNDTB210GSFP, BNDTB310GNDP, BNDTB410GSFP, BNDTB4M2E1, BNDTBUSB3142

Varenummer: 990049572
Model: PEX2M2
EAN: 0065030863049
Brand:
StarTech.com
Vægt: 0.17 kg

Specifications

Produktbeskrivelse
Startech 2x M.2 SATA SSD Controller Card - PCIe - PCI Express M.2 SATA III Controller - NGFF Card Adapter (PEX2M2) - lagringskontrol - M.2 Card / SATA 6Gb/s - PCIe 2.0 x2
Enhedstype
Lagringskontrol - indstikskort
Bustype
PCIe 2.0 x2
Harddiskens formfaktorkompatibilitet
M.2
Interface
M.2 Card / SATA 6Gb/s
Dataoverførselshastighed
6 Gbit/s
Understøttede enheder
Solid state drev
Dimensioner (B x D x H)
2 cm x 16.8 cm x 12 cm
Vægt
60 g
Producentgaranti
2 års garanti
Designet for
P/N: BNDTB10GI, BNDTB1394B3, BNDTB210GSFP, BNDTB310GNDP, BNDTB410GSFP, BNDTB4M2E1, BNDTBUSB3142, TB31PCIEX16
Specifications

Media

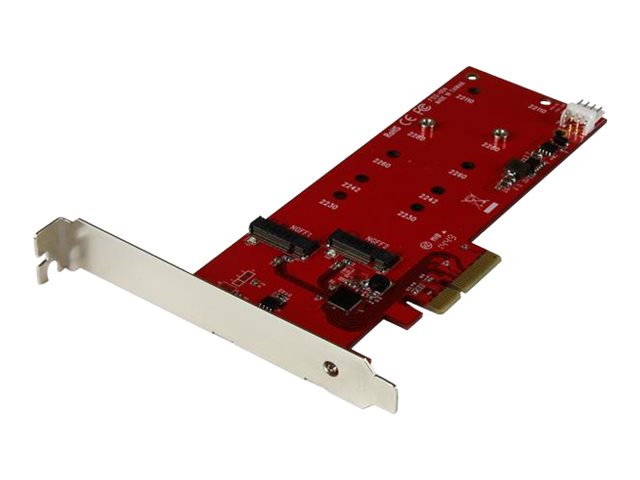

Add two Next Generation Form Factor (NGFF) M.2 SATA SSDs to your computer through PCI Express

  • Improve system performance, recover data, or create a redundant data backup by adding two M.2 solid-state drives (SSD) to your desktop PC

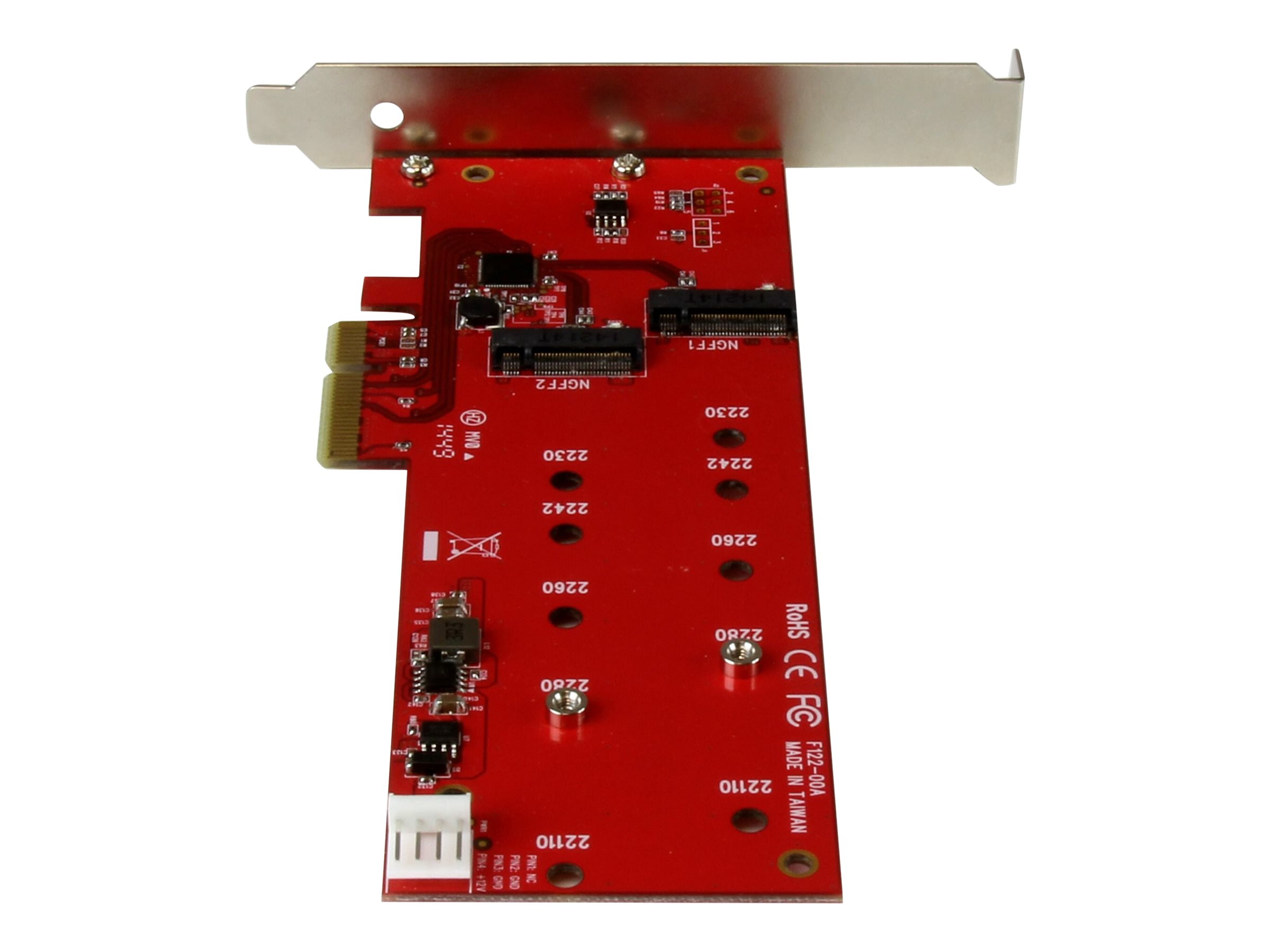

  • Wide installation compatibility, with support for virtually all M.2 NGFF drives (22110, 2280, 2260, 2242, 2230)

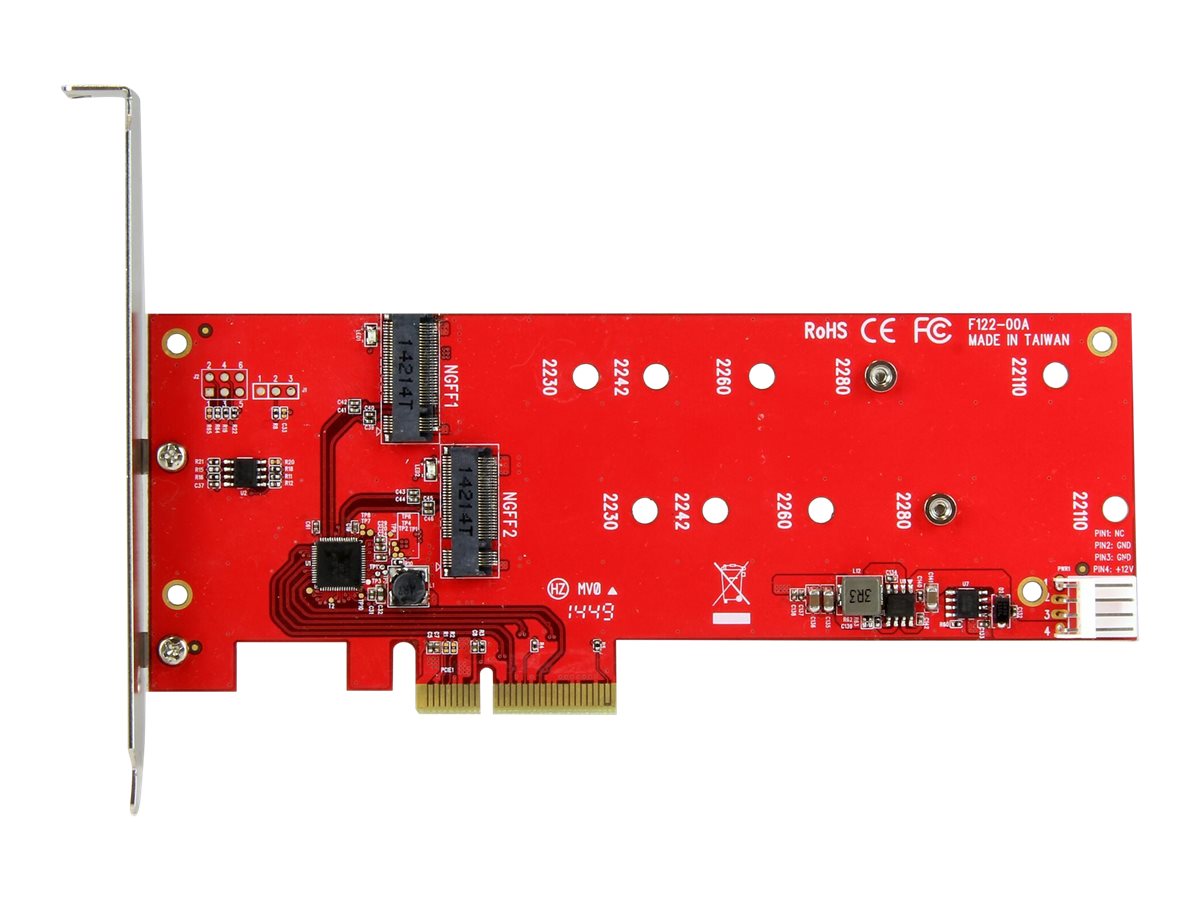

  • Two M.2 B-Key onboard sockets that support SATA III transfer speeds up to 6Gbps
  • Adjustable stand-offs, and multiple mounting holes support 110mm, 80mm, 60mm, 42mm, and 30mm SSDs
  • Fast, hassle-free setup with native OS support
  • Compliant with PCI Express 2.0 standards
  • Supports Native Command Queuing (NCQ)
  • PCIe bus-powered, or powered by your computer’s power supply using a 4-pin floppy power connector (small drive power)

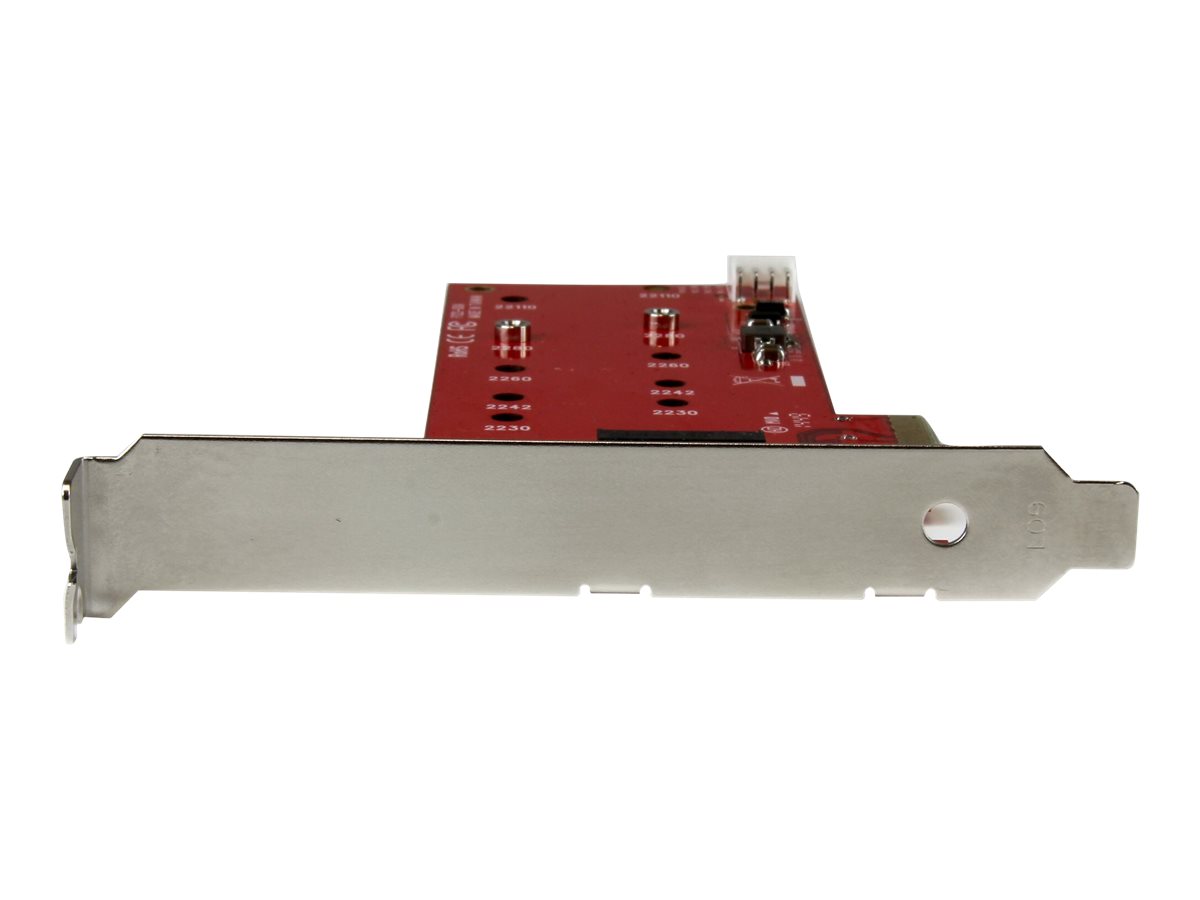

  • Equipped with a full-profile bracket, includes a half-height/low-profile bracket for installation in small form-factor computers
  • Installs into x4, x8, or x16 PCIe slots
Add two Next Generation Form Factor (NGFF) M.2 SATA SSDs to your computer through PCI Express
slide {0} of {1}, zoom in, Add two Next Generation Form Factor (NGFF) M.2 SATA SSDs to your computer through PCI Express
slide {0} of {1}, zoom in, Add two Next Generation Form Factor (NGFF) M.2 SATA SSDs to your computer through PCI Express
slide {0} of {1}, zoom in, Add two Next Generation Form Factor (NGFF) M.2 SATA SSDs to your computer through PCI Express
slide {0} of {1}, zoom in, Add two Next Generation Form Factor (NGFF) M.2 SATA SSDs to your computer through PCI Express
slide {0} of {1}, zoom in, Add two Next Generation Form Factor (NGFF) M.2 SATA SSDs to your computer through PCI Express

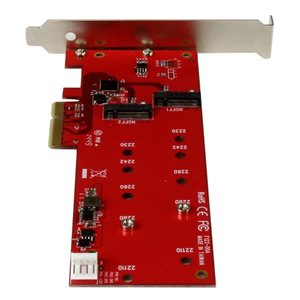

Leverage the speed and size of M.2 drives

Leverage the speed and size of M.2 drives

This M.2 controller card lets you take full advantage of the performance and size benefits of NGFF (Next Generation Form Factor) SSDs. M.2 drives are smaller than typical platter drives or mSATA-based SSDs, so you can install them in tighter areas within your computer case. By freeing up space within your computer, you’ll also have more room for additional hardware upgrades.

When you couple the card with an M.2 drive, you can give your computer’s performance a noticeable speed boost, enabling you to replace your platter drive with a faster M.2 SATA III (6Gbps) solid-state drive. By installing your operating system on the M.2 drive, you'll have faster access to the files you commonly use, and you can continue to use your higher-capacity platter HDD for bulk storage.

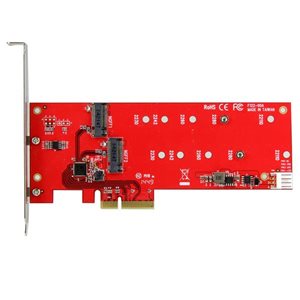

Rest assured, with simple and cost-effective data recovery

Rest assured, with simple and cost-effective data recovery

Due to their performance and size advantages, M.2 drives are commonly used in laptops. If your laptop has failed but its M.2 drive is functional, then this card can help with data recovery. Once the M.2 drive is installed and the data recovery is complete, you can continue to use the drive for storage and backup purposes.

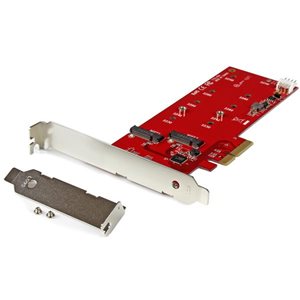

Wide compatibility

Wide compatibility

You can also rest assured that your M.2 SATA drives are compatible with the card. It supports the most common drive sizes, including 22110, 2280, 2260, 2242 and 2230.

The M.2 controller provides additional installation flexibility with a dual-profile design that fits standard or low-profile cases, so it’s the perfect solution for small form-factor or full-sized computers.

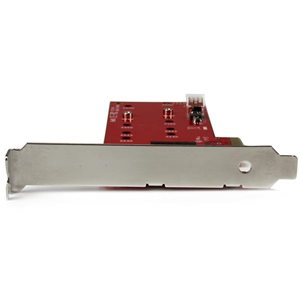

Get up and running quickly

Get up and running quickly

This M.2 SSD controller card is easy to install, with native OS support and no additional drivers or software required.

The PEX2M2 is backed by a StarTech.com 2-year warranty and free lifetime technical support.

Applications

  • Access and recover data from almost any M.2 SSD, such as drives pulled from laptops and other computers
  • Connect an M.2 drive to your computer through PCI Express
  • Install your operating system on an M.2 drive for fast access, while keeping larger platter drives available for bulk storage
  • Get the most out of your SSDs by installing two AHCI SATA III drives discreetly inside your computer tower
Add two Next Generation Form Factor (NGFF) M.2 SATA SSDs to your computer through PCI Express
