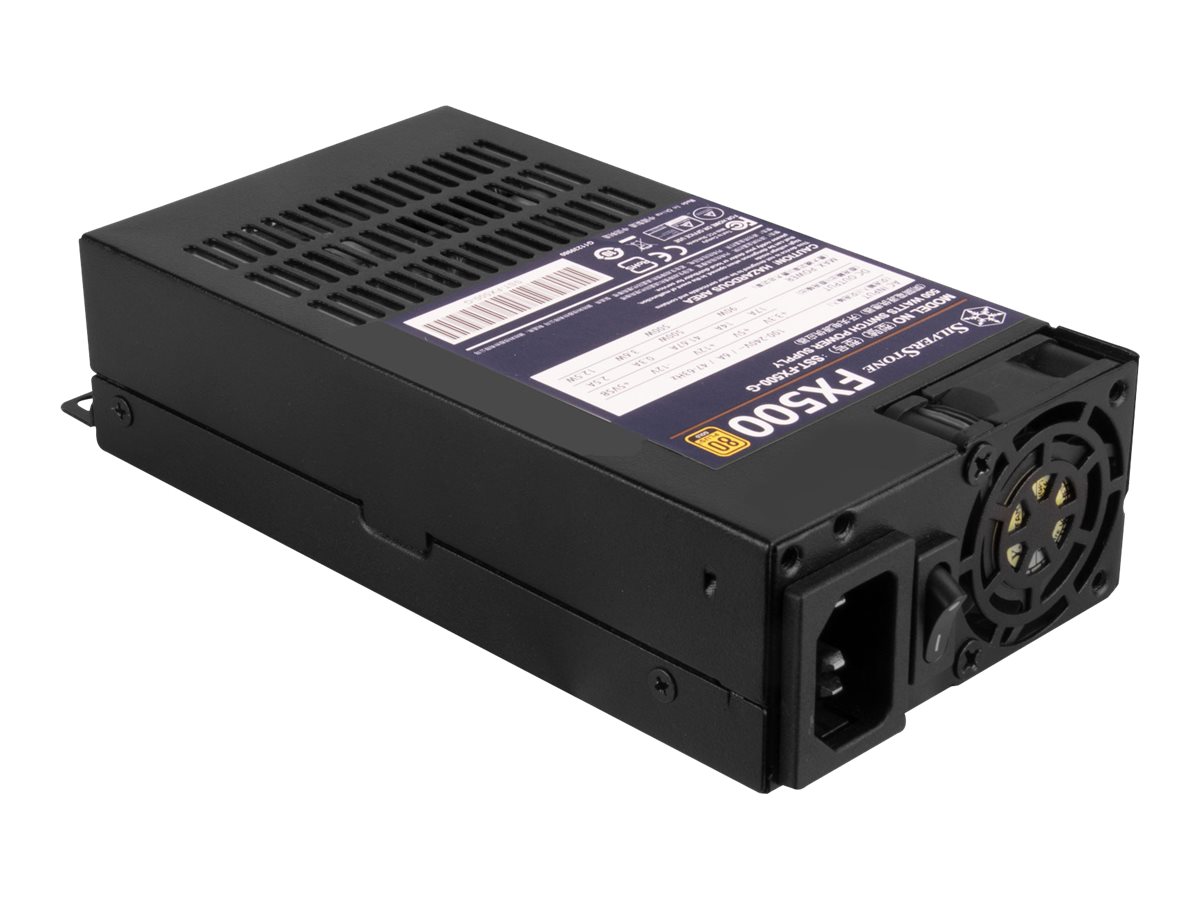

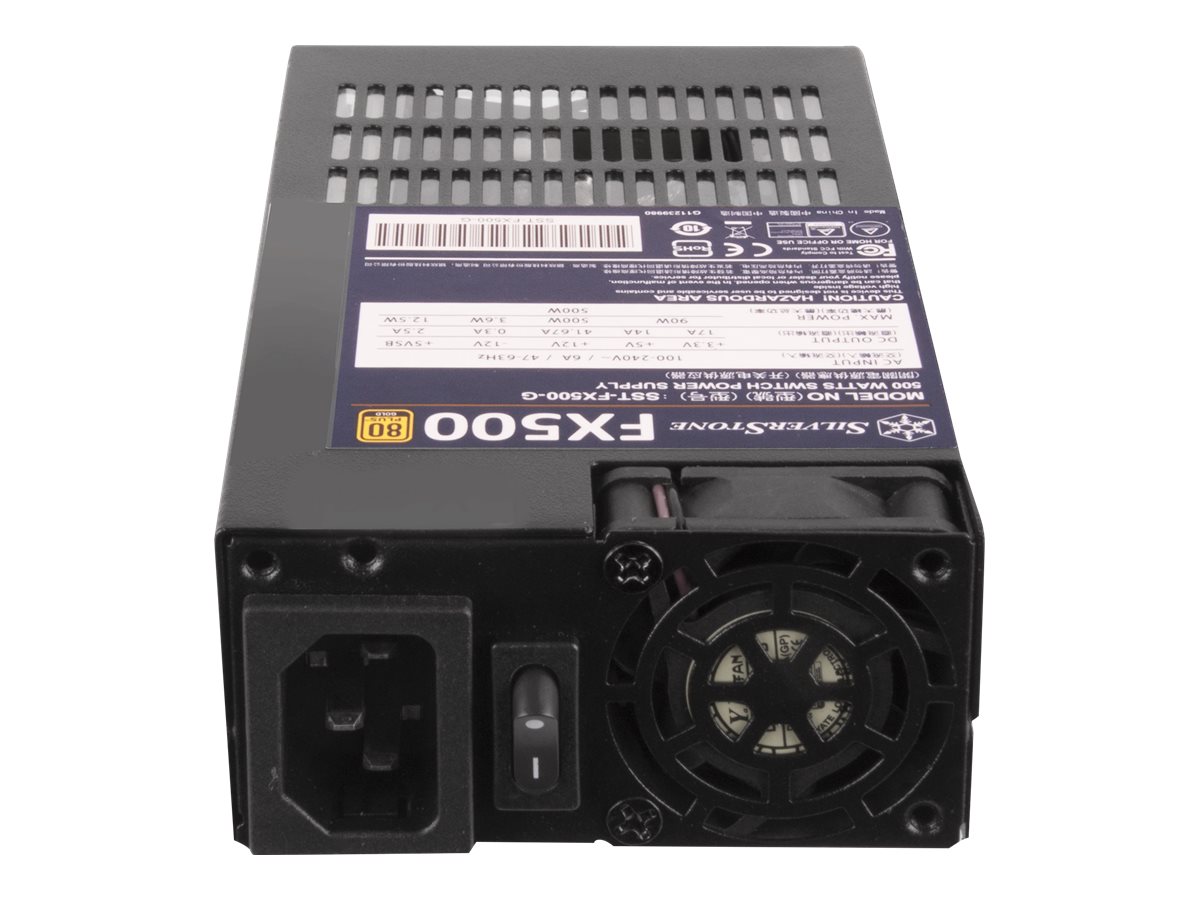

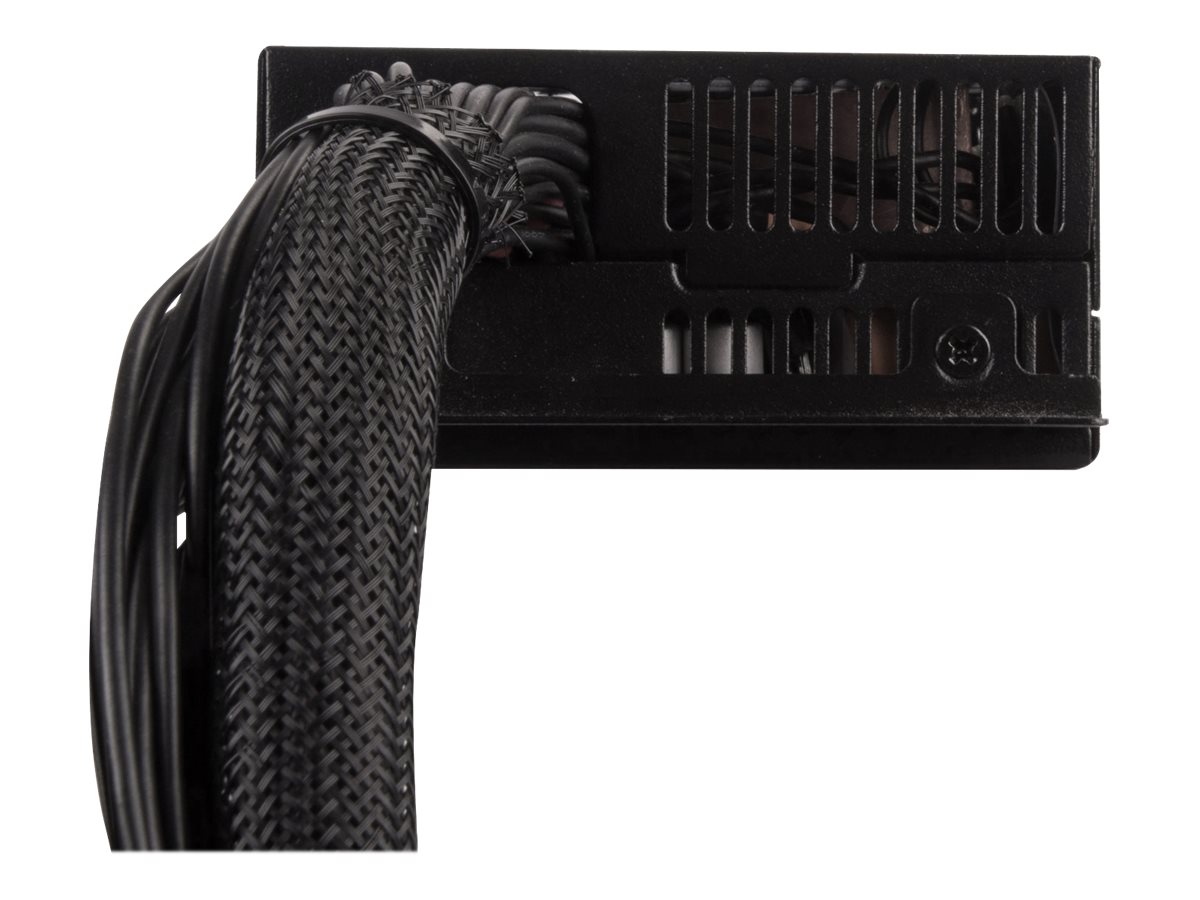

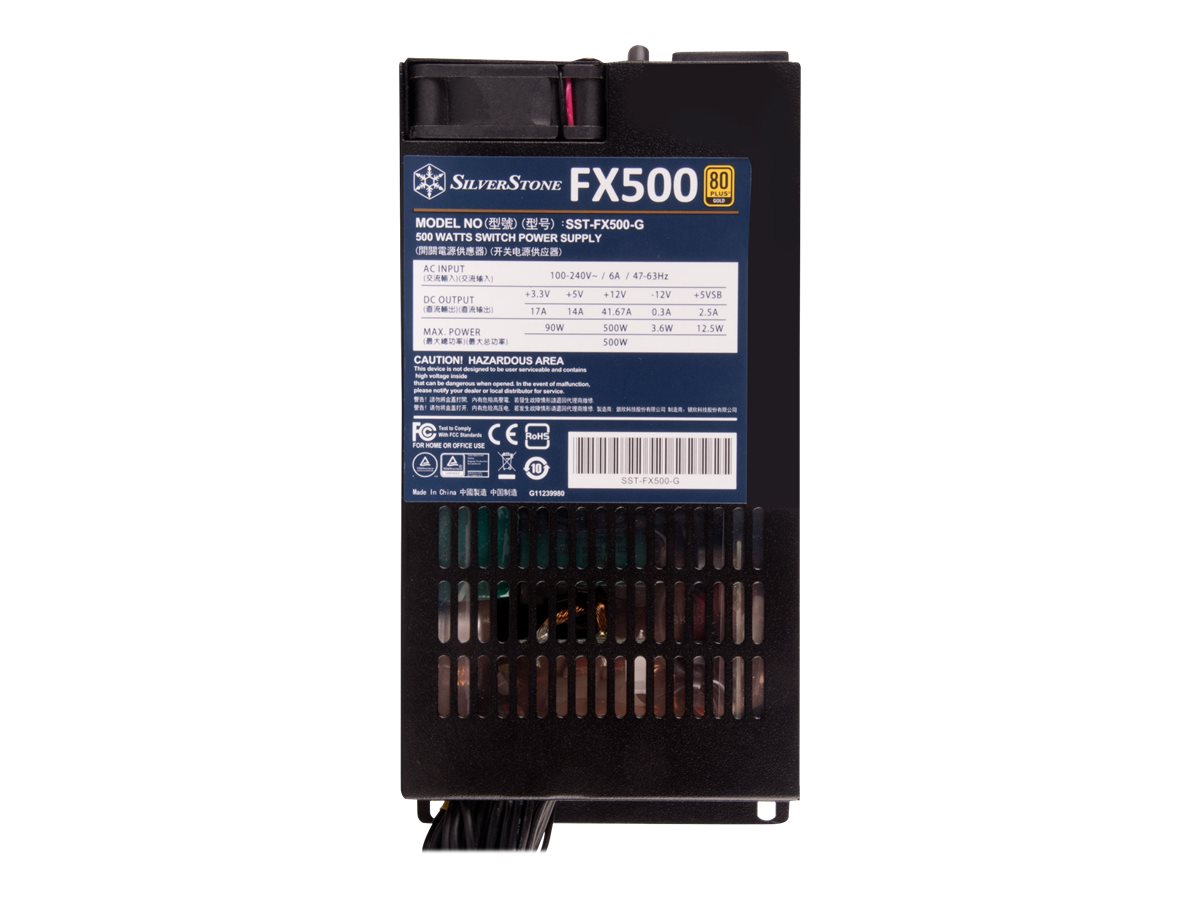

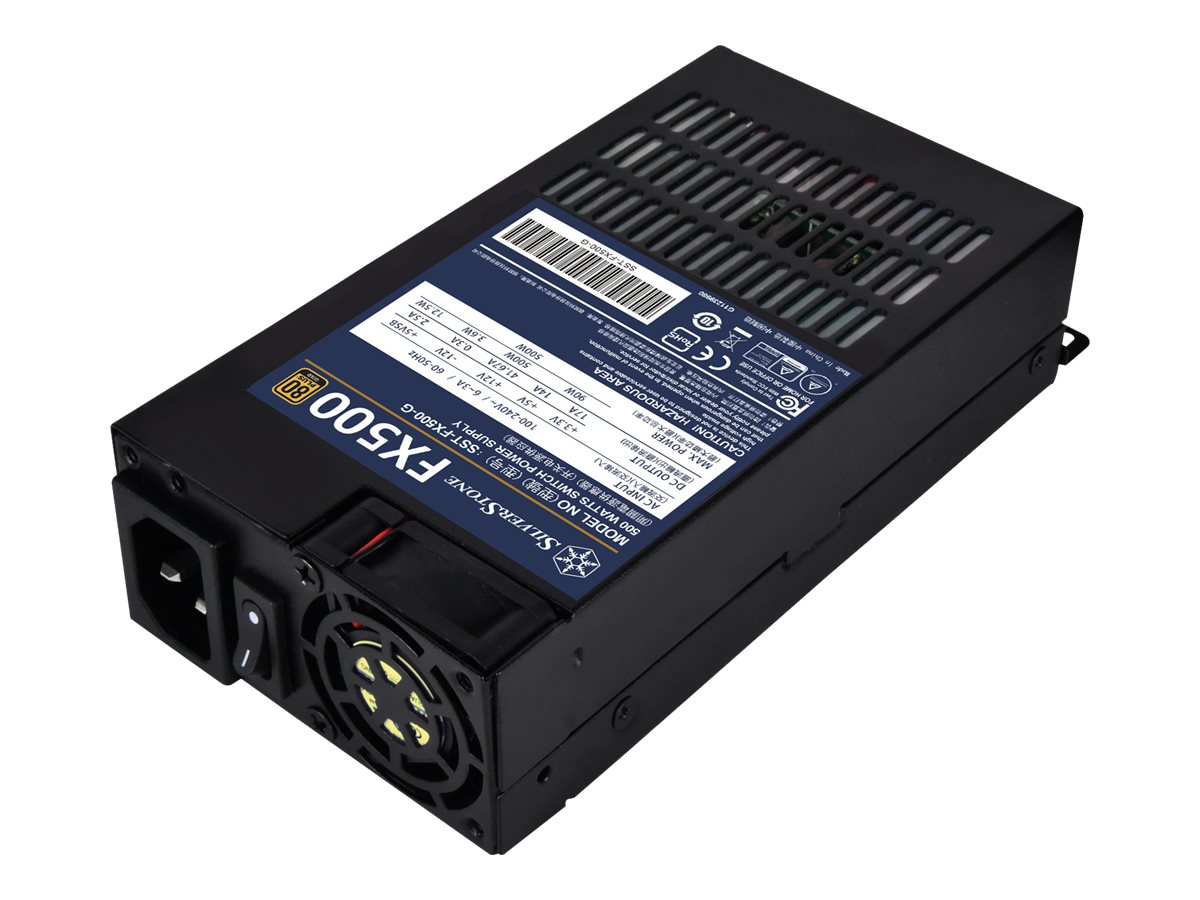

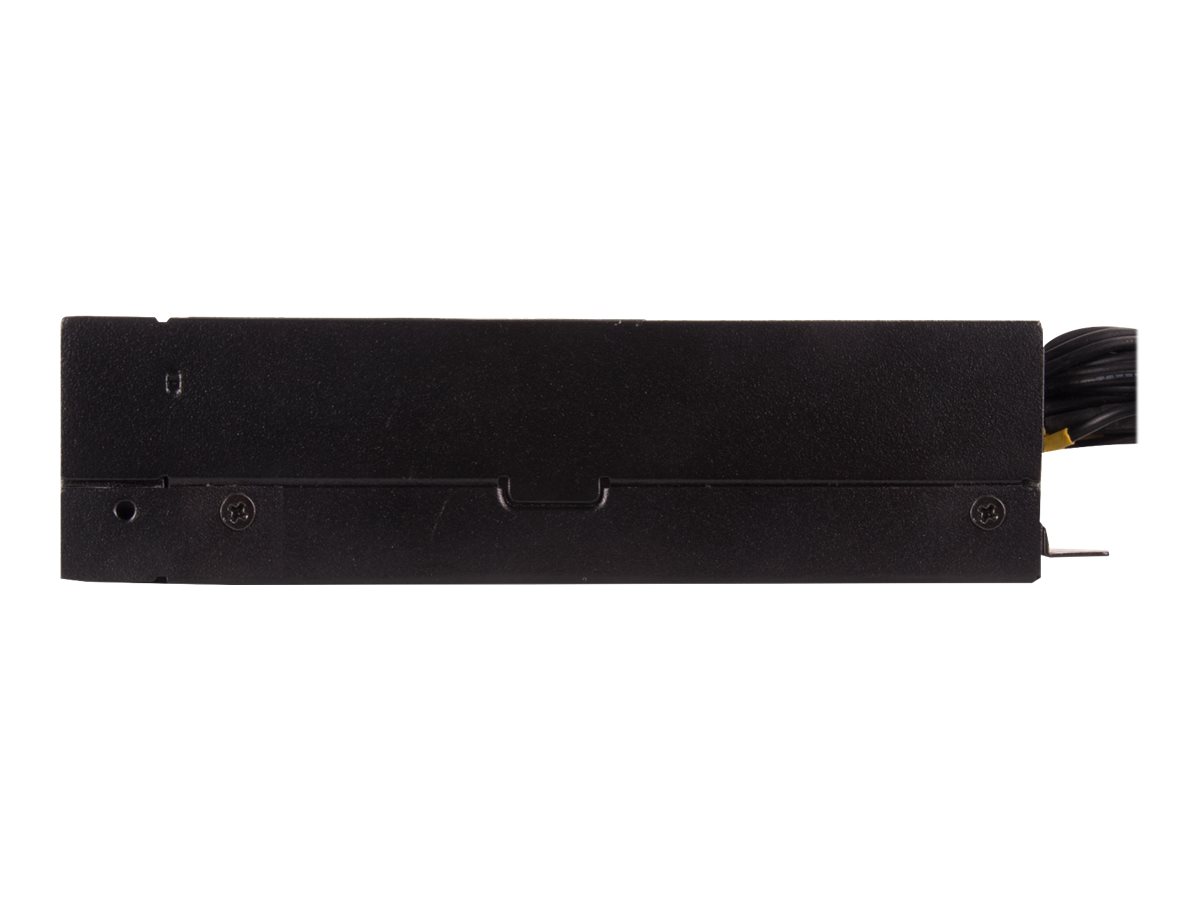

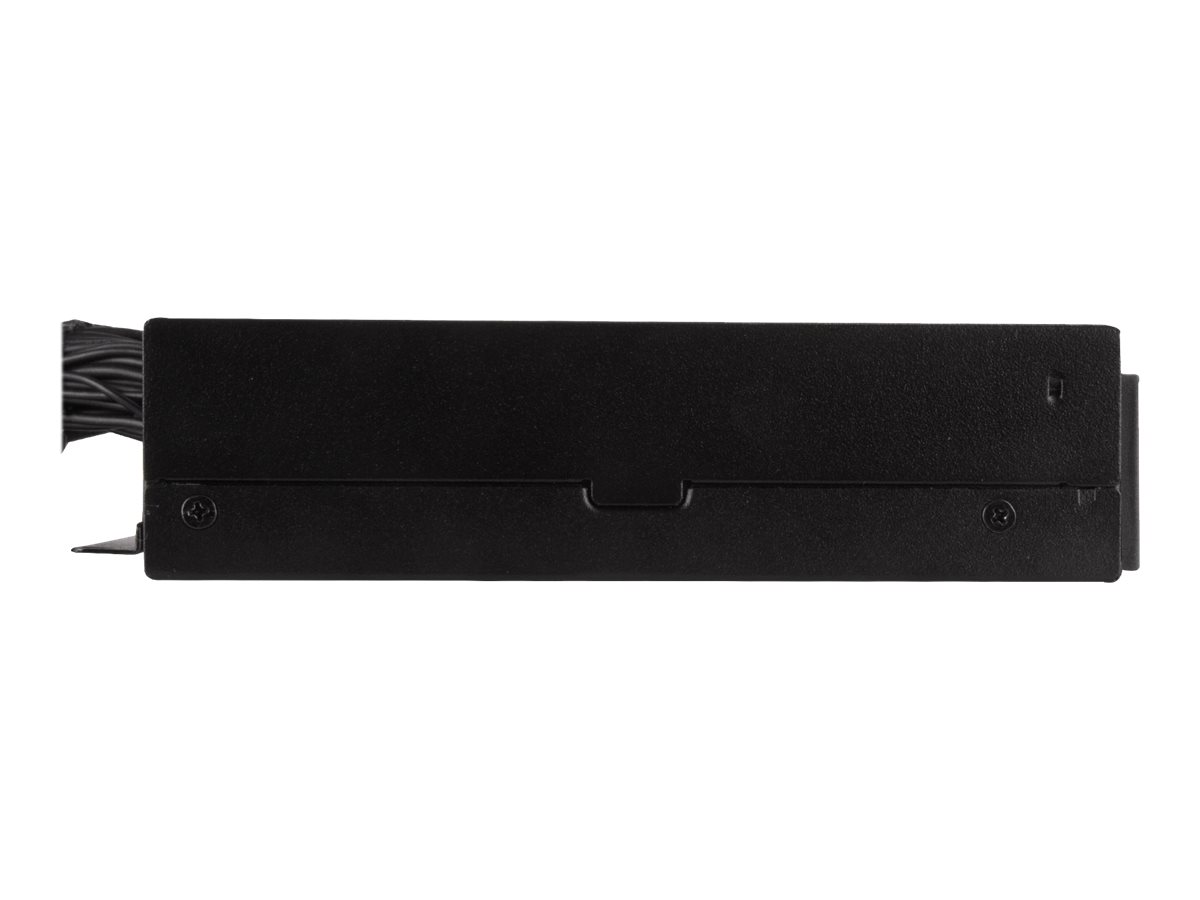

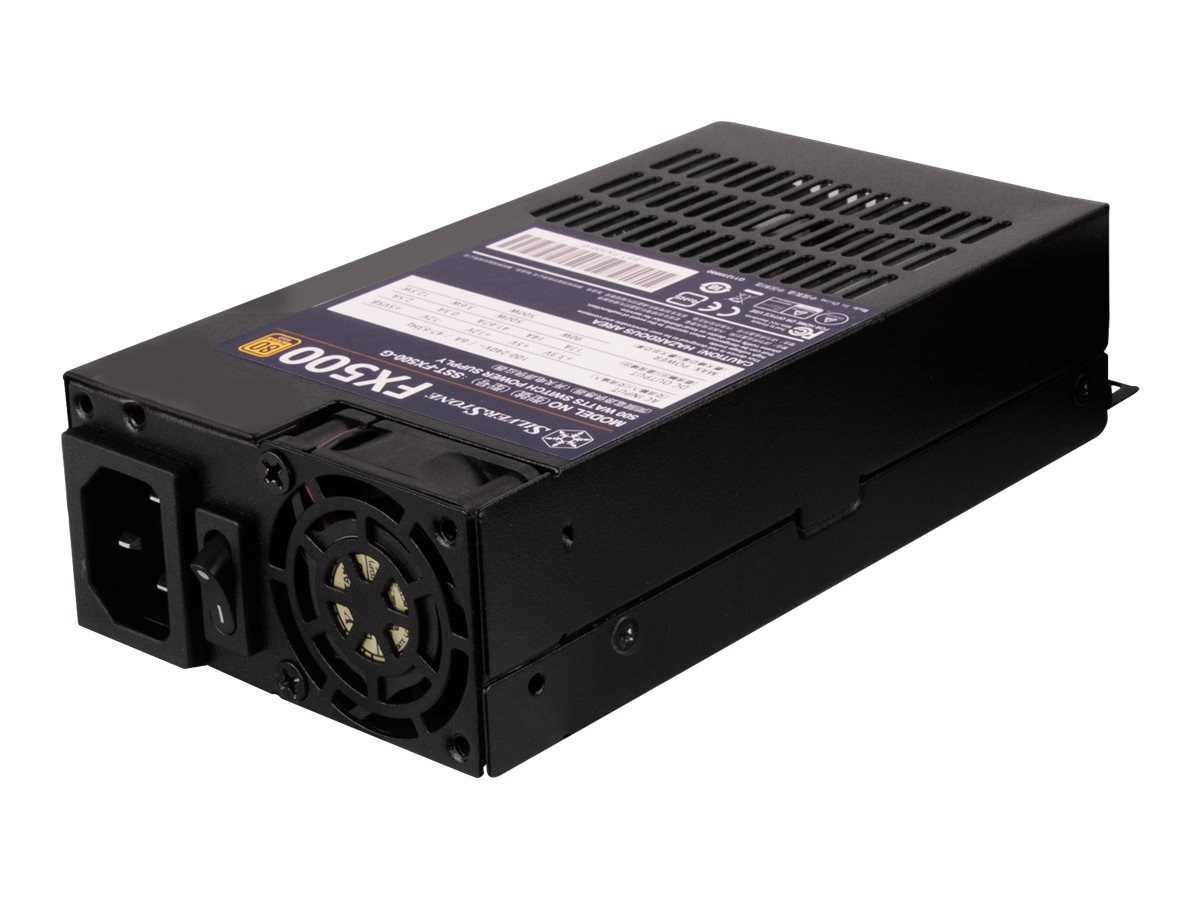

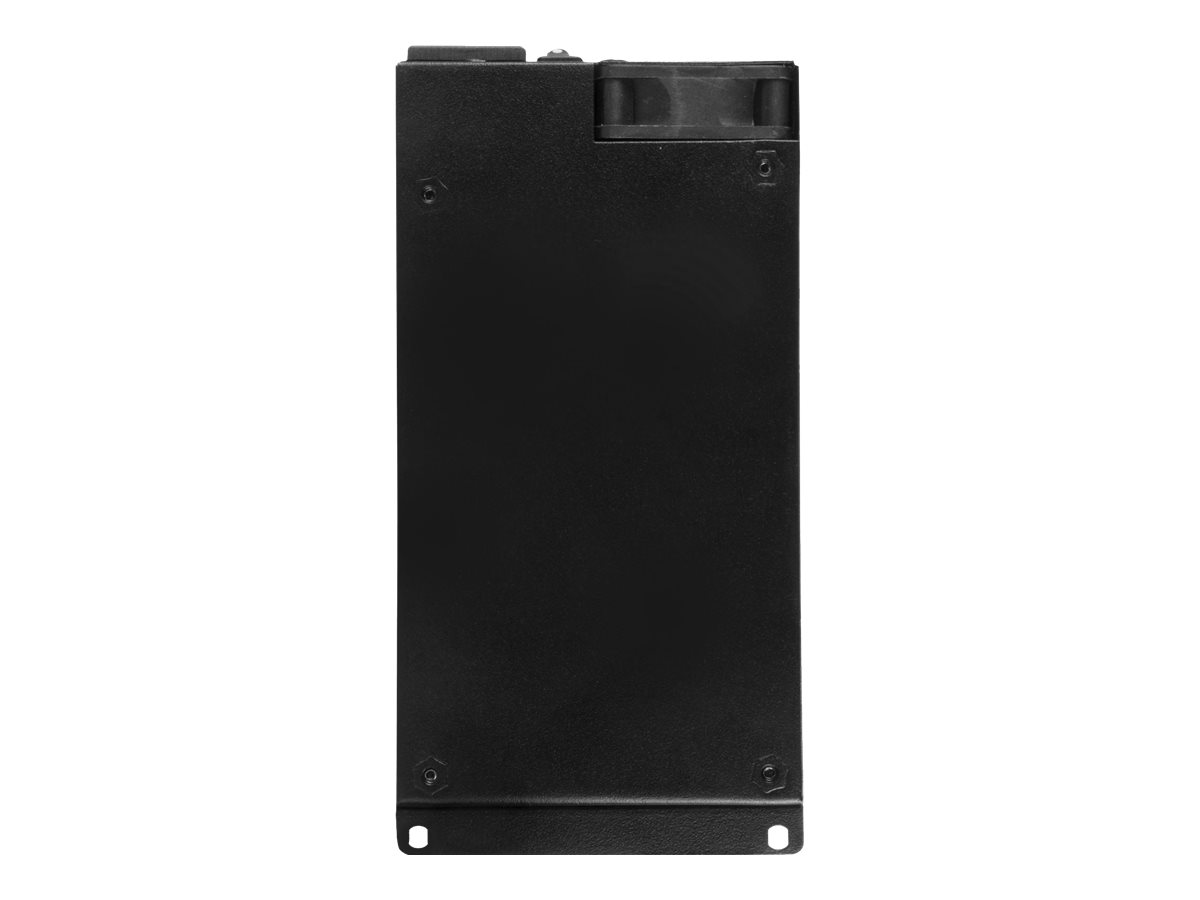

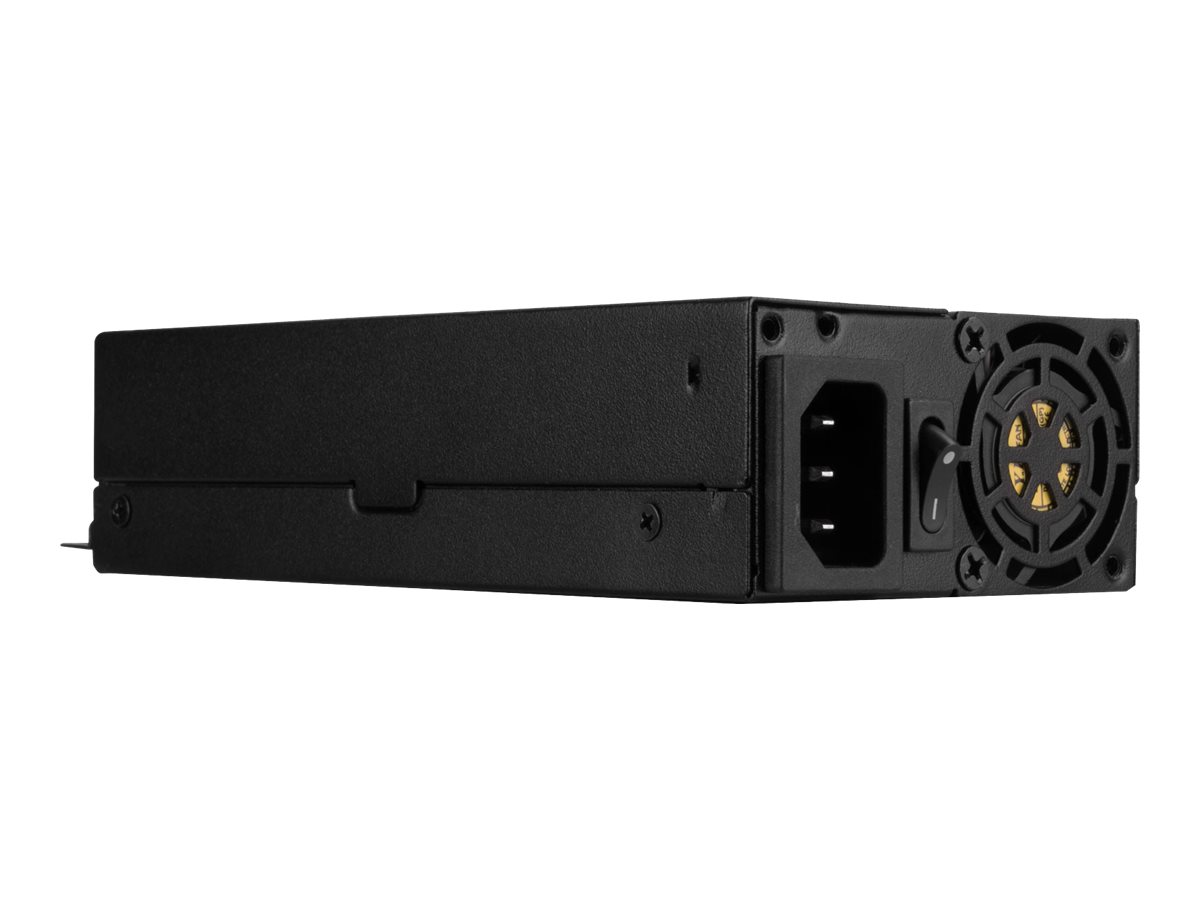

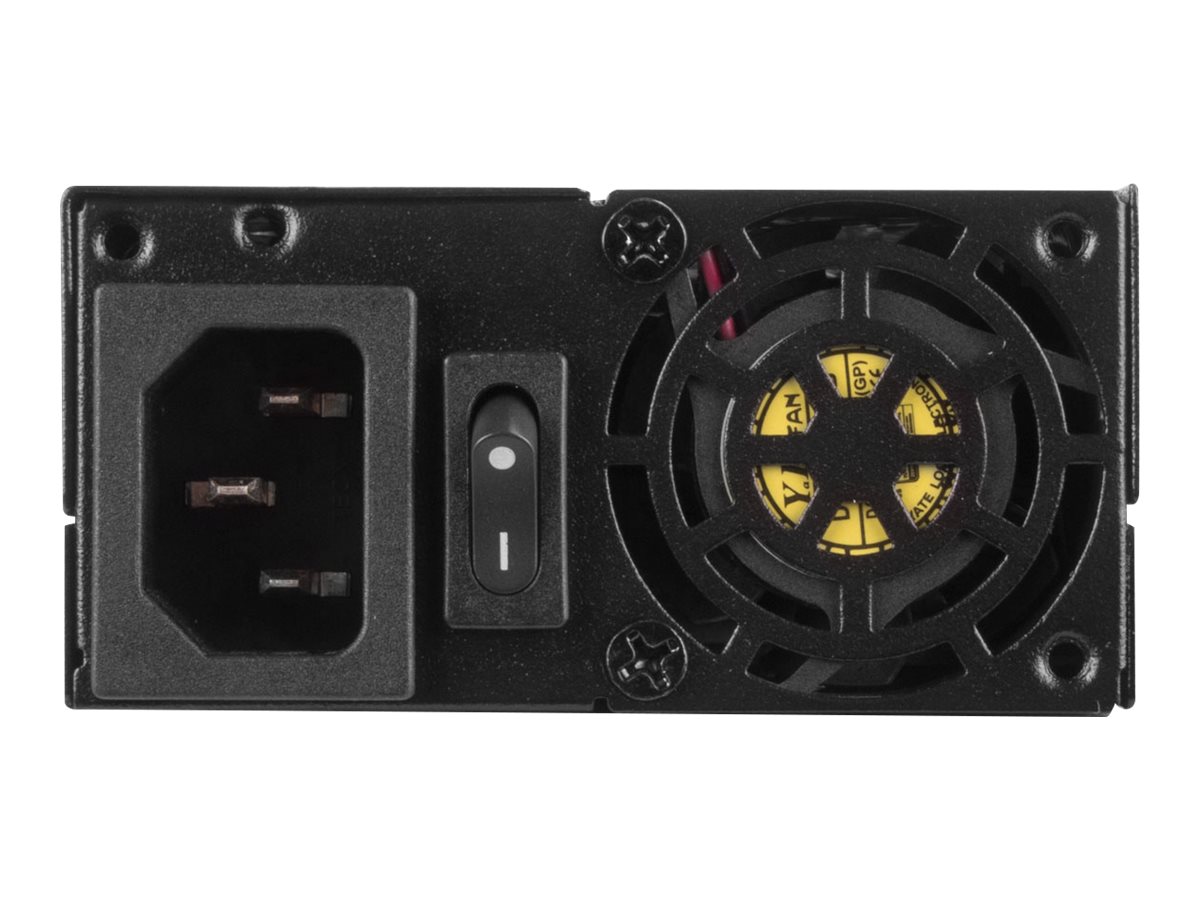

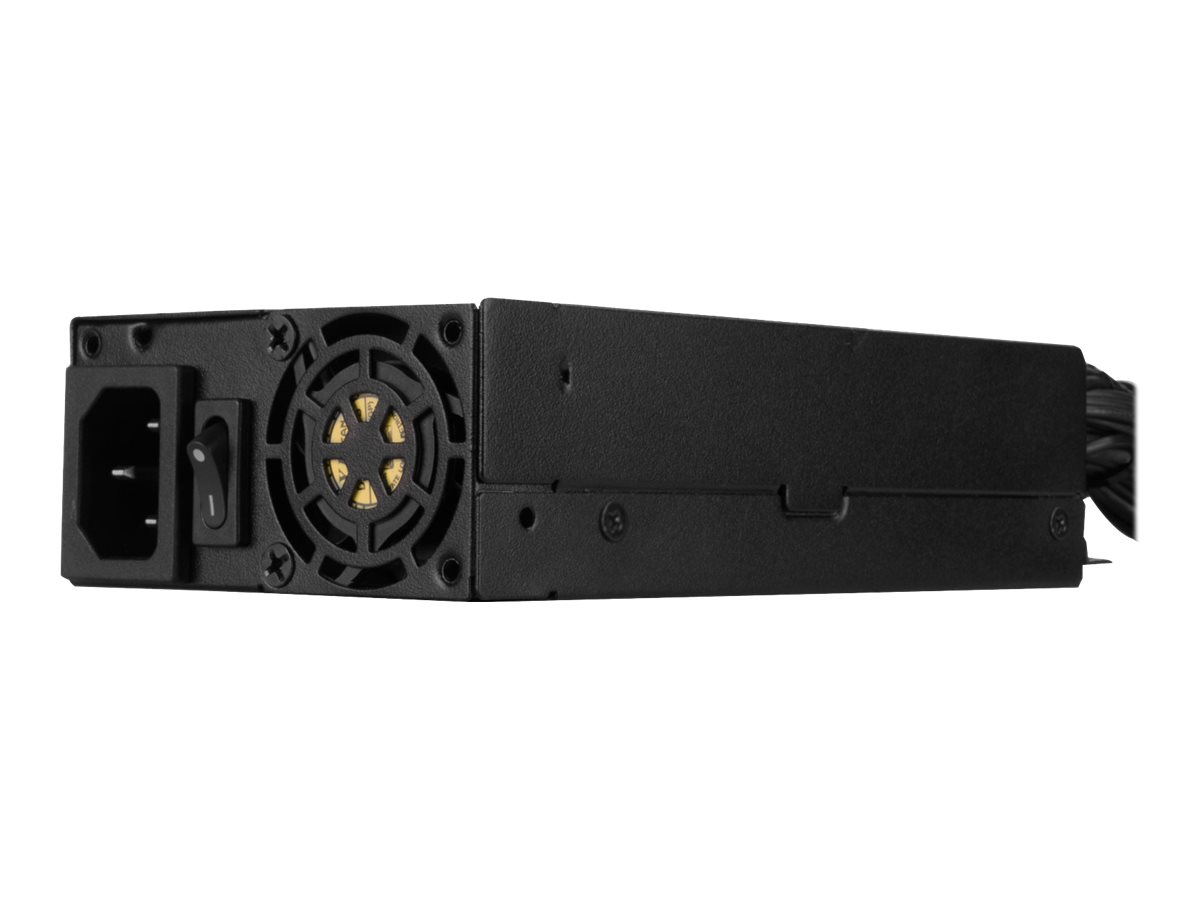

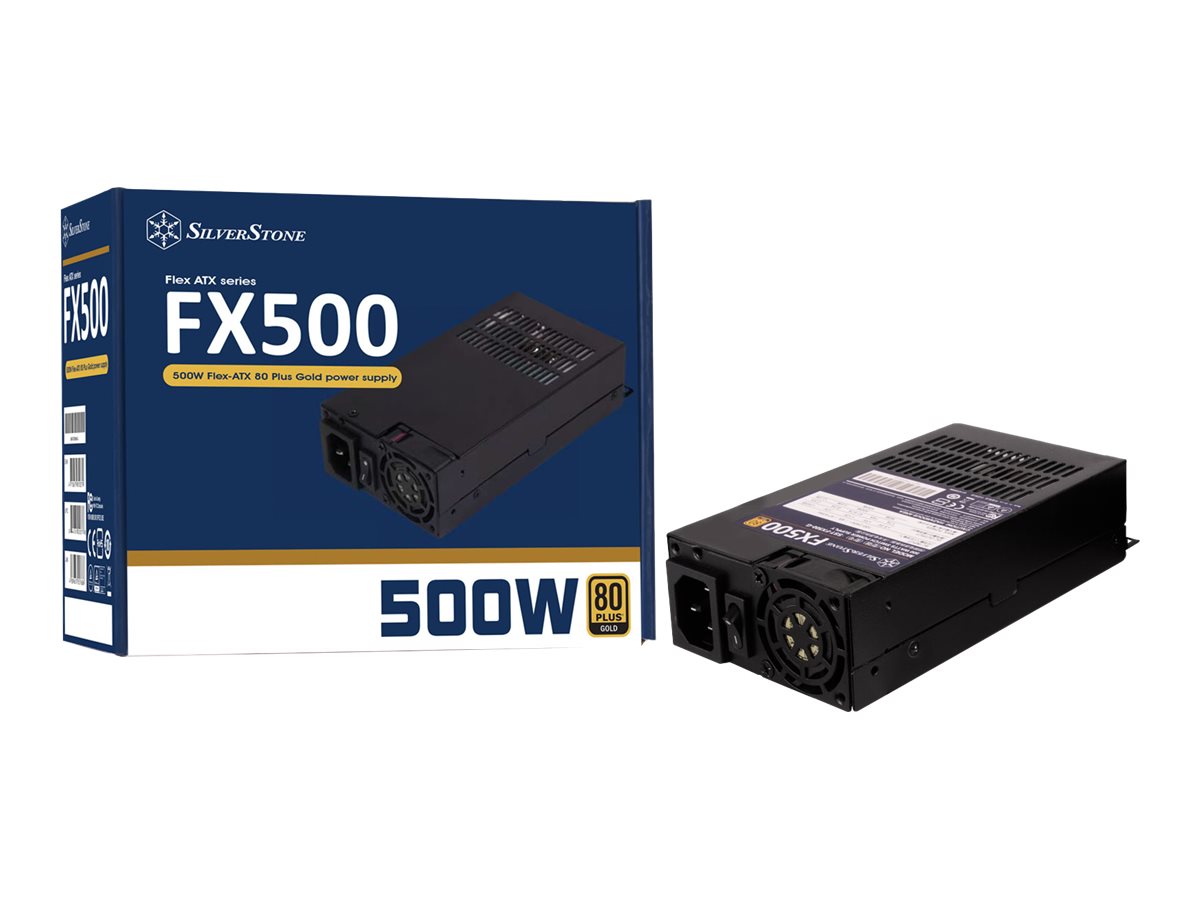

SilverStone FX500 500Watt 80 PLUS Gold

SilverStone FX500 - Strømforsyning (intern) - ATX12V / Flex ATX - 80 PLUS Gold - AC 90-264 V - 500 watt - aktiv PFC - sort

Varenummer: 996590858
Model: SST-FX500-G
EAN: 4710679810379
Brand:
SilverStone Technolo
Vægt: 1.35 kg

Specifications

Produktbeskrivelse
SilverStone FX500 - strømforsyning - 500 watt
Enhedstype
Strømforsyning - aktiv Power Factor Correction (PFC) - intern
Specifikationsoverensstemmelse
ATX12V / Flex ATX
80 PLUS certificering
80 PLUS Gold
Vægt
960 g
Indgangspænding
AC 90-264 V
Udgangspænding
+3.3, +5, ±12 V
Strømkapacitet
500 watt
Output Current
+3.3V - 14 A / 0 A<br>+5V - 17 A / 0 A<br>+12V - 41.67 A / 0 A<br>+5VSB - 2.5 A / 0 A<br>-12V - 0.3 A / 0 A
Output-stikforbindelser
1 x strøm 24 pin ATX med aftagelig 4 pin sektion<br>1 x strøm 8 pin EPS12 V med aftagelig 4 pin ATX12V sektion<br>2 x 8 pin PCI Express-strøm med aftagelig 2 pin sektion<br>4 x 15 pin Serial ATA strøm<br>3 x 4-PIN intern strøm<br>1 x 4-PIN mini-strømforsyningsforbinder
Kølesystem
40mm blæser
Farve
Sort
Dimensioner (B x D x H)
8.15 cm x 15 cm x 4.05 cm
Specifications

Full specifications

General
Color
Black
Device Type
Power supply - active Power Factor Correction (PFC) - internal
PSU Form Factor
Flex ATX
Specification Compliance
ATX12V / Flex ATX
Power Device
80 PLUS Certification
80 PLUS Gold
Efficiency
90% at 100% Load, 87% at 20% Load
Frequency Required
47 - 63 Hz
Input Voltage
AC 90-264 V
Output Current
+3.3V - 14 A / 0 A | +5V - 17 A / 0 A | +12V - 41.67 A / 0 A | +5VSB - 2.5 A / 0 A | -12V - 0.3 A / 0 A
Output Voltage
+3.3, +5, ±12 V
Power Capacity
500 Watt
Power Factor (PF)
0.9

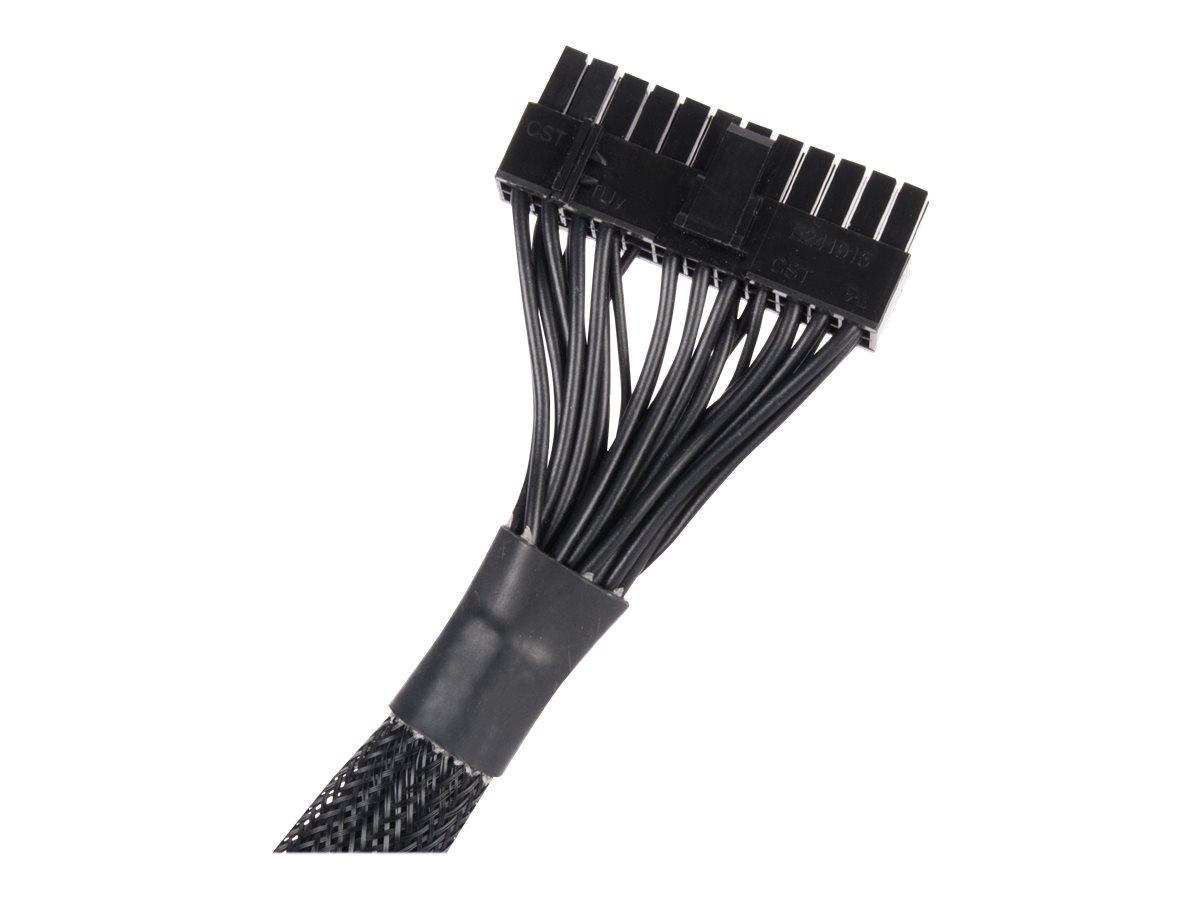

Power Output Connectors Details
1 x power 24 pin ATX with detachable 4 pin section | 1 x power 8 pin EPS12V with detachable 4 pin ATX12V section | 2 x 8 pin PCI Express power with detachable 2 pin section | 4 x 15 pin Serial ATA power | 3 x 4 pin internal power | 1 x 4 pin mini-pow
Miscellaneous
Cooling System
40 mm fan
Features
Overheat protection, overvoltage protection, overpower protection, short-circuit protection, single 12V rail
MTBF
100,000 hours
Environmental Parameters
Max Operating Temperature
40 °C
Min Operating Temperature
0 °C
Sound Emission
20 dBA
Dimensions & Weight
Depth
15 cm
Height
4.05 cm
Weight
960 g
Width
8.15 cm
