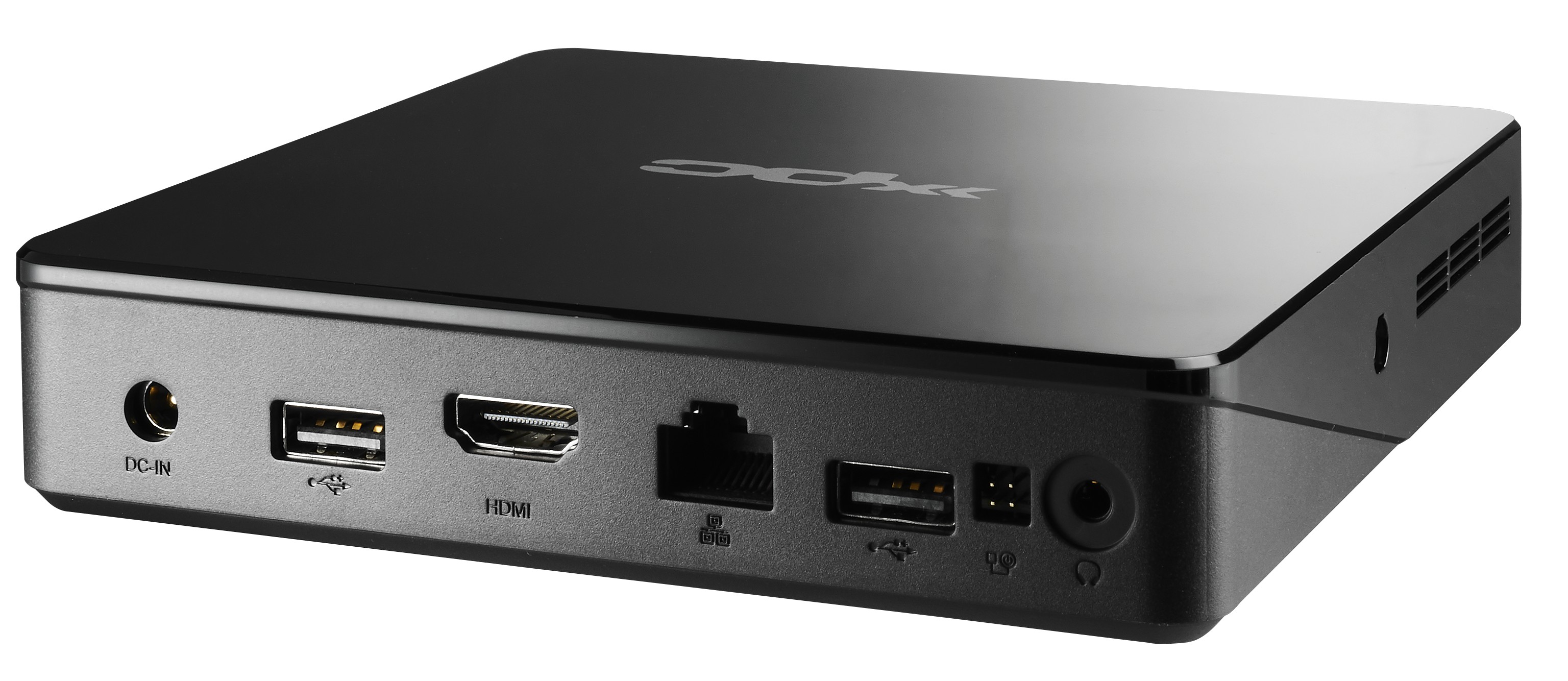

Shuttle XPC nano NS02EV2 Mini PC RK3368 16GB Android 8.1 (Oreo)
Shuttle XPC nano NS02EV2 - Android PC - mini PC 1 RK3368 - RAM 2 GB - flash - eMMC 16 GB - PowerVR SGX6110 - Gigabit Ethernet - Android 8.1 (Oreo) - skærm: ingen - sort
-
Product no 999609047
Model NS02EV2
Brand
Go to brand's websiteEAN 0887993601540
Weight 0.65 kg
-
Product information and specifications are guiding only. Without notice, these can be subject to change by the manufacturer. This applies for product images as well.
| Processorproducent | Rockchip |
| Processorserie | Rockchip |
| Processormodel | RK3368 |
| Intern hukommelse | 2 GB |
| Maksimal intern hukommelse | 2 GB |
| Samlet lagringskapacitet | 16 GB |
| Optisk drevtype | Ingen |
| Lagermedie | eMMC |
| Diskret grafikadapter | Ingen |
| On-board grafikkort | Ja |
| Diskret grafikadaptermodel | Ikke tilgængelig |
| On-board grafikkort, model | PowerVR SGX6110 |
| Ethernet LAN | Ja |
| Wi-Fi | Ja |
| Antal USB 2.0-porte | 4 |
| Antal USB 3.2 Gen 1 (3.1 Gen 1) type-A-porte | 0 |
| Antal USB 3.2 Gen 1 (3.1 Gen 1) type-C-porte | 0 |
| Antal USB 3.2 Gen 2 (3.1 Gen 2) type-A-porte | 0 |
| Antal USB 3.2 Gen 2 (3.1 Gen 2) type-C-porte | 0 |
| Antal Thunderbolt 3-porte | 0 |
| Antal HDMI-porte | 1 |
| Kabinettype | Nettop |
| Produktfarve | Sort |
| Produkttype | Mini PC |
| Operativsystem installeret | Android 8.1 |
| Strømforsyning | 24 W |
| Bredde | 141 mm |
| Dybde | 141 mm |
| Højde | 29 mm |
| Vægt | 270 g |
| Skærm inkluderet | Ingen |
| General | |
|---|---|
| Color | Black |
| Product Form Factor | Mini PC |
| Type | Android PC |
| Processor / Chipset | |
| Clock Speed | 1.5 GHz |
| CPU | Rockchip RK3368 |
| CPU Qty | 1 |
| Max CPU Qty | 1 |
| Number of Cores | 8-core |
| RAM | |
| Configuration Features | Provided memory is soldered |
| Installed Size | 2 GB |
| Technology | DDR3L SDRAM |
| Hard Drive | |
| Capacity | 16 GB |
| Type | Flash - eMMC |
| Optical Storage | |
| Type | No optical drive |
| Card Reader | |
| Supported Flash Memory Cards | SD Memory Card, SDHC Memory Card, SDXC Memory Card |
| Type | Card reader |
| Monitor | |
| Monitor Type | None. |
| Graphics Controller | |
| Graphics Processor | PowerVR SGX6110 |
| Video Interfaces | HDMI |
| Audio Output | |
| Sound Output Mode | Stereo |
| Networking | |
| Data Link Protocol | Ethernet, Fast Ethernet, Gigabit Ethernet, IEEE 802.11b, IEEE 802.11a, IEEE 802.11g, IEEE 802.11n, IEEE 802.11ac, Bluetooth 5.0 |
| Features | Wake on LAN (WoL), Power-over-Ethernet (POE) |
| Wireless LAN Supported | Yes |
| Expansion / Connectivity | |
| Interfaces | 1 x LAN (PoE) | 1 x HDMI | 4 x USB 2.0 (2 front, 2 rear) | 1 x headphones/microphone |
| Miscellaneous | |
| Compliant Standards | VCCI, BSMI, IEC 60950, CB, FCC, RoHS, ETL, cTUVus, ErP Ready, EMI, RCM, ErP 2009/125/EC, EMC 2014/30/EU, LVD 2014/35/EU, IEC 62368, RED 2014/53/EU |
| Included Accessories | VESA mounting kit, 4 x rubber foot |
| Security Slot Type | Kensington security slot |
| Theft/Intrusion Protection | Security lock slot (cable lock sold separately) |
| VESA Mounting Interface | 100 x 100 mm, 75 x 75 mm |
| Power | |
| Device Type | No power supply |
| Operating System / Software | |
| OS Provided | Android 8.1 (Oreo) |
| Dimensions & Weight | |
| Depth | 14.1 cm |
| Height | 2.9 cm |
| Weight | 270 g |
| Width | 14.1 cm |
| Dimensions & Weight (Shipping) | |
| Shipping Weight | 650 g |
| Environmental Parameters | |
| Humidity Range Operating | 10 - 90% (non-condensing) |
| Max Operating Temperature | 40 °C |
| Min Operating Temperature | 0 °C |
