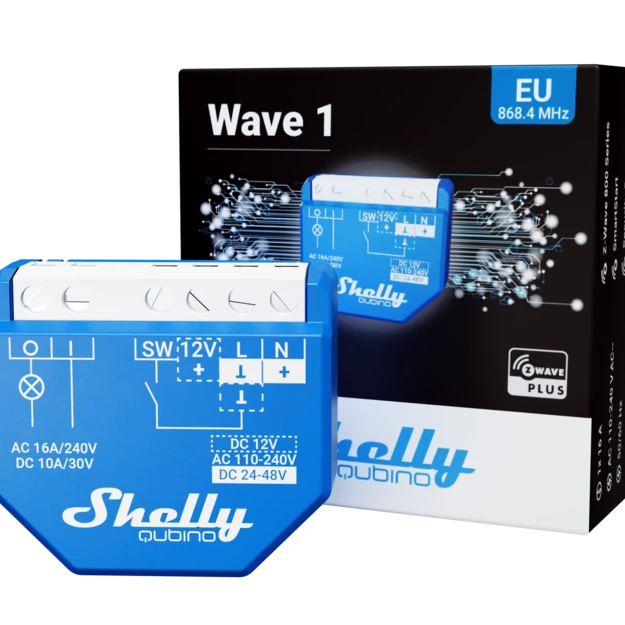

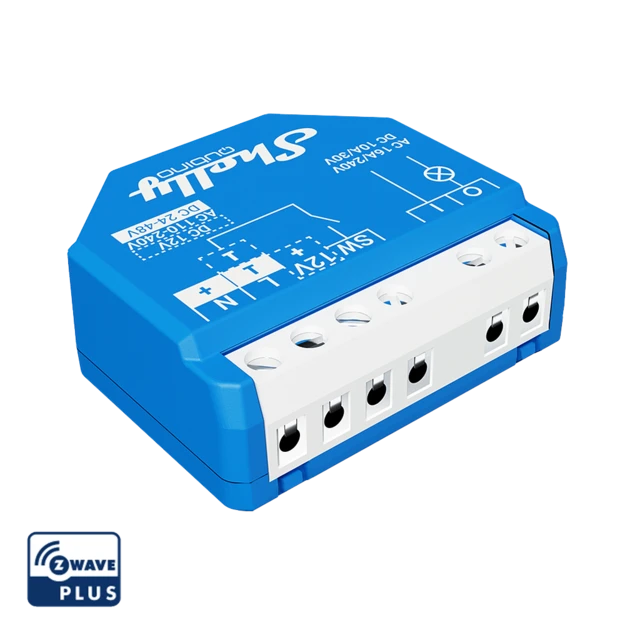

Shelly Qubino Wave 1 Z-Wave

Shelly Qubino Wave 1 - Z-Wave - Smart relæ

Product no: 1001345532
Model: Shelly_W_1
EAN: 3800235269039
Brand:
Shelly
Weight: 0.05 kg
Product information and specifications are guiding only. Without notice, these can be subject to change by the manufacturer. This applies for product images as well.

Specifications

Type
Intelligent kontakt
Specifications

Full specifications

Funktioner
Beskyttelsesfunktioner
Beskyttelse mod overophedning, Overbelastningsbeskyttelse
Husmateriale
Plast
Ledningsstørrelsesområde
0,5 - 1,5 mm²
Maksimal indendørs rækkevidde
40 m
Monteringstype
Væg
Overfører strøm
25 dBmW
Produktfarve
Blå
Radiofrekvens
868,4 MHz
Type
Intelligent kontakt
Understøttede radioprotokoller
Z-Wave
Strømstyring
DC spændingsområde
24 - 48 V
Kapacitet ved nedbrud
16 A
Maksimal koblingsspænding (AC)
240 V
Maksimal koblingsspænding (DC)
30 V
Nominel strøm
0,3 A
Vekselstrømsindgangsspænding
110 - 240 V
Vægt & størrelser
Bredde
42 mm
Dybde
16 mm
Højde
37 mm
Vægt
26 g
Driftsbetingelser
Driftstemperatur (T-T)
-20 - 40 °C
Relativ luftfugtighed ved drift (H-H)
30 - 70%
Emballeringsdata
Antal pr. pakke
1 stk
