Produktbeskrivelse
|

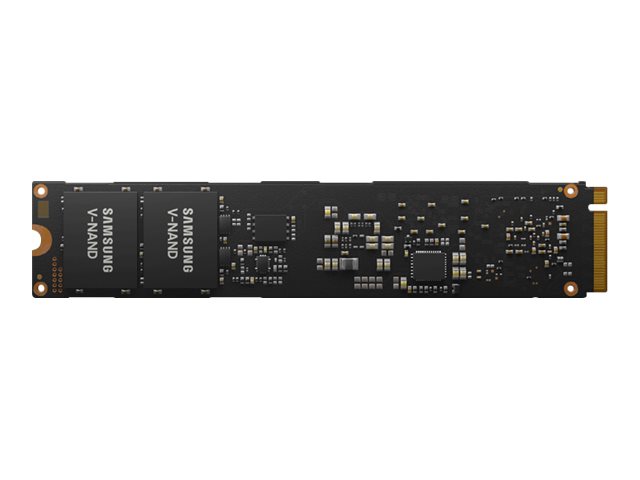

Samsung PM9A3 MZ1L23T8HBLA - SSD - 3.84 TB - PCIe 4.0 x4 (NVMe)
|
|
Type
|
Solid state-drev - intern
|
|
Kapacitet
|
3.84 TB
|
|
Hardware kryptering
|
Ja
|
|
Krypterings algoritme
|
256-bit AES-XTS
|
|
NAND Flashhukommelses-type
|
Fler-niveaus celle (MLC)
|
|
Model
|
M.2 22110
|
|
Grænseflade
|
PCIe 4.0 x4 (NVMe)
|
|
Egenskaber
|
V-NAND Technology, Samsung Elpis Controller
|
|
Dimensioner (B x D x H)
|
22 mm x 110 mm x 3.8 mm
|
|
Vægt
|
20 g
|
Effective Friday, July 3, 2026, the office will close at 4:30 PM on Fridays. From Monday to Thursday, Sales contact hours remain unchanged from 9:00 AM to 5:00 PM, while contact hours for Accounting, Purchasing, and RMA remain unchanged in general.
To gain full access to our webshop, find our entire product range and see our prices, you need to be logged in.
Log in to your account here or sign up as a customer here.
Samsung PM9A3 SSD MZ1L23T8HBLA 3.84TB M.2 PCI Express 4.0 x4 (NVMe)
Samsung PM9A3 MZ1L23T8HBLA - SSD - krypteret - 3.84 TB - intern - M.2 22110 - PCIe 4.0 x4 (NVMe) - 256-bit AES-XTS - TCG Opal Encryption 2.0
Samsung SSD PM9A3 giver enestående ydeevne med øjeblikkelig respons til værtssystemet ved at anvende PCIe 3.0-grænsefladestandarden (Peripheral Component Interconnect Express) samt den meget effektive NVMe-protokol (Non-Volatile Memory Express).
Varenummer:
998129280
Model:
MZ1L23T8HBLA-00A07
EAN:
8592978395070
Brand:
Vægt:
0.05 kg
Specifications
Full specifications
|
General
|
|
|---|---|
|
Bytes per Sector
|
512
|
|
Capacity
|
3.84 TB
|
|
Depth
|
110 mm
|
|
Device Type
|
Solid state drive - internal
|
|
Encryption Algorithm
|
256-bit AES-XTS
|
|
Features
|
V-NAND Technology, Samsung Elpis Controller
|
|
Form Factor
|
M.2 22110
|
|
Hardware Encryption
|
Yes
|
|
Height
|
3.8 mm
|
|
Interface
|
PCIe 4.0 x4 (NVMe)
|
|
NAND Flash Memory Type
|
Multi-level cell (MLC)
|
|
Weight
|
20 g
|
|
Width
|
22 mm
|
|
Performance
|
|
|
4KB Random Read
|
800000 IOPS
|
|
4KB Random Write
|
85000 IOPS
|
|
Internal Data Rate
|
5500 MBps (read) / 2000 MBps (write)
|
|
Reliability
|
|
|
MTBF
|
2,000,000 hours
|
|
Non-Recoverable Errors
|
1 per 10^17
|
|
Expansion & Connectivity
|
|
|
Compatible Bay
|
M.2 22110
|
|
Interfaces
|
PCI Express 4.0 x4 (NVMe)
|
|
Power
|
|
|
Power Consumption
|
8.2 Watt (read) | 8.2 Watt (write) | 2.5 Watt (idle)
|
|
Miscellaneous
|
|
|
Compliant Standards
|
TUV, VCCI, BSMI, cUL, CB, IC, FCC, RoHS, KCC, Halogen-free, RCM
|
|
Environmental Parameters
|
|
|
Humidity Range Operating
|
5 - 95% (non-condensing)
|
|
Max Operating Temperature
|
70 °C
|
|
Max Storage Temperature
|
85 °C
|
|
Min Operating Temperature
|
0 °C
|
|
Min Storage Temperature
|
-40 °C
|
|
Shock Tolerance (non-operating)
|
1500 g
|
|
Vibration Tolerance (non-operating)
|
20 g @ 10-2000 Hz
|
