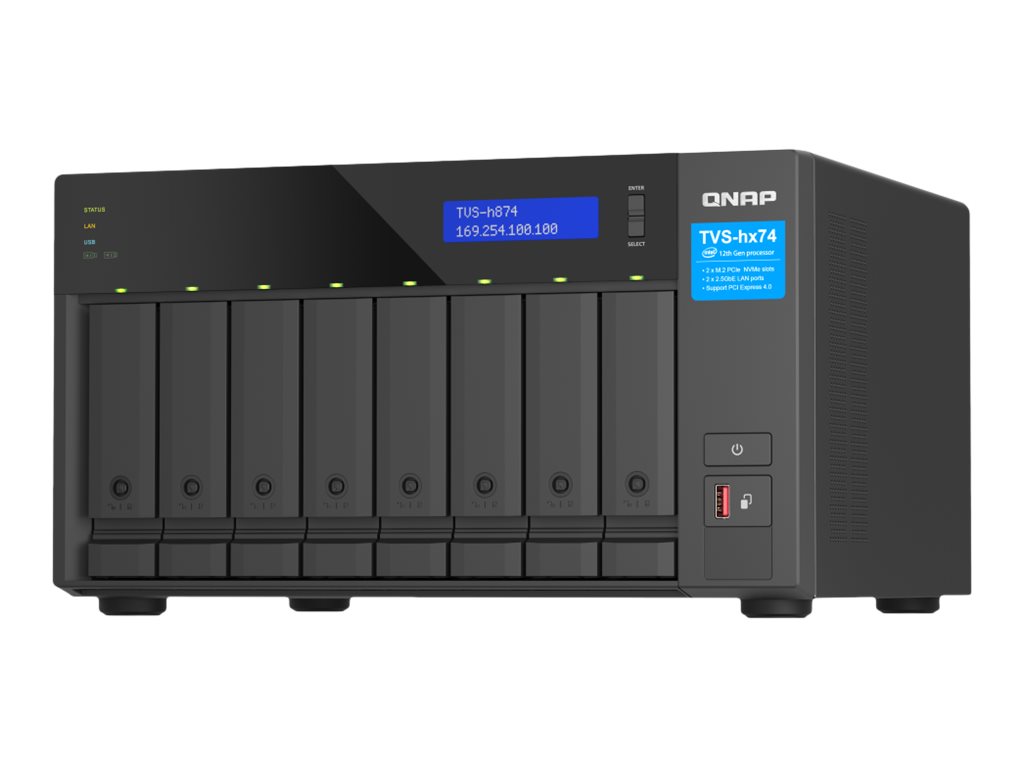

QNAP TVS-H874 8Moduler

QNAP TVS-H874 - NAS-server - 8 bays - SATA 6Gb/s - RAID 0, 1, 5, 6, 10, 50, JBOD, 60, RAID TP, TM - RAM 32 GB - 2.5 Gigabit Ethernet - iSCSI support

Product no: 1000962244
Model: TVS-H874-I7-32G
EAN: 4711103082409
Brand:
"QNAP Systems, Inc"
Weight: 8.95 kg
Product information and specifications are guiding only. Without notice, these can be subject to change by the manufacturer. This applies for product images as well.

Specifications

Produktbeskrivelse
QNAP TVS-H874 - NAS-server
Enhedstype
NAS-server
Vært Tilslutning
2.5 Gigabit Ethernet
Installeret udstyr/antal moduler
0 (installeret) / 8 (maks.)
Dimensioner (B x D x H)
32.9 cm x 28.1 cm x 18.8 cm
Vægt
7.14 kg ()
Processor
1 x Intel Core i7 (12-core)
Controller for lagring
RAID SATA 6Gb/s RAID 0, 1, 5, 6, 10, 50, JBOD, 60, RAID TP, TM
Netværk
10Mb LAN, 100Mb LAN, 1GbE, 2.5GbE
Præstation
Samtidige forbindelser (CIFS): 3500 - (med maksimal hukommelse)
RAM
32 GB
Effekt
AC 100-240 V
Operativsystem til lagring
QNAP QuTS hero h5.0.1 / QTS 5.0.1
Systemkrav
Microsoft Windows Server 2008 R2, IBM AIX 7, Microsoft Windows Server 2012, Microsoft Windows Server 2012 R2, Ubuntu 14.04, Red Hat Enterprise Linux 6.6, Microsoft Windows Server 2016, Apple MacOS X 10.10 eller nyere, CentOS 7.0, Microsoft Windows Server 2019, SuSE Linux 12 eller nyere, Oracle Solaris 10 eller senere, Microsoft Windows 7 / 8 / 10 / 11
Producentgaranti
3 års garanti
Specifications

Full specifications

General
Built-in Devices
Status LCD
Depth
28.1 cm
Device Type
NAS server
Height
18.8 cm
Host Connectivity
2.5 Gigabit Ethernet
Installed Devices / Modules Qty
0 (installed) / 8 (max)
Total Storage Capacity
0 GB
Weight
7.14 kg ()
Width
32.9 cm
Processor / Memory
Flash Memory Installed
5 GB
Max Supported Qty
1
Number of Cores
12-core
Processors Installed
1 x Intel Core i7
RAM
32 GB (installed) / 64 GB (supported) - DDR4
Storage Controller
Interface Type
SATA 6Gb/s
RAID Level
RAID 0, RAID 1, RAID 5, RAID 6, RAID 10, RAID 50, JBOD, RAID 60, RAID TP, RAID TM
Type
RAID
Networking
Data Link Protocol
10Mb LAN, 100Mb LAN, GigE, 2.5 GigE
Encryption Algorithm
TLS 1.0, FIPS 140-2, 256-bit AES, TLS 1.1, TLS 1.2, AES-NI, TLS 1.3
Features
Firewall protection, VLAN support, wake on LAN (WOL), RADIUS support, Jumbo Frames support, DHCP server, Domain Controller, file station, port trunking, EXT4 file system, SSD trim, FXP support, Qsirch, SQL Server, Network Recycle Bin, VJBOD Cloud, Qs
Network / Transport Protocol
PPTP, L2TP, IPSec, FTP, IPv4, IPv6, Telnet, TFTP, QBelt, QuFTP, OpenVPN
Network Services Compatibility
Microsoft CIFS, Server Message Block (SMB), Apple File Protocol (AFP), Web-based Distributed Authoring and Versioning (WebDAV), Network File System v3 (NFS v3), Network File System v4 (NFS v4)
Performance
Concurrent connections (CIFS): 3500 - (with maximum memory)
Remote Management Protocol
SNMP 2, SNMP 3, RADIUS
Expansion / Connectivity
Expansion Bays
8 (total) / 8 (free) x hot-swap - 2.5" / 3.5"
Expansion Slots
2 (total) / 0 (free) x SO-DIMM 260-pin | 2 (total) / 2 (free) x M.2 2280 | 1 (total) / 1 (free) x PCI Express 4.0 x16 | 1 (total) / 1 (free) x PCI Express 4.0 x4
Interfaces
2 x USB 3.2 Gen 2 - Type A | 2 x 2.5 Gigabit Ethernet - RJ-45 | 1 x USB 3.2 Gen 2 - Type C | 1 x HDMI output
Miscellaneous
Cables Included
1 x network cable
Features
Security lock slot (cable lock sold separately), reset button, Secure Erase, dual boot, alarm buzzer, built-in cooling fans, USB copy button
Included Accessories
2 x M.2 SSD heatsink, 24 x flat head screws (for 2.5" HDD), 32 x flat head screws (for 3.5" HDD), power cable, 2 x drive tray keys
Security Slot Type
Kensington security slot
Power
Power Consumption Operational
98.959 Watt (with drives fully populated)
Power Consumption Stand by
81.798 Watt
Power Device
Internal power supply
Power Provided
350 Watt
Voltage Required
AC 100-240 V
Software / System Requirements
OS Required
Microsoft Windows Server 2008 R2, IBM AIX 7, Microsoft Windows Server 2012, Microsoft Windows Server 2012 R2, Ubuntu 14.04, Red Hat Enterprise Linux 6.6, Microsoft Windows Server 2016, Apple MacOS X 10.10 or later, CentOS 7.0, Microsoft Windows Serve
Software Included
McAfee, IronWolf Health Management
Storage Operating System
QNAP QuTS hero h5.0.1 / QTS 5.0.1
Manufacturer Warranty
Service & Support
Limited warranty - 3 years
Dimensions & Weight (Shipping)
Shipping Weight
8.95 kg
Environmental Parameters
Humidity Range Operating
5 - 95% RH (non-condensing)
Max Operating Temperature
40 °C
Min Operating Temperature
0 °C
