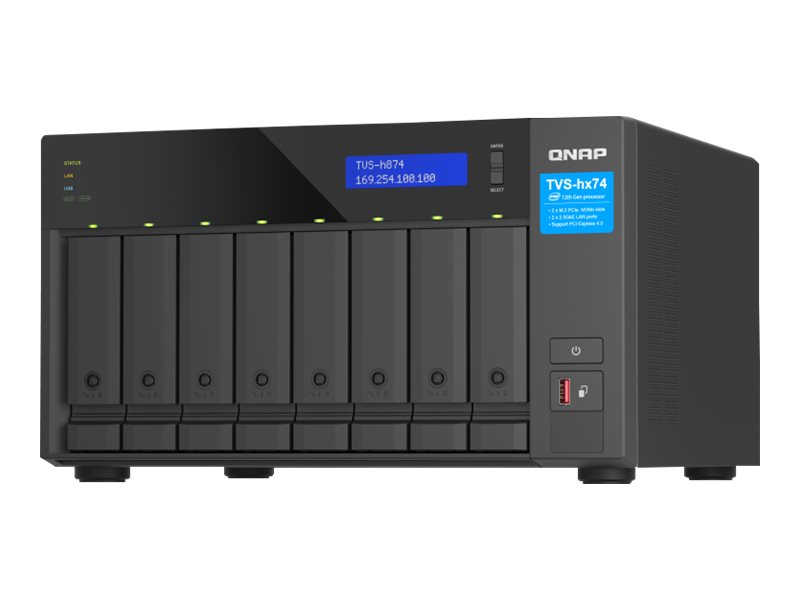

QNAP TVS-H874 8Moduler

QNAP TVS-H874 - NAS-server - 8 bays - SATA 6Gb/s - RAID 0, 1, 5, 6, 10, 50, JBOD, 60, RAID TP - RAM 32 GB - Gigabit Ethernet / 2.5 Gigabit Ethernet - iSCSI support

Product no: 1000836205
Model: TVS-H874-I5-32G
EAN: 4711103082362
Brand:
"QNAP Systems, Inc"
Weight: 9.27 kg
Product information and specifications are guiding only. Without notice, these can be subject to change by the manufacturer. This applies for product images as well.

Specifications

Produktbeskrivelse
QNAP TVS-H874 - NAS-server
Enhedstype
NAS-server
Vært Tilslutning
Gigabit Ethernet / 2.5 Gigabit Ethernet
Installeret udstyr/antal moduler
0 (installeret) / 8 (maks.)
Dimensioner (B x D x H)
32.93 cm x 27.96 cm x 188.2 cm
Vægt
7.06 kg ()
Processor
1 x Intel Core i5 12400 2.5 GHz (6-core)
Controller for lagring
RAID SATA 6Gb/s RAID 0, 1, 5, 6, 10, 50, JBOD, 60, RAID TP
Netværk
100Mb LAN, 1GbE, 2.5GbE
Præstation
Maksimal LUN-størrelse: 1024 TB<br>Maksimalt antal mål-LUN: 256<br>Maksimal delt mappestørrelse: 1024 TB<br>Maksimal antal delte mapper: 256<br>Maksimal poolstørrelse: 1024 TB<br>Maksimalt antal lagerpool: 128<br>Minimum billedinterval: 1 minute<br>Maksimal FTP-forbindelse: 1024<br>Lokal brugerkonto: 16000<br>Lokal gruppekonto: 512<br>Domænebruger/gruppekonto: 200000<br>Virtuelle værter: 32<br>Maksimalt antal versionskontroller: 64
RAM
32 GB
Effekt
AC 100-240 V
Operativsystem til lagring
QNAP QuTS hero h5.0.0
Systemkrav
Microsoft Windows Server 2008 R2, IBM AIX 7, Microsoft Windows Server 2012, Microsoft Windows Server 2012 R2, Ubuntu 14.04, Red Hat Enterprise Linux 6.6, Microsoft Windows Server 2016, Apple MacOS X 10.10 eller nyere, CentOS 7.0, Microsoft Windows Server 2019, SuSE Linux 12 eller nyere, Oracle Solaris 10 eller senere, Microsoft Windows 7 / 8 / 10 / 11
Producentgaranti
3 års garanti
Specifications

Full specifications

General
Built-in Devices
Display, 1 x 60 mm CPU fan, 2 x 120 mm fans
Depth
27.96 cm
Device Type
NAS server
Height
188.2 cm
Host Connectivity
Gigabit Ethernet / 2.5 Gigabit Ethernet
Installed Devices / Modules Qty
0 (installed) / 8 (max)
Total Storage Capacity
0 GB
Weight
7.06 kg ()
Width
32.93 cm
Processor / Memory
Flash Memory Installed
5 GB
Max Supported Qty
1
Max Turbo Speed
4.4 GHz
Number of Cores
6-core
Processors Installed
1 x Intel Core i5 12400 2.5 GHz
RAM
32 GB (installed) / 128 GB (supported) - DDR4
Storage Controller
Interface Type
SATA 6Gb/s
RAID Level
RAID 0, RAID 1, RAID 5, RAID 6, RAID 10, RAID 50, JBOD, RAID 60, RAID TP
Type
RAID
Networking
Data Link Protocol
100Mb LAN, GigE, 2.5 GigE
Encryption Algorithm
TLS 1.0, FIPS 140-2, 256-bit AES, TLS 1.1, TLS 1.2, AES-NI, TLS 1.3
Features
VLAN support, wake on LAN (WOL), SSH support, Jumbo Frames support, DHCP server, FTP server, Domain Controller, system log, built-in hardware transcoding, file station, port trunking, SSD trim, Windows ODX, FXP support, hybrid backup sync, Qfiling, Q
Network / Transport Protocol
PPTP, L2TP, IPSec, FTP, IPv4, IPv6, Telnet, TFTP, QBelt, OpenVPN
Network Services Compatibility
Microsoft CIFS, FTP, Server Message Block (SMB), Apple File Protocol (AFP), HTTP, HTTPS, SFTP
Performance
Maximum LUN size: 1024 TB | Maximum number of targets LUN: 256 | Maximum shared folder size: 1024 TB | Maximum number of shared folder: 256 | Maximum pool size: 1024 TB | Maximum number of storage pool: 128 | Minimum snapshot interval: 1 minute | Max
Remote Management Protocol
SNMP 2, SNMP 3, RADIUS
Expansion / Connectivity
Expansion Bays
8 (total) / 8 (free) x hot-swap - 2.5" / 3.5"
Expansion Slots
2 (total) / 2 (free) x M.2 2280 | 1 (total) / 1 (free) x PCI Express 4.0 x16 | 1 (total) / 1 (free) x PCI Express 4.0 x4
Interfaces
2 x USB 3.2 Gen 2 - Type A | 2 x 2.5 Gigabit Ethernet - RJ-45 | 1 x USB 3.2 Gen 2 - Type C | 1 x HDMI output
Miscellaneous
Cables Included
1 x network cable
Features
Security lock slot (cable lock sold separately)
Included Accessories
2 x M.2 SSD heatsink, 24 x flat head screws (for 2.5" HDD), 32 x flat head screws (for 3.5" HDD), 2 x drive tray keys
Security Slot Type
Kensington security slot
Power
Installed Qty
1
Power Consumption Operational
85.701 Watt
Power Device
Internal power supply
Power Provided
250 Watt
Voltage Required
AC 100-240 V
Software / System Requirements
OS Required
Microsoft Windows Server 2008 R2, IBM AIX 7, Microsoft Windows Server 2012, Microsoft Windows Server 2012 R2, Ubuntu 14.04, Red Hat Enterprise Linux 6.6, Microsoft Windows Server 2016, Apple MacOS X 10.10 or later, CentOS 7.0, Microsoft Windows Serve
Storage Operating System
QNAP QuTS hero h5.0.0
Manufacturer Warranty
Service & Support
Limited warranty - 3 years
Dimensions & Weight (Shipping)
Shipping Weight
9.19 kg
Environmental Parameters
Humidity Range Operating
5 - 95% (non-condensing)
Max Operating Temperature
40 °C
Min Operating Temperature
0 °C
