QNAP TS-h1090FU 10Moduler

QNAP TS-h1090FU - NAS-server - 10 bays - rackversion - SATA 6Gb/s / PCIe (NVMe) / U.2 - RAID 0, 1, 5, 6, 10, 50, JBOD, 60 - RAM 64 GB - 25 Gigabit Ethernet / 2.5 Gigabit Ethernet - iSCSI support - 1U

Varenummer: 1000733243
Model: TS-h1090FU-7232P-64G
EAN: 4711103082126
Brand:
"QNAP Systems, Inc"
Vægt: 13.38 kg

Specifications

Produktbeskrivelse

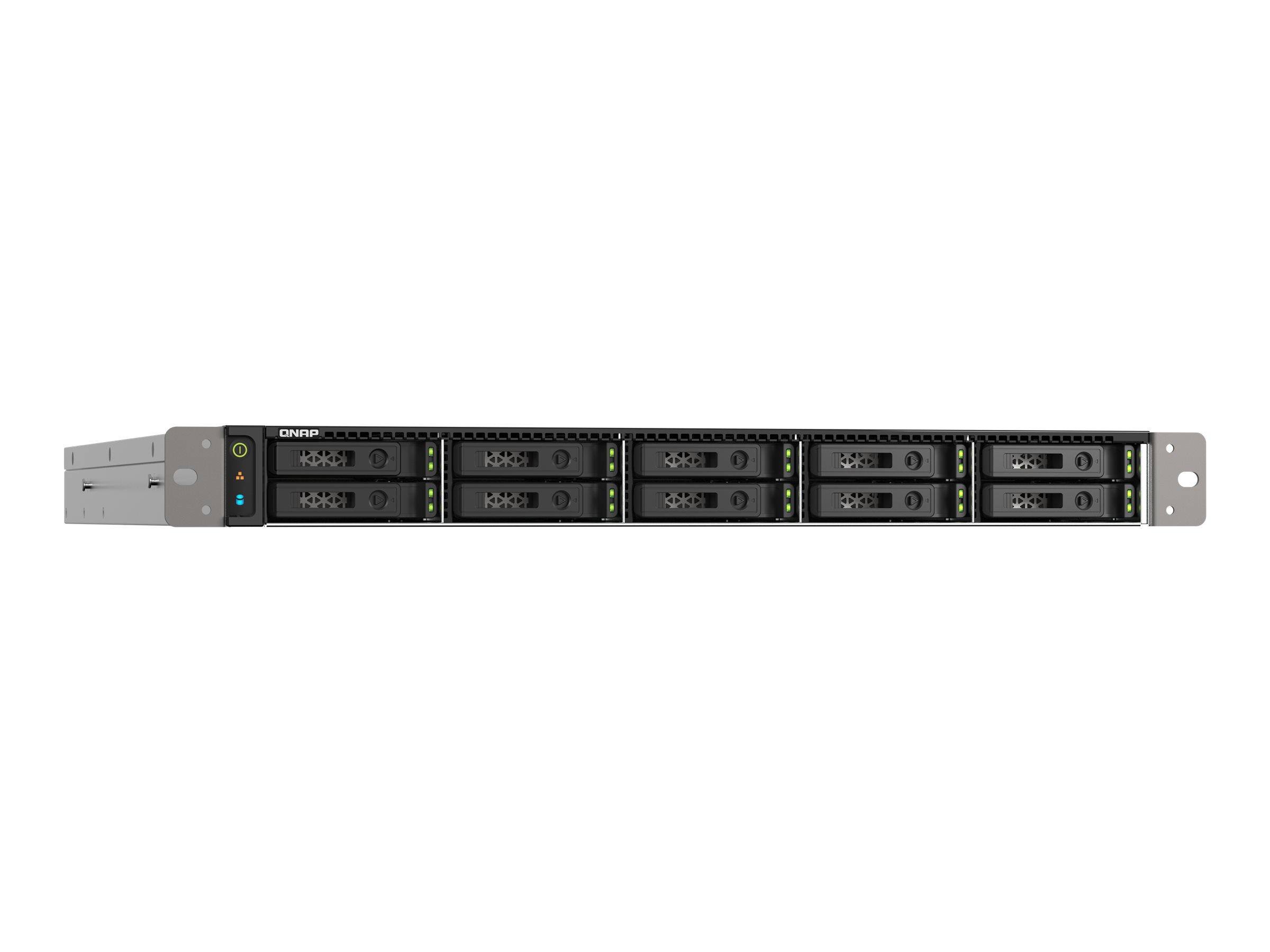

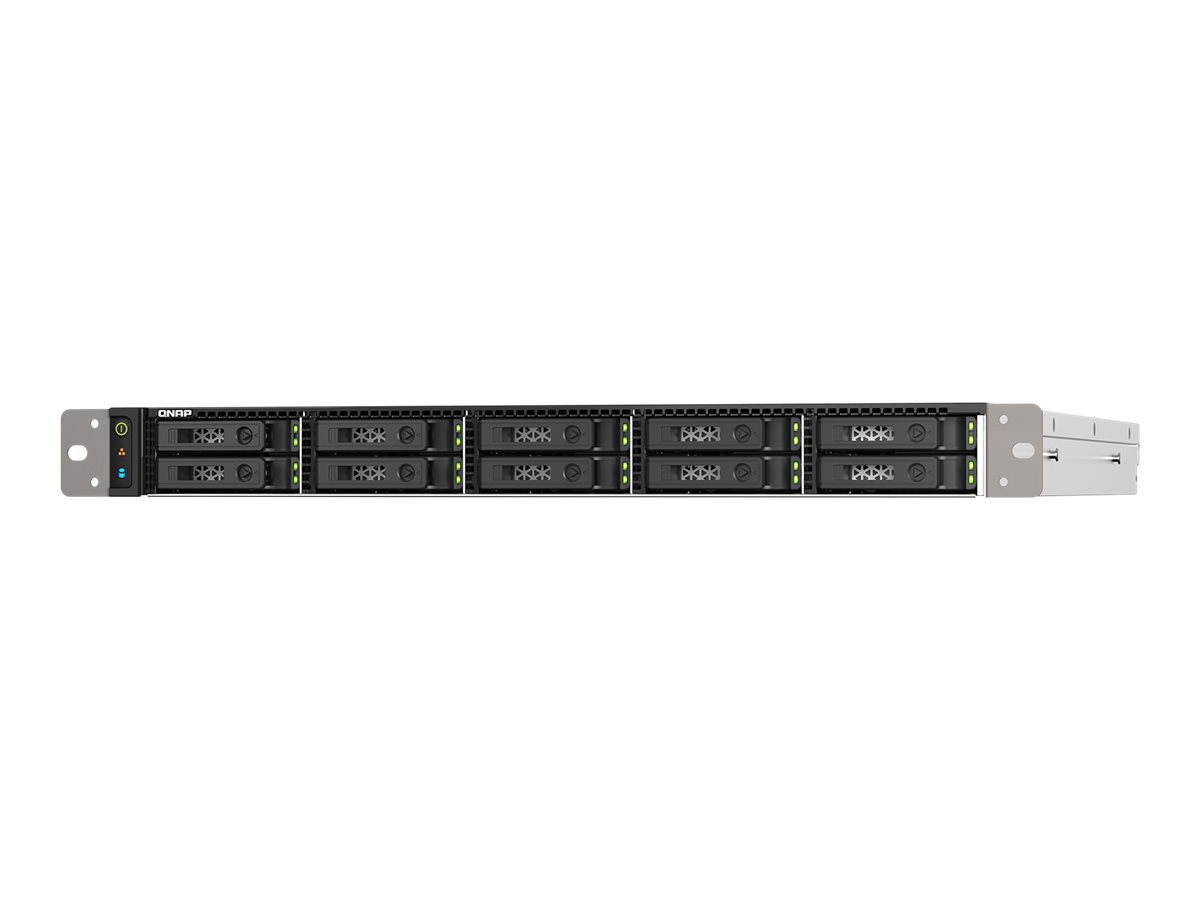

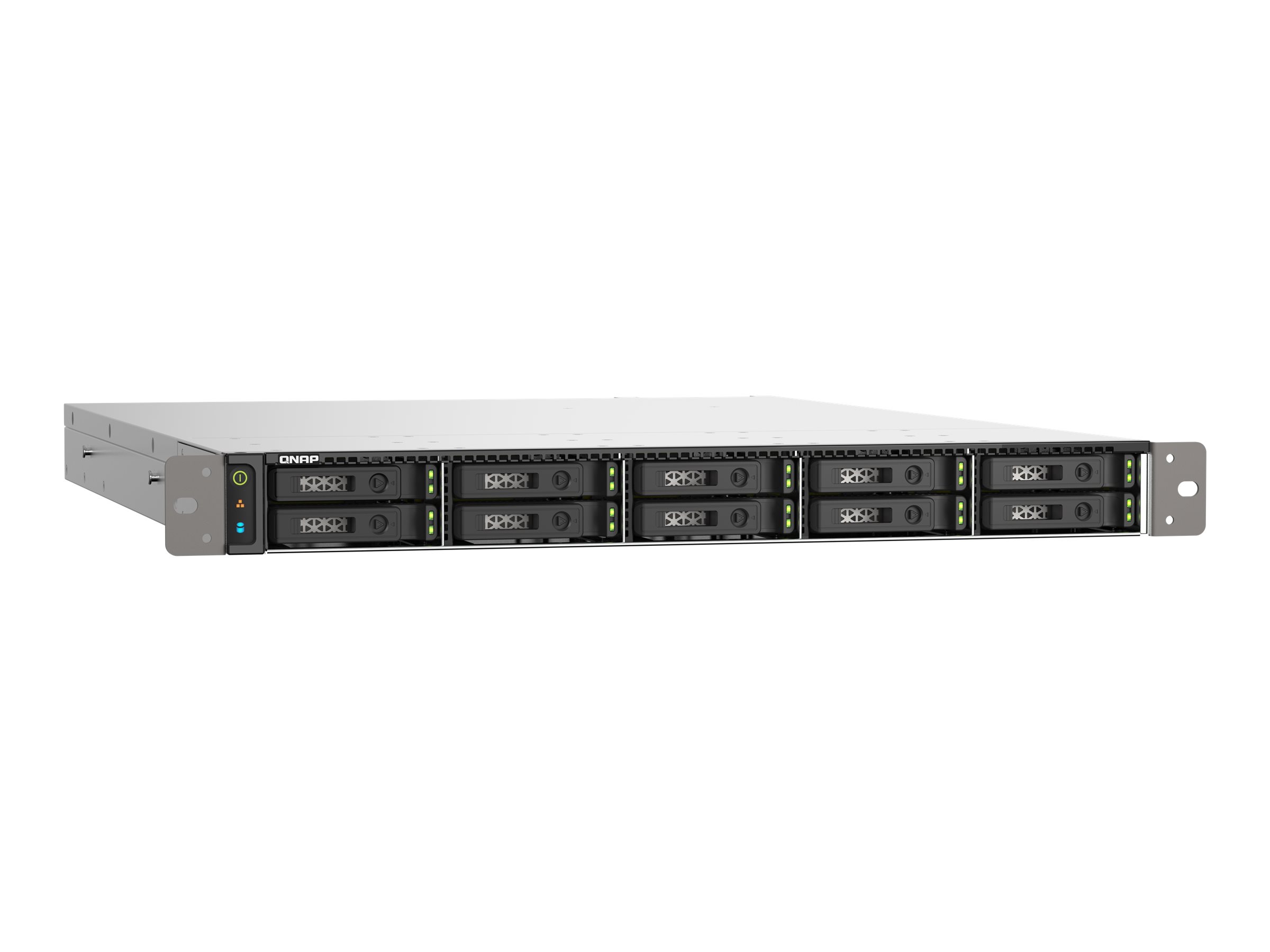

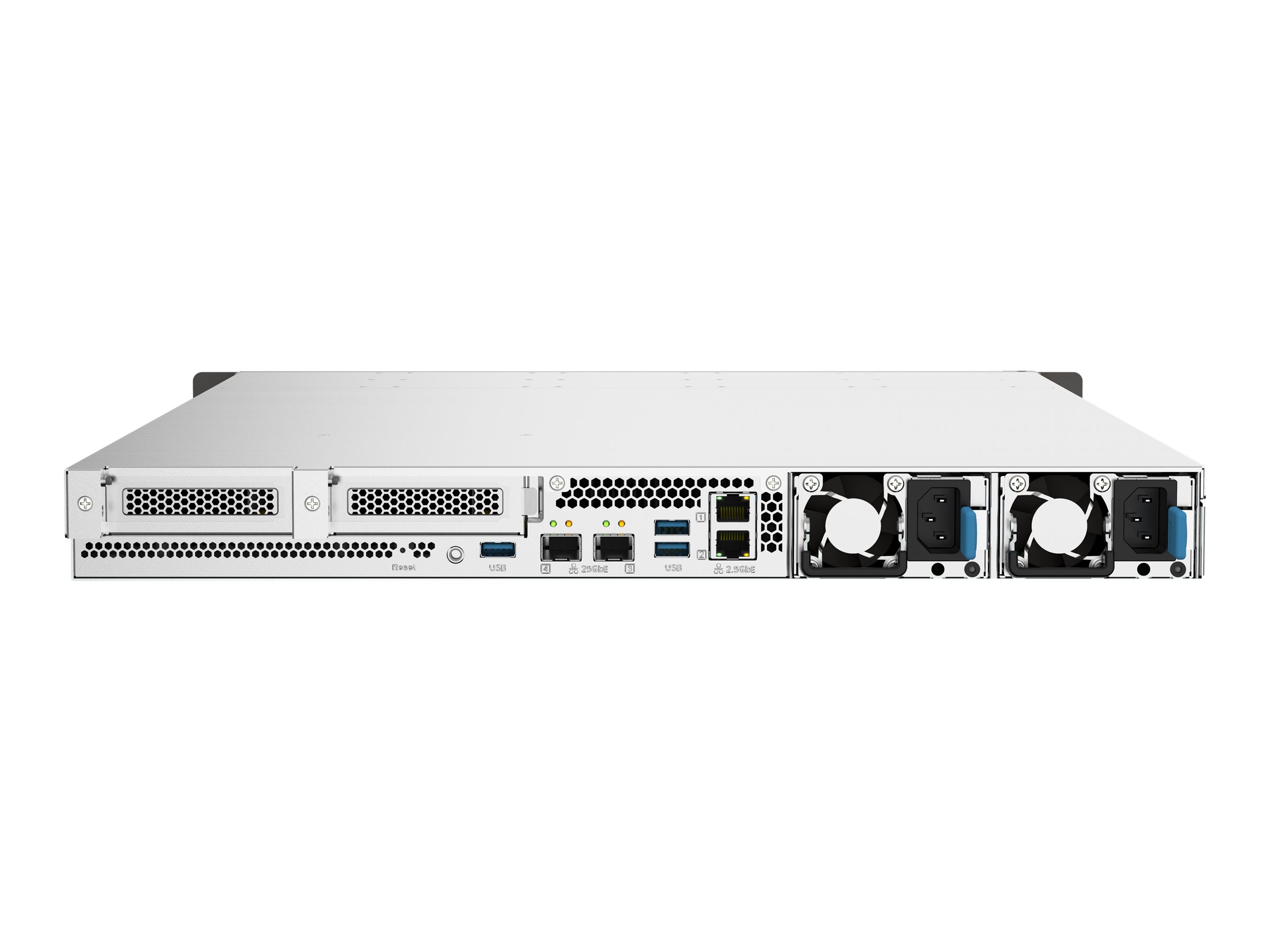

QNAP TS-h1090FU - NAS-server
Enhedstype
NAS-server
Vært Tilslutning
25 Gigabit Ethernet / 2.5 Gigabit Ethernet
Pakningstype
Rackversion - 1U
Maks. antal understøttet
308 TB
Installeret udstyr/antal moduler
0 (installeret) / 10 (maks.)
Dimensioner (B x D x H)
43 cm x 58 cm x 4.4 cm
Vægt
10.33 kg ()
Lokalisering
Dansk, Ungarsk, Tjekkisk, thailansk, Kinesisk (traditionelt), Kinesisk (forenklet), Engelsk, Tysk, Fransk, Italiensk, Norsk, Portugisisk, Polish, Finsk, Svensk, Russisk, Hollandsk, Græsk, Tyrkisk, Rumænsk, Japansk, Koreansk
Processor
1 x AMD EPYC 7232P (8-core)
Controller for lagring
RAID SATA 6Gb/s / PCIe (NVMe) / U.2 RAID 0, 1, 5, 6, 10, 50, JBOD, 60
Netværk
2.5GbE, 25GbE
Præstation
Samtidige forbindelser (CIFS): 10000<br>Maksimal FTP-forbindelse: 1024<br>Lokal brugerkonto: 4096<br>Lokal gruppekonto: 512<br>Domænebruger/gruppekonto: 200000<br>Syslog: 3000 hændelser pr. sekund<br>Virtuelle værter: 32
RAM
64 GB
Effekt
AC 100-240 V
Overskudsspænding
Ja
Operativsystem til lagring
QNAP QTS 5.0.0
Systemkrav
Microsoft Windows Server 2008 R2, IBM AIX 7, Microsoft Windows Server 2012, Microsoft Windows Server 2012 R2, Ubuntu 14.04, Red Hat Enterprise Linux 6.6, Microsoft Windows 7 / 8 / 10, Microsoft Windows Server 2016, Apple MacOS X 10.10 eller nyere, CentOS 7.0, Microsoft Windows Server 2019, SuSE Linux 12 eller nyere, Oracle Solaris 10 eller senere, QNAP QVR Pro, QNAP QVR Elite
Producentgaranti
5 års garanti
Specifications

Full specifications

General
Depth
58 cm
Device Type
NAS server
Enclosure Type
Rack-mountable - 1U
Height
4.4 cm
Host Connectivity
25 Gigabit Ethernet / 2.5 Gigabit Ethernet
Installed Devices / Modules Qty
0 (installed) / 10 (max)
Localization
Danish, Hungarian, Czech, Thai, Chinese (traditional), Chinese (simplified), English, German, French, Italian, Norwegian, Portuguese, Polish, Finnish, Swedish, Russian, Dutch, Greek, Turkish, Romanian, Japanese, Korean
Max Supported Capacity
308 TB
Total Storage Capacity
0 GB
Weight
10.33 kg ()
Width
43 cm
Processor / Memory
Features
ECC
Flash Memory Installed
5 GB
Max Supported Qty
1
Max Turbo Speed
3.2 GHz
Number of Cores
8-core
Processors Installed
1 x AMD EPYC 7232P
RAM
64 GB (installed) / 256 GB (supported) - DDR4
Storage Controller
Interface Type
SATA 6Gb/s / PCIe (NVMe) / U.2
RAID Level
RAID 0, RAID 1, RAID 5, RAID 6, RAID 10, RAID 50, JBOD, RAID 60
Type
RAID
Networking
Data Link Protocol
2.5 GigE, 25 Gigabit Ethernet
Encryption Algorithm
FIPS 140-2, 256-bit AES, AES-NI
Features
Firewall protection, VPN support, VLAN support, wake on LAN (WOL), antivirus analysis, Jumbo Frames support, DHCP server, FTP server, Domain Controller, Single Root I/O Virtualization (SR-IOV), file station, WebDAV server support, port trunking, SSD
Network / Transport Protocol
DDNS, IPv4, IPv6
Network Services Compatibility
FTP, Server Message Block (SMB), Apple File Protocol (AFP)
Performance
Concurrent connections (CIFS): 10000 | Maximum FTP connection: 1024 | Local user account: 4096 | Local group account: 512 | Domain user/group account: 200000 | Syslog: 3000 events per second | Virtual hosts: 32
Remote Management Protocol
SNMP 2, Telnet, SNMP 3, HTTP, HTTPS, SSH, RADIUS
Expansion / Connectivity
Expansion Bays
12 (total) / 12 (free) x hot-swap - 2.5"
Expansion Slots
2 (total) / 2 (free) x PCI Express 4.0 x16
Interfaces
2 x 2.5 Gigabit Ethernet - RJ-45 | 3 x USB 3.2 Gen 1 - Type A | 2 x Ethernet 25Gb - SFP28
Miscellaneous
Cables Included
1 x network cable | 1 x power cable
Compliant Standards
TLS v1.2, TLS v1.0, TLS v1.1, TLS v1.3
Features
Built-in 5 cooling fans, Citrix Ready, S.M.A.R.T. support, reset button, Secure Erase, dual boot, Smart Fan, alarm buzzer, 60 mm cooling fan, on/off power switch
Included Accessories
2 x hangers, 2 x holders, 40 x flat head screws (for 2.5" HDD), 2 x drive tray keys
Power
Installed Qty
2
Max Supported Qty
2
Power Consumption Operational
157.97 Watt
Power Device
Internal power supply
Power Provided
550 Watt
Power Redundancy
Yes
Power Redundancy Scheme
1+1
Voltage Required
AC 100-240 V
Software / System Requirements
OS Required
Microsoft Windows Server 2008 R2, IBM AIX 7, Microsoft Windows Server 2012, Microsoft Windows Server 2012 R2, Ubuntu 14.04, Red Hat Enterprise Linux 6.6, Microsoft Windows 7 / 8 / 10, Microsoft Windows Server 2016, Apple MacOS X 10.10 or later, CentO
Software Included
IronWolf Health Management
Storage Operating System
QNAP QTS 5.0.0
Manufacturer Warranty
Service & Support
Limited warranty - 5 years
Dimensions & Weight (Shipping)
Shipping Weight
13.38 kg
Environmental Parameters
Humidity Range Operating
5 - 95% RH (non-condensing)
Max Operating Temperature
40 °C
Min Operating Temperature
0 °C
