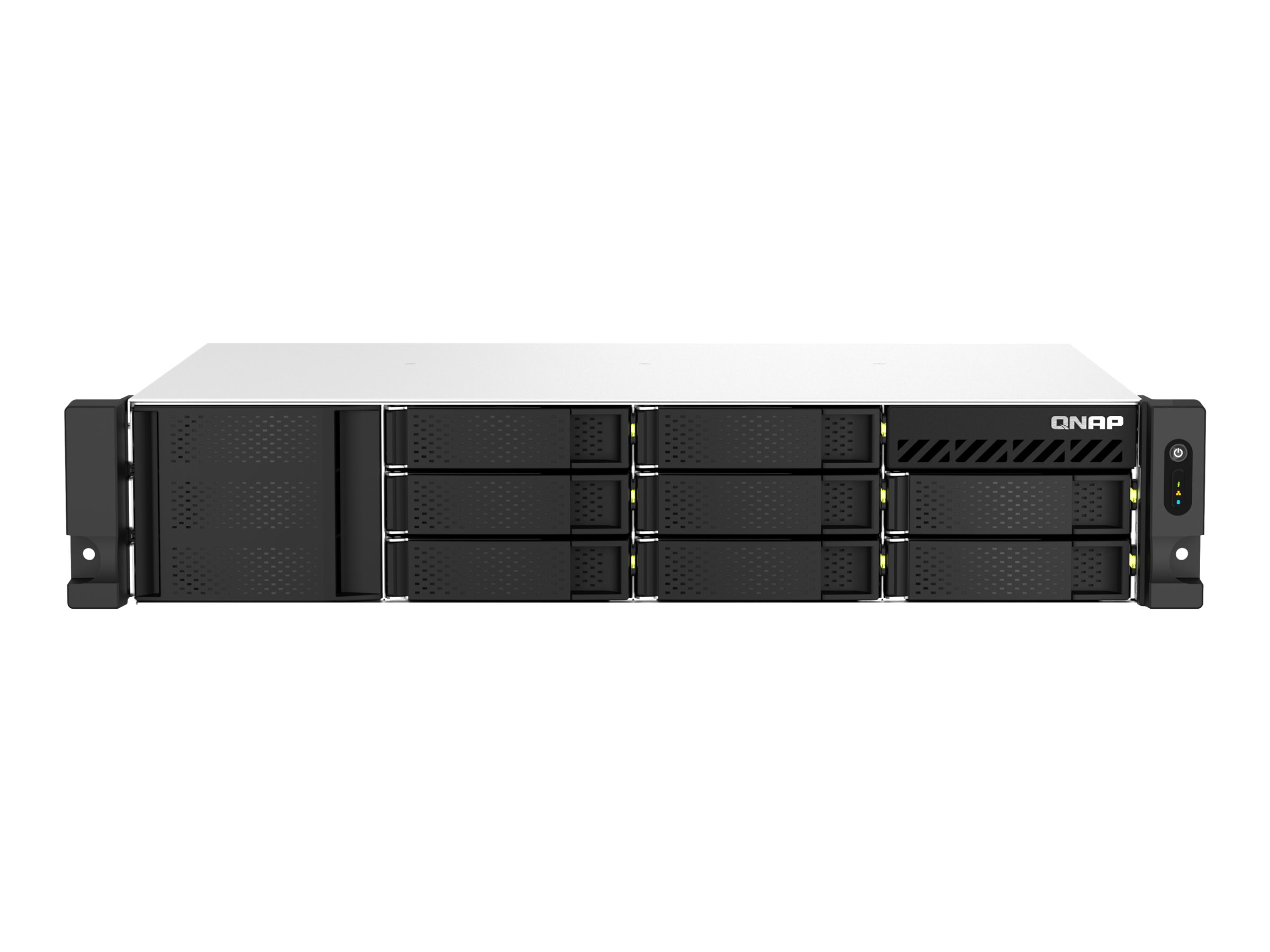

QNAP TS-864eU-RP 8Moduler

QNAP TS-864eU-RP - NAS-server - 8 bays - rackversion - SATA 6Gb/s - RAID 0, 1, 5, 6, 10, 50, JBOD, 60 - RAM 8 GB - Gigabit Ethernet / 2.5 Gigabit Ethernet - iSCSI support - 2U

Product no: 1001097541
Model: TS-864EU-RP-8G
EAN: 4711103082188
Brand:
"QNAP Systems, Inc"
Weight: 10.7 kg
Product information and specifications are guiding only. Without notice, these can be subject to change by the manufacturer. This applies for product images as well.

Specifications

Produktbeskrivelse
QNAP TS-864eU-RP - NAS-server
Enhedstype
NAS-server
Vært Tilslutning
Gigabit Ethernet / 2.5 Gigabit Ethernet
Pakningstype
Rackversion - 2U
Installeret udstyr/antal moduler
0 (installeret) / 8 (maks.)
Dimensioner (B x D x H)
48.214 cm x 34.643 cm x 8.86 cm
Vægt
7.9 kg ()
Processor
1 x Intel Celeron N5095 (Quad-Core)
Controller for lagring
RAID SATA 6Gb/s RAID 0, 1, 5, 6, 10, 50, JBOD, 60
Netværk
10Mb LAN, 100Mb LAN, 1GbE, 2.5GbE
Præstation
Samtidige forbindelser (CIFS): 1500 - (med maksimal hukommelse)<br>Maksimal poolstørrelse: 308 TB<br>Maksimalt antal lagerpool: 128<br>Maksimal volumentstørrelse: 250 TB<br>Maksimal antal volumen: 128<br>Maksimal delt mappestørrelse: 250 TB<br>Maksimal antal delte mapper: 512<br>Maksimal LUN-størrelse: 250 TB<br>Maksimalt antal mål-LUN: 128<br>Minimum billedinterval: 5 min<br>Maksimal FTP-forbindelse: 1024<br>Lokal brugerkonto: 4096<br>Lokal gruppekonto: 512<br>Domænebruger/gruppekonto: 200000<br>Virtuelle værter: 32<br>Logoptagelse: 3000 hændelser pr. sekund
RAM
8 GB
Effekt
AC 100-240 V
Overskudsspænding
Ja
Operativsystem til lagring
QNAP QTS 5.0.1
Systemkrav
Microsoft Windows Server 2008 R2, IBM AIX 7, Microsoft Windows Server 2012, Microsoft Windows Server 2012 R2, Ubuntu 14.04, Red Hat Enterprise Linux 6.6, Microsoft Windows Server 2016, Apple MacOS X 10.10 eller nyere, CentOS 7.0, Microsoft Windows Server 2019, SuSE Linux 12 eller nyere, Oracle Solaris 10 eller senere, Microsoft Windows 7 / 8 / 10 / 11
Producentgaranti
3 års garanti
Specifications

Full specifications

General
Built-in Devices
LED panel
Depth
34.643 cm
Device Type
NAS server
Enclosure Type
Rack-mountable - 2U
Height
8.86 cm
Host Connectivity
Gigabit Ethernet / 2.5 Gigabit Ethernet
Installed Devices / Modules Qty
0 (installed) / 8 (max)
Total Storage Capacity
0 GB
Weight
7.9 kg ()
Width
48.214 cm
Processor / Memory
Flash Memory Installed
4 GB
Max Supported Qty
1
Max Turbo Speed
2.9 GHz
Number of Cores
Quad-Core
Processors Installed
1 x Intel Celeron N5095
RAM
8 GB
Storage Controller
Interface Type
SATA 6Gb/s
RAID Level
RAID 0, RAID 1, RAID 5, RAID 6, RAID 10, RAID 50, JBOD, RAID 60
Type
RAID
Networking
Data Link Protocol
10Mb LAN, 100Mb LAN, GigE, 2.5 GigE
Encryption Algorithm
FIPS 140-2, 256-bit AES, AES-NI
Features
Firewall protection, VPN support, LDAP support, VLAN support, wake on LAN (WOL), anti-malware protection, Access Control List (ACL) support, RADIUS support, Jumbo Frames support, DHCP server, built-in hardware transcoding, file station, port trunking
Network / Transport Protocol
iSCSI, DHCP, SMB, DDNS, IPv4, IPv6
Network Services Compatibility
DHCP, DDNS, Microsoft CIFS, Server Message Block (SMB), Apple File Protocol (AFP), HTTP, HTTPS, Web-based Distributed Authoring and Versioning (WebDAV), Network File System v3 (NFS v3), Network File System v4 (NFS v4)
Performance
Concurrent connections (CIFS): 1500 - (with maximum memory) | Maximum pool size: 308 TB | Maximum number of storage pool: 128 | Maximum volume size: 250 TB | Maximum number of volume: 128 | Maximum shared folder size: 250 TB | Maximum number of share
Remote Management Protocol
SNMP 2, Telnet, SNMP 3, HTTP, HTTPS, TFTP, SSH
Expansion / Connectivity
Expansion Bays
8 (total) / 8 (free) x hot-swap - 2.5" / 3.5"
Expansion Slots
1 x PCI Express 3.0 x2
Interfaces
2 x 2.5 Gigabit Ethernet - RJ-45 | 2 x USB 3.2 Gen 2 - Type A | 2 x USB 2.0 - Type A | 1 x HDMI output
Miscellaneous
Cables Included
1 x network cable
Compliant Standards
TLS v1.2, TLS v1.0, TLS v1.1, TLS v1.3
Features
Wake on LAN, S.M.A.R.T. support, Secure Erase, dual boot, alarm buzzer, array roaming, built-in 3 x 60 mm cooling fans
Included Accessories
24 x flat head screws (for 2.5" HDD), 32 x flat head screws (for 3.5" HDD), 2 x power cables
Power
Installed Qty
2
Max Supported Qty
2
Power Consumption Operational
55.83 Watt (with drives fully populated)
Power Device
Internal power supply
Power Provided
300 Watt
Power Redundancy
Yes
Power Redundancy Scheme
1+1
Voltage Required
AC 100-240 V
Software / System Requirements
OS Required
Microsoft Windows Server 2008 R2, IBM AIX 7, Microsoft Windows Server 2012, Microsoft Windows Server 2012 R2, Ubuntu 14.04, Red Hat Enterprise Linux 6.6, Microsoft Windows Server 2016, Apple MacOS X 10.10 or later, CentOS 7.0, Microsoft Windows Serve
Software Included
McAfee, IronWolf Health Management
Storage Operating System
QNAP QTS 5.0.1
Manufacturer Warranty
Service & Support
Limited warranty - 3 years
Dimensions & Weight (Shipping)
Shipping Weight
10.47 kg
Environmental Parameters
Humidity Range Operating
5 - 95% RH (non-condensing)
Max Operating Temperature
40 °C
Min Operating Temperature
0 °C
