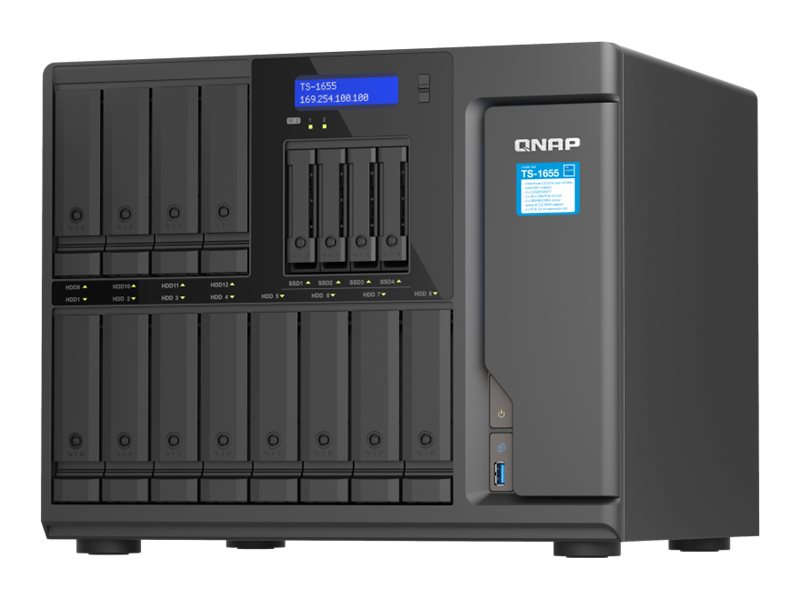

QNAP TS-1655 16Moduler

QNAP TS-1655 - NAS-server - 16 bays - SATA 6Gb/s - RAID 0, 1, 5, 6, 10, 50, JBOD, 60 - RAM 8 GB - 2.5 Gigabit Ethernet - iSCSI support

Varenummer: 1000909072
Model: TS-1655-8G
EAN: 4711103083178
Brand:
"QNAP Systems, Inc"
Vægt: 16.74 kg

Specifications

Produktbeskrivelse
QNAP TS-1655 - NAS-server
Enhedstype
NAS-server
Vært Tilslutning
2.5 Gigabit Ethernet
Installeret udstyr/antal moduler
0 (installeret) / 16 (maks.)
Dimensioner (B x D x H)
36.989 cm x 31.98 cm x 30.384 cm
Vægt
)
Processor
1 x Intel Atom C5125 (8-core)
Controller for lagring
RAID SATA 6Gb/s RAID 0, 1, 5, 6, 10, 50, JBOD, 60
Netværk
10Mb LAN, 100Mb LAN, 1GbE, 2.5GbE
Præstation
Samtidige forbindelser (CIFS): 700 - (med maksimal hukommelse)<br>Maksimal poolstørrelse: 308 TB<br>Maksimalt antal lagerpool: 128<br>Maksimal antal volumen: 128<br>Maksimal delt mappestørrelse: 250 TB<br>Maksimal antal delte mapper: 512<br>Maksimalt antal mål-LUN: 256<br>Minimum billedinterval: 5 min<br>Maksimal FTP-forbindelse: 1024<br>Lokal brugerkonto: 4096<br>Lokal gruppekonto: 512<br>Domænebruger/gruppekonto: 200000<br>Logoptagelse: 3000 hændelser pr. sekund<br>Virtuelle værter: 32<br>Maksimal volumentstørrelse: 250 TB<br>Maksimal LUN-størrelse: 250 TB
RAM
8 GB
Effekt
AC 100-240 V
Operativsystem til lagring
QNAP QTS 5.0.1
Systemkrav
Microsoft Windows Server 2008 R2, IBM AIX 7, Microsoft Windows Server 2012, Microsoft Windows Server 2012 R2, Ubuntu 14.04, Red Hat Enterprise Linux 6.6, Microsoft Windows Server 2016, Apple MacOS X 10.10 eller nyere, CentOS 7.0, Microsoft Windows Server 2019, SuSE Linux 12 eller nyere, Oracle Solaris 10 eller senere, Microsoft Windows 7 / 8 / 10 / 11
Producentgaranti
3 års garanti
Specifications

Full specifications

General
Built-in Devices
Status LCD
Depth
31.98 cm
Device Type
NAS server
Height
30.384 cm
Host Connectivity
2.5 Gigabit Ethernet
Installed Devices / Modules Qty
0 (installed) / 16 (max)
Total Storage Capacity
0 GB
Weight
)
Width
36.989 cm
Processor / Memory
Features
Unbuffered, ECC
Flash Memory Installed
5 GB
Max Supported Qty
1
Max Turbo Speed
2.8 GHz
Number of Cores
8-core
Processors Installed
1 x Intel Atom C5125
RAM
8 GB (installed) / 128 GB (supported) - DDR4
Storage Controller
Interface Type
SATA 6Gb/s
RAID Level
RAID 0, RAID 1, RAID 5, RAID 6, RAID 10, RAID 50, JBOD, RAID 60
Type
RAID
Networking
Data Link Protocol
10Mb LAN, 100Mb LAN, GigE, 2.5 GigE
Encryption Algorithm
TLS 1.0, FIPS 140-2, 256-bit AES, TLS 1.1, TLS 1.2, TLS 1.3
Features
Firewall protection, VLAN support, wake on LAN (WOL), RADIUS support, Jumbo Frames support, DHCP server, Domain Controller, Single Root I/O Virtualization (SR-IOV), file station, port trunking, EXT4 file system, SSD trim, FXP support, Qsirch, SQL Ser
Network / Transport Protocol
PPTP, L2TP, IPSec, FTP, DDNS, SFTP, IPv4, IPv6, WireGuard, TFTP, QBelt, QuFTP
Network Services Compatibility
Microsoft CIFS, Server Message Block (SMB), Apple File Protocol (AFP), Web-based Distributed Authoring and Versioning (WebDAV), Network File System v3 (NFS v3), Network File System v4 (NFS v4)
Performance
Concurrent connections (CIFS): 700 - (with maximum memory) | Maximum pool size: 308 TB | Maximum number of storage pool: 128 | Maximum number of volume: 128 | Maximum shared folder size: 250 TB | Maximum number of shared folder: 512 | Maximum number
Remote Management Protocol
SNMP 2, Telnet, SNMP 3, HTTPS, SSH, RADIUS
Expansion / Connectivity
Expansion Bays
12 (total) / 12 (free) x hot-swap - 3.5" | 4 (total) / 4 (free) x hot-swap - 2.5"
Expansion Slots
2 (total) / 2 (free) x M.2 2280 | 4 (total) / 3 (free) x DIMM 288-pin | 3 (total) / 3 (free) x PCI Express 3.0 x4
Interfaces
2 x 2.5 Gigabit Ethernet - RJ-45 | 4 x USB 3.2 Gen 1 - Type A
Miscellaneous
Cables Included
1 x network cable
Features
Security lock slot (cable lock sold separately), Secure Erase, dual boot, built-in cooling fans
Included Accessories
36 x flat head screws (for 2.5" HDD), 36 x flat head screws (for 3.5" HDD), power cable, 2 x drive tray keys
Security Slot Type
Kensington security slot
Power
Power Consumption Operational
104.65 Watt (with drives fully populated)
Power Consumption Stand by
94.957 Watt
Power Device
Internal power supply
Power Provided
550 Watt
Voltage Required
AC 100-240 V
Software / System Requirements
OS Required
Microsoft Windows Server 2008 R2, IBM AIX 7, Microsoft Windows Server 2012, Microsoft Windows Server 2012 R2, Ubuntu 14.04, Red Hat Enterprise Linux 6.6, Microsoft Windows Server 2016, Apple MacOS X 10.10 or later, CentOS 7.0, Microsoft Windows Serve
Software Included
McAfee, IronWolf Health Management
Storage Operating System
QNAP QTS 5.0.1
Manufacturer Warranty
Service & Support
Limited warranty - 3 years | Limited warranty - accessories - 1 year
Environmental Parameters
Humidity Range Operating
5 - 95% RH (non-condensing)
Max Operating Temperature
40 °C
Min Operating Temperature
0 °C
