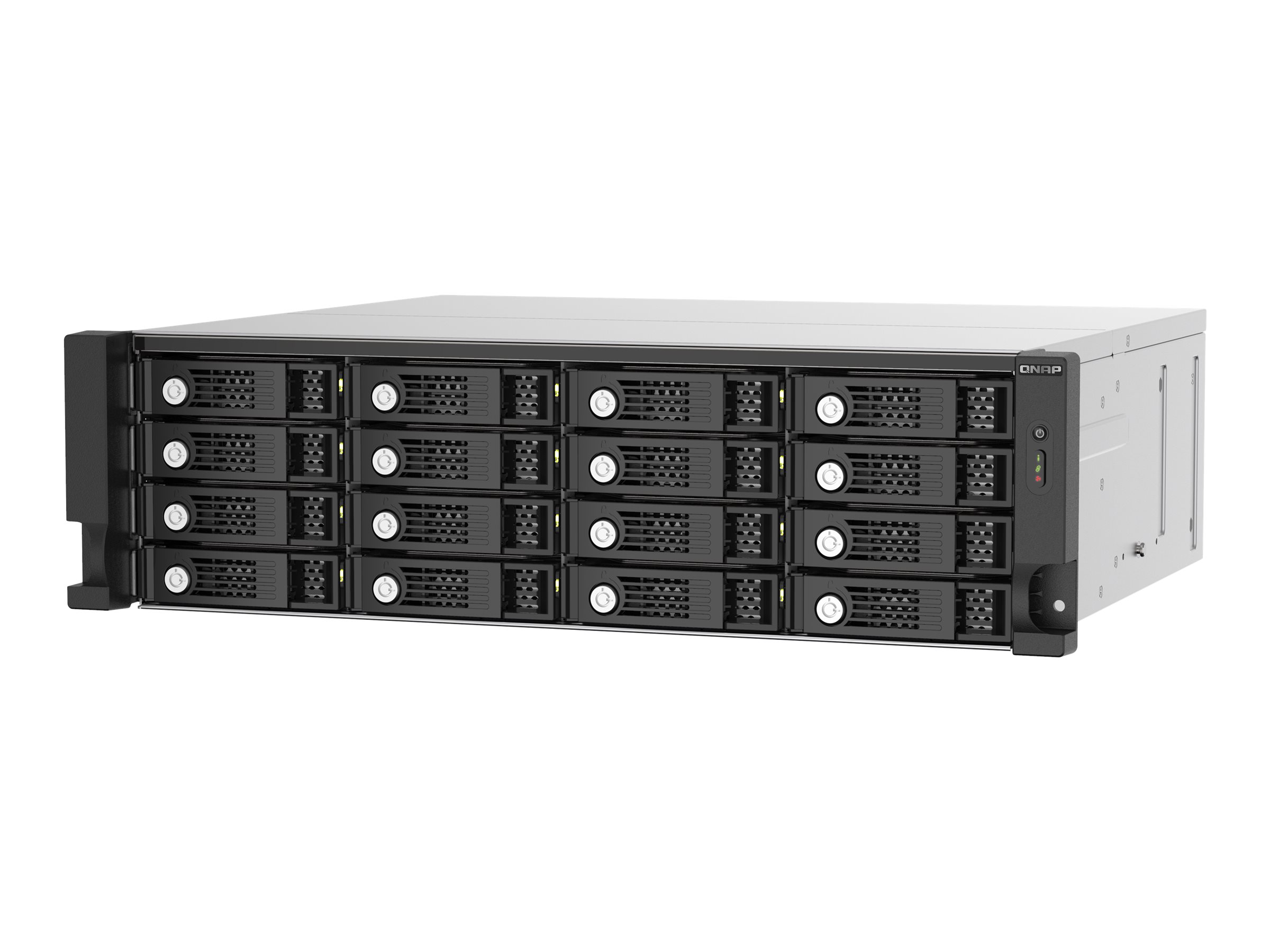

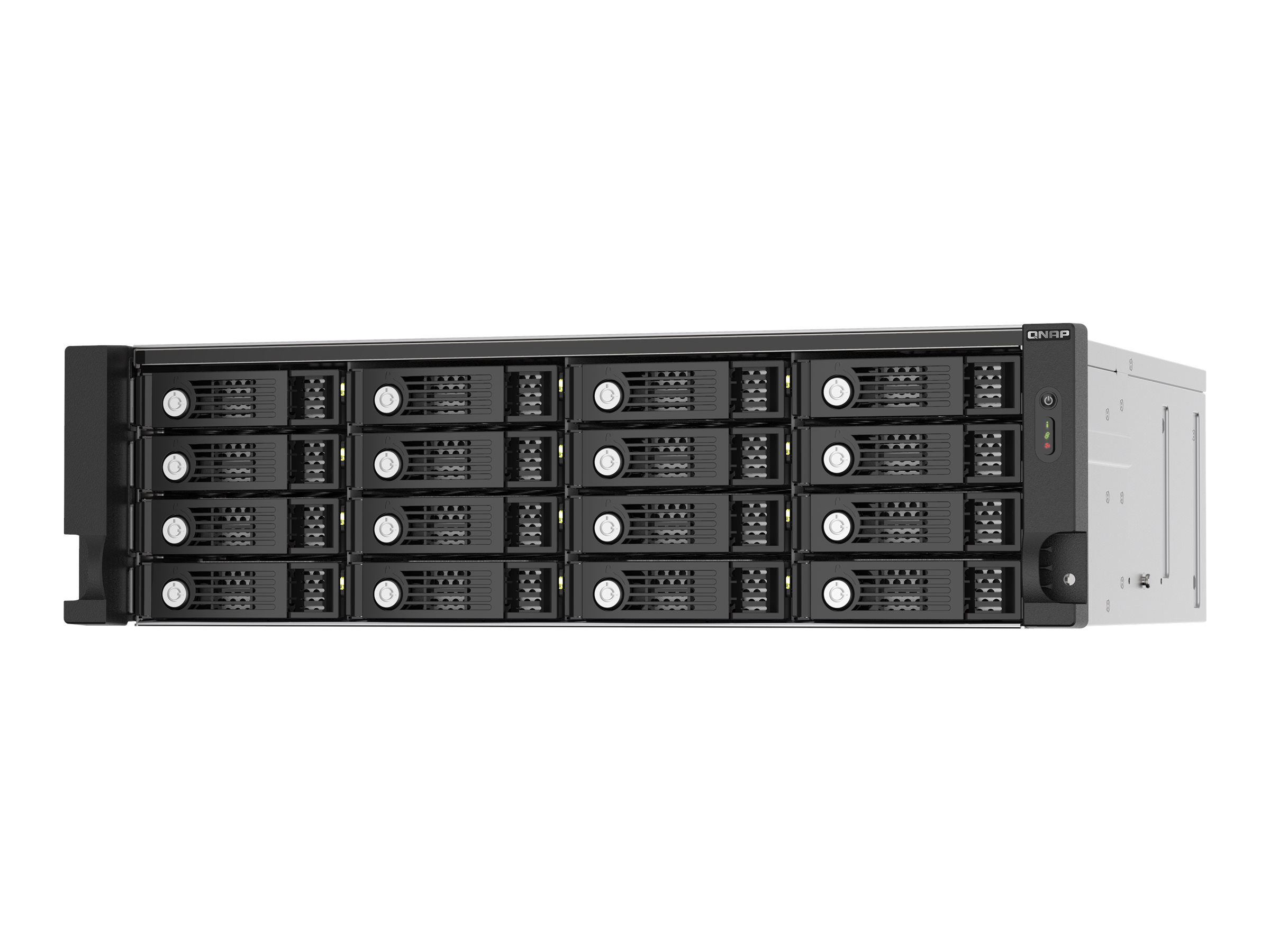

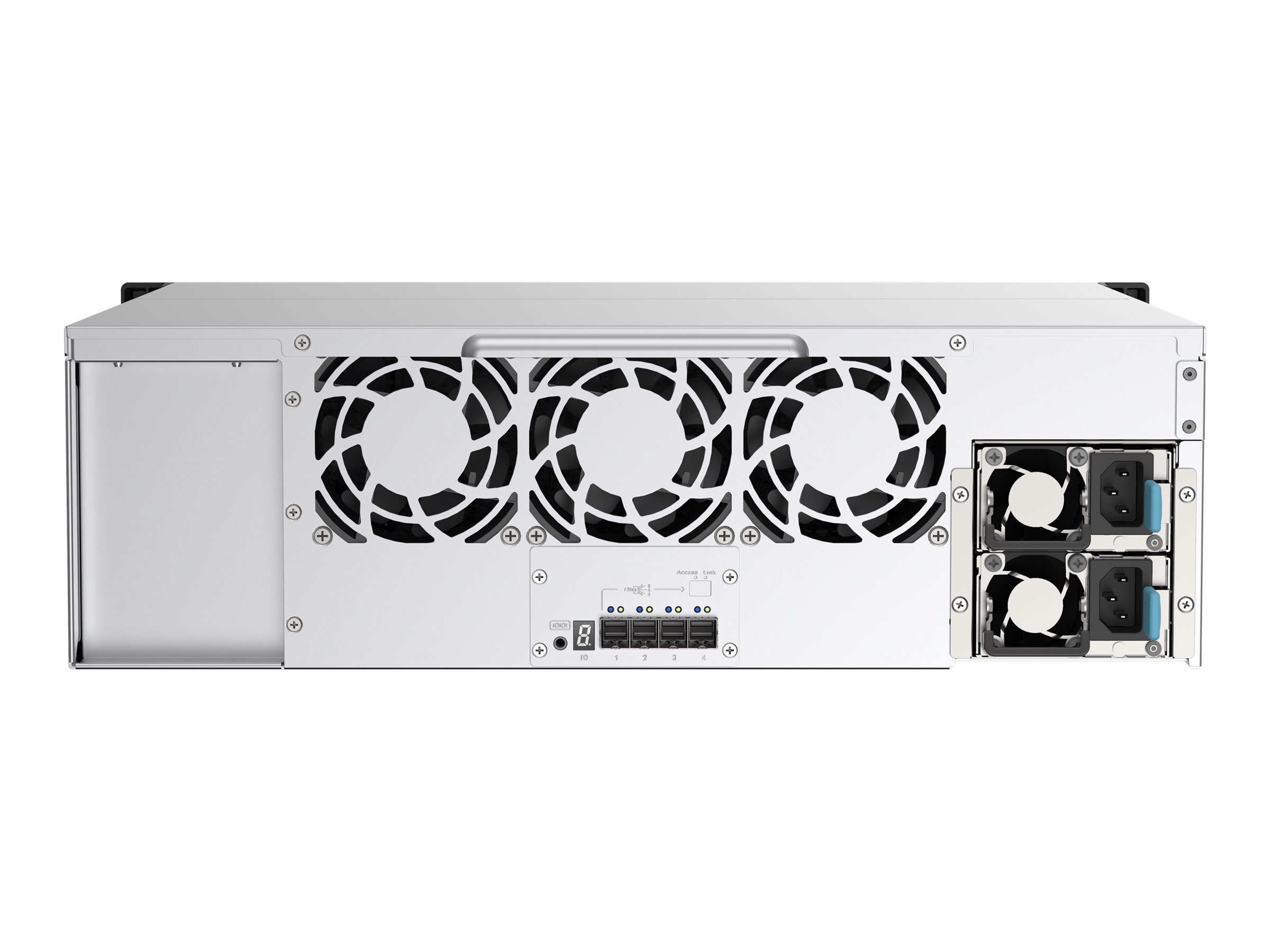

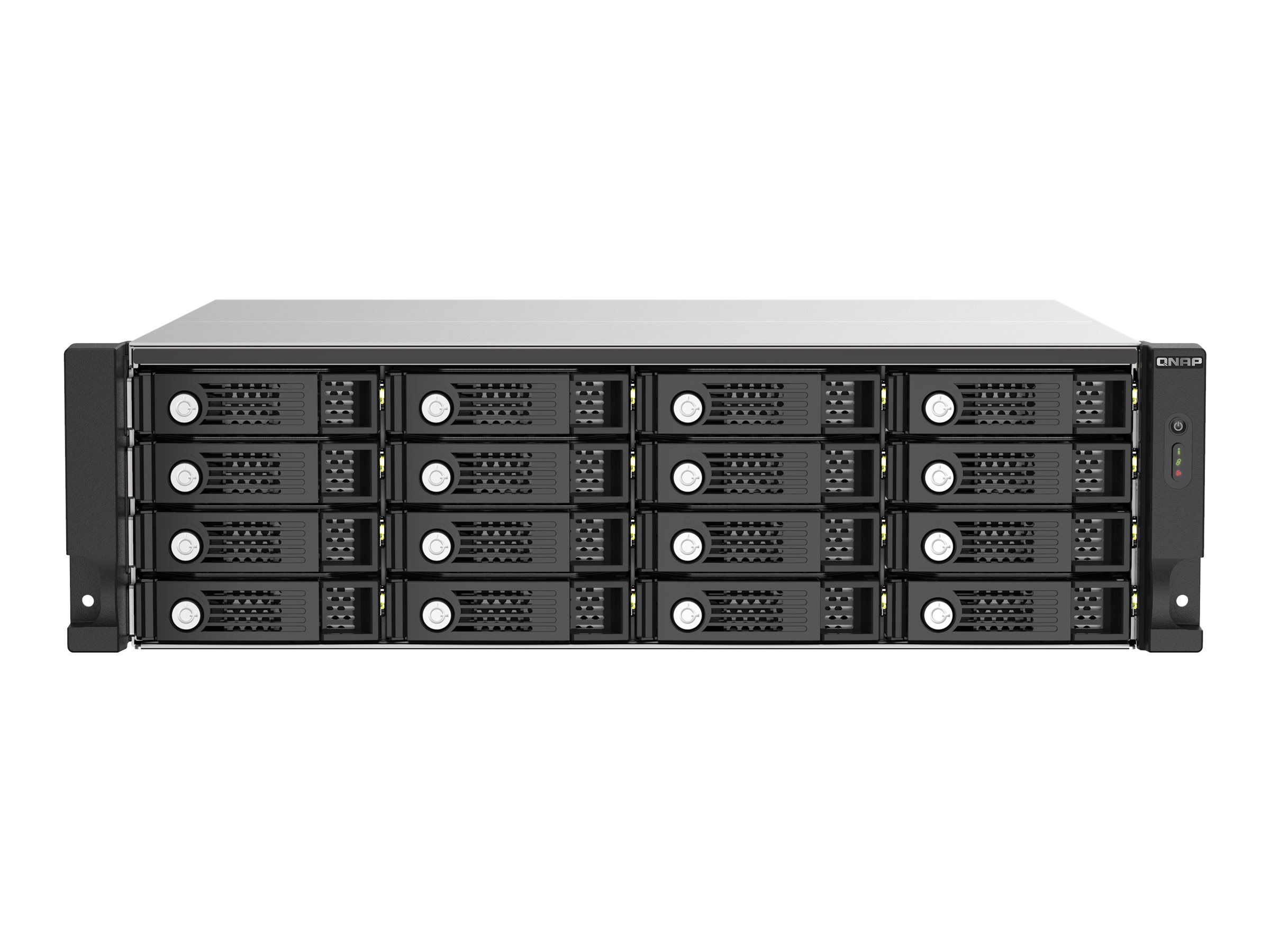

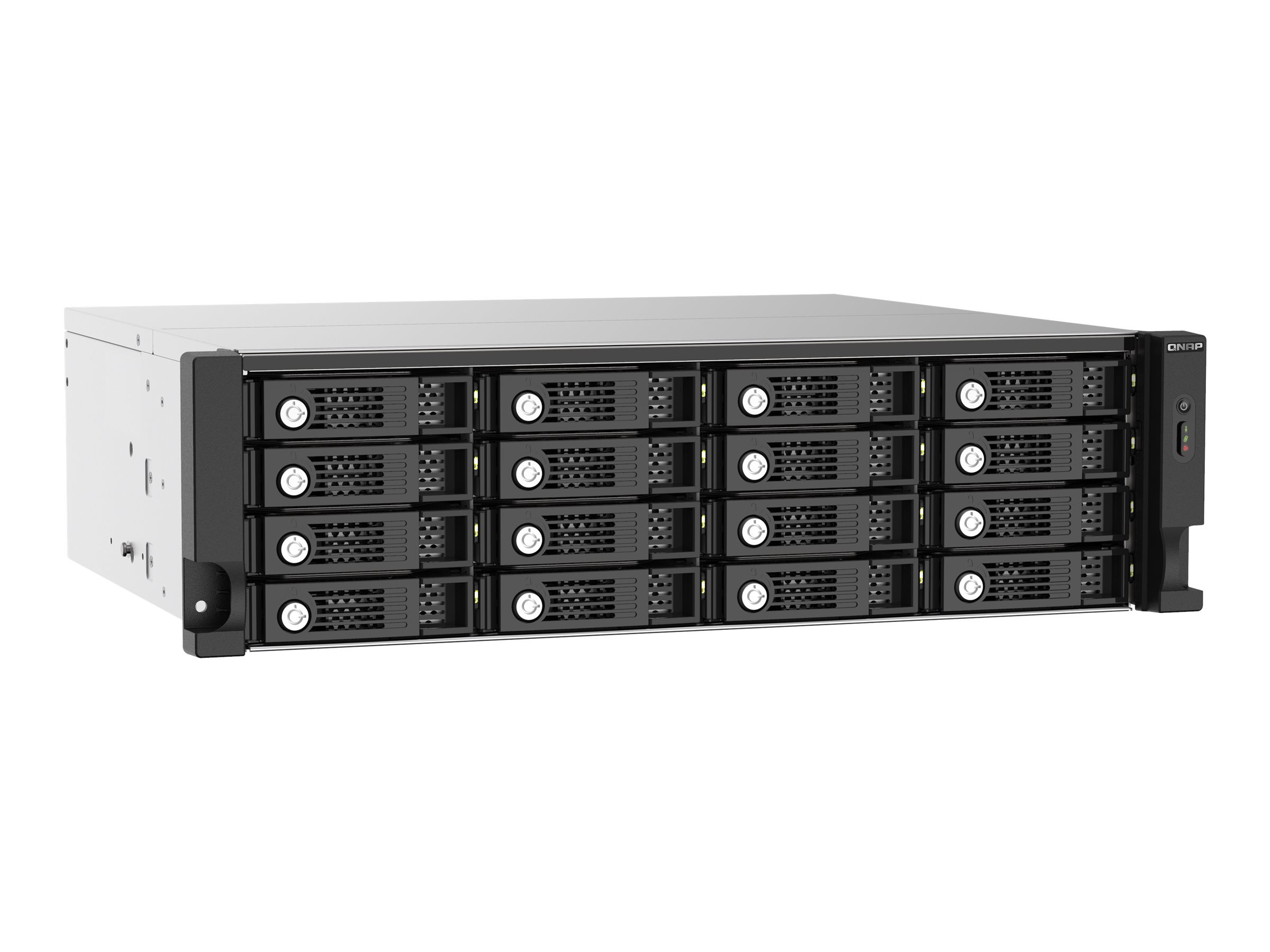

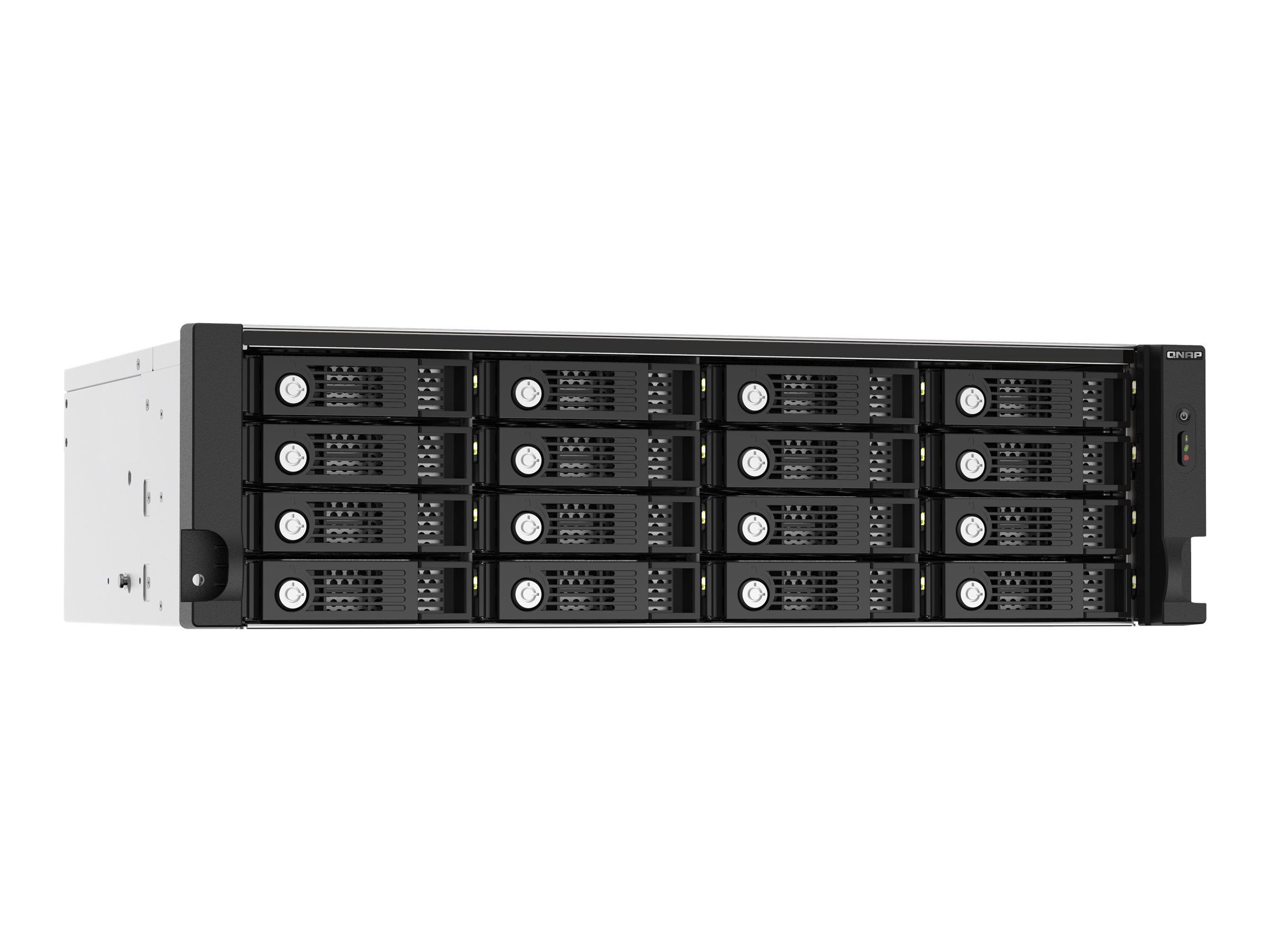

QNAP TL-R1620Sep-RP Harddisk-array 16bays

QNAP TL-R1620Sep-RP - Harddisk-array - 16 bays (SATA-600 / SAS-3) - SAS 12Gb/s (ekstern) - rackversion - 3U

Product no: 996761147
Model: TL-R1620SEP-RP
EAN: 4713213518588
Brand:
"QNAP Systems, Inc"
Weight: 16.73 kg

Specifications

Produktbeskrivelse
QNAP TL-R1620Sep-RP - harddisk-array
Enhedstype
Harddisk-array
Pakningstype
Rackversion - 3U
Grænseflade
SAS 12Gb/s
Installeret udstyr/antal moduler
0 (installeret) / 16 (maks.)
Understøttede drev
SATA-600 / SAS-3
Controller for lagring
RAID (SATA 6Gb/s / SAS 12Gb/s) - RAID JBOD
Harddisk
Ingen HDD
Effekt
AC 120/230 V
Dimensioner (B x D x H)
48.22 cm x 42.53 cm x 13.13 cm
Vægt
11.48 kg
Specifications

Full specifications

General
Device Type
Hard drive array
Enclosure Type
Rack-mountable - 3U
Chassis
Installed Devices / Modules Qty
Supported Devices / Modules Qty
16
Supported Drives
SATA-600 / SAS-3
Storage
HDD Array External Interface
SAS 12Gb/s
Storage Controller
Interface Type
SATA 6Gb/s / SAS 12Gb/s
RAID Level
JBOD
Type
RAID
Hard Drive
Type
No HDD
Expansion / Connectivity
Expansion Bays
16 (total) / 16 (free) x hot-swap - 2.5" / 3.5" shared
Interfaces
4 x SAS 12Gb/s - Mini SAS HD (SFF-8644)
Miscellaneous
Cables Included
1 x SFF-8644 to SFF-8644 SAS cable
Features
Built-in 3 cooling fans
Included Accessories
2 power cords, key, 64 x flat head screws (for 3.5" HDD), 48 x flat head screws (for 2.5" HDD)
Power
Max Supported Qty
2
Power Consumption Operational
207.13 Watt
Power Device
2 x internal power supply
Power Provided
550 Watt
Voltage Required
AC 120/230 V
Dimensions & Weight
Depth
42.53 cm
Height
13.13 cm
Weight
11.48 kg
Width
48.22 cm
Dimensions & Weight (Shipping)
Shipping Weight
16.01 kg
Environmental Parameters
Humidity Range Operating
5 - 95% (non-condensing)
Max Operating Temperature
40 °C
Min Operating Temperature
0 °C
Sound Emission
36 dBA
