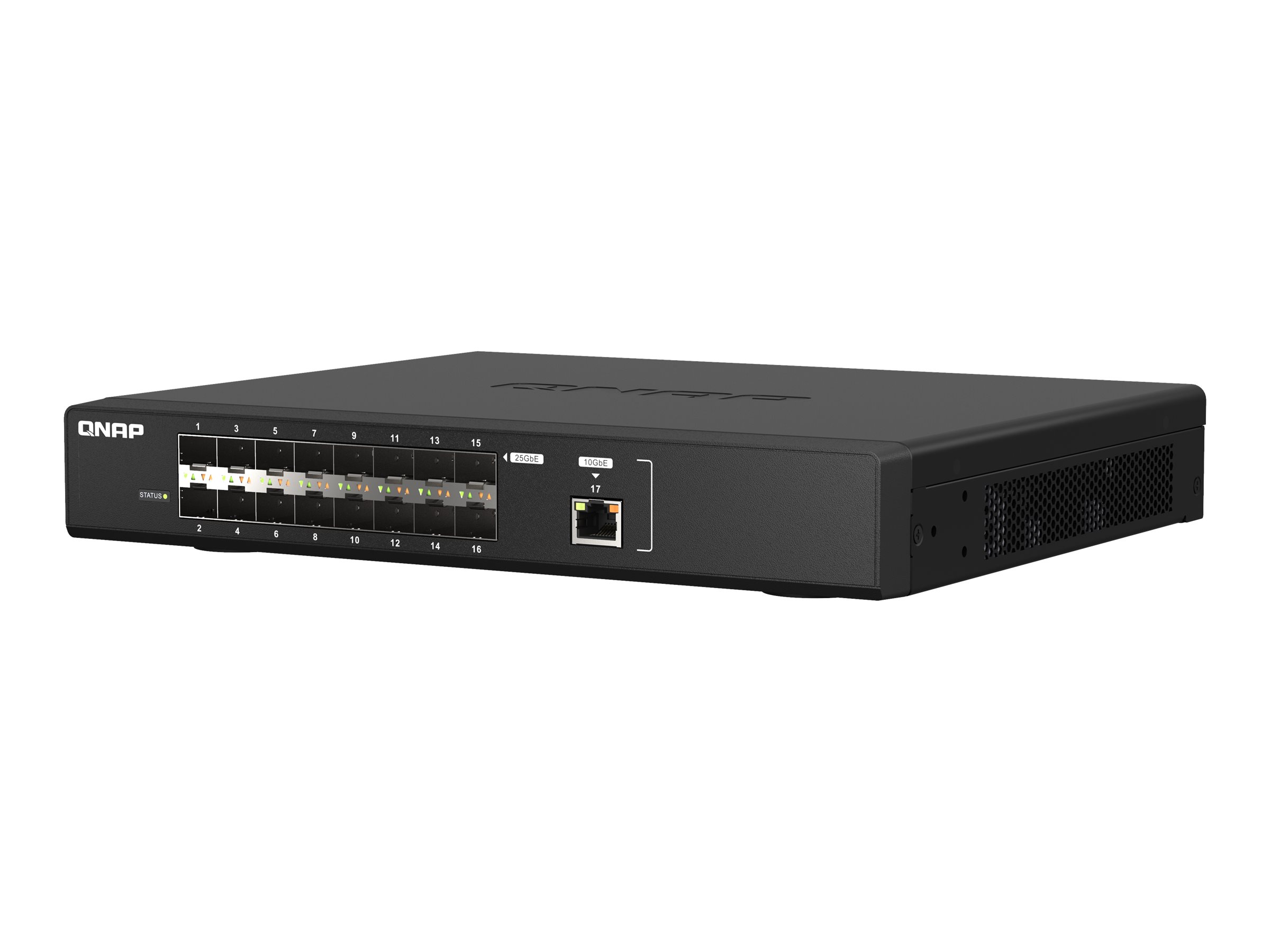

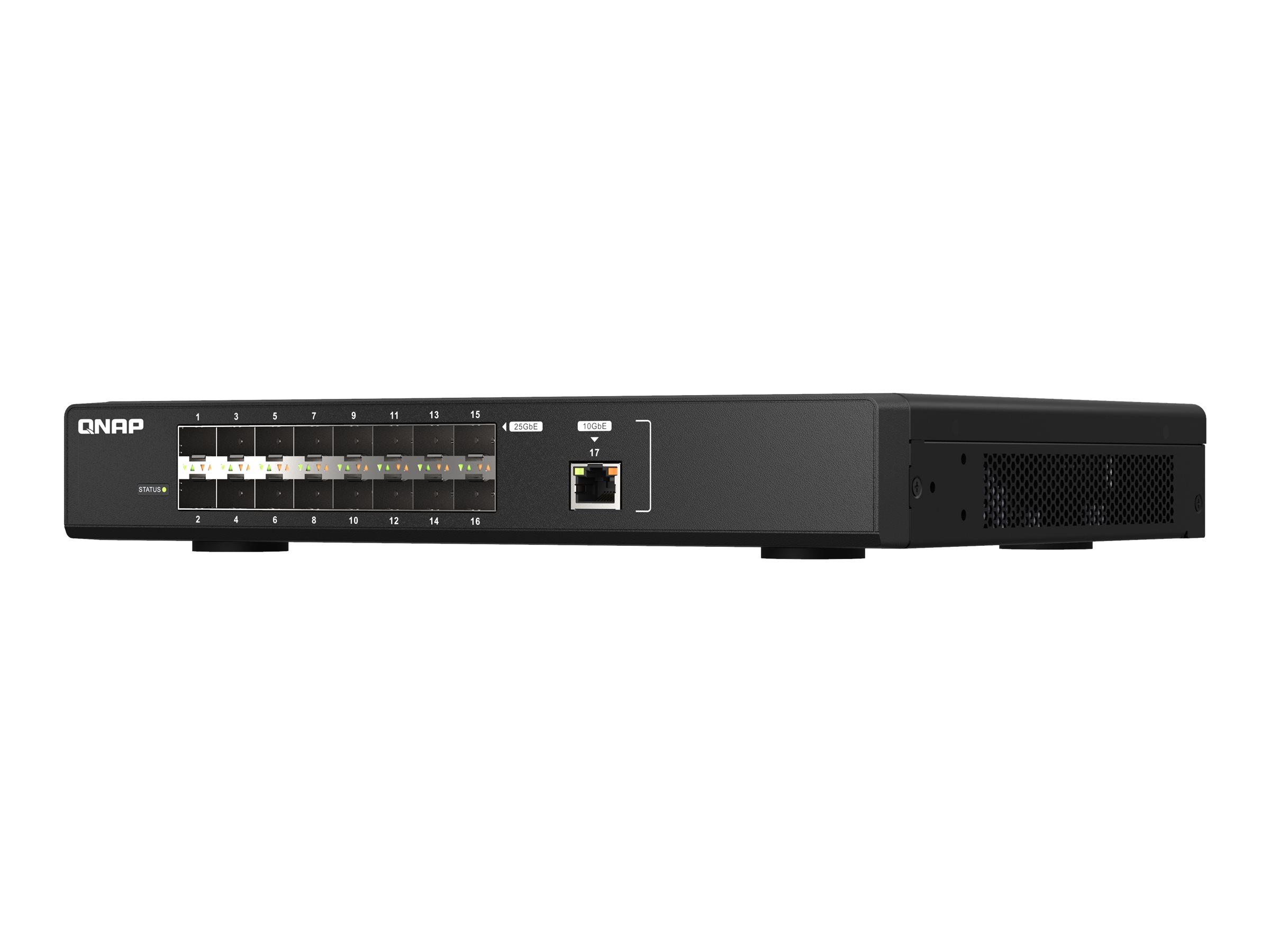

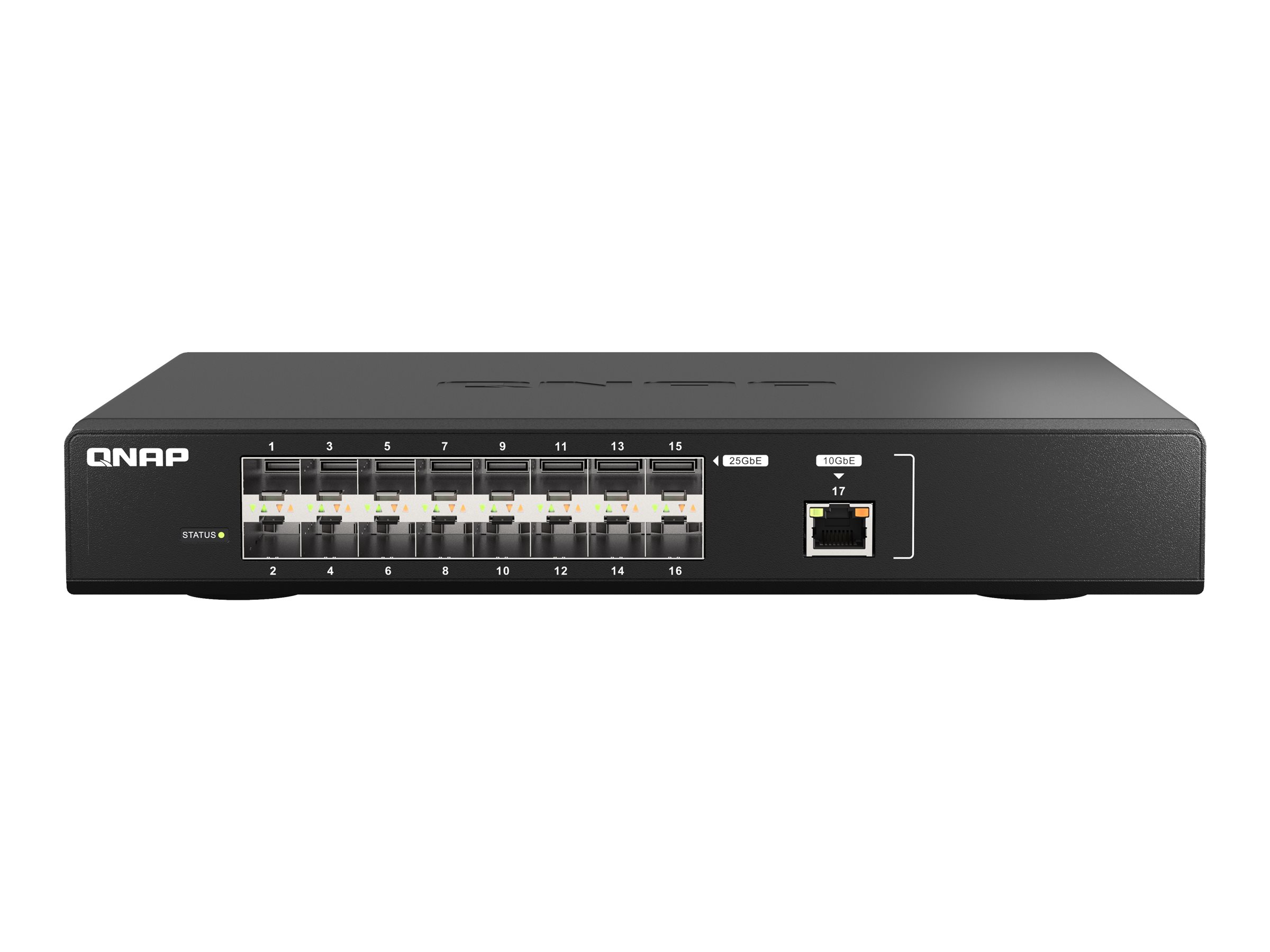

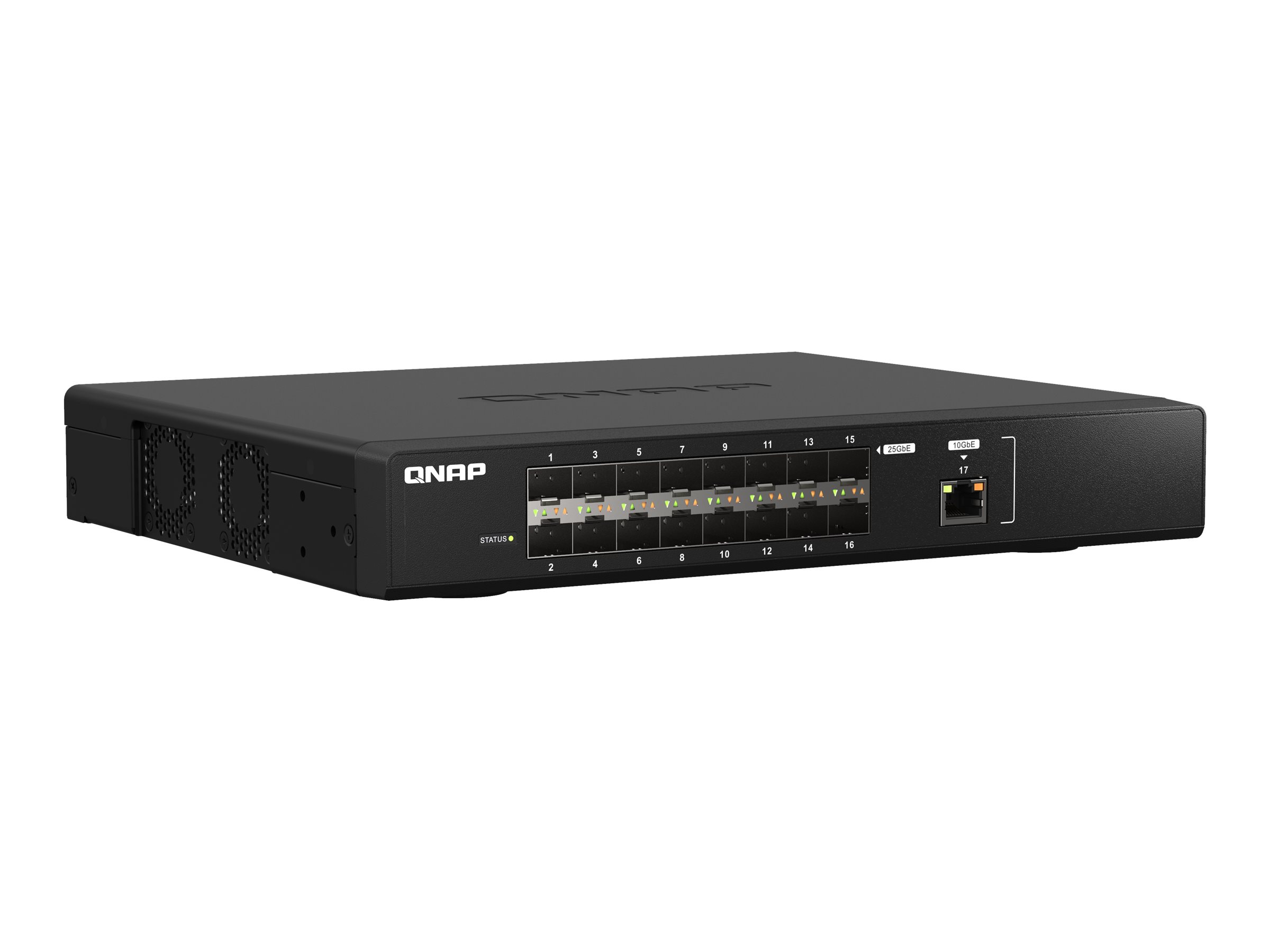

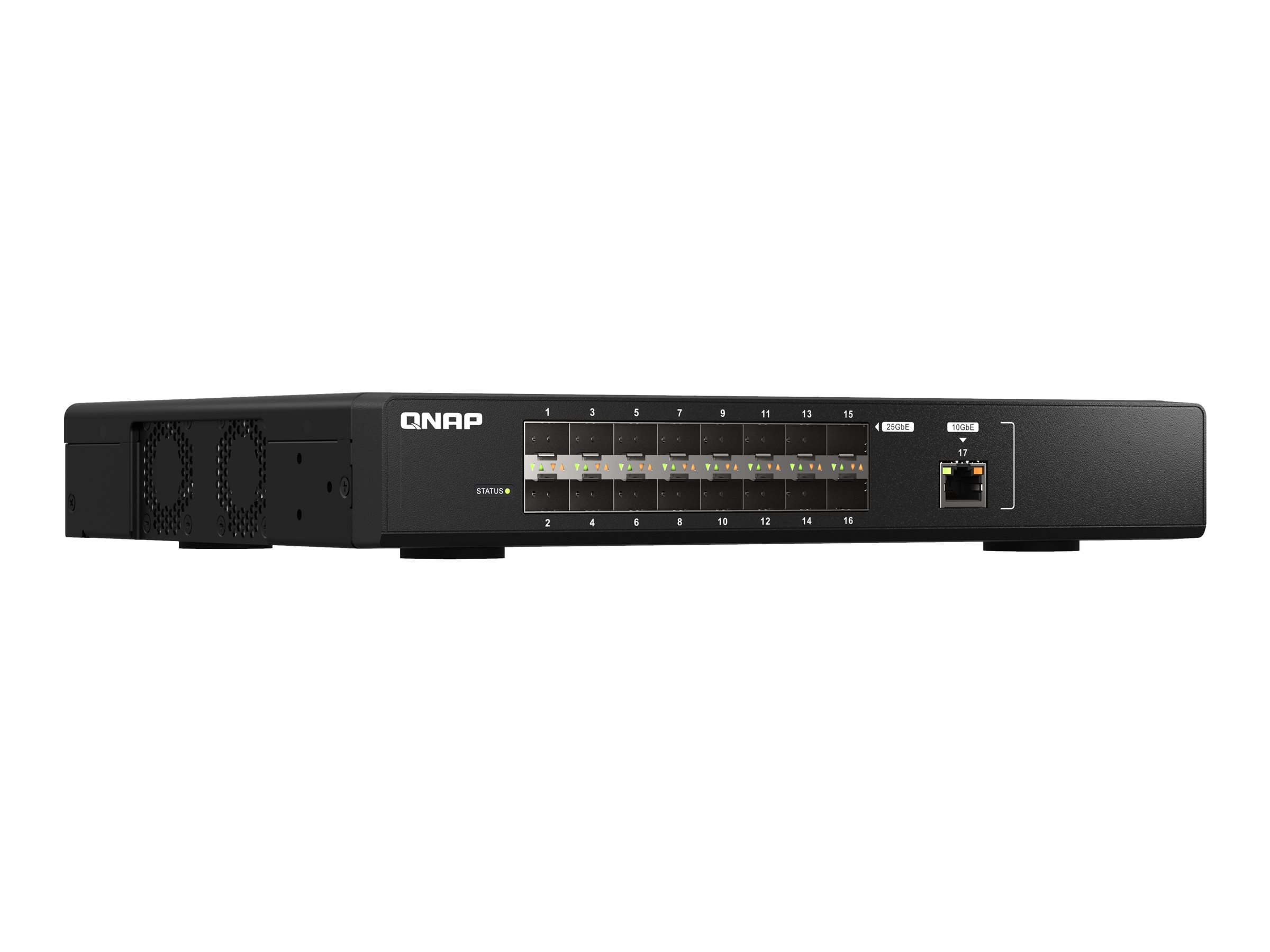

QNAP QSW-M5216-1T Switch 17-porte 25 Gigabit
QNAP QSW-M5216-1T - Switch - Administreret - 16 x 25 Gigabit SFP28 + 1 x 10 Gigabit Ethernet - monterbar på stativ
Product no:
999820611
Model:
QSW-M5216-1T
EAN:
4713213519134
Brand:
Weight:
2.85 kg
Product information and specifications are guiding only. Without notice, these can be subject to change by the manufacturer. This applies for product images as well.
Specifications
|
Produktbeskrivelse
|
QNAP QSW-M5216-1T - switch - 17 porte - Administreret - monterbar på stativ
|
|
Enhedstype
|
Switch - 17 porte - Administreret
|
|
Pakningstype
|
Monterbar på stativ 1U
|
|
Undertype
|
25 Gigabit Ethernet
|
|
Porte
|
16 x 25 Gigabit SFP28 + 1 x 10 Gigabit Ethernet
|
|
Præstation
|
Omkoblingskapacitet: 820 Gbps<br>Ikke-blokerende switching-gennemløb: 410 Gbps
|
|
MAC adresse table størrelse
|
32K indtastningshukommelse
|
|
Jumborammesupport
|
9KB
|
|
Egenskaber
|
Datatransport, auto-negotiation, QoS, Jumbo Frames support, webbaseret administration
|
|
Overensstemmelsesstandarder
|
IEEE 802.3, IEEE 802.3u, IEEE 802.3z, IEEE 802.1Q, IEEE 802.3ab, IEEE 802.3x, IEEE 802.3ad (LACP), IEEE 802.3ae, IEEE 802.1ab (LLDP), IEEE 802.3an, IEEE 802.3az, IEEE 802.3bz, IEEE 802.3bt
|
|
Effekt
|
AC 100-240 V (50 - 60 Hz)
|
|
Dimensioner (B x D x H)
|
28.5 cm x 23.37 cm x 4.35 cm
|
|
Vægt
|
2.15 kg
|
|
Producentgaranti
|
2 års garanti
|
Full specifications
|
General
|
|
|---|---|
|
Compliant Standards
|
IEEE 802.3, IEEE 802.3u, IEEE 802.3z, IEEE 802.1Q, IEEE 802.3ab, IEEE 802.3x, IEEE 802.3ad (LACP), IEEE 802.3ae, IEEE 802.1ab (LLDP), IEEE 802.3an, IEEE 802.3az, IEEE 802.3bz, IEEE 802.3bt
|
|
Device Type
|
Switch - 17 ports - managed
|
|
Enclosure Type
|
Rack-mountable 1U
|
|
Features
|
Flow control, auto-negotiation, Quality of Service (QoS), Jumbo Frames support, web-based management
|
|
Jumbo Frame Support
|
9KB
|
|
MAC Address Table Size
|
32K entries
|
|
Performance
|
Switching capacity: 820 Gbps | Non-blocking switching throughput: 410 Gbps
|
|
Ports
|
16 x 25 Gigabit SFP28 + 1 x 10 Gigabit Ethernet
|
|
Status Indicators
|
Power, status, link/activity, speed
|
|
Subtype
|
25 Gigabit Ethernet
|
|
Expansion / Connectivity
|
|
|
Interfaces
|

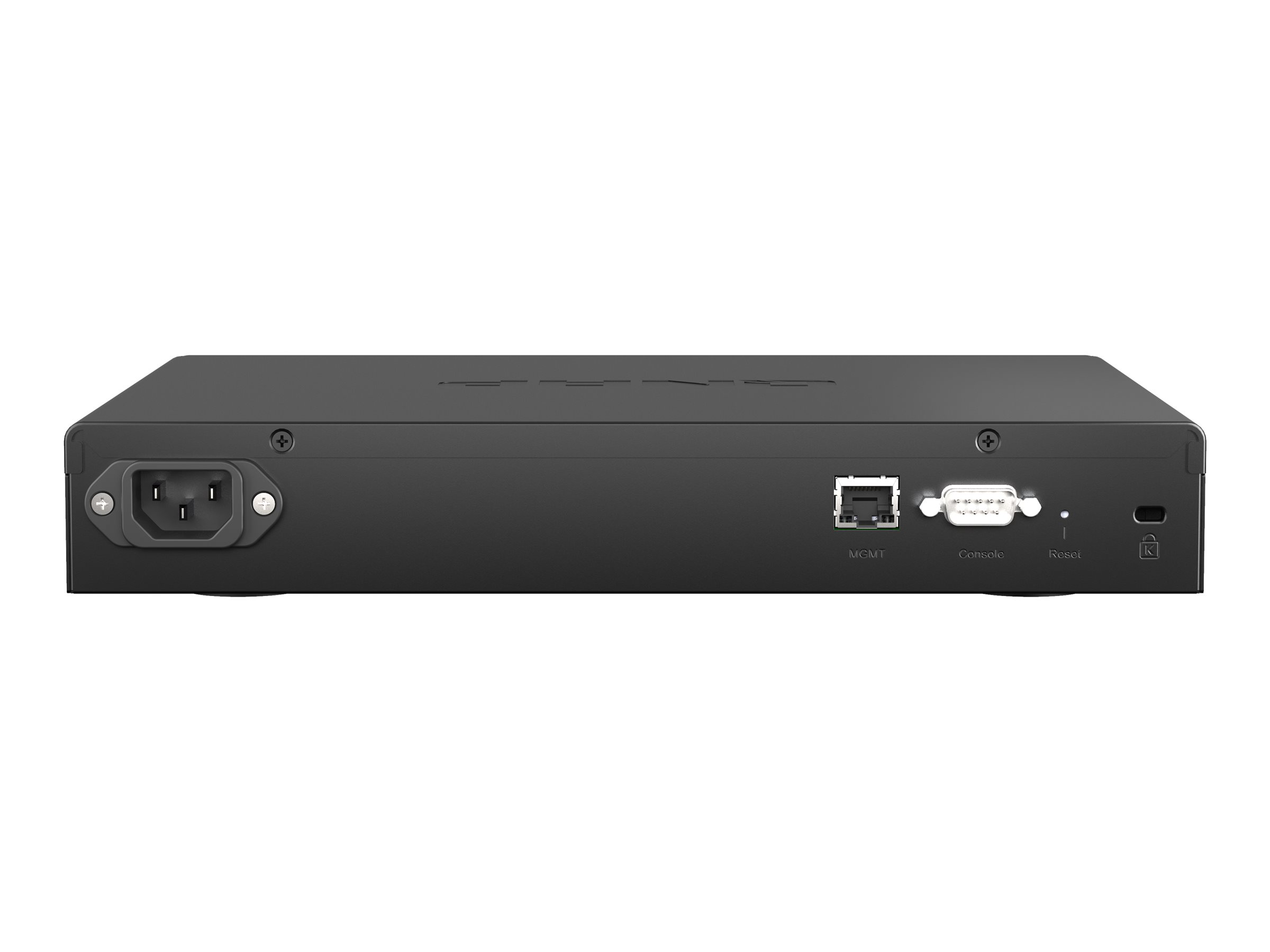

1 x 10Gbit LAN RJ-45 | 16 x 25Gbit LAN SFP28 | 1 x management (Gigabit LAN) RJ-45 | 1 x management (RS-232)
|
|
Power
|
|
|
Power Consumption Operational
|
35 Watt
|
|
Power Device
|
Internal power supply
|
|
Voltage Required
|
AC 100-240 V (50 - 60 Hz)
|
|
Dimensions & Weight
|
|
|
Depth
|
23.37 cm
|
|
Height
|
4.35 cm
|
|
Weight
|
2.15 kg
|
|
Width
|
28.5 cm
|
|
Dimensions & Weight (Shipping)
|
|
|
Shipping Weight
|
2.85 kg
|
|
Manufacturer Warranty
|
|
|
Service & Support
|
Limited warranty - 2 years
|
|
Environmental Parameters
|
|
|
Humidity Range Operating
|
5 - 95% (non-condensing)
|
|
Max Operating Temperature
|
40 °C
|
|
Min Operating Temperature
|
0 °C
|
