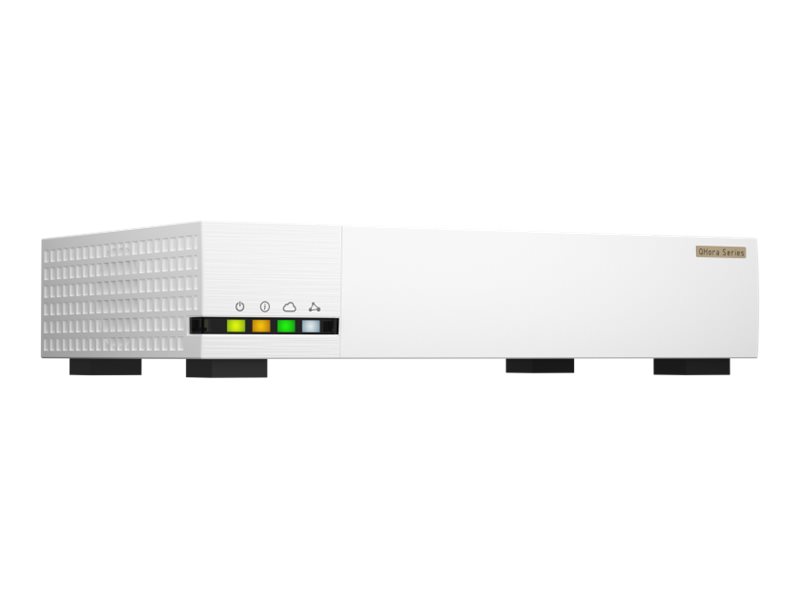

QNAP QHora-322 Router Kabling
QNAP QHora-322 - Router - mesh 10GbE, 2.5GbE - WAN-porte: 9
Product no:
1000777144
Model:
QHORA-322
EAN:
4713213519950
Brand:
Weight:
1.87 kg
Product information and specifications are guiding only. Without notice, these can be subject to change by the manufacturer. This applies for product images as well.
Specifications
|
Produktbeskrivelse
|
QNAP QHora-322 - router - desktop
|
|
Enhedstype
|
Router - mesh
|
|
Pakningstype
|
Desktop
|
|
Antal WAN porte
|
9
|
|
Dataforbindelsesprotokol
|
Ethernet, Fast Ethernet, Gigabit Ethernet, 10 Gigabit Ethernet, 2.5 Gigabit Ethernet
|
|
Kapacitet
|
Sideløbende sessioner: 50000
|
|
Netværks/overføselsprotokol
|
TCP/IP, PPTP, UDP/IP, L2TP, ICMP/IP, PPPoE, FTP, DHCP, IPv4, IPv6, WireGuard, QBelt, OpenVPN
|
|
Egenskaber
|
Komplet duplex ydeevne, NAT-understøtning, VLAN-understøttet, indholdsfiltrering, ALG-understøttet, forældrekontrol, resultat register, QoS, FTP server, statisk IP mode, nulstillingsknap, DMZ-support, DNS-filtrering, SD-WAN support, SIP ALG, QuWAN
|
|
Overensstemmelsesstandarder
|
IEEE 802.3, IEEE 802.3u, IEEE 802.1Q, IEEE 802.3ab, IEEE 802.3x, IEEE 802.3an, IEEE 802.3bz
|
|
Effekt
|
DC 12 V
|
|
Dimensioner (B x D x H)
|
22.6 cm x 14 cm x 4.44 cm
|
|
Vægt
|
1.08 kg
|
|
Producentgaranti
|
1 års garanti
|
Full specifications
|
General
|
|
|---|---|
|
Capacity
|
Concurrent sessions: 50000
|
|
Compliant Standards
|
IEEE 802.3, IEEE 802.3u, IEEE 802.1Q, IEEE 802.3ab, IEEE 802.3x, IEEE 802.3an, IEEE 802.3bz, VCCI, BSMI, CCC, FCC Part 15, FCC, RCM, ISED, EU RoHS, RED 2014/53/EU, UKCA
|
|
Connectivity Technology
|
Wired
|
|
Data Link Protocol
|
Ethernet, Fast Ethernet, Gigabit Ethernet, 10 Gigabit Ethernet, 2.5 Gigabit Ethernet
|
|
Device Type
|
Router - mesh
|
|
Enclosure Type
|
Desktop
|
|
Features
|
Full duplex capability, NAT support, VLAN support, content filtering, ALG support, parental control, event log, Quality of Service (QoS), FTP server, static IP mode, reset button, DMZ support, DNS filtering, SD-WAN support, SIP ALG (Application Layer
|
|
Flash Memory
|
4 GB
|
|
Mesh Networking
|
Yes
|
|
Network / Transport Protocol
|
TCP/IP, PPTP, UDP/IP, L2TP, ICMP/IP, PPPoE, FTP, DHCP, IPv4, IPv6, WireGuard, QBelt, OpenVPN
|
|
Processor
|
1 x Marvell CN9130
|
|
RAM
|
4 GB DDR4 SDRAM
|
|
Status Indicators
|
Power, system, WAN, mesh
|
|
Expansion / Connectivity
|
|
|
Interfaces
|
WAN / LAN: 6 x 100M/1G/2.5G Gigabit Ethernet - RJ-45 | WAN / LAN: 3 x 10GBase-T - RJ-45 | USB 3.2 Gen 1: 1 x
|
|
Power
|
|
|
Power Consumption Operational
|
36 Watt
|
|
Power Device
|
External power adapter
|
|
Voltage Required
|
DC 12 V
|
|
Miscellaneous
|
|
|
Cables Included
|
1 x network cable | 1 x power cable
|
|
Software / System Requirements
|
|
|
OS Provided
|
QuRouter OS
|
|
Dimensions & Weight
|
|
|
Depth
|
14 cm
|
|
Height
|
4.44 cm
|
|
Weight
|
1.08 kg
|
|
Width
|
22.6 cm
|
|
Dimensions & Weight (Shipping)
|
|
|
Shipping Weight
|
1.61 kg
|
|
Manufacturer Warranty
|
|
|
Service & Support
|
Limited warranty - 1 year
|
|
Environmental Parameters
|
|
|
Humidity Range Operating
|
5 - 95% (non-condensing)
|
|
Max Operating Temperature
|
40 °C
|
|
Min Operating Temperature
|
0 °C
|
