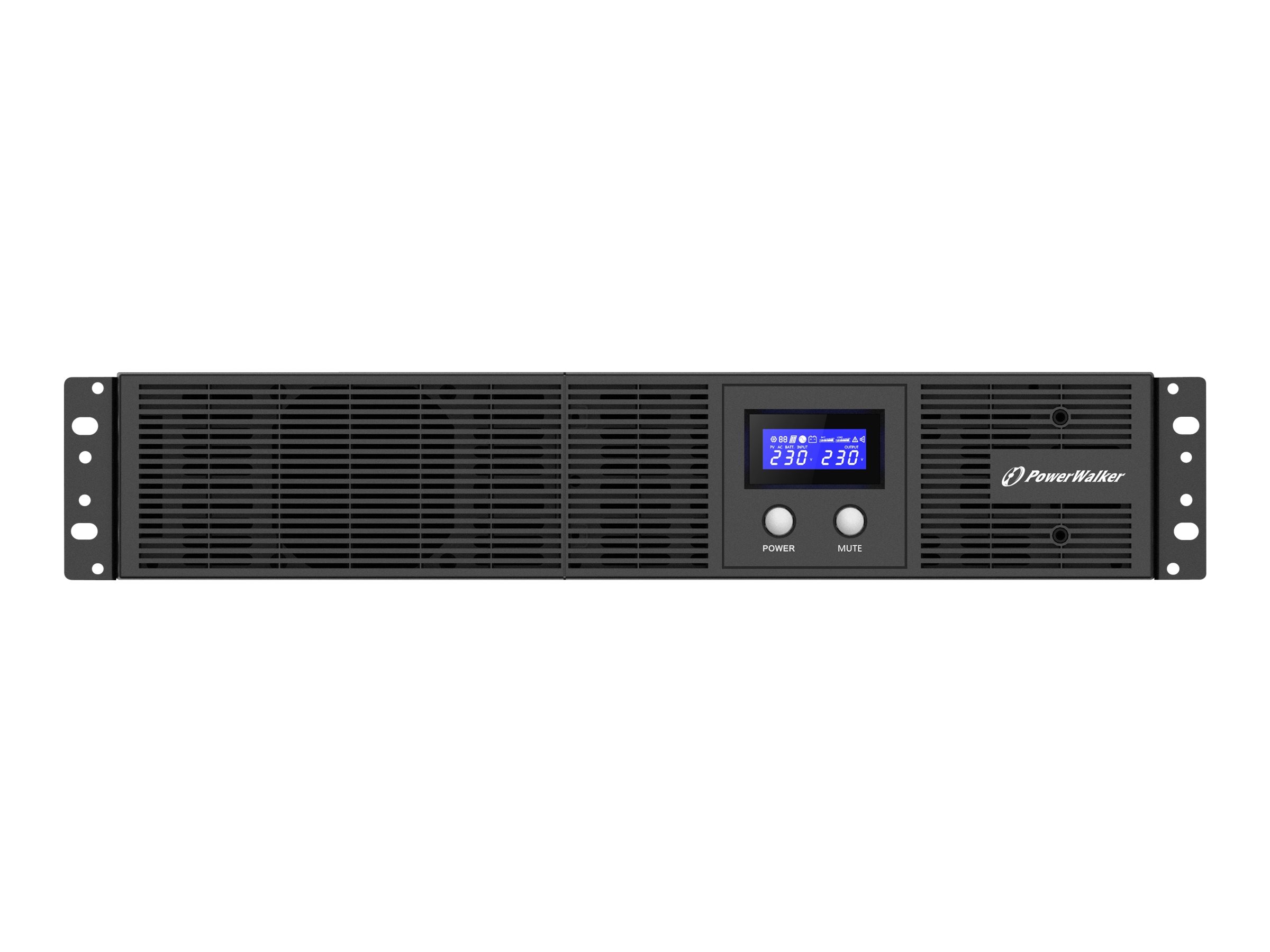

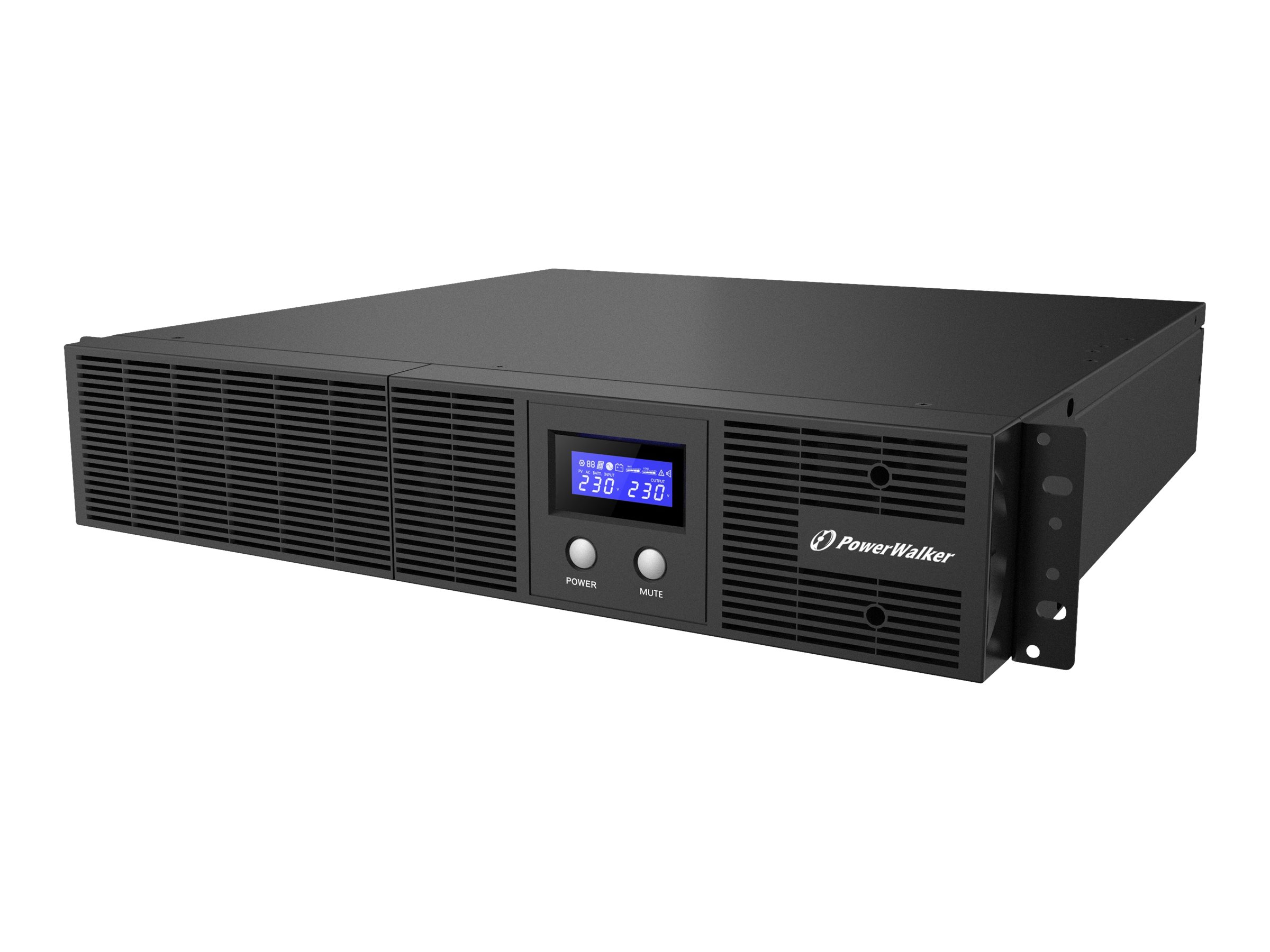

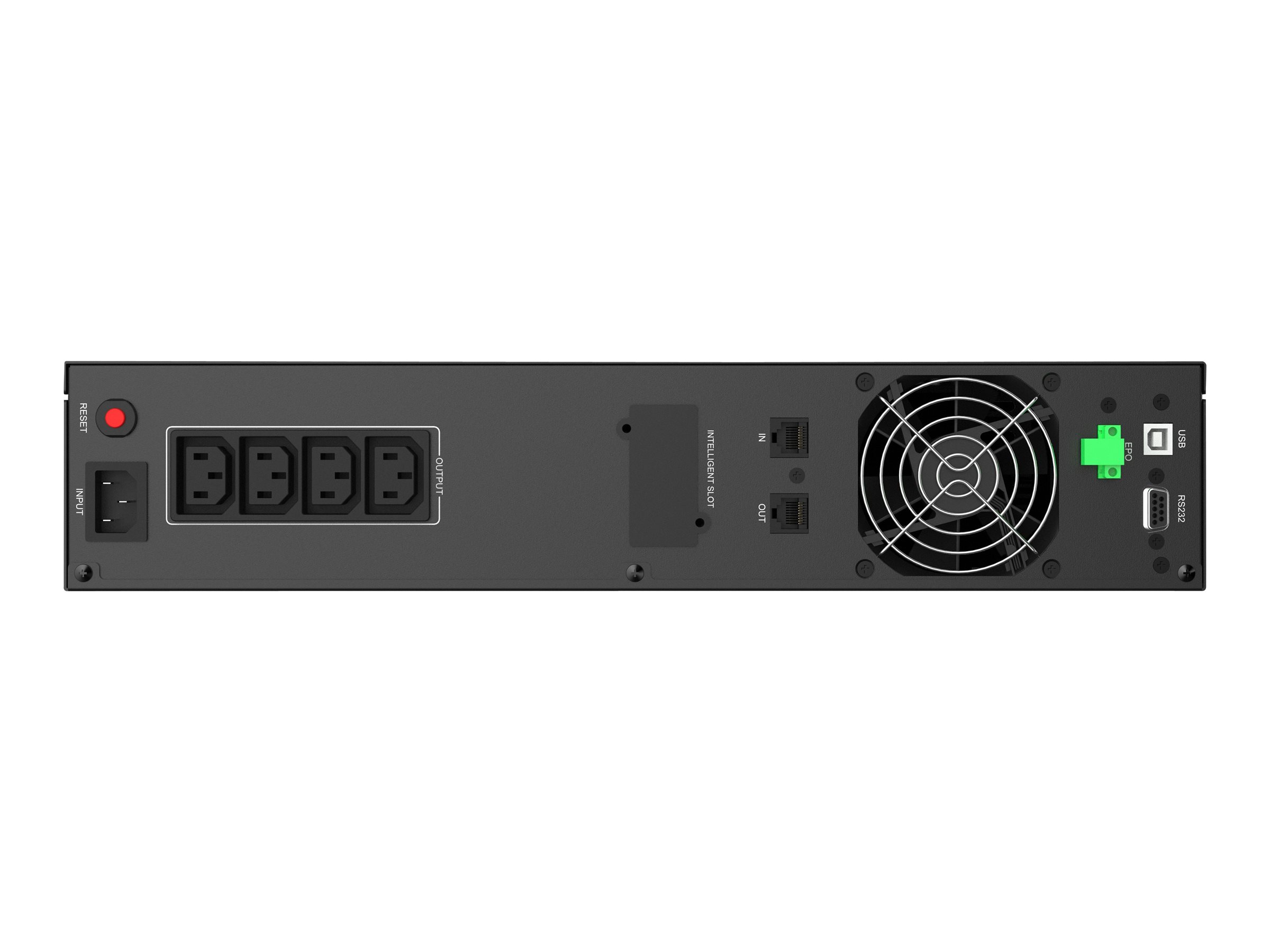

PowerWalker VI 2200 RLE UPS
PowerWalker VI 2200 RLE - UPS (rackversion) - AC 230 V - 1320 Watt - 2200 VA - 9 At - RS-232, USB - output-stikforbindelser: 4
-
Product no 993555818
Model 10121100
Brand BlueWalker
EAN 4260074981186
Weight 18.48 kg
-
Product information and specifications are guiding only. Without notice, these can be subject to change by the manufacturer. This applies for product images as well.
| Produktbeskrivelse | PowerWalker VI 2200 RLE - UPS - 1320 Watt - 2200 VA |
| Enhedstype | UPS - rackversion |
| Vægt | 16.7 kg |
| Indgangspænding | AC 230 V |
| Udgangspænding | AC 230 V ± 10% |
| Strømkapacitet | 1320 Watt / 2200 VA |
| Input-stik | 1 x strøm IEC 60320 C14 |
| Output-stikforbindelser | 4 x power IEC 60320 C13 |
| Batteri | - 9 At |
| Antal batterier | 2 |
| Driftstid (op til) | 1.1 min ved fuld belastning |
| Netværk | RS-232, USB |
| Udstyr inkluderet | Monteringshuller for rack |
| Dimensioner (B x D x H) | 43.8 cm x 43 cm x 8.8 cm |
| General | |
|---|---|
| Device Type | UPS - rack-mountable |
| Power Device | |
| Circuit Protection | Fuse |
| Dataline Surge Protection | Network/phone line - RJ-45/RJ-11 - 1 input line / 1 output line |
| Efficiency | 95% |
| Frequency Provided | 50/60 Hz ± 0.5Hz |
| Frequency Required | 45 - 55 Hz |
| Input Connectors | 1 x power IEC 60320 C14 |
| Input Voltage | AC 230 V |
| Input Voltage Range | AC 165 - 290 V |
| Output Voltage | AC 230 V ± 10% - 50/60 Hz |
| Output Waveform | Sinewave |
| Power Capacity | 1320 Watt / 2200 VA |
| Power Output Connectors Details | 4 x power IEC 60320 C13 |
| Surge Suppression | Yes |
| UPS Technology | Line interactive |
| Battery | |
| Capacity | 9 Ah |
| Quantity | 2 |
| Recharge Time | 4 hours |
| Run Time (Up To) | 1.1 min at full load | 7.1 min at half load | 16.6 min at 25% load | 3.5 min at 75% load |
| Voltage Provided | 12 V |
| Networking | |
| Remote Management Interface | RS-232, USB |
| Expansion / Connectivity | |
| Expansion Slots | 1 (total) / 1 (free) x Intelligent Slot |
| Interfaces | 1 x management (USB) - 4 pin USB Type B | 1 x management (RS-232) | 1 x EPO (emergency power off) |
| Miscellaneous | |
| Cables Included | USB cable - external | Serial cable - external |
| Features | LCD display, Automatic Voltage Regulation (AVR), overload protection |
| Included Accessories | Rack mounting ears |
| Software / System Requirements | |
| Software Included | PowerMaster |
| Dimensions & Weight | |
| Depth | 43 cm |
| Height | 8.8 cm |
| Weight | 16.7 kg |
| Width | 43.8 cm |
| Dimensions & Weight (Shipping) | |
| Shipping Depth | 55 cm |
| Shipping Height | 23.1 cm |
| Shipping Weight | 18.9 kg |
| Shipping Width | 55.6 cm |
