Product no 998478849
Model VFI 6000 CG PF1
Brand BlueWalker
EAN 4260074978650
Weight kg

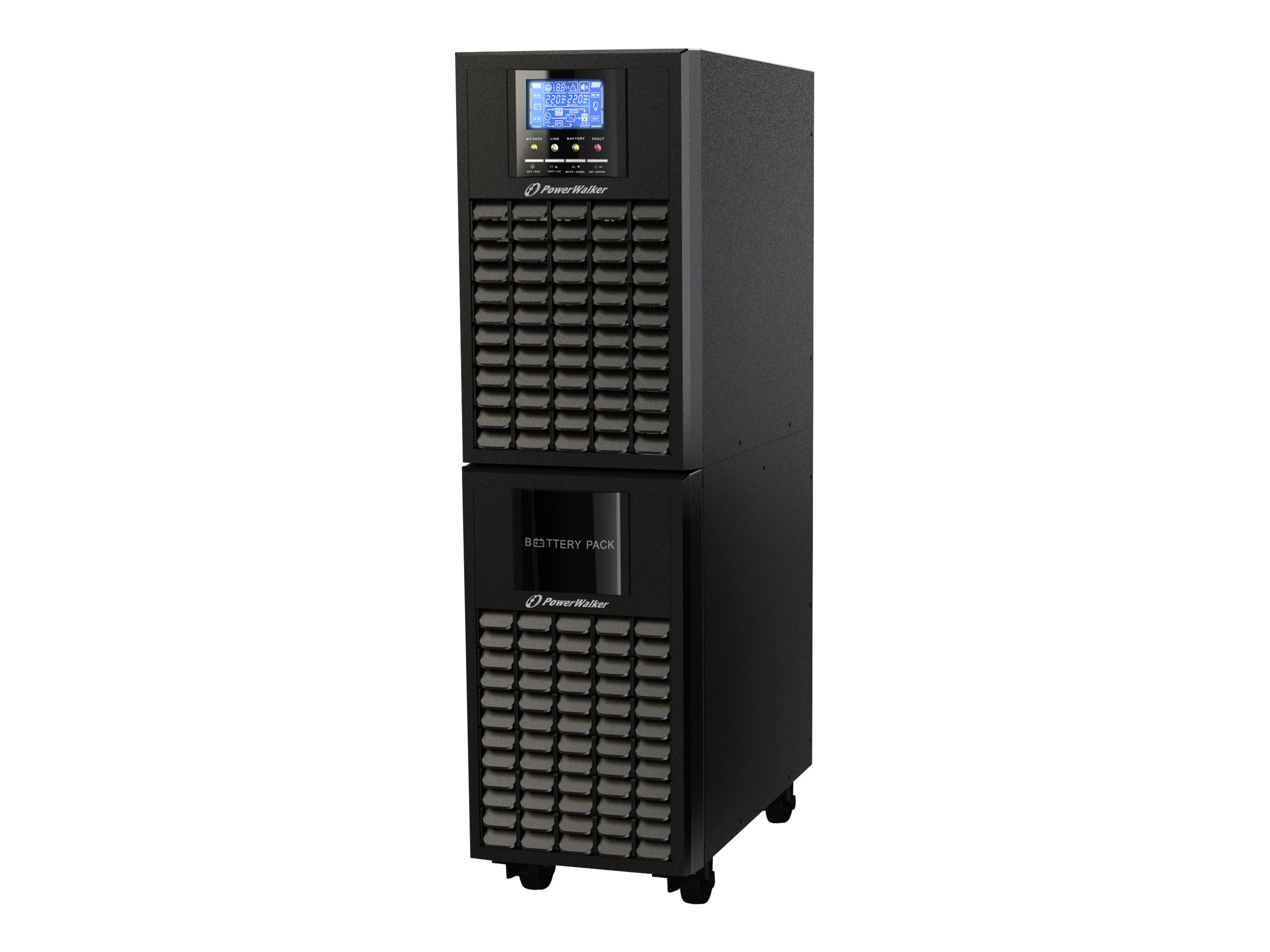

Produktbeskrivelse | PowerWalker VFI 6000 CG PF1 - UPS - 6000 Watt - 6000 VA |
Enhedstype | UPS - ekstern |
Udgangspænding | AC 208/220/230/240 V ± 1% |
Strømkapacitet | 6000 Watt / 6000 VA |
Input-stik | 1 x terminalblok |
Output-stikforbindelser | 1 x terminalblok |
Batteri | - 9 At |
Antal batterier | 16 |
Driftstid (op til) | 3.7 min ved 90 % belastning |
Netværk | RS-232, USB |
Dimensioner (B x D x H) | 19 cm x 44.2 cm x 68.8 cm |
General | |
---|---|
Device Type | UPS - external |
Power Device | |
Efficiency | 94% |
Frequency Provided | ± 1Hz |
Frequency Required | 46 - 54 / 56 - 64 Hz |
Input Connectors | 1 x terminal block |
Input Voltage Range | AC 110 - 300 V |
Output Voltage | AC 208/220/230/240 V ± 1% |
Output Waveform | Sinewave |
Power Capacity | 6000 Watt / 6000 VA |
Power Factor (PF) | 1.0 |
Power Output Connectors Details | 1 x terminal block |
UPS Technology | On-line |
Battery | |
Capacity | 9 Ah |
Quantity | 16 |
Recharge Time | 9 hours |
Run Time (Up To) | 11.2 min at half load |
Voltage Provided | 12 V |
Networking | |
Remote Management Interface | RS-232, USB |
Expansion / Connectivity | |
Expansion Slots | 1 (total) / 1 (free) x Intelligent Slot |
Interfaces | EPO (emergency power off) |
Miscellaneous | |
Cables Included | USB cable |
Features | LCD display, cooling fan, generator compatible |
Software / System Requirements | |
Software Included | ViewPower |
Environmental Parameters | |
Humidity Range Operating | 20 - 95% (non-condensing) |
Max Operating Temperature | 40 °C |
Min Operating Temperature | 0 °C |
Sound Emission | 55 dBA |
Dimensions & Weight | |
Depth | 44.2 cm |
Height | 68.8 cm |
Width | 19 cm |
Dimensions & Weight (Shipping) | |
Shipping Depth | 48.5 cm |
Shipping Height | 78.5 cm |
Shipping Width | 28 cm |
