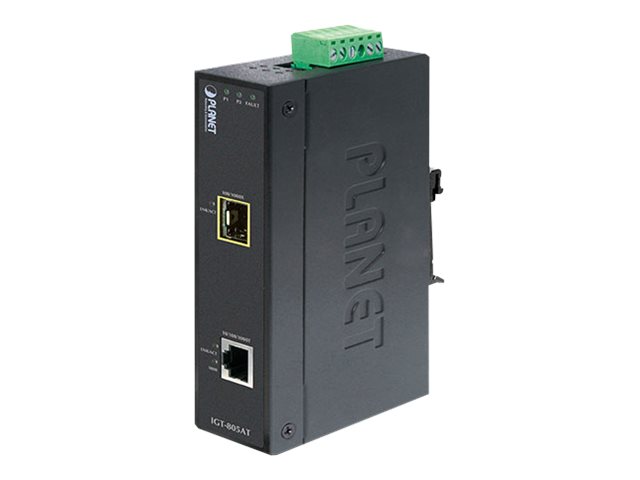

PLANET IGT-805AT Fibermedieomformer

PLANET IGT-805AT - Fibermedieomformer - 1GbE - RJ-45 / SFP (mini-GBIC)

Varenummer: 991818156
Model: IGT-805AT
EAN: 4711605281119
Brand:
PLANET Technology
Vægt: 0.56 kg

Specifications

Produktbeskrivelse
PLANET IGT-805AT - fibermedieomformer - 10Mb LAN, 100Mb LAN, 1GbE
Enhedstype
Fibermedieomformer - RJ-45 / SFP (mini-GBIC)
Model
Ekstern
Dataoverførselshastighed
1 Gbps
Dataforbindelsesprotokol
10Mb LAN, 100Mb LAN, 1GbE
Dimensioner (B x D x H)
13.5 cm x 8.7 cm x 3.2 cm
Vægt
458 g
Specifications

Full specifications

General
Device Type
Fiber media converter
Form Factor
External
Networking
Compliant Standards
IEEE 802.3, IEEE 802.3u, IEEE 802.3z, IEEE 802.3ab, IEEE 802.3x
Connectivity Technology
Wired
Data Link Protocol
10Mb LAN, 100Mb LAN, GigE
Data Transfer Rate
1 Gbps
Features
Flow control, auto-negotiation, auto-uplink (auto MDI/MDI-X), half duplex mode, full duplex mode, Link Fault Pass Through function (LFP), wall mountable, Jumbo Frames support, DIN rail mountable, 6KV ESD Protector, 6KV EFT protector
Status Indicators
Power, link/activity
Expansion / Connectivity
Interfaces
1 x Ethernet 10Base-T/100Base-TX/1000Base-T - RJ-45 | 1 x Ethernet 1000 - SFP
Miscellaneous
Compliant Standards
FCC Class A certified, IEC 60068-2-27, IEC 60068-2-32, IEC 60068-2-6, IP30
Power
Power Consumption Operational
3.3 Watt
Power Device
External power adapter
Dimensions & Weight
Depth
8.7 cm
Height
3.2 cm
Weight
458 g
Width
13.5 cm
Environmental Parameters
Humidity Range Operating
5 - 95% (non-condensing)
Max Operating Temperature
75 °C
Min Operating Temperature
-40 °C

Media
