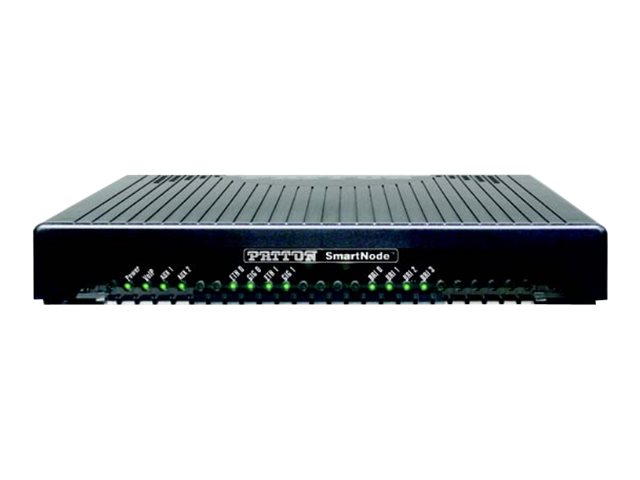

Patton SmartNode 5531 eSBC VoIP-gateway Ethernet ISDN Fast Ethernet Gigabit Ethernet Sort

Patton SmartNode 5531 eSBC - VoIP-gateway - ISDN, 1GbE - ISDN DSS1/ETSI - digitale porte: 4

Varenummer: 1000869488
Model: SN5531/4BIS8VHP/EUI
EAN: 0847840012950
Brand:
Patton Electronics
Vægt: 0.45 kg

Specifications

Produktbeskrivelse
Patton SmartNode 5531 eSBC - VoIP-gateway
Enhedstype
VoIP-gateway
Formfaktor
Ekstern
Lokalisering
Nordamerika, Europa
Processor
Broadcom BCM53012 - 1 GHz
RAM
256 MB
Flashhukommelse
32 MB
Dataforbindelsesprotokol
Ethernet, ISDN, Fast Ethernet, Gigabit Ethernet
Kapacitet
VoIP opkald: 8<br>Maksimalt antal SIP til SIP-opkald: 4<br>Transkodede opkald: 4
VoIP-protokoller
SIP v2, RTP, SRTP
Protokol for digital signaltransmission
ISDN DSS1/ETSI
Antal digitalporte
4
Effekt
AC 120/230 V
Dimensioner (B x D x H)
20.8 cm x 16.5 cm x 3.4 cm
Vægt
450 g
Specifications

Full specifications

General
Depth
16.5 cm
Device Type
VoIP gateway
Height
3.4 cm
Localization
North America, Europe
Weight
450 g
Width
20.8 cm
Processor / Memory / Storage
Flash Memory
32 MB
Processors Installed
Broadcom BCM53012 1 GHz
RAM
256 MB
Networking
Capacity
VoIP calls: 8 | Maximum number SIP to SIP calls: 4 | Transcoded calls: 4
Connectivity Technology
Wired
Data Link Protocol
Ethernet, ISDN, Fast Ethernet, Gigabit Ethernet
Features
Auto-uplink (auto MDI/MDI-X), DiffServ support, full duplex mode, DHCP server, DNS relay, DHCP client, High Precision 5ppm Clock Source, Type of Service (ToS), Management Information Base (MIB) II, DNS client, Private MIB
Form Factor
External
Network / Transport Protocol
ICMP/IP, PPPoE, DHCP, DDNS
Remote Management Protocol
SNMP 1, Telnet, SNMP 3, HTTP, HTTPS, TFTP, SSH, CLI
IP Telephony
IP Telephony Features
Call transfer, DTMF generation/detection, Calling Line Identification Presentation (CLIP), Calling Line Identification Restriction (CLIR)
Voice Codecs
G.711, G.722, T.38
VoIP Protocols
SIP v2, RTP, SRTP
Communications
Digital Ports Qty
4
Digital Signaling Protocol
ISDN DSS1/ETSI
Expansion / Connectivity
Interfaces
4 x ISDN BRI - RJ-45 | 1 x 1000Base-T - RJ-45 | 1 x console - RJ-45 | 1 x USB 2.0 - Type A
Power
Power Consumption Operational
10 Watt
Power Device
External power adapter
Voltage Required
AC 120/230 V
Environmental Parameters
Humidity Range Operating
0 - 90% (non-condensing)
Max Operating Temperature
40 °C
Min Operating Temperature
0 °C
