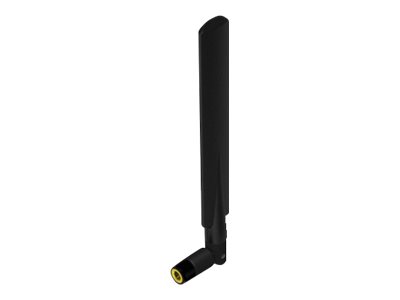

Panorama PWB-BC3G-38-RSMAP Antenne 16.3cm Sort
Panorama PWB-BC3G-38-RSMAP - Antenne - mobil - 4 dBi (til 1,71 - 2,7 GHz), 3 dBi (til 698 - 960 MHz), 5 dBi (til 3,4 - 3,8 GHz) - omni-directional - sort
PWB-BC3G-38-RSMAP-antennen er en jordplansuafhængig antenne, der dækker globale 2G/3G/4G- og 3,8GHz 5G-frekvenser fra 698-960/1710-2170/2396-2700 og 3400-3800 MHz. PWB-BC3G-38-RSMAP er designet til terminaler og routere og har et leddelt SMA-stik til fleksibel placering og en slank profil, der gør den mindre synlig.
-
Product no 996715997
Model PWB-BC3G-38-RSMAP
Brand Panorama Antennas
EAN 5055416024626
Weight 0.03 kg
-
Product information and specifications are guiding only. Without notice, these can be subject to change by the manufacturer. This applies for product images as well.
| Niveau for antennestyrke (maks.) | 2 dBi |
| Frekvensbånd | 0.698 - 3.8 GHz |
| Antenne type | Omniretningsbestemt antenne |
| Antennestik type | SMA |
| General | |
|---|---|
| Depth | 4.1 cm |
| Enclosure Color | Black |
| Height | 16.3 cm |
| Product Material | Acrylonitrile styrene acrylate (ASA) |
| Product Type | Antenna |
| Width | 0.7 cm |
| Antenna | |
| Compatibility | 2G, 3G, 4G, 5G |
| Directivity | Omni-directional |
| Frequency Range | 1.71 - 2.17 GHz, 698 - 960 MHz, 2.396 - 2.7 GHz, 3.4 - 3.8 GHz |
| Gain | 4 dBi (for 1.71 - 2.7 GHz), 3 dBi (for 698 - 960 MHz), 5 dBi (for 3.4 - 3.8 GHz) |
| Impedance | 50 Ohm |
| Intended For | Cellular |
| Voltage Standing Wave Ratio (VSWR) | 3.0:1 |
| Cabling & Wiring | |
| Connector Provided | 1 x SMA plug |
| Miscellaneous | |
| Features | Vertical polarisation |
| Environmental Parameters | |
| Max Operating Temperature | 80 °C |
| Min Operating Temperature | -40 °C |
