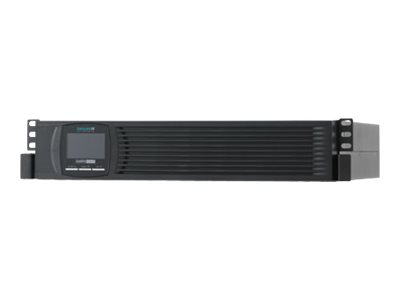

Online USV X1000R UPS

Online USV X1000R - UPS (rackversion) - AC 230 V - 1000 watt - 1000 VA - 9 At - RS-232, USB - output-stikforbindelser: 8 - 2U - 19"

Product no: 992604831
Model: X1000R
EAN: 4026908003826
Brand:
ONLINE USV-Systeme
Weight: 16.3 kg
Product information and specifications are guiding only. Without notice, these can be subject to change by the manufacturer. This applies for product images as well.

Specifications

Produktbeskrivelse
Online USV X1000R - UPS - 1000 watt - 1000 VA
Enhedstype
UPS - rackversion
Rackstørrelse
19" - 2U
Vægt
14.1 kg
Indgangspænding
AC 230 V
Udgangspænding
AC 208/220/230/240 V ± 1%
Strømkapacitet
1000 watt / 1000 VA
Input-stik
Strøm IEC 60320 C14
Output-stikforbindelser
8 x power IEC 60320 C13
Batteri
Kan udvides - 9 At
Antal batterier
3
Netværk
RS-232, USB
Protokol til fjernadministration
SNMP
Udstyr inkluderet
Konverteringspakke for rack til tower
Dimensioner (B x D x H)
43.8 cm x 41.2 cm x 8.8 cm
Producentgaranti
2 års garanti
Specifications

Full specifications

General
Device Type
UPS - rack-mountable
Height (Rack Units)
2U
Rack Size
19"
Power Device
Efficiency
97%
Frequency Provided
50/60 Hz ± 3Hz
Frequency Required
50/60 Hz
Input Connectors
Power IEC 60320 C14
Input Voltage
AC 230 V
Input Voltage Range
AC 110 - 300 V / 160 - 300 V
Output Voltage
AC 208/220/230/240 V ± 1% - 50/60 Hz
Output Waveform
Sinewave
Power Capacity
1000 Watt / 1000 VA
Power Output Connectors Details
8 x power IEC 60320 C13
Battery
Capacity
9 Ah
Quantity
3
Type
Expandable
Networking
Remote Management Interface
RS-232, USB
Remote Management Protocol
SNMP
Expansion / Connectivity
Expansion Slots
1 (total) / 1 (free) x expansion slot
Interfaces
Management (RS-232) | Management (USB) | EPO (emergency power off)
Miscellaneous
Cables Included
USB cable - external | 3 x power extension cable - external
Compliant Standards
EN 62040-2, IP20, EN 62040-3, EN 62040-1, VFI-SS-111
Features
Built-in cooling fan, cold-start function
Included Accessories
Rack to tower conversion kit
MTBF
50,000 hours
Rack Mounting Kit
Included
Manufacturer Warranty
Service & Support
Limited warranty - 2 years | Limited warranty - batteries - 2 years
Environmental Parameters
Humidity Range Operating
20 - 90%
Max Operating Temperature
40 °C
Min Operating Temperature
0 °C
Sound Emission
50 dB
Dimensions & Weight
Depth
41.2 cm
Height
8.8 cm
Weight
14.1 kg
Width
43.8 cm
