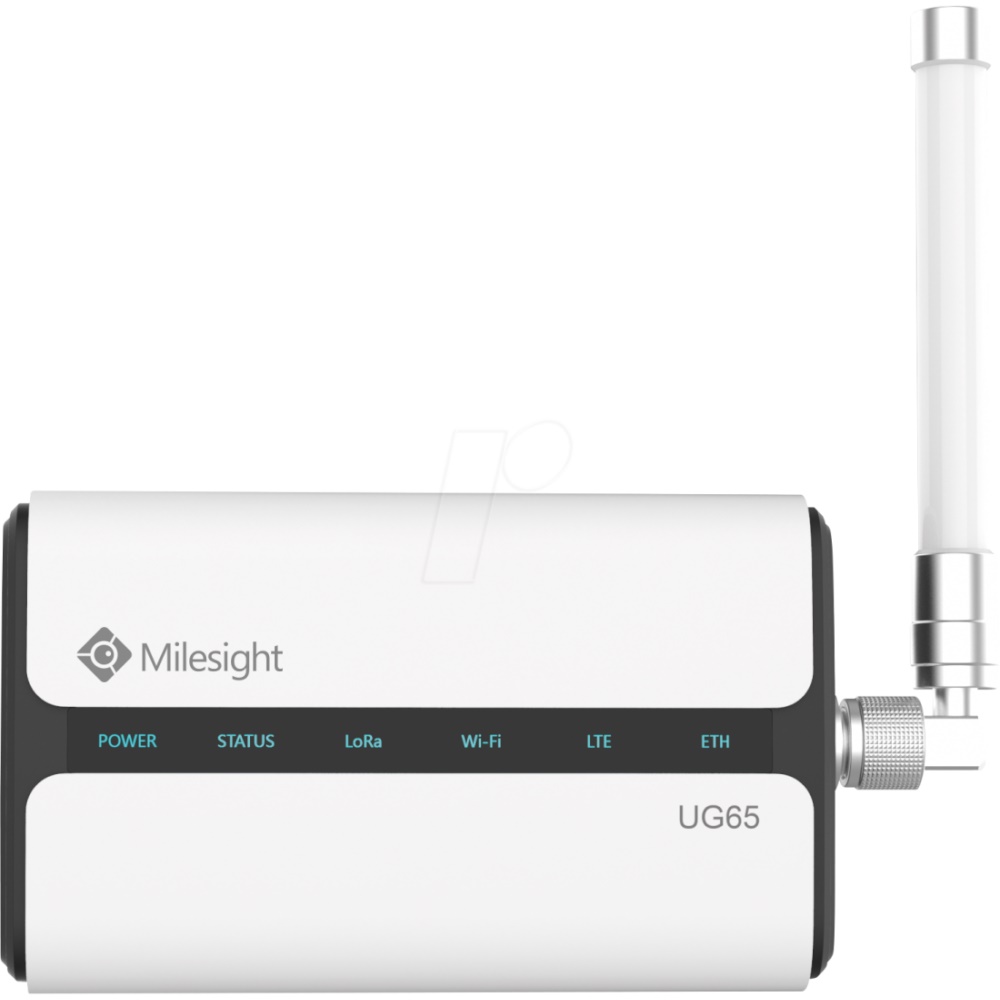

Milesight LoRaWAN IoT U65 Smart Gateway
Milesight LoRaWAN IoT U65 - Smart Gateway - 512 MB RAM - 8 GB Lager - 1x RJ45, 4G, Wi-Fi 4
-
Product no 1003635191
Model UG65-L08GL-868M-EA
Brand Milesight
EAN 6977778625831
Weight 1.09 kg
-
Product information and specifications are guiding only. Without notice, these can be subject to change by the manufacturer. This applies for product images as well.
| CPU | Quad-core 1.5 GHz, 64-bit ARM Cortex-A53 |
| Memory | 512 MB DDR4 RAM |
| Flash | 8 GB eMMC |
| Antenna | 1 × 50 Ω N-Female External Connector |
| Channel | 8 (Half/Full-duplex) |
| Protocol | V1.0 Class A/Class B/Class C and V1.0.2 Class A/Class B/Class C |
| Frequency Band | CN470/IN865/EU868/RU864/US915/AU915/KR920/AS923-1&2&3&4 |
| Ethernet Port | 1 × RJ45 WAN Port (PoE PD supported) |
| Data Rate | 10/100/1000 Mbps (Auto-Sensing) |
| Wi-Fi Interface | IEEE 802.11 b/g/n, 2.4GHz, Internal Antenna |
| Cellular Interface (Optional) | 4G LTE - 1 (mini SIM-2FF) |
| Other interfaces | 1 × RST, 1 × USB Type-C for Power Supply and Console, 1 × DC Male Jack Connector (2.1 x 5.5 mm), 1 × POWER, 1 × STATUS, 1 × LoRa, 1 × Wi-Fi, 1 × LTE, 1 × ETH |
| Watchdog | Built-in Watchdog, RTC, Timer |
| Power Consumption | Typical 2.9 W, Max 4.2 W |
| Ingress Protection | IP65 |
| Material & Color | PC+ABS (UL94 V0), White & Black |
| Weight | 548g |
| Dimensions | 180 x 110 x 55.5 mm |
| Regulatory | CE, CE(RED), FCC, IC, Telec, JATE, RCM |
