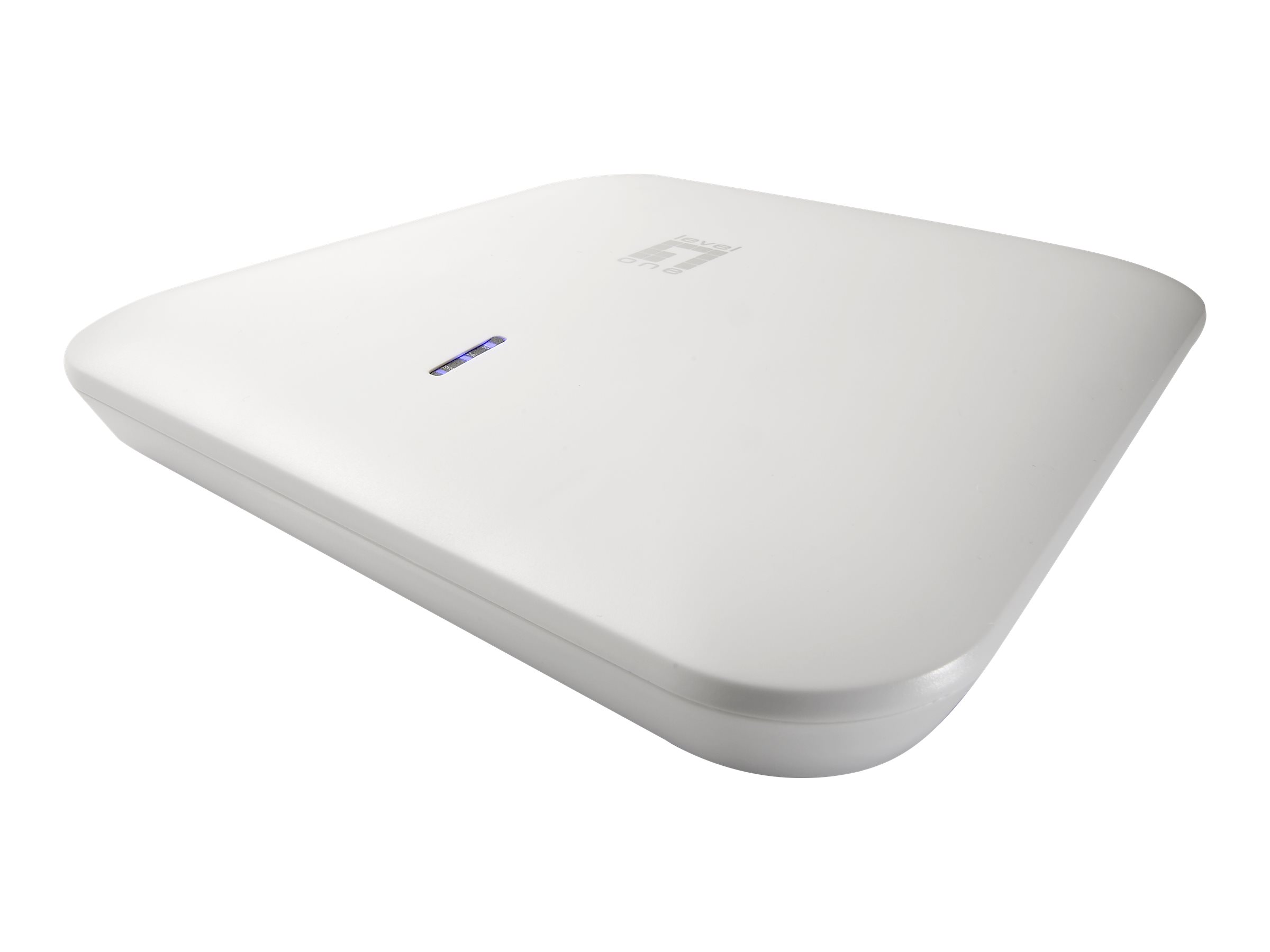

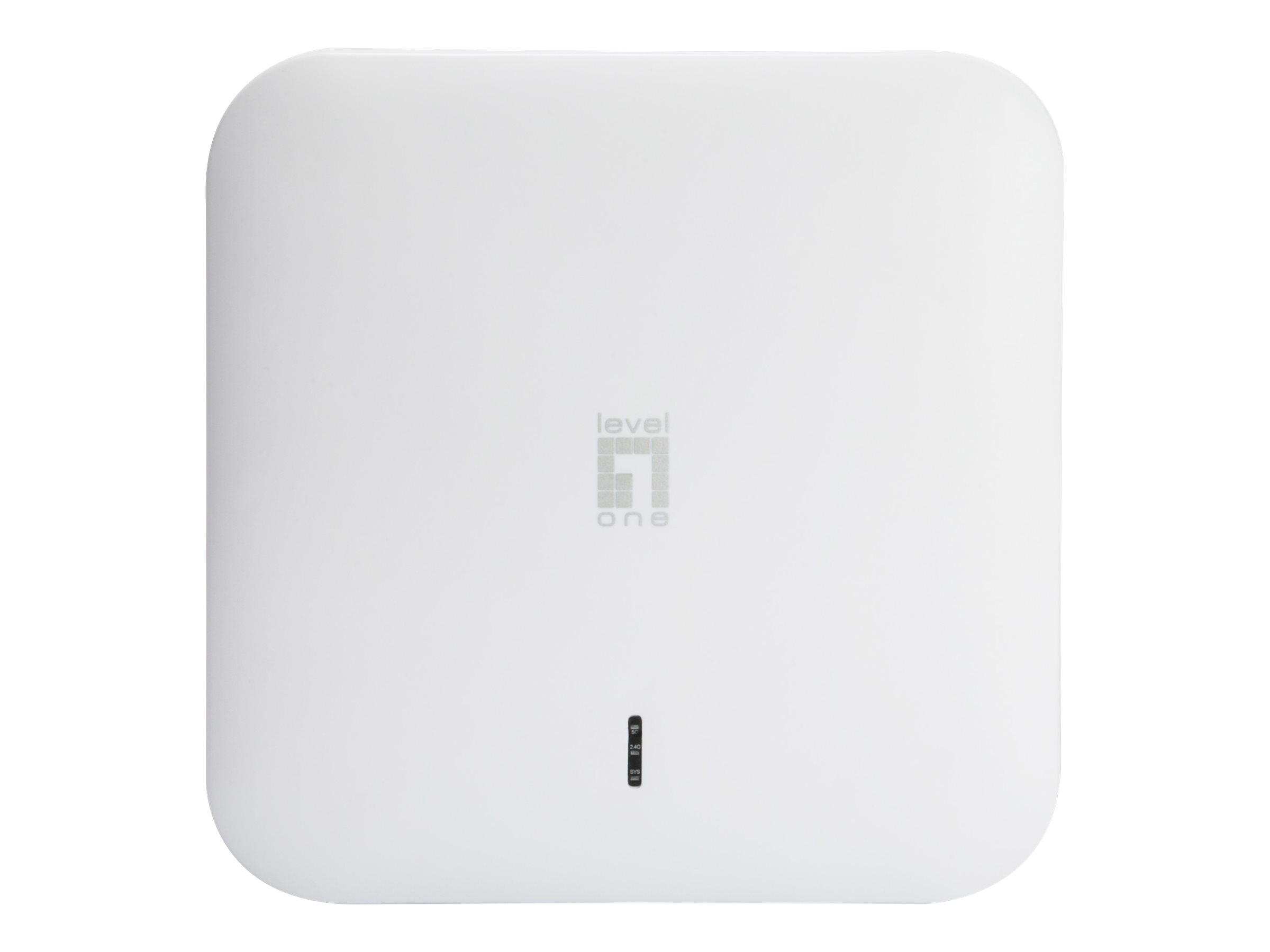

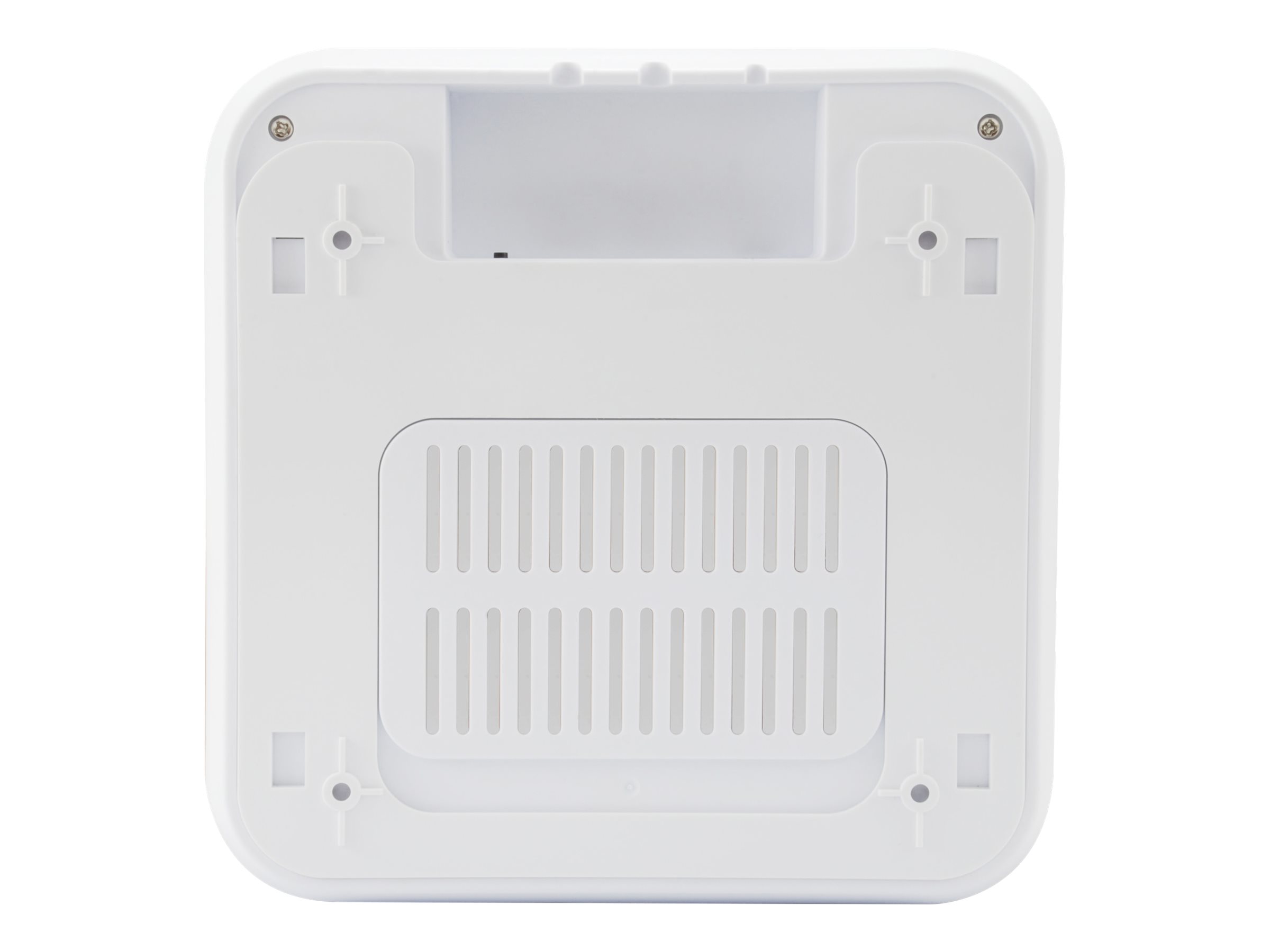

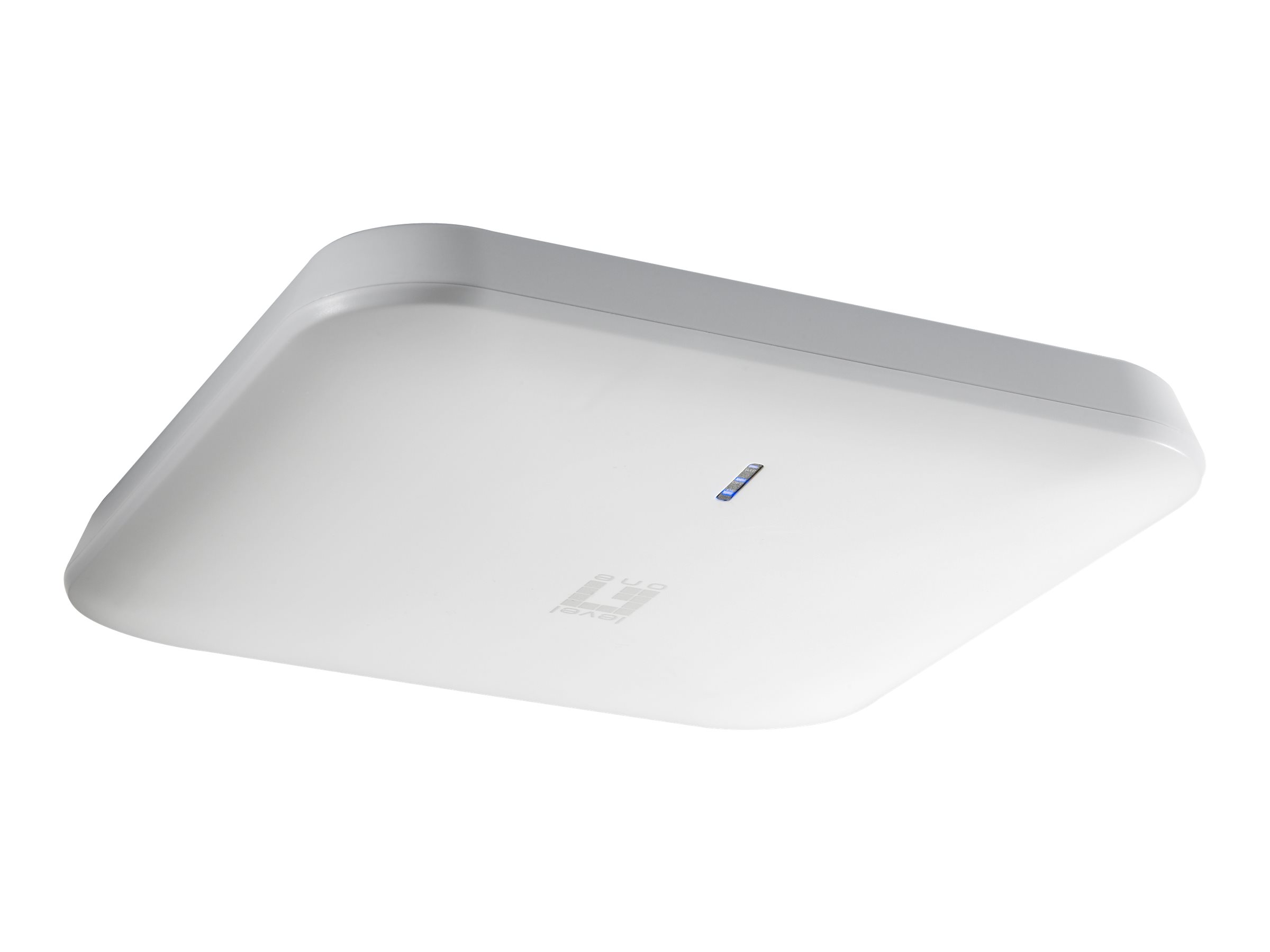

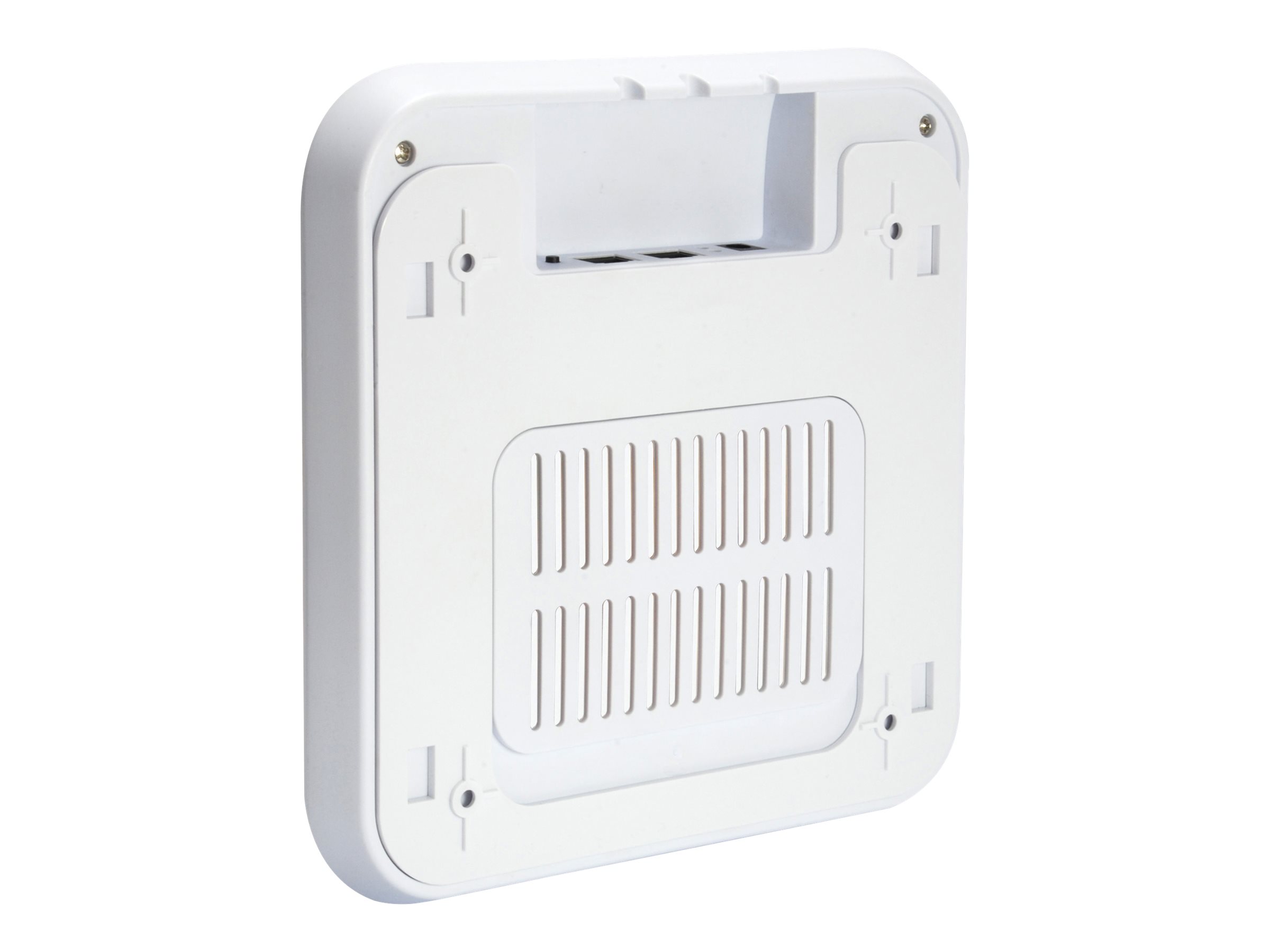

LevelOne WAP-8123 Trådløs forbindelse Hvid

LevelOne WAP-8123 - Trådløs forbindelse - 1GbE - Wi-Fi 5 - 2.4 GHz, 5 GHz - DC-strøm

  • Product no 993778593

    Model WAP-8123

    Brand LevelOne

    EAN 4015867229538

    Weight 0.52 kg

  • Product information and specifications are guiding only. Without notice, these can be subject to change by the manufacturer. This applies for product images as well.
Produktbeskrivelse LevelOne WAP-8123 - trådløs forbindelse - Wi-Fi 5
Enhedstype Trådløs forbindelse
Formfaktor Ekstern
Dataforbindelsesprotokol Ethernet, Fast Ethernet, Gigabit Ethernet, IEEE 802.11b, IEEE 802.11a, IEEE 802.11g, IEEE 802.11n, IEEE 802.11ac Wave 2
Frekvensbånd 2.4 GHz, 5 GHz
Kapacitet Maksimalt antal konfigurerede SSIDer (2,4 Ghz): 4<br>Maksimalt antal konfigurerede SSIDer (5 Ghz): 4<br>Maksimum antal klienter: 128
Udstyr inkluderet Mounting screws
Power Over Ethernet (PoE) understøttet PoE+
Effekt DC 12 V/PoE
Dimensioner (B x D x H) 19.8 cm x 19.8 cm x 2.8 cm
Vægt 521 g
General
Depth 19.8 cm
Device Type Wireless access point
Height 2.8 cm
Weight 521 g
Width 19.8 cm
Networking
Authentication Method Radio Service Set ID (SSID), Extensible Authentication Protocol (EAP)
Capacity Maximum number of configured SSIDs (2.4 Ghz): 4 | Maximum number of configured SSIDs (5 Ghz): 4 | Maximum number of clients: 128
Compliant Standards IEEE 802.3, IEEE 802.3u, IEEE 802.11b, IEEE 802.11a, IEEE 802.3af, IEEE 802.3x, IEEE 802.11g, IEEE 802.11i, IEEE 802.11e, IEEE 802.11n, IEEE 802.3at, IEEE 802.3az, IEEE 802.11ac Wave 2
Connectivity Technology Wireless, wired
Data Link Protocol Ethernet, Fast Ethernet, Gigabit Ethernet, IEEE 802.11b, IEEE 802.11a, IEEE 802.11g, IEEE 802.11n, IEEE 802.11ac Wave 2
Data Transfer Rate 866.7 Mbps
Encryption Algorithm AES, 128-bit WEP, 64-bit WEP, TKIP, WPA, WPA2, WPA-PSK, WPA2-PSK
Features Flow control, repeating mode, firmware upgradable, WISP mode, Wi-Fi Multimedia (WMM) support, Quality of Service (QoS), reset button, ceiling mountable, MU-MIMO technology, gateway mode
Form Factor External
Frequency Band 2.4 GHz, 5 GHz
Line Coding Format 128 QAM, DBPSK, DQPSK, CCK, 64 QAM, 256 QAM, BPSK, QPSK, 16 QAM, OFDM
Remote Management Protocol HTTP

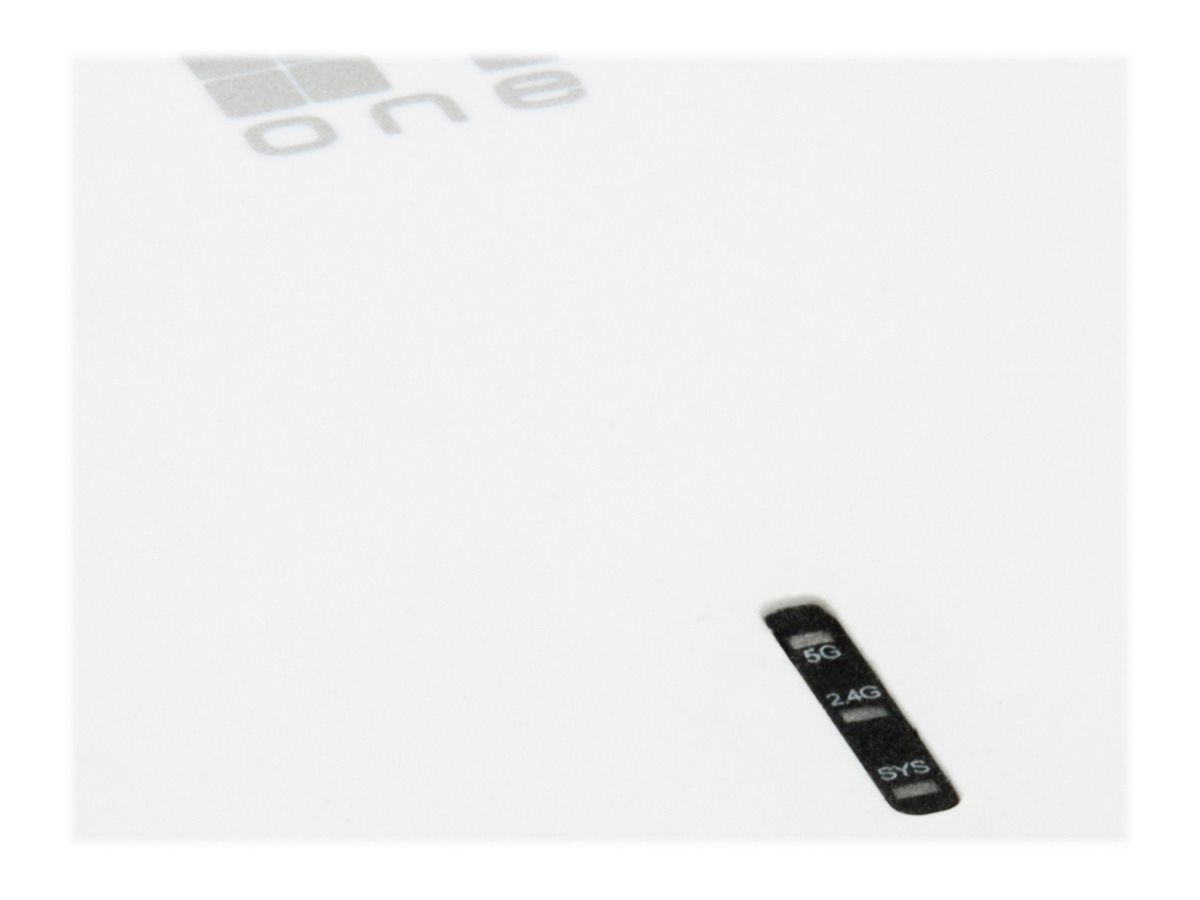

Status Indicators Power, system
Wi-Fi Rating AC1200
Antenna
Antenna External detachable
Antenna Qty 4
Gain Level 5 dBi
Expansion / Connectivity

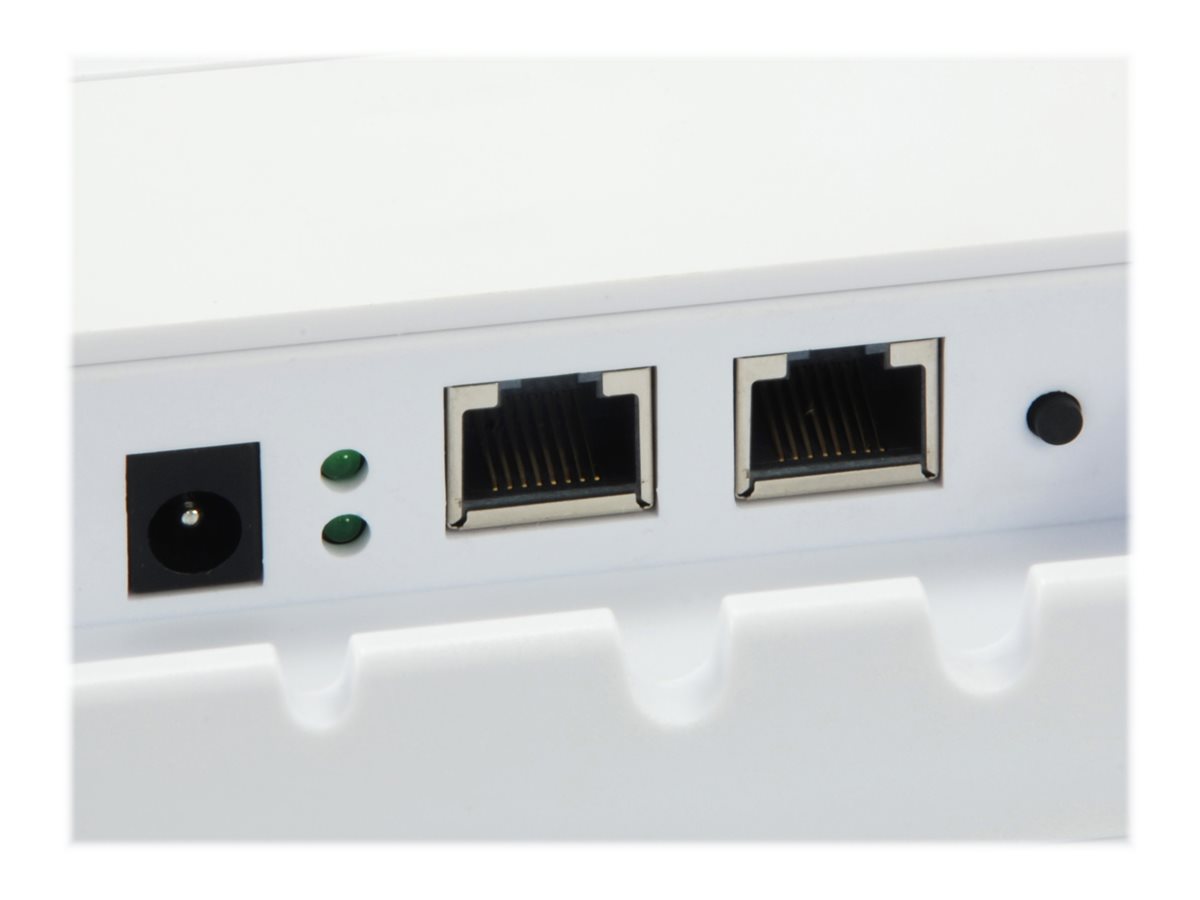

Interfaces 1 x 1000Base-T - RJ-45 (WAN) | 1 x 1000Base-T - RJ-45
Miscellaneous
Cables Included 1 x network cable
Compliant Standards FCC, EMI
Included Accessories Mounting screws
Power
Power Consumption Operational 30 Watt
Power Device Power injector
Power Over Ethernet (PoE) Supported PoE+
Voltage Required DC 12 V / PoE
Environmental Parameters
Humidity Range Operating 10 - 90% (non-condensing)
Max Operating Temperature 55 °C
Min Operating Temperature -30 °C
