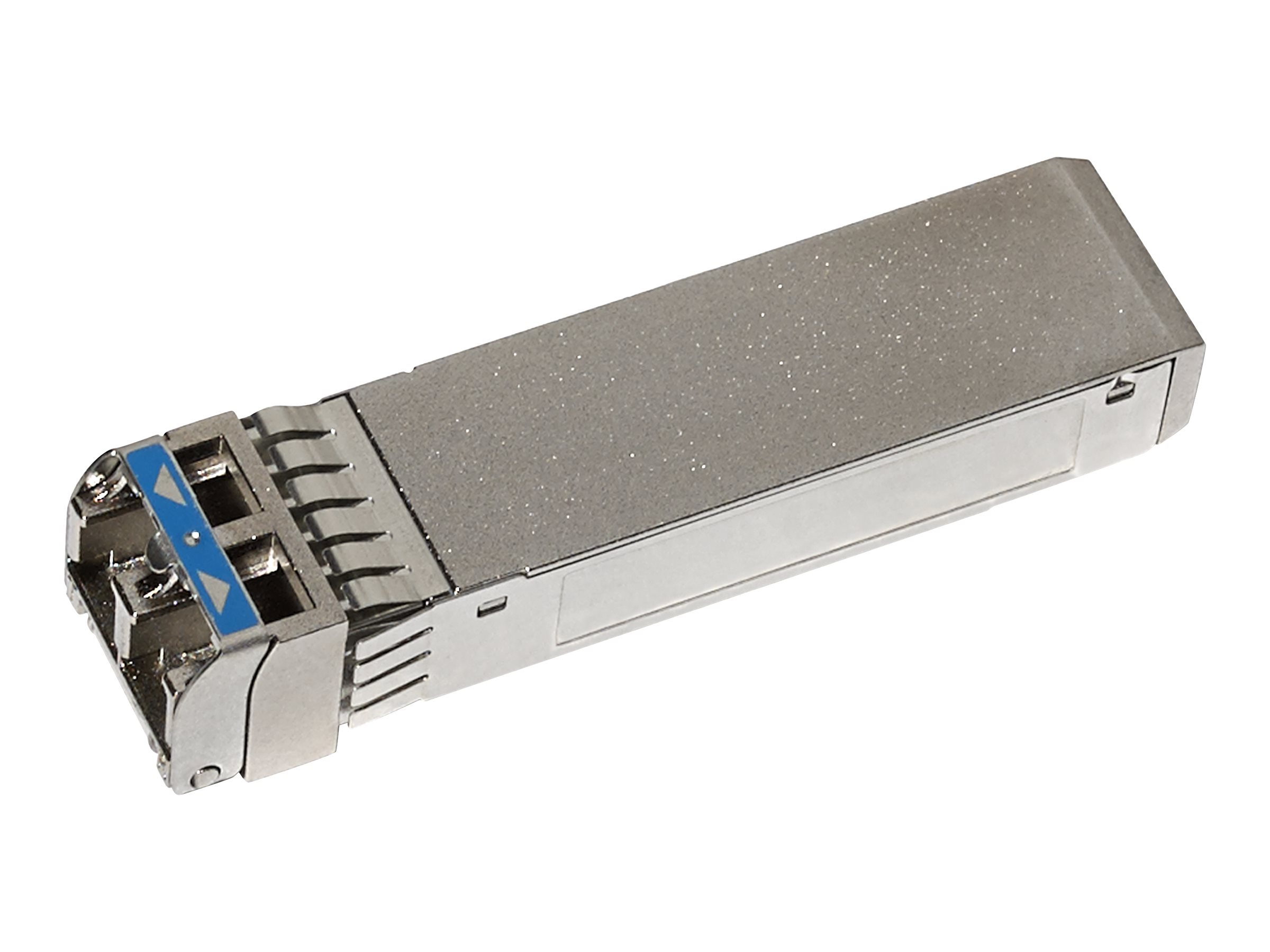

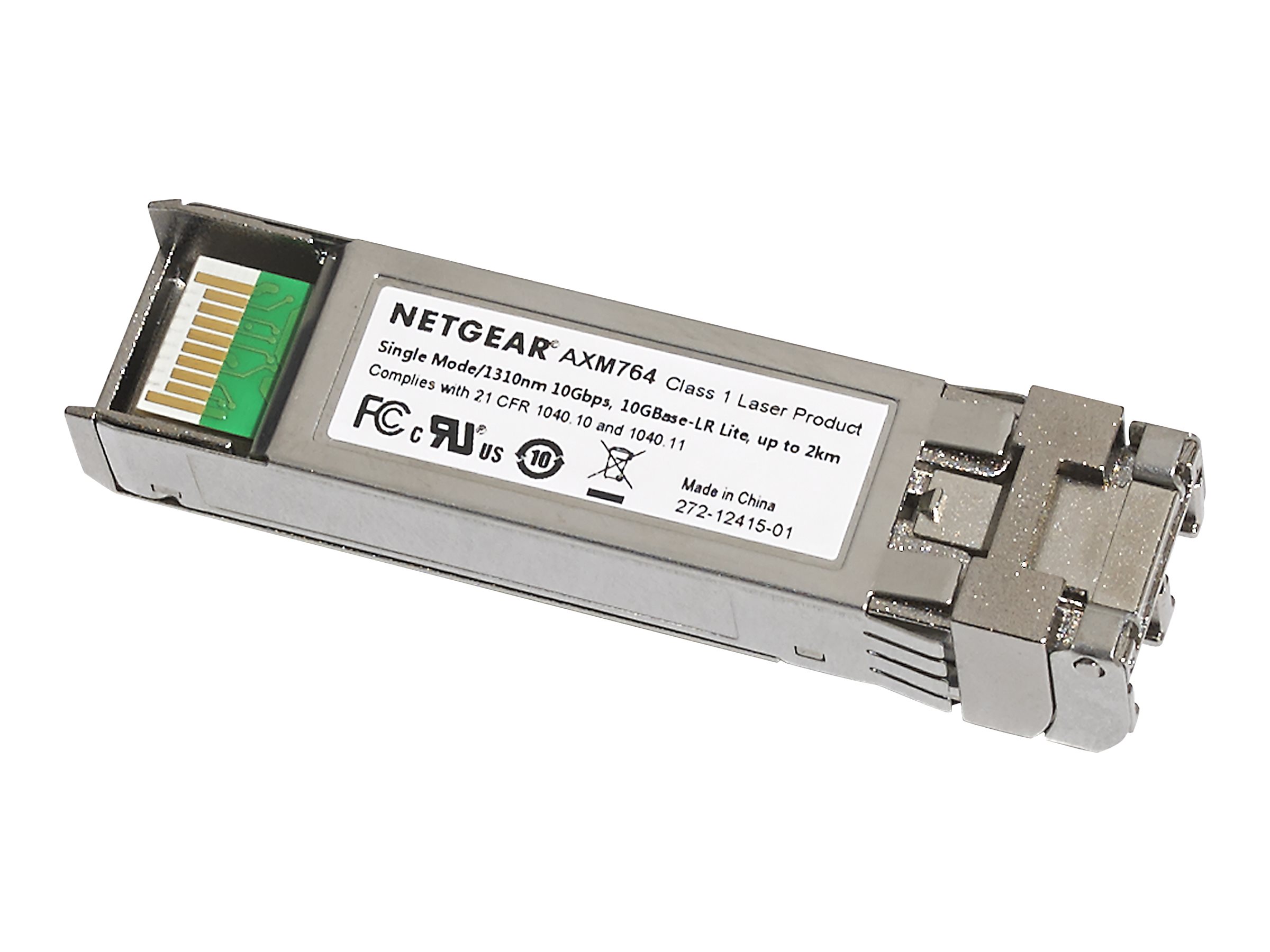

NETGEAR ProSafe AXM764 SFP+ transceiver modul 10 Gigabit Ethernet

NETGEAR ProSafe AXM764 - SFP+ transceiver modul - 10GbE - 10GBase-LRL - LC enkelttilstand - op til 2 km - 1310 nm - for NETGEAR M4300-28G-PoE+

Varenummer: 989768667
Model: AXM764-10000S
EAN: 0606449108767
Brand:
NETGEAR
Vægt: 0.02 kg

Specifications

Produktbeskrivelse
NETGEAR ProSafe AXM764 - SFP+ transceiver modul - 10GbE
Enhedstype
SFP+ transceiver modul - LC enkelttilstand
Model
Indstiksmodul
Kabeltype
10GBase-LRL
Dataoverførselshastighed
10 Gbps
Optisk bølgelængde
1310 nm
Dataforbindelsesprotokol
10GbE
Maks. overføringsafstand
2 km
Dimensioner (B x D x H)
1.455 cm x 5.65 cm x 1.185 cm
Vægt
20 g
Producentgaranti
5 års garanti
Designet for
NETGEAR M4300-28G-PoE+
Specifications

Full specifications

General
Device Type
SFP+ transceiver module
Form Factor
Plug-in module
Networking
Cabling Type
10GBase-LRL
Compliant Standards
IEEE 802.3ae
Connectivity Technology
Wired
Data Link Protocol
10 GigE
Data Transfer Rate
10 Gbps
Max Transfer Distance
2 km
Optical Wave Length
1310 nm
Expansion / Connectivity
Interfaces
1 x Ethernet 10GBase-LRL - LC single-mode x 2
Miscellaneous
Compliant Standards
RoHS, Laser Class 1, FDA, CDRH, IEC 60825, 21 CFR 1040.10, 21 CFR 1040.11
MTBF
2,310,000 hours
Power
Power Consumption Operational
1.1 Watt
Dimensions & Weight
Depth
5.65 cm
Height
1.185 cm
Weight
20 g
Width
1.455 cm
Manufacturer Warranty
Service & Support
Limited warranty - 5 years
Environmental Parameters
Max Operating Temperature
85 °C
Min Operating Temperature
-5 °C
Compatibility Information
Designed For
NETGEAR M4300-28G-PoE+
