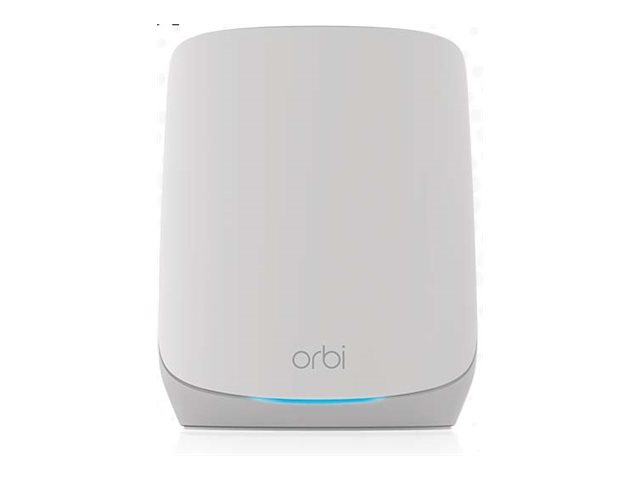

NETGEAR Orbi RBK763S Wi-Fi-system
NETGEAR Orbi RBK763S - Wi-Fi-system - (router, 2 extendere) - op til 7500 sq.ft - mesh 1GbE - Wi-Fi 6 - Tri-Band
Specifications
|
Produktbeskrivelse
|
NETGEAR Orbi RBK763S - Wi-Fi-system - Wi-Fi 6 - desktop
|
|
Enhedstype
|
Wi-Fi-system - mesh
|
|
Pakningstype
|
Desktop
|
|
Wi-Fi-systemkomponenter
|
Router, 2 extendere
|
|
Wi-Fi-systemdækning
|
Op til 7500 sq.ft
|
|
Antal WAN porte
|
1
|
|
Dataforbindelsesprotokol
|
Ethernet, Fast Ethernet, Gigabit Ethernet, IEEE 802.11b, IEEE 802.11a, IEEE 802.11g, IEEE 802.11n, IEEE 802.11ac, IEEE 802.11ax (Wi-Fi 6)
|
|
Frekvensbånd
|
2,4 GHz (1 band) / 5 GHz (2 band)
|
|
Dataoverførselshastighed
|
5.4 Gbps
|
|
Præstation
|
Maksimum datahastighed (2,4 GHz): 600 Mbps<br>Maksimum datahastighed (5 GHz fronthaul): 2400 Mbps<br>Maksimum datahastighed (5 GHz backhaul): 2400 Mbps
|
|
Kapacitet
|
Samtidige enheder: op til 75
|
|
Netværks/overføselsprotokol
|
TCP/IP, PPTP, PPPoE, DHCP, SMB, DDNS, Bigpond
|
|
Routingprotokol
|
RIP-1, RIP-2
|
|
Intelligent assistent
|
Google Assistant, Alexa
|
|
Egenskaber
|
Sync-knap, MU-MIMO teknologi, Tri-Band, PSK, gæsteadgang, farve LET-status, Explicit Beamforming, Implicit Beamforming, 4K/8K UHD videostreaming, NETGEAR Smart Parental Controls, dobbeltkernet CPU
|
|
Overensstemmelsesstandarder
|
IEEE 802.11i, UPnP
|
|
Effekt
|
AC 230 V (50 Hz)
|
|
Dimensioner (B x D x H)
|
16.764 cm x 6.35 cm x 21.082 cm
|
|
Vægt
|
725.75 g
|
|
Lokalisering
|
Europa
|
|
Producentgaranti
|
1 års garanti
|
Full specifications
|
General
|
|
|---|---|
|
Capacity
|
Concurrent devices: up to 75
|
|
Compliant Standards
|
IEEE 802.11i, UPnP, ICES-003 Class B, AS/NZS CISPR 32 Class B, EN 55032, FCC Part 15 Subpart B Class B, EN 55035 Class B
|
|
Connectivity Technology
|
Wireless, wired
|
|
Data Link Protocol
|
Ethernet, Fast Ethernet, Gigabit Ethernet, IEEE 802.11b, IEEE 802.11a, IEEE 802.11g, IEEE 802.11n, IEEE 802.11ac, 802.11ax
|
|
Data Transfer Rate
|
5.4 Gbps
|
|
Device Type
|
Wi-Fi system - mesh - 3-port switch (integrated)
|
|
Enclosure Type
|
Desktop
|
|
Encryption Algorithm
|
TKIP, WPA-PSK, 128-bit AES, WPA2-PSK, WPA3-Personal
|
|
Features
|
Sync button, MU-MIMO technology, Tri-Band, Pre-Shared Key (PSK), guest access, colored LED status, Explicit Beamforming, Implicit Beamforming, 4K/8K UHD video streaming, NETGEAR Smart Parental Controls, dual core CPU
|
|
Flash Memory
|
4 GB
|
|
Frequency Band
|
2.4 GHz (1 band) / 5 GHz (2 bands)
|
|
Mesh Networking
|
Yes
|
|
Network / Transport Protocol
|
TCP/IP, PPTP, PPPoE, DHCP, SMB, DDNS, Bigpond
|
|
Performance
|
Maximum data rate (2.4 GHz): 600 Mbps | Maximum data rate (5 GHz fronthaul): 2400 Mbps | Maximum data rate (5 GHz backhaul): 2400 Mbps
|
|
Processor
|
1 GHz
|
|
RAM
|
1 GB
|
|
Routing Protocol
|
RIP-1, RIP-2
|
|
Wi-Fi Rating
|
AX5400
|
|
Wi-Fi System Components
|

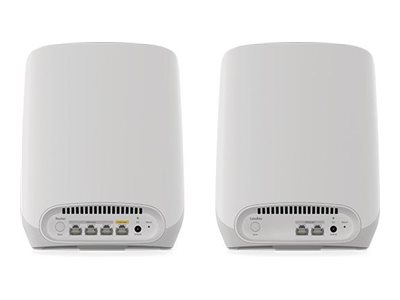

Router, 2 extenders
|
|
Wi-Fi System Coverage
|
Up to 7,500 sq.ft
|
|
Line Properties
|
|
|
Line Coding Format
|
1024 QAM
|
|
Internet of Things (IoT)
|
|
|
Intelligent Assistant
|
Google Assistant, Alexa
|
|
Internet of Things (IoT) Compatible
|
Yes
|
|
Expansion / Connectivity
|
|
|
Interfaces
|
WAN: 1 x 10Base-T/100Base-TX/1000Base-T - RJ-45 | LAN: 3 x 10Base-T/100Base-TX/1000Base-T - RJ-45 | LAN: 2 x 10Base-T/100Base-TX/1000Base-T - RJ-45 - on extender
|
|
Antenna
|
|
|
Antenna
|
Internal
|
|
Antenna Qty
|
6
|
|
Power
|
|
|
Installed Qty
|
3
|
|
Power Device
|
External power adapter
|
|
Voltage Required
|
AC 230 V (50 Hz)
|
|
Miscellaneous
|
|
|
Cables Included
|
1 x network cable - 2 m
|
|
Localization
|
Europe
|
|
Software / System Requirements
|
|
|
Software Included
|
NETGEAR Armor (1-year subscription)
|
|
Dimensions & Weight
|
|
|
Depth
|
6.35 cm
|
|
Height
|
21.082 cm
|
|
Weight
|
725.75 g
|
|
Width
|
16.764 cm
|
|
Manufacturer Warranty
|
|
|
Service & Support
|
Limited warranty - 1 year
|
|
Environmental Parameters
|
|
|
Humidity Range Operating
|
0 - 90% (non-condensing)
|
|
Max Operating Temperature
|
40 °C
|
|
Min Operating Temperature
|
0 °C
|
