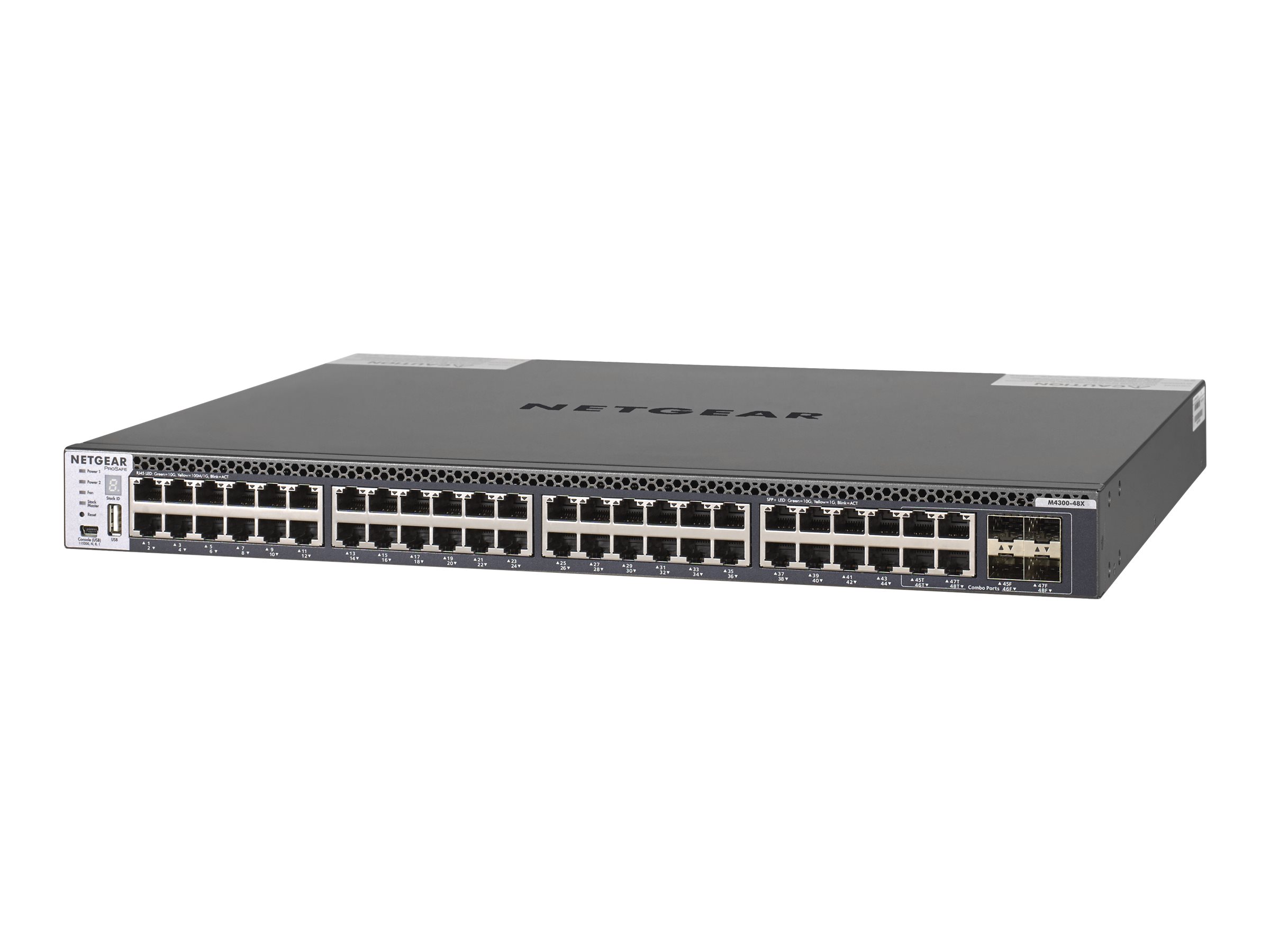

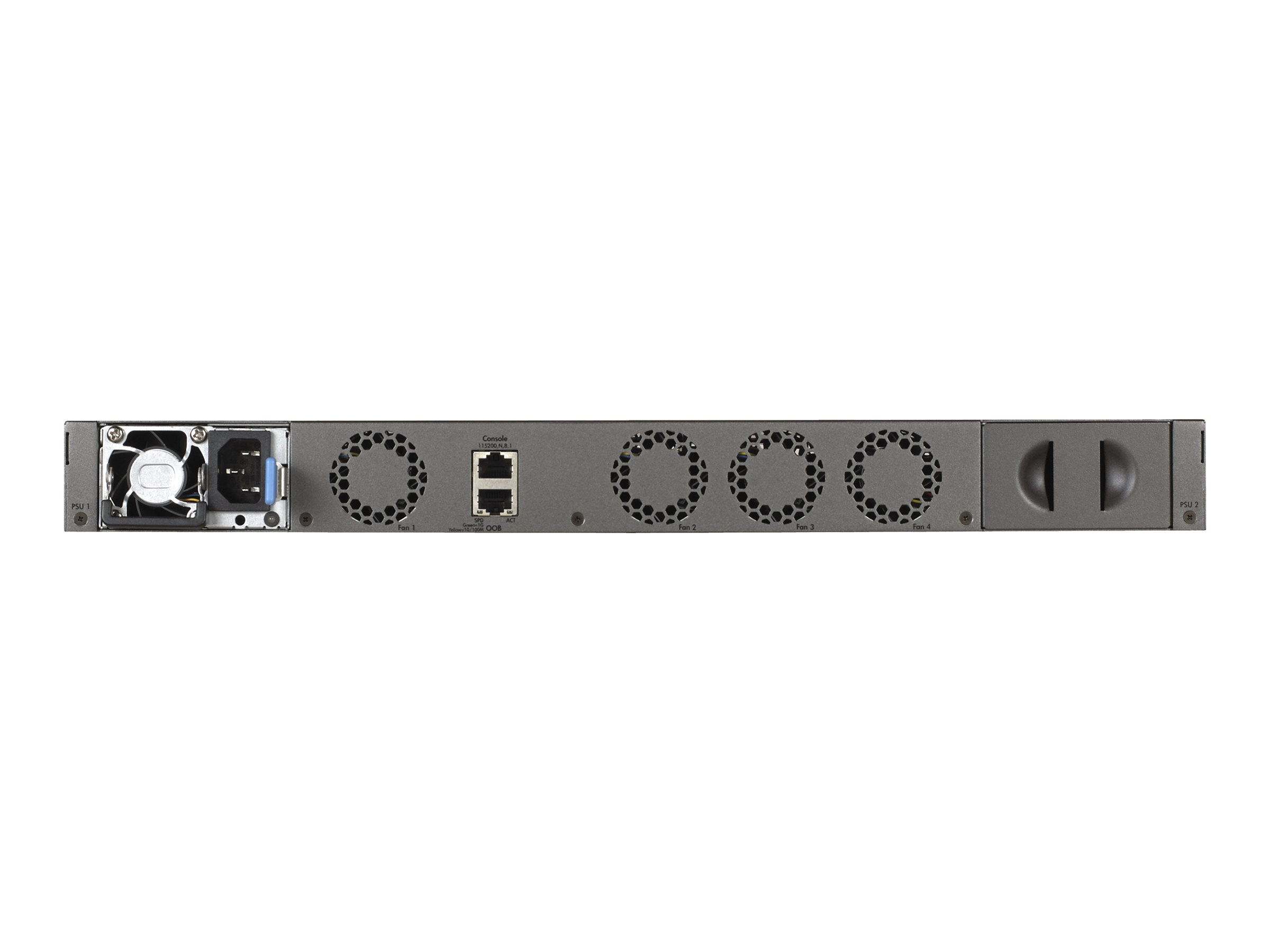

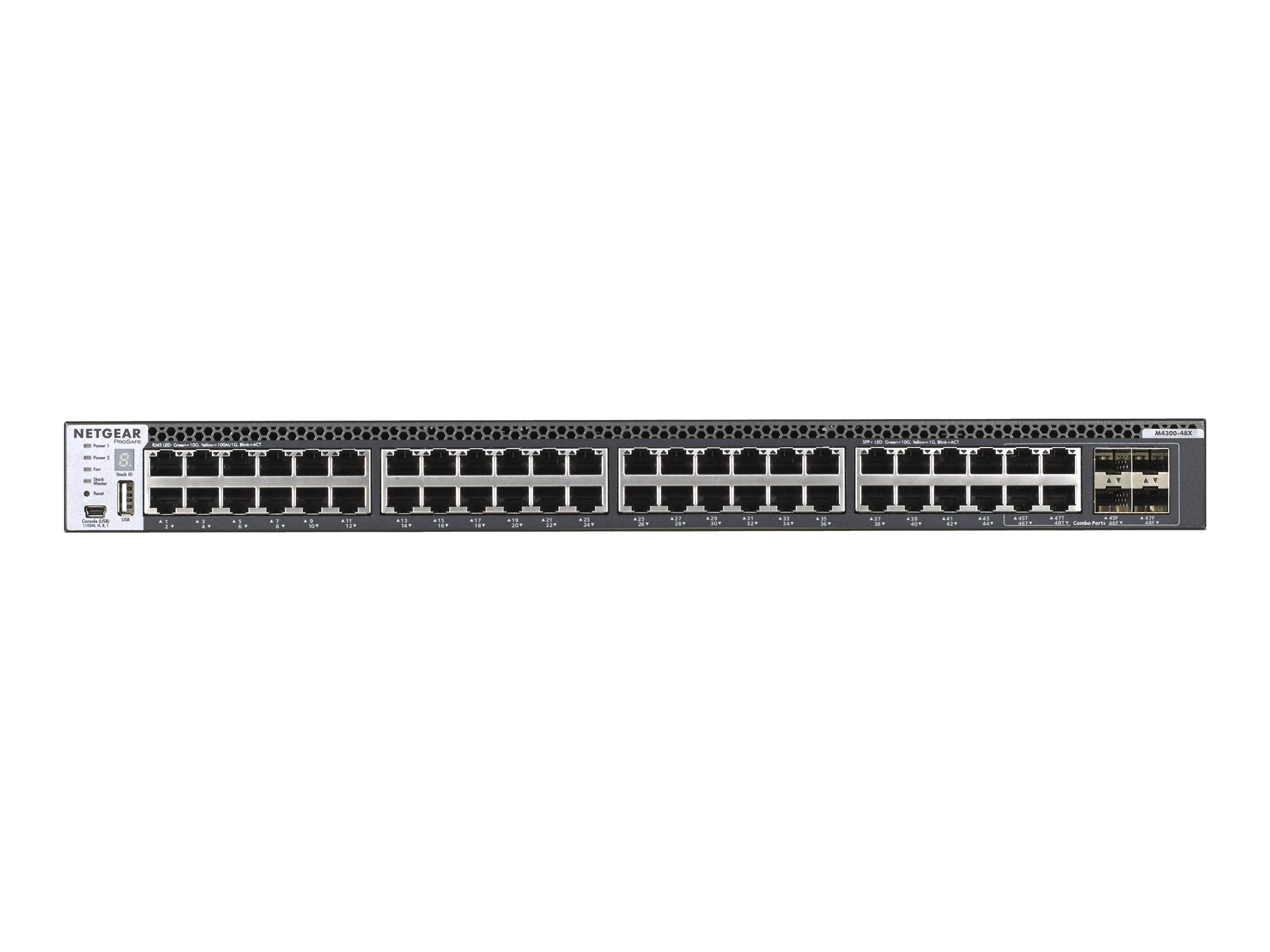

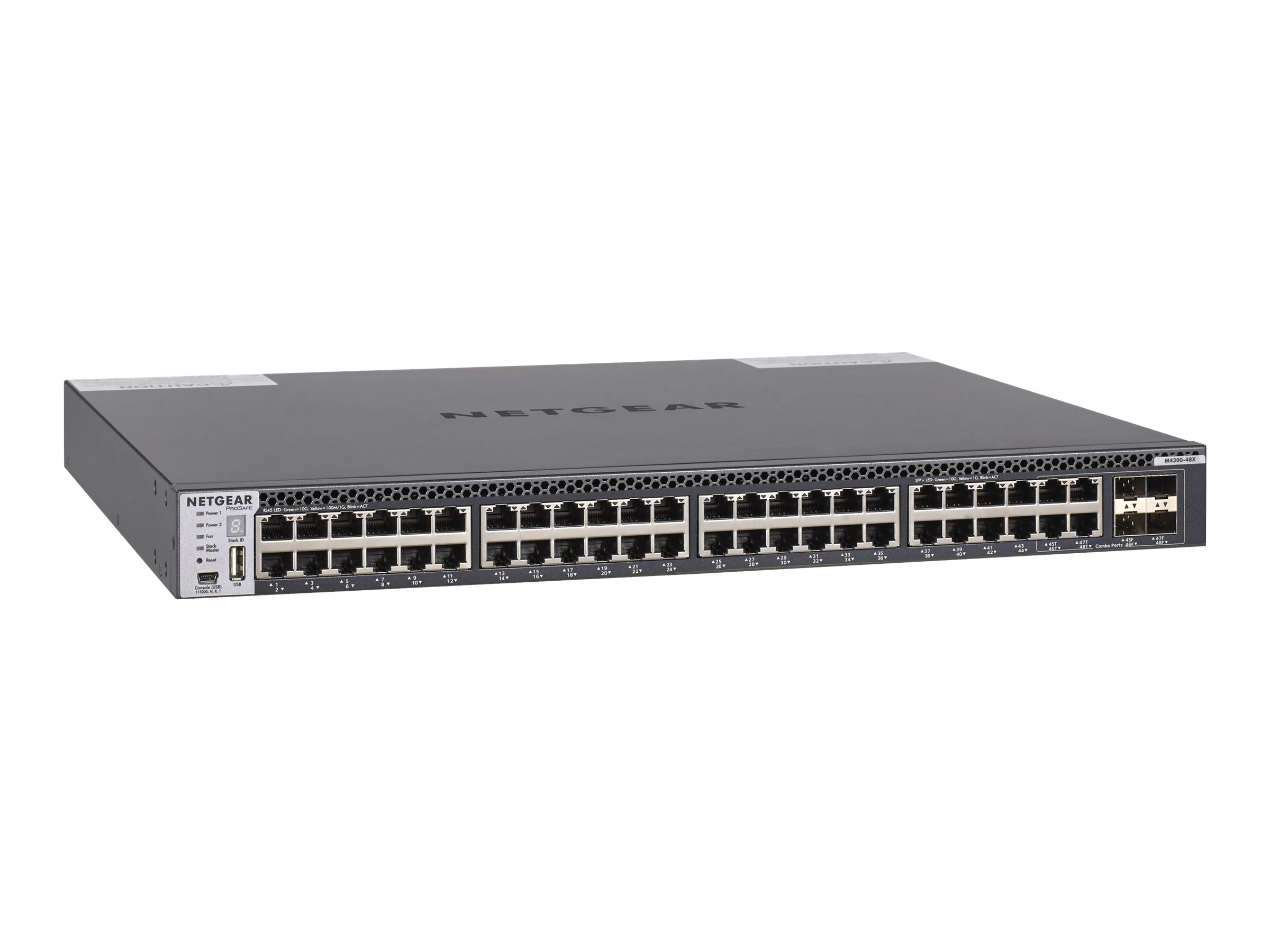

NETGEAR M4300-48X Switch 48-porte 10 Gigabit
NETGEAR M4300-48X - Switch - L3 - Administreret - 48 x 10 Gigabit Ethernet + 4 x delt 10 Gigabit SFP+ - front til ryg-luftstrøm - monterbar på stativ
Specifications
|
Produktbeskrivelse
|
NETGEAR M4300-48X - switch - 48 porte - Administreret - monterbar på stativ
|
|
Enhedstype
|
Switch - 48 porte - L3 - Administreret - kan stables
|
|
Pakningstype
|
Front til ryg-luftstrøm monterbar på stativ 1U
|
|
Undertype
|
10 Gigabit Ethernet
|
|
Porte
|
48 x 10 Gigabit Ethernet + 4 x delt 10 Gigabit SFP+
|
|
Præstation
|
Omkoblingskapacitet: 960 Gbps<br>Kapacitet: 714 Mpps<br>10 Gbps fiberlatens (64-byte pakker): 1.508 µs<br>10 Gbps fiberlatens (512-byte pakker): 1.516 µs<br>10 Gbps fiberlatens (1024-byte pakker): 1.516 µs<br>10 Gbps fiberlatens (1518-byte pakker): 1.523 µs<br>10 Gbps kobberlatens (64-byte pakker): 2.409 µs<br>10 Gbps kobberlatens (512-byte pakker): 2.425 µs<br>10 Gbps kobberlatens (1024-byte pakker): 2.43 µs<br>10 Gbps kobberlatens (1518-byte pakker): 2.432 µs<br>1 Gbps fiberlatens (64-byte pakker): 2.285 µs<br>1 Gbps fiberlatens (512-byte pakker): 2.39 µs<br>1 Gbps fiberlatens (1024-byte pakker): 2.426 µs<br>1 Gbps fiberlatens (1518-byte pakker): 2.379 µs<br>1 Gbps kobberlatens (64-byte pakker): 2.702 µs<br>1 Gbps kobberlatens (512-byte pakker): 2.714 µs<br>1 Gbps kobberlatens (1024-byte pakker): 2.73 µs<br>1 Gbps kobberlatens (1518-byte pakker): 2.709 µs
|
|
Kapacitet
|
Virtuelle grænseflader (VLANs): 4093<br>IGMP-grupper: 4000<br>LAG-grupper: 128<br>IPv4 ruter (statisk): 64<br>IPv6 ruter (statisk): 64<br>RIP ruter: 512<br>IP router grænseflade: 128<br>OSPF IPv4 ruter: 12288<br>OSPF IPv6 ruter: 4096
|
|
MAC adresse table størrelse
|
128K indtastningshukommelse
|
|
Jumborammesupport
|
12KB
|
|
Routingprotokol
|
OSPF, RIP, IGMPv2, IGMP, VRRP, PIM-SM, PIM-DM, IGMPv3, MLDv2
|
|
Protokol til fjernadministration
|
SNMP 1, SNMP 2, Telnet, SNMP 3, HTTPS, SSH, CLI
|
|
Egenskaber
|
Understøttet af ARP, DiffServ understøttet, IPv6 understøttet, STP support, RSTP support, VRRP support, DHCP snooping, ACL support, QoS, MDL snooping, STP Root Guard, IPv4 support, LACP support, DHCP videresendelse, RSPAN, PVRST, dynamisk ARP beskyttelse, IP-kildebekyttelse, BPDU, LISP ASM, SSM
|
|
Overensstemmelsesstandarder
|
IEEE 802.3ad (LACP), IEEE 802.3az
|
|
Effekt
|
AC 120/230 V
|
|
Dimensioner (B x D x H)
|
44 cm x 34.5 cm x 4.4 cm
|
|
Vægt
|
6.55 kg
|
|
Lokalisering
|
Europa, Americas
|
|
Producentgaranti
|
NETGEAR livstids garanti
|
Full specifications
|
General
|
|
|---|---|
|
Authentication Method
|
RADIUS, TACACS+
|
|
Capacity
|
Virtual interfaces (VLANs): 4093 | IGMP groups: 4000 | LAG groups: 128 | IPv4 routes (static): 64 | IPv6 routes (static): 64 | RIP routes: 512 | IP router interfaces: 128 | OSPF IPv4 routes: 12288 | OSPF IPv6 routes: 4096
|
|
Compliant Standards
|
IEEE 802.3ad (LACP), IEEE 802.3az
|
|
Device Type
|
Switch - 48 ports - L3 - managed - stackable
|
|
Enclosure Type
|
Front to back airflow rack-mountable 1U
|
|
Features
|
ARP support, DiffServ support, IPv6 support, Spanning Tree Protocol (STP) support, Rapid Spanning Tree Protocol (RSTP) support, Virtual Route Redundancy Protocol (VRRP) support, DHCP snooping, Access Control List (ACL) support, Quality of Service (Qo
|
|
Flash Memory
|
256 MB
|
|
Jumbo Frame Support
|
12KB
|
|
MAC Address Table Size
|
128K entries
|
|
Max Units In A Stack
|
8
|
|
Performance
|
Switching capacity: 960 Gbps | Throughput: 714 Mpps | 10 Gbps fiber latency (64-byte packets): 1.508 µs | 10 Gbps fiber latency (512-byte packets): 1.516 µs | 10 Gbps fiber latency (1024-byte packets): 1.516 µs | 10 Gbps fiber latency (1518-byte pack
|
|
Ports
|
48 x 10 Gigabit Ethernet + 4 x shared 10 Gigabit SFP+
|
|
Processor
|
1: 800 MHz
|
|
RAM
|
1 GB
|
|
Remote Management Protocol
|
SNMP 1, SNMP 2, Telnet, SNMP 3, HTTPS, SSH, CLI
|
|
Routing Protocol
|
OSPF, RIP, IGMPv2, IGMP, VRRP, PIM-SM, PIM-DM, IGMPv3, MLDv2
|
|
Subtype
|
10 Gigabit Ethernet
|
|
Expansion / Connectivity
|
|
|
Interfaces
|
48 x 10GBase-T RJ-45 | 4 x 10GBase-X SFP+ | 1 x management (Gigabit LAN) RJ-45 | 1 x serial (RS-232) RJ-45 | 1 x console (mini-USB) | 1 x USB Type A
|
|
Power
|
|
|
Installed Qty
|
1
|
|
Max Supported Qty
|
2
|
|
Power Consumption Operational
|
237.2 Watt
|
|
Power Device
|
Internal power supply
|
|
Power Provided
|
250 Watt
|
|
Voltage Required
|
AC 120/230 V
|
|
Miscellaneous
|
|
|
Cables Included
|
1 x mini-USB cable | 1 x console cable
|
|
Compliant Standards
|
CISPR 22 Class A, EN55024, EN50082-1, FCC Part 15 A, C-Tick Class A, VCCI Class A, EN 55022 Class A
|
|
Localization
|
Europe, Americas
|
|
MTBF
|
249,393 hours
|
|
Dimensions & Weight
|
|
|
Depth
|
34.5 cm
|
|
Height
|
4.4 cm
|
|
Weight
|
6.55 kg
|
|
Width
|
44 cm
|
|
Manufacturer Warranty
|
|
|
Service & Support
|
Limited warranty - lifetime
|
|
Environmental Parameters
|
|
|
Humidity Range Operating
|
0 - 90% (non-condensing)
|
|
Humidity Range Storage
|
0 - 95% (non-condensing)
|
|
Max Operating Temperature
|
50 °C
|
|
Max Storage Temperature
|
70 °C
|
|
Min Operating Temperature
|
0 °C
|
|
Min Storage Temperature
|
-20 °C
|
