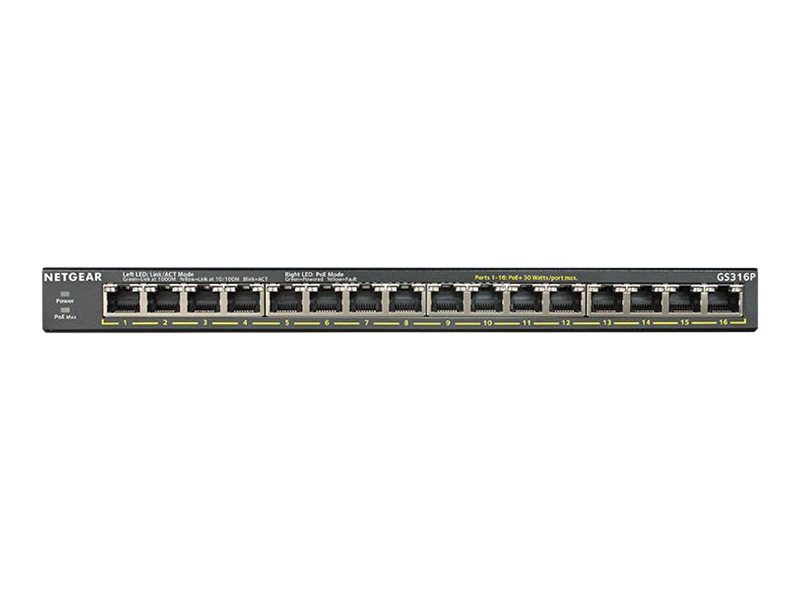

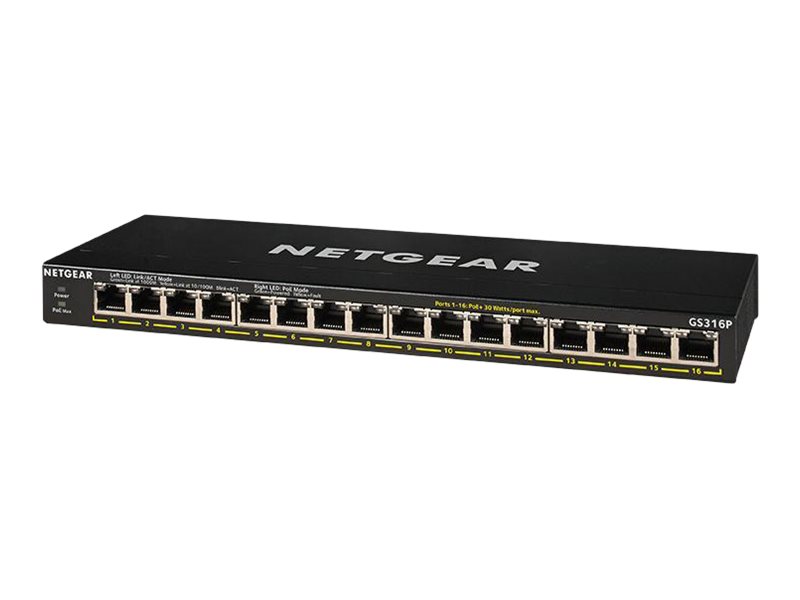

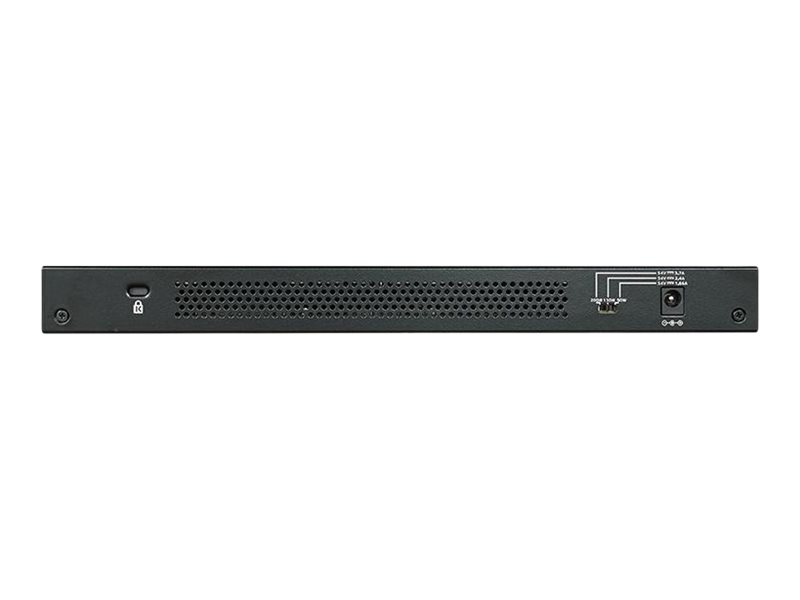

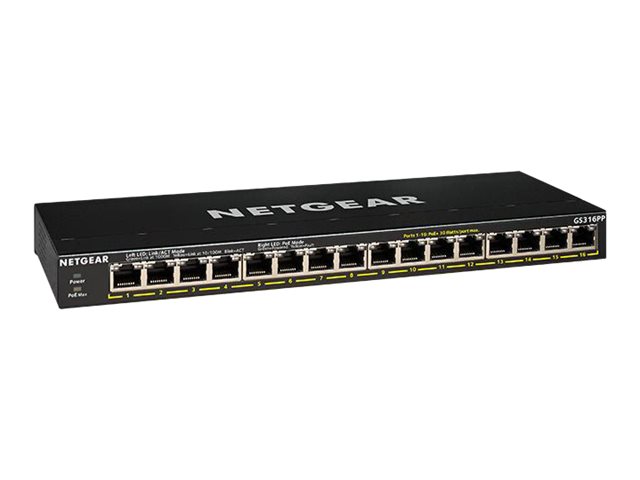

NETGEAR GS316P Switch 16-porte Gigabit PoE+
NETGEAR GS316P - Switch - ikke administreret - 16 x 10/100/1000 (PoE+) - desktop, væg-monterbar - PoE+ (115 W)
Specifications
|
Produktbeskrivelse
|
NETGEAR GS316P - switch - 16 porte - ikke administreret
|
|
Enhedstype
|
Switch - 16 porte - ikke administreret
|
|
Undertype
|
Gigabit Ethernet
|
|
Porte
|
16 x 10/100/1000 (PoE+)
|
|
Power Over Ethernet (PoE)
|
PoE+
|
|
PoE-budget
|
115 W
|
|
Præstation
|
Ikke-blokerende båndbredde: 32 Gbps<br>Pakkebufferstørrelse: 1 MB<br>Videresendelsespræstation (64-byte pakkestørrelse): 1448000 pps<br>Latens (64-byte pakker): 3.7 µs
|
|
MAC adresse table størrelse
|
4K indtastningshukommelse
|
|
Jumborammesupport
|
9216 byte
|
|
Egenskaber
|
Auto-negotiation, auto-uplink (auto MDI/MDI-X), DiffServ understøttet, halv dupleksmodus, fuld dupleksmodus, blæserløs, Energy Efficient Ethernet, CoS, SOHO, WRR
|
|
Overensstemmelsesstandarder
|
IEEE 802.3, IEEE 802.3u, IEEE 802.3i, IEEE 802.3ab, IEEE 802.1p, IEEE 802.3at, IEEE 802.3az
|
|
Dimensioner (B x D x H)
|
28.6 cm x 10.2 cm x 2.7 cm
|
|
Vægt
|
880 g
|
|
Lokalisering
|
Europa
|
|
Producentgaranti
|
3 års garanti
|
Full specifications
|
General
|
|
|---|---|
|
Compliant Standards
|
IEEE 802.3, IEEE 802.3u, IEEE 802.3i, IEEE 802.3ab, IEEE 802.1p, IEEE 802.3at, IEEE 802.3az
|
|
Device Type
|
Switch - 16 ports - unmanaged
|
|
Enclosure Type
|
Desktop, wall-mountable
|
|
Features
|
Auto-negotiation, auto-uplink (auto MDI/MDI-X), DiffServ support, half duplex mode, full duplex mode, fanless, Energy Efficient Ethernet, Class of Service (CoS), SOHO (Small Office/Home Office), Weighted Round Robin (WRR)
|
|
Jumbo Frame Support
|
9216 bytes
|
|
MAC Address Table Size
|
4K entries
|
|
Performance
|
Non-blocking bandwidth: 32 Gbps | Packet buffer size: 1 MB | Forwarding performance (64-byte packet size): 1448000 pps | Latency (64-byte packets): 3.7 µs
|
|
PoE Budget
|
115 W
|
|
Ports
|
16 x 10/100/1000 (PoE+)
|
|
Power Over Ethernet (PoE)
|
PoE+
|
|
Status Indicators
|
Power, PoE, fan, link/activity/speed
|
|
Subtype
|
Gigabit Ethernet
|
|
Expansion / Connectivity
|
|
|
Interfaces
|
16 x 1000Base-T RJ-45 PoE+ - 30 W
|
|
Power
|
|
|
Installed Qty
|
1
|
|
Power Consumption Operational
|
127.9 Watt
|
|
Power Consumption Stand by
|
2.68 Watt
|
|
Power Device
|
External power adapter
|
|
Power Provided
|
130 Watt
|
|
Miscellaneous
|
|
|
Compliant Standards
|
Plug and Play, VCCI, CB, IC Class A, FCC Part 15 A, LVD, KC, RCM
|
|
Included Accessories
|
Wall mounting kit
|
|
Localization
|
Europe
|
|
MTBF
|
2,362,192 hours
|
|
Dimensions & Weight
|
|
|
Depth
|
10.2 cm
|
|
Height
|
2.7 cm
|
|
Weight
|
880 g
|
|
Width
|
28.6 cm
|
|
Manufacturer Warranty
|
|
|
Service & Support
|
Limited warranty - 3 years | Limited warranty - phone consulting - 90 days
|
|
Environmental Parameters
|
|
|
Humidity Range Operating
|
90% (non-condensing)
|
|
Humidity Range Storage
|
95% (non-condensing)
|
|
Max Operating Temperature
|
40 °C
|
|
Max Storage Temperature
|
70 °C
|
|
Min Operating Temperature
|
0 °C
|
|
Min Storage Temperature
|
-20 °C
|
