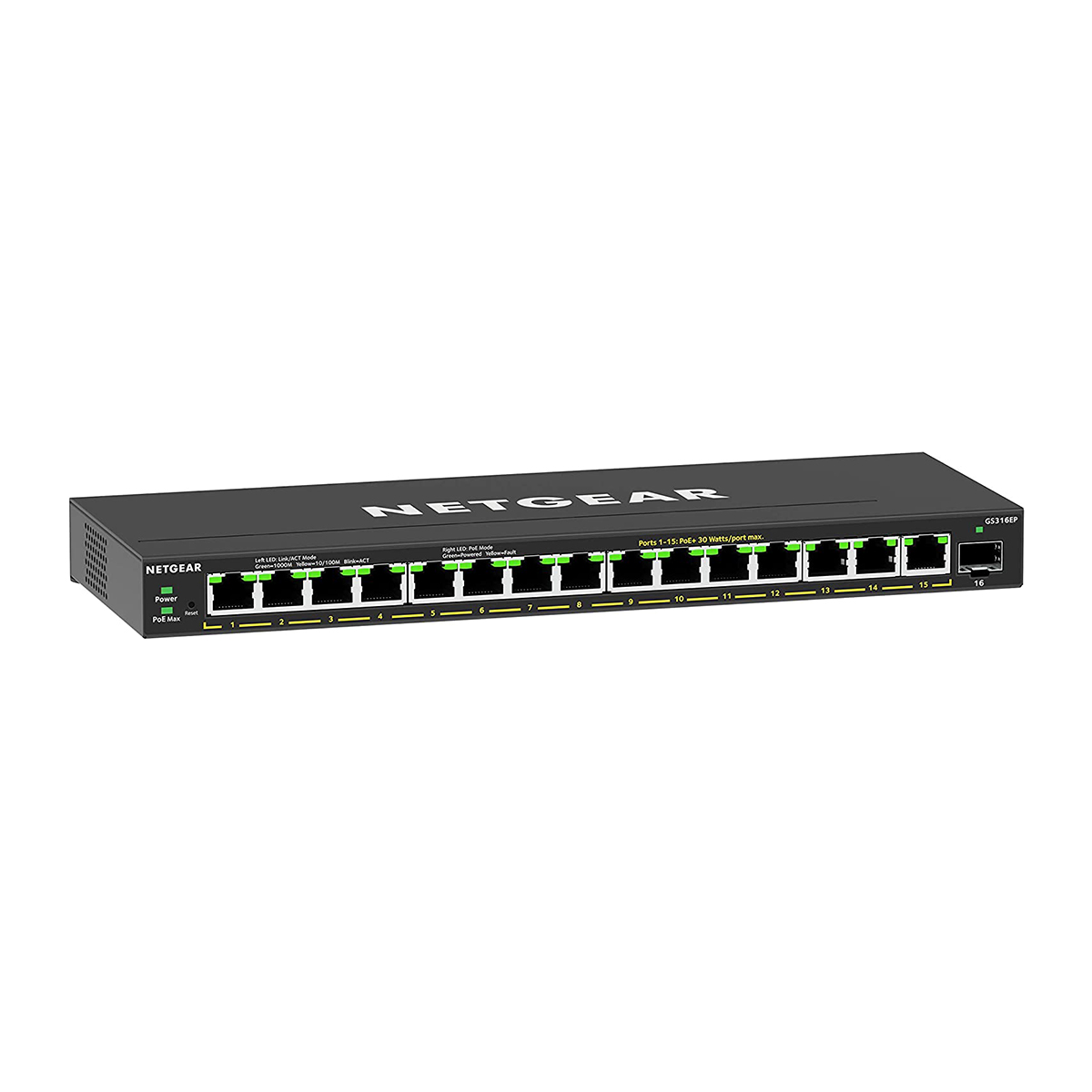

NETGEAR GS316EP Switch 16-porte Gigabit PoE+
NETGEAR Plus GS316EP - Switch - Administreret - 15 x 10/100/1000 (PoE+) + 1 x SFP - desktop, væg-monterbar - PoE+ (180 W)
Specifications
|
Produktbeskrivelse
|
NETGEAR Plus GS316EP - switch - 16 porte - Administreret
|
|
Enhedstype
|
Switch - 16 porte - Administreret
|
|
Undertype
|
Gigabit Ethernet
|
|
Porte
|
15 x 10/100/1000 (PoE+) + 1 x SFP
|
|
Power Over Ethernet (PoE)
|
PoE+
|
|
PoE-budget
|
180 W
|
|
Præstation
|
Båndbredde: 28 Gbps
|
|
Kapacitet
|
Bufferhukommelse (kBytes): 192<br>VLANs understøttet: 64<br>Multicast-grupper: 128
|
|
MAC adresse table størrelse
|
4K indtastningshukommelse
|
|
Jumborammesupport
|
10.000 byte
|
|
Routingprotokol
|
IGMPv2, IGMP, IGMPv3
|
|
Protokol til fjernadministration
|
HTTP, DHCP
|
|
Egenskaber
|
Datatransport, VLAN-understøttet, IGMP snooping, portspejling, gem og send, Broadcast Storm Control, fuld dupleksmodus, QoS, blæserløs, DHCP klient, løkkeforebyggelse, CoS, ToS, DSCP support, kabeltest, Link Aggregation, tempogrænse, DoS protection, EEE, WRR, tilbageløkke-detektion, VLAN Tagging, portbaseret VLAN, port-trunking, bloker ukendt multicast, adgangskodebeskyttelse, PoE-planlægning, uafbrudt PoE
|
|
Overensstemmelsesstandarder
|
IEEE 802.3, IEEE 802.3u, IEEE 802.1Q, IEEE 802.3ab, IEEE 802.1p, IEEE 802.3af, IEEE 802.3x, IEEE 802.3at, IEEE 802.3az
|
|
Dimensioner (B x D x H)
|
28.6 cm x 10.2 cm x 2.7 cm
|
|
Vægt
|
883 g
|
|
Producentgaranti
|
5 års garanti
|
Full specifications
|
General
|
|
|---|---|
|
Capacity
|
Buffer memory (kBytes): 192 | VLANs supported: 64 | Multicast groups: 128
|
|
Compliant Standards
|
IEEE 802.3, IEEE 802.3u, IEEE 802.1Q, IEEE 802.3ab, IEEE 802.1p, IEEE 802.3af, IEEE 802.3x, IEEE 802.3at, IEEE 802.3az
|
|
Device Type
|
Switch - 16 ports - managed
|
|
Enclosure Type
|
Desktop, wall-mountable
|
|
Features
|
Flow control, VLAN support, IGMP snooping, port mirroring, store and forward, Broadcast Storm Control, full duplex mode, Quality of Service (QoS), fanless, DHCP client, loop prevention, Class of Service (CoS), Type of Service (ToS), DiffServ Code Poi
|
|
Jumbo Frame Support
|
10000 bytes
|
|
MAC Address Table Size
|
4K entries
|
|
Performance
|
Bandwidth: 28 Gbps
|
|
PoE Budget
|
180 W
|
|
Ports
|
15 x 10/100/1000 (PoE+) + 1 x SFP
|
|
Power Over Ethernet (PoE)
|
PoE+
|
|
Remote Management Protocol
|
HTTP, DHCP
|
|
Routing Protocol
|
IGMPv2, IGMP, IGMPv3
|
|
Status Indicators
|
Power, system, PoE, link/activity/speed, PoE max
|
|
Subtype
|
Gigabit Ethernet
|
|
Expansion / Connectivity
|
|
|
Interfaces
|
15 x 1000Base-T RJ-45 PoE+ - 30 W | 1 x 1000Base-X SFP
|
|
Power
|
|
|
Power Device
|
External power adapter
|
|
Miscellaneous
|
|
|
Compliant Standards
|
CSA, VCCI, BSMI, EN55024, KC, FCC Part 15 Class B, ACMA, EN 55032
|
|
Included Accessories
|
Rubber feet, wall mounting kit
|
|
MTBF
|
784,742 hours
|
|
Dimensions & Weight
|
|
|
Depth
|
10.2 cm
|
|
Height
|
2.7 cm
|
|
Weight
|
883 g
|
|
Width
|
28.6 cm
|
|
Manufacturer Warranty
|
|
|
Service & Support
|
Limited warranty - 5 years | Limited warranty - power supply - 2 years | Limited warranty - phone consulting - 90 days with product registration
|
|
Environmental Parameters
|
|
|
Humidity Range Operating
|
90% (non-condensing)
|
|
Humidity Range Storage
|
95% (non-condensing)
|
|
Max Operating Temperature
|
40 °C
|
|
Max Storage Temperature
|
70 °C
|
|
Min Operating Temperature
|
0 °C
|
|
Min Storage Temperature
|
-20 °C
|
