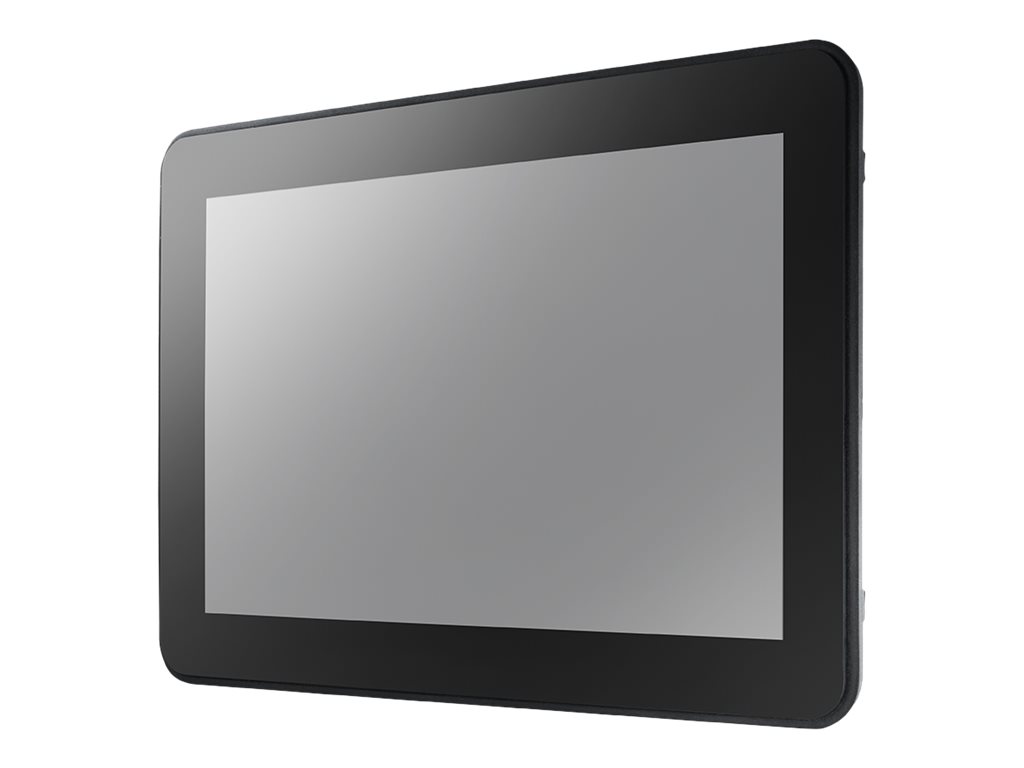

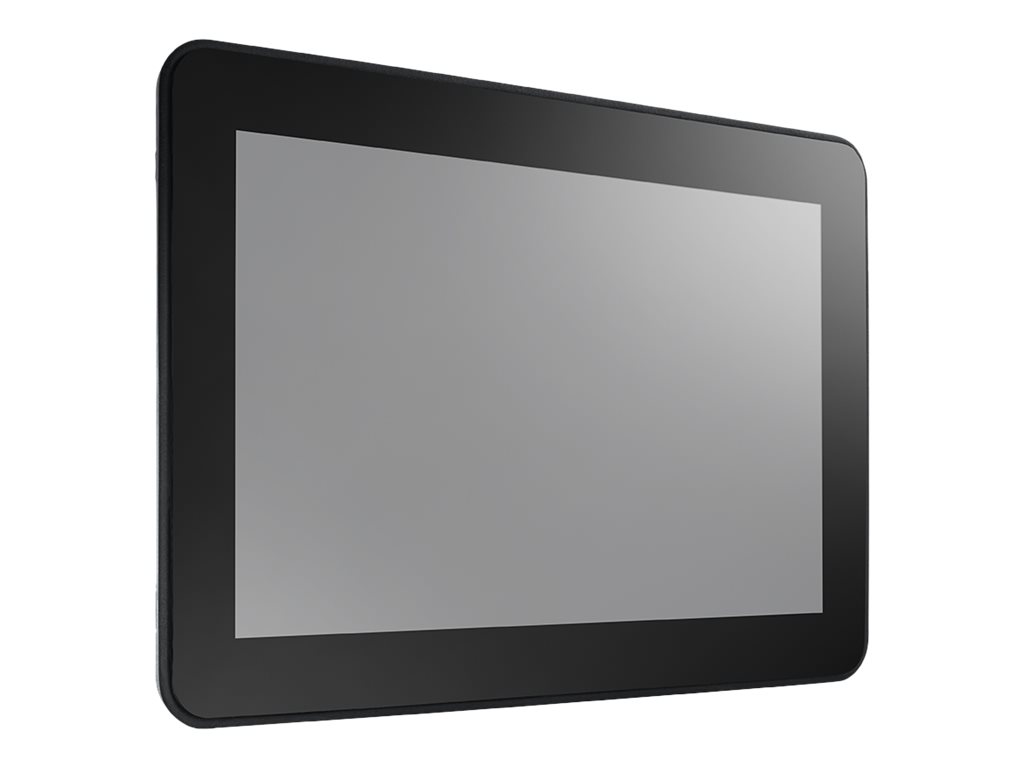

Neovo TX-10
AG Neovo TX-10 - 10" Diagonal klasse (10.1" til at se) LED-bagbelyst LCD paneldisplay - interaktiv - med berøringsskærm (multi-berøring) - 720p 1280 x 800
Product information and specifications are guiding only. Without notice, these can be subject to change by the manufacturer. This applies for product images as well.
Specifications
|
Produktbeskrivelse
|
AG Neovo TX-10 10" Klasse (10.1" til at se) LED-bagbelyst LCD paneldisplay - HD - for interaktiv kommunikation
|
|
Produkttype
|
LED-bagbelyst LCD fladt paneldisplay med berøringsskærm (multi-berøring)
|
|
Energimærke QR-kode URL
|
Https://eprel.ec.europa.eu/qr/456257
|
|
Diagonal klasse
|
10"
|
|
Diagonal størrelse
|
10.1"
|
|
Kommercielt brug
|
Ja - interaktiv
|
|
Opløsning
|
1280 x 800
|
|
Display Format
|
720p
|
|
Video Grænseflade
|
HDMI
|
|
HDMI Port Antal
|
1 porte
|
|
PC grænseflade
|
VGA (HD-15), DisplayPort
|
|
Teknologi
|
VA
|
|
LCD-baggrundsbelysningsteknik
|
LED baglys
|
|
Billedformatforhold
|
16:10
|
|
Tv-tuner
|
Ingen radio
|
|
Energiklasse
|
Klasse D
|
|
Strømforbrug (Til-modus)
|
7.5 W
|
|
Strømforbrugs-stand by
|
0.5 watt
|
|
Energiforbrug om året
|
11 kWt
|
|
Dimensioner (B x D x H) - uden stander
|
26.07 cm x 3.94 cm x 18.34 cm
|
|
Vægt
|
1.4 kg
|
Full specifications
|
General
|
|
|---|---|
|
Combined With
|
Touchscreen (multi touch)
|
|
Commercial Use
|
Yes - interactive
|
|
Depth
|
3.94 cm
|
|
Diagonal Class
|
10"
|
|
Diagonal Size
|
10.1"
|
|
Dimensions
|
Without stand
|
|
Energy Class
|
Class D
|
|
Energy Consumption per Year
|
11 kWh
|
|
HDMI Ports Qty
|
1 ports
|
|
Height
|
18.34 cm
|
|
PC Interface
|
VGA (HD-15), DisplayPort
|
|
Power Consumption (On mode)
|
7.5 W
|
|
Power Consumption SDR (On mode)
|
7.5 kWh/1000h
|
|
Product Type
|
LED-backlit LCD flat panel display
|
|
TV Tuner
|
No tuner
|
|
TV Tuner Presence
|
No
|
|
Video Interface
|
HDMI
|
|
Weight
|
1.4 kg
|
|
Width
|
26.07 cm
|
|
Display
|
|
|
Additional Features
|
Projected Capacitive Touch (PCT)
|
|
Brightness
|
500 cd/m²
|
|
Coating
|
Anti-reflection, 3H Hard
|
|
Display Format
|
720p
|
|
Image Aspect Ratio
|
16:10
|
|
Image Contrast Ratio
|
1300:1
|
|
LCD Backlight Technology
|
LED backlight
|
|
LCD Display Technology
|
VA
|
|
Resolution
|
1280 x 800
|
|
Response Time
|
5 ms
|
|
Touchpoints Qty
|
10
|
|
Viewing Angle
|
170°
|
|
Viewing Angle (Vertical)
|
170°
|
|

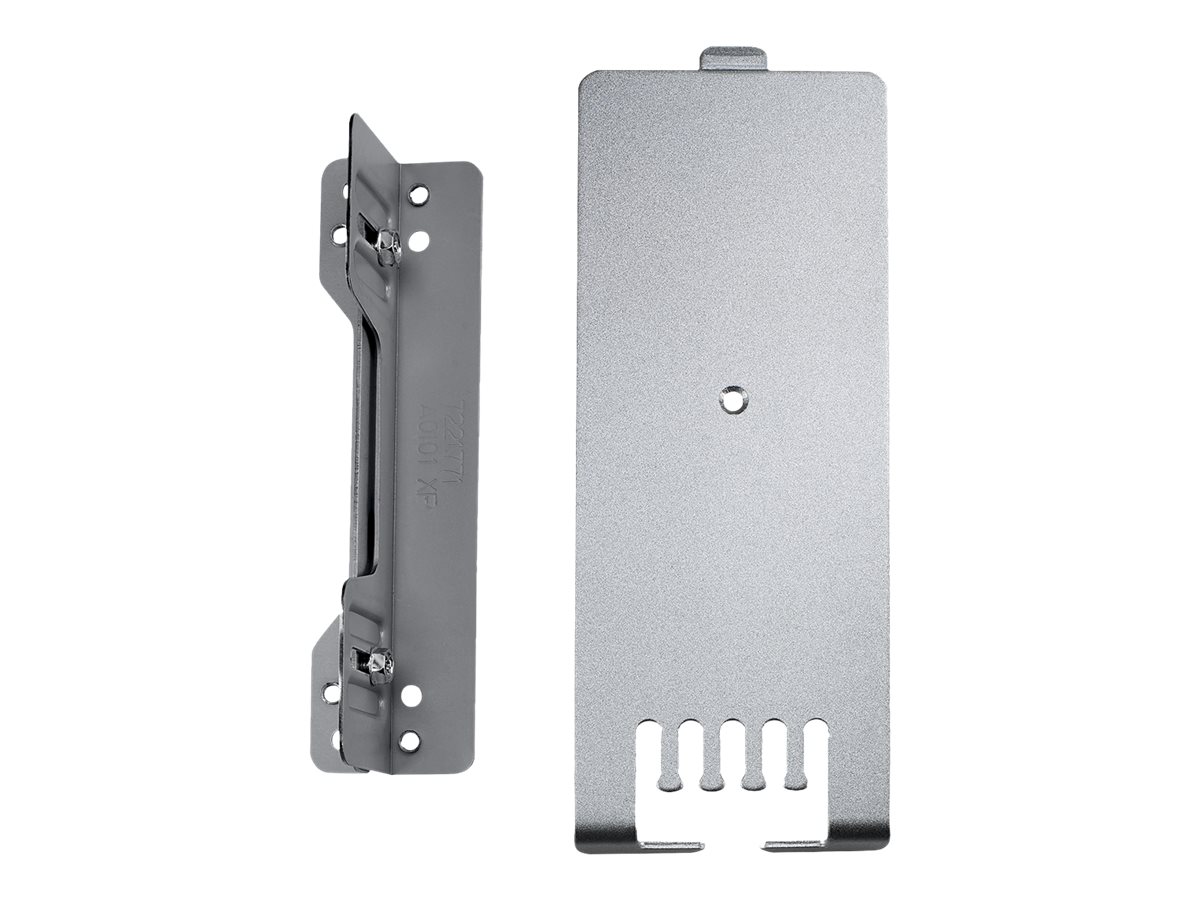

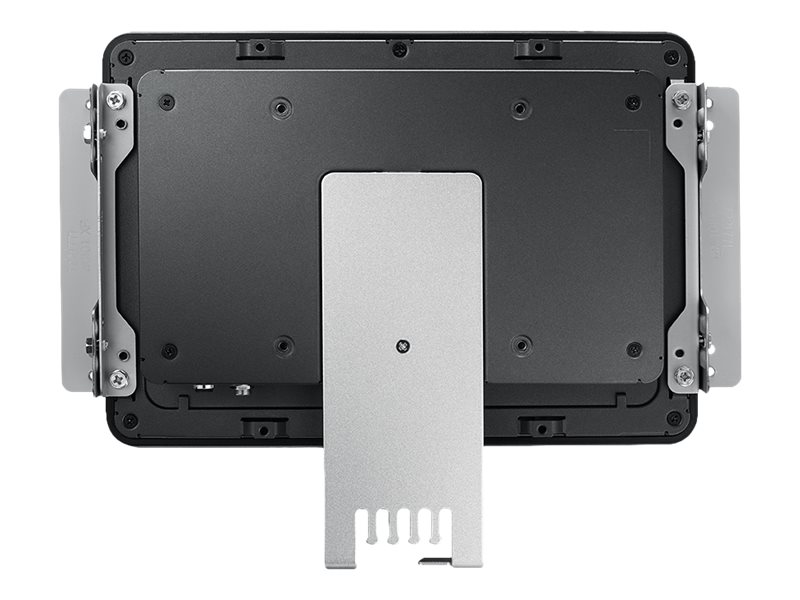

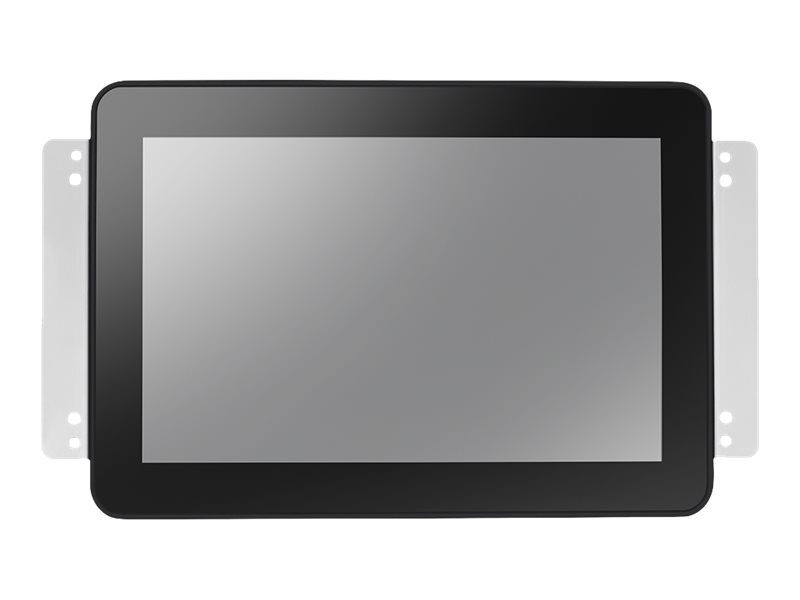

Stands & Mounts
|
|
|
Flat Panel Mount Interface
|
100 x 100 mm
|
|
VESA Compatibility
|
Yes
|
|

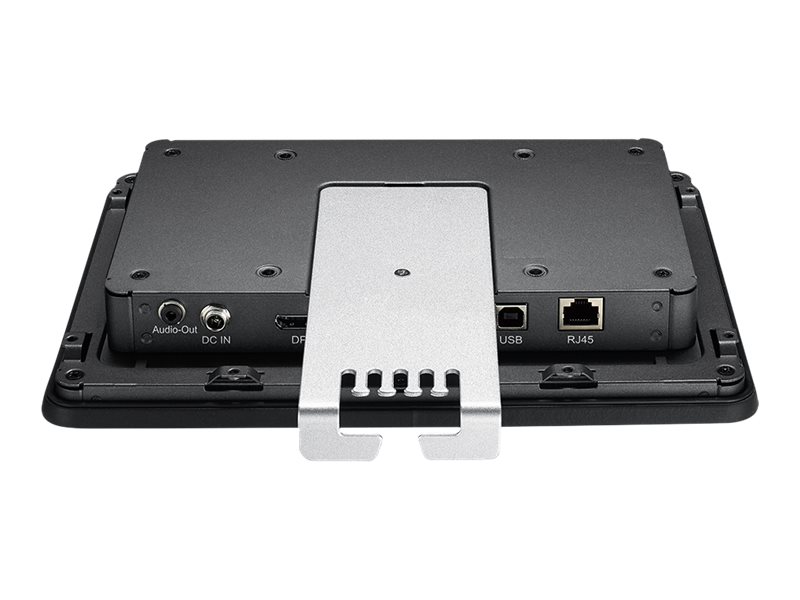

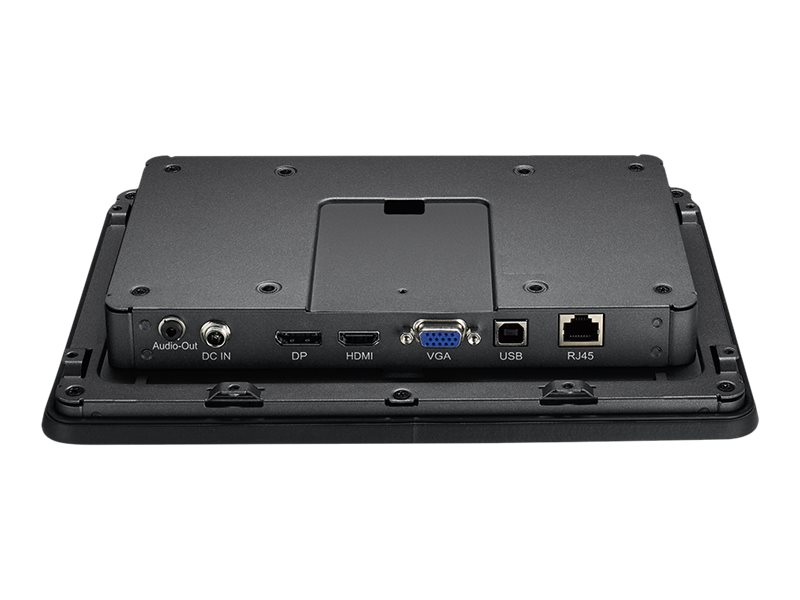

Connections
|
|
|
Connector Type
|
VGA input | HDMI input | DisplayPort input | Audio line-out | USB
|
|
Miscellaneous
|
|
|
Cables Included
|
VGA cable | USB cable | DisplayPort cable
|
|
Compliant Standards
|
Plug and Play, RoHS, WEEE, REACH, IP65, LVD
|
|
Power
|
|
|
Power Consumption (Off Mode)
|
0.5 Watt
|
|
Power Consumption Stand by
|
0.5 Watt
|
|
Power Device
|
Power adapter
|
|
Dimensions & Weight (Shipping)
|
|
|
Depth (Shipping)
|
16 cm
|
|
Height (Shipping)
|
32.5 cm
|
|
Weight (Shipping)
|
2.4 kg
|
|
Width (Shipping)
|
37 cm
|
|
Environmental Parameters
|
|
|
Humidity Range Operating
|
20 - 80% (non-condensing)
|
|
Max Operating Temperature
|
50 °C
|
|
Min Operating Temperature
|
0 °C
|
