Navilock NL-852ERS

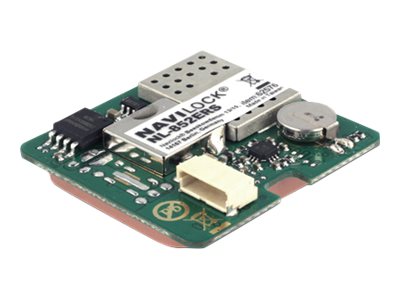

Navilock NL-852ERS - GPS/GLONASS/GALILEO/BeiDou/QZSS modtagermodul

Varenummer: 989493327
Model: 62576
EAN: 4043619625765
Brand:
NAVILOCK
Vægt: 0.11 kg

Specifications

Produktbeskrivelse
Navilock NL-852ERS - GPS/GLONASS/GALILEO/BeiDou/QZSS modtagermodul
Produkttype
GPS/GLONASS/GALILEO/BeiDou/QZSS modtagermodul
Modtager
U-blox 8 - 72 kanaler
Grænseflade
NMEA 0183
SBAS
WAAS, EGNOS (European Geostationary Navigation Overlay Service), MSAS (Multifunctional Transport Satellite-based Augmentation System)
Opdateringshastighed
0,06 sekund
Antenne
Indbygget
Egenskaber
LED-indikator
Dimensioner (B x D x H)
3 cm x 3 cm x 0.79 cm
Specifications

Full specifications

General
Accuracy
Position - 2 m (with SBAS) | Position - 2.5 m
Antenna
Built-in
Features
LED indicator
Interface
NMEA 0183
Product Type
GPS/GLONASS/GALILEO/BeiDou/QZSS receiver module
Receiver
U-blox 8 - 72-channel
SBAS
WAAS, EGNOS, MSAS
Tracking Sensitivity
-167 dBm
Update Rate
0.06 second
Acquisition Times
Cold
26 sec
Hot
1 sec
Connections
Interfaces
Serial
Miscellaneous
Included Accessories
Backup battery
Dimensions & Weight
Depth
3 cm
Height
0.79 cm
Width
3 cm
Environmental Parameters
Max Operating Temperature
85 °C
Min Operating Temperature
-40 °C
