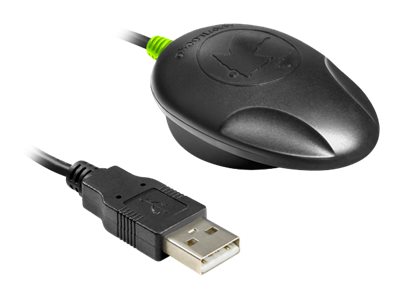

Navilock NL-82002U USB 2.0 Multi GNSS UDR Receiver

Navilock NL-82002U USB 2.0 Multi GNSS UDR Receiver - GPS/GLONASS/GALILEO/BeiDou/QZSS modtagermodul

  • Product no 992159863

    Model 62756

    Brand NAVILOCK

    EAN 4043619627561

    Weight 0.17 kg

  • Product information and specifications are guiding only. Without notice, these can be subject to change by the manufacturer. This applies for product images as well.
Produktbeskrivelse Navilock NL-82002U USB 2.0 Multi GNSS UDR Receiver - GPS/GLONASS/GALILEO/BeiDou/QZSS modtagermodul
Produkttype GPS/GLONASS/GALILEO/BeiDou/QZSS modtagermodul
Modtager U-blox 8 - 72 kanaler
Grænseflade NMEA 0183
SBAS WAAS, EGNOS (European Geostationary Navigation Overlay Service), MSAS (Multifunctional Transport Satellite-based Augmentation System)
Antenne Indbygget
Egenskaber 3D accelerometer, 3D-gyroskop
Dimensioner (B x D x H) 4.5 cm x 6.5 cm x 2.2 cm
General
Accuracy Position - 2 m (with SBAS)
Antenna Built-in
Features 3D accelerometer, 3D gyroscope
Interface NMEA 0183
Product Type GPS/GLONASS/GALILEO/BeiDou/QZSS receiver module
Receiver U-blox 8 - 72-channel
SBAS WAAS, EGNOS, MSAS
Tracking Sensitivity -160 dBm
Acquisition Times
Cold 26 sec
Hot 1 sec
PC System Requirements for GPS
OS Required Microsoft Windows 7, Microsoft Windows Vista, Windows 8, Windows 8.1, Linux Kernel 2.6, Windows 10
Connections
Interfaces USB 2.0 - 4 pin USB Type A
Miscellaneous
Color Black
Included Accessories USB cable
Dimensions & Weight
Depth 6.5 cm
Height 2.2 cm
Width 4.5 cm
Environmental Parameters
Max Operating Temperature 60 °C
Min Operating Temperature -20 °C
