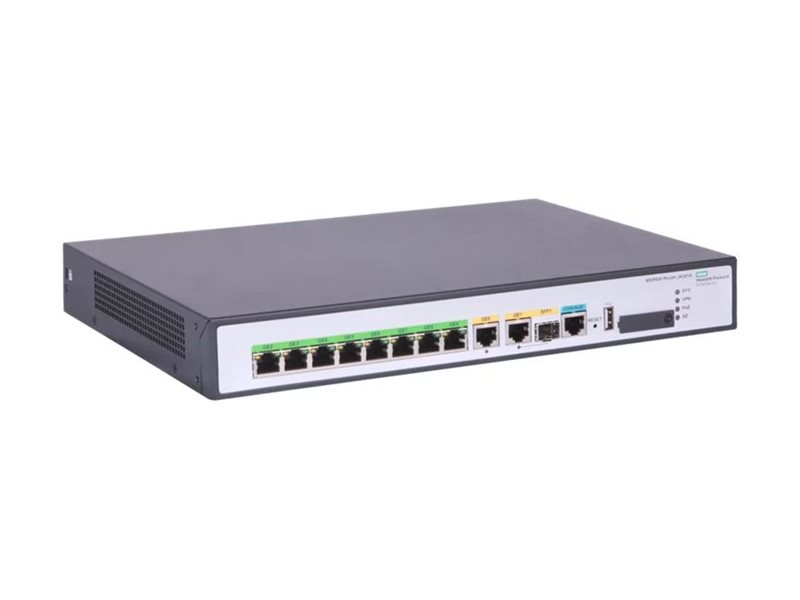

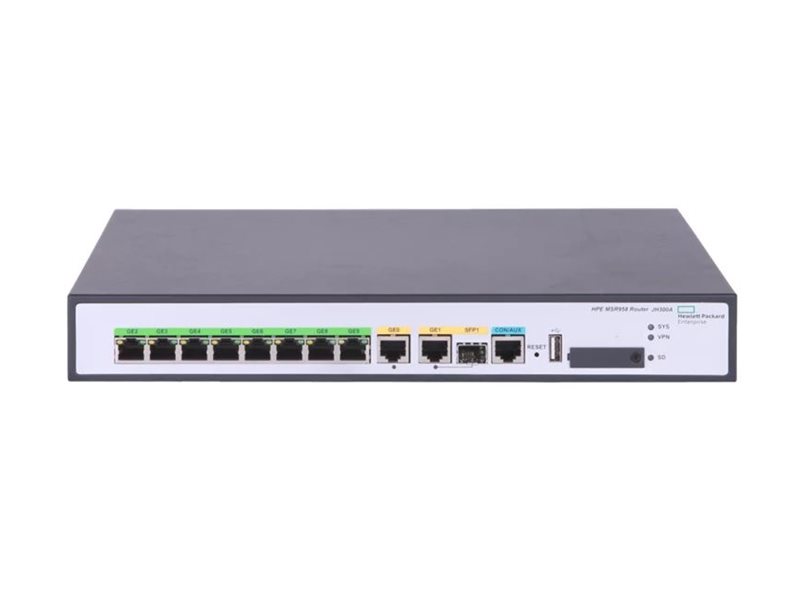

HPE FlexNetwork MSR958X Router
HPE FlexNetwork MSR958X - Router 8-port switch - 1GbE - WAN-porte: 6 - monterbar på stativ
-
Product no 1001273672
Model S0P11A
Brand Hewlett Packard Ente
EAN 0190017640358
Weight 2.1 kg
-
Product information and specifications are guiding only. Without notice, these can be subject to change by the manufacturer. This applies for product images as well.
| Produktbeskrivelse | HPE FlexNetwork MSR958X - router - Wi-Fi - monterbar på stativ |
| Enhedstype | Router - 8-port switch (integreret) |
| Pakningstype | Monterbar på stativ |
| Antal WAN porte | 6 |
| Dataforbindelsesprotokol | Ethernet, Fast Ethernet, Gigabit Ethernet, IEEE 802.11b, IEEE 802.11g, IEEE 802.11n |
| Dataoverførselshastighed | 10 Gbps |
| Præstation | Gennemløb (64-byte pakkestørrelse): up to 3 Mbps |
| Kapacitet | VPN-tunneler: 100<br>IPv4 indtastning i routing-tabel: 200000<br>IPv6 indtastning i routing-tabel: 200000<br>IPv4 indtastning i videresendelses-tabel: 200000<br>IPv6 indtastning i videresendelses-tabel: 200000 |
| Netværks/overføselsprotokol | TCP/IP, UDP/IP, L2TP, RSVP, APPN, NTP, ICMP/IP, IPSec, AAL5, ARP, FTP, DHCP, PAP, SFTP |
| Routingprotokol | OSPF, EGP, RIP, BGP-4, IS-IS, RIP-1, RIP-2, BGP, IGMPv2, IGMP, VRRP, IGMPv3, GRE, OSPFv3, Bidirectional PIM, MSDP, statisk IPv4 routing, statisk IPv6 routing, ECMP, RIPng, BGP-4+, MPLS, CIDR, BGP+, URPF |
| Protokol til fjernadministration | SNMP 1, SNMP 2, RMON, Telnet, SNMP 3, HTTP, TFTP, CLI |
| Egenskaber | Layer 3 switching, Layer 2 switching, NAT-understøtning, VPN support, VLAN-understøttet, traffic-shaping, portspejling, IPS, WFQ, WRED, sFlow, STP support, RSTP support, MSTP support, tunneling, ACL support, QoS, CAR, LFI, URPF, DHCP videresendelse, MIB, portisolering, pakkestormbeskyttelse, CoS, Loopback, DVPN, MBGP, EtherIP, ToS, GDVPN, RED, ICMP IRDP, MIB II, SSM |
| Overensstemmelsesstandarder | IEEE 802.2, IEEE 802.3, IEEE 802.1D, IEEE 802.1Q, IEEE 802.1p, IEEE 802.3ad (LACP), IEEE 802.1w, IEEE 802.1x, IEEE 802.1s |
| Effekt | AC 100-240 V |
| Dimensioner (B x D x H) | 16.1 cm x 4.36 cm x 26.1 cm |
| Vægt | 1.2 kg |
| Producentgaranti | 1 års garanti |
HPE Networking Comware Router 10GbE and Combo MSR958X
The HPE Networking Comware Router Series MSR95x delivers high-performance, small branch routing in a single, cost-optimized form factor. Featuring integrated routing, switching, wireless, security, and voice with no additional licensing, boost your service delivery while simplifying the management of the corporate wide area network (WAN). This series is flexible to deploy, with Zero Touch Provisioning and WAN options with LTE connectivity. With Comware v7 and fiber connections, the MSR95x also brings the performance and advanced services available on modular routers, such as IPS and high encryption, to a fixed port form factor.
Converged high-performance fiber routing, switching, security, and 3 Mpps performance
Integrated 1/10GbE, WAN and LAN, fiber (SFP)
Integrated 4G LTE, 3G as well as IEEE 802.11b/g/n WLAN in one box
Embedded encryption, stateful firewall, NAT, ADVPN security features
Unified Comware v7 OS, Comware v7 OS zero-touch solution, and single-pane-of-glass management
The new HPE Networking Comware Router MSR958X router supports 10GbE ports with Comware v9 OS
Reduces Complexity and Simplifies Your Network
- The HPE Networking Comware Router Series MSR95x provides a Converged Infrastructure (CI) with integrated routing, switching, security, voice, and cellular WAN delivering high-performance small branch routing.
- Makes administration easier when using the HPE Networking Intelligent Management Center (IMC) Software.
- Reduces management complexity with zero-touch deployment (ZTD) and Auto Discovery VPN (ADVPN).
- Delivers increased flexibility in Comware v7 OS environments across multiple routers.
Enhances Time to Service and Branch Performance
- The HPE Networking Comware Router Series MSR95x offers high-performance routing with up to 3 Mpps forwarding.
- Simplifies your network with OpenFlow and Zero Touch Provisioning.
- Deploys rich features with Comware v7 security, including IPS with high encryption, and dual gigabit WAN ports that support fiber and copper connections.
- Supports branch services with a comprehensive feature set, including IPv4 and IPv6 routing, MPLS, QoS, NAT, and VPN services.
Increases Your Return on Your Investment
- The HPE Networking Comware Router Series MSR95x offers an extensive range of models and accessories to enable the right design for your business, in a compact fixed-port platform.
- Reduces your TCO through open standards, power and space savings, and energy-efficient hardware.
- Deploy advanced features with no additional licensing.
Boost Agility and Resiliency.
- The HHPE Networking Comware Router Series MSR95x delivers branch service and business continuity with multiple network options including dual gigabit WAN, dual 3G/4G LTE WAN, and built-in WLAN.
- With advanced hardware architecture, the HPE Networking Comware Router Series MSR95x provides reliable, high-performance functionality.
- Gives you an open standards approach to your network infrastructure.
Specifications
| TechnicalSpecifications | |
|---|---|
| Ports | 2 fixed Gigabit Ethernet SFP port, 2 combo ports (SFP or RJ45) 8 RJ-45 autosensing 10/100/1000 LAN ports (Four of them can be switched to routing mode.) |
| Throughput | up to 3 Mpps |
| Routing/switching capacity | 200000 entries (IPv4), 200000 entries (IPv6) |
| Wireless capability | 3G, 4G LTE, or 802.11b/g/n Available on selected models |
| Input voltage | 100 - 240 VAC, rated |
| Power consumption | 36 W (maximum) |
| Product dimensions (metric) | 26.1 x 16.1 x 4.36 cm |
| Weight | 1.2 kg |
