Produktbeskrivelse
|
MSI PRO H610M-G DDR4 - bundkort - micro ATX - LGA1700 sokkel - H610
|
|
Produkttype
|
Bundkort - micro ATX
|
|
Chipsættype
|
Intel H610
|
|
Processor-socket
|
1 x LGA1700 sokkel
|
|
Kompatible processorer
|
(understøtter 12. Generation Intel Core / Pentium / Celeron)
|
|
Max RAM-størrelse
|
64 GB
|
|
RAM understøttet
|
2 DIMM slots - DDR4, ikke-ECC, ikke bufferet
|
|
Lagringsporte
|
4 x SATA-600, 1 x M.2
|
|
USB / FireWire porte
|
2 x USB 3.2 Gen 1 + 4 x USB 2.0 + (2 x USB 3.2 Gen 1 + 2 x USB 2.0 via samlekasser)
|
|
Audio
|
HD Audio (8-kanaler)
|
|
LAN
|
Gigabit Ethernet
|
Effective Friday, July 3, 2026, the office will close at 4:30 PM on Fridays. From Monday to Thursday, Sales contact hours remain unchanged from 9:00 AM to 5:00 PM, while contact hours for Accounting, Purchasing, and RMA remain unchanged in general.
To gain full access to our webshop, find our entire product range and see our prices, you need to be logged in.
Log in to your account here or sign up as a customer here.
MSI PRO H610M-G DDR4 Micro-ATX LGA1700 Intel H610
MSI PRO H610M-G DDR4 - Bundkort - micro ATX - LGA1700 sokkel - H610 Chipset - USB 3.2 Gen 1 - Gigabit LAN - onboard grafik (CPU påkrævet) - HD Audio (8-kanaler)
Varenummer:
1000281925
Model:
PRO H610M-G DDR4
EAN:
4719072925024
Brand:
Vægt:
0.77 kg
Specifications
Full specifications
|
General
|
|
|---|---|
|
Chipset Type
|
Intel H610
|
|
Compatible Processors
|
(supports 12th Generation Intel Core / Pentium / Celeron)
|
|
Max Processors Qty
|
1
|
|
Processor Socket
|
LGA1700 Socket
|
|
Product Type
|
Motherboard - micro ATX
|
|
Supported RAM
|
|
|
Bus Clock
|
2133 MHz, 2666 MHz, 3200 MHz
|
|
Features
|
Dual channel memory architecture
|
|
Max Size
|
64 GB
|
|
Registered or Buffered
|
Unbuffered
|
|
Supported RAM Integrity Check
|
Non-ECC
|
|
Technology
|
DDR4
|
|
Audio
|
|
|
Audio Codec
|
Realtek ALC892/ALC897
|
|
Compliant Standards
|
High Definition Audio
|
|
Type
|
HD Audio (8-channel)
|
|
LAN
|
|
|
Network Controller
|
Intel I219V
|
|
Network Interfaces
|
Gigabit Ethernet
|
|
Expansion / Connectivity
|
|
|
Expansion Slots
|
1 x CPU | 2 x DIMM 288-pin | 1 x PCIe 4.0 x16 | 1 x M.2 socket (for wireless module) | 1 x PCIe 3.0 x1
|
|
Interfaces
|

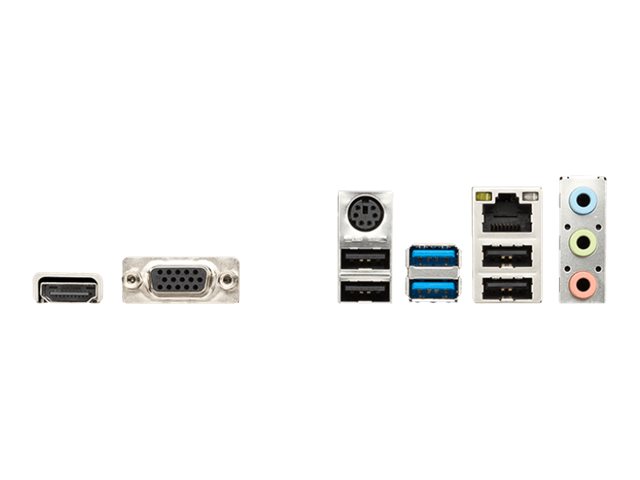

1 x HDMI | 1 x VGA | 1 x DisplayPort | 2 x USB 3.2 Gen 1 | 4 x USB 2.0 | 1 x audio line-out - mini-jack | 1 x microphone - mini-jack | 1 x audio line-in - mini-jack | 1 x PS/2 keyboard / mouse | 1 x LAN (Gigabit Ethernet)
|
|
Internal Interfaces
|
2 x USB 2.0 - header | 2 x USB 3.2 Gen 1 - header | 1 x audio - header
|
|
Power Connectors
|
24-pin main power connector, 8-pin ATX12V connector
|
|
RAID Features
|
Intel Smart Response Technology
|
|
Storage Interfaces
|
SATA-600 -connectors: 4 x 7pin Serial ATA | SATA-600 / PCIe 3.0 -connectors: 1 x M.2
|
|
Features
|
|
|
BIOS Features
|
MSI ClickBIOS 5
|
|
Hardware Features
|
MSI Audio Boost, Debug LED, MSI Steel Armor, Double ESD Protection, MSI Core Boost
|
|
Miscellaneous
|
|
|
Cables Included
|
2 x Serial ATA cable
|
|
Compliant Standards
|
DisplayPort 1.4
|
|
Depth
|
20.2 cm
|
|
Included Accessories
|
I/O back plate, case badge, M.2 clip
|
|
Width
|
23.6 cm
|
