Produktbeskrivelse
|
MSI MPG A850G PCIE5 - strømforsyning - 850 watt
|
|
Enhedstype
|
Strømforsyning - aktiv Power Factor Correction (PFC) - intern
|
|
Specifikationsoverensstemmelse
|
ATX12V / EPS12V
|
|
80 PLUS certificering
|
80 PLUS Gold
|
|
Indgangspænding
|
AC 100-240 V
|
|
Udgangspænding
|
+3.3, +5, ±12 V
|
|
Strømkapacitet
|
850 watt
|
|
Output Current
|
+3.3V - 22 A<br>+5V - 22 A<br>-12V - 0.3 A<br>+12V - 70.8 A<br>+5VSB - 3 A
|
|
Output-stikforbindelser
|
1 x strøm 24 pin ATX<br>2 x strøm 8 pin EPS12 V med aftagelig 4 pin ATX12V sektion<br>1 x 12+4 pin PCI Express 5.0 strøm 650 W<br>6 x 8 pin PCI Express-strøm med aftagelig 2 pin sektion<br>8 x 15 pin Serial ATA strøm<br>4 x 4-PIN intern strøm<br>1 x 4-PIN intern strøm
|
|
Modulær Kabel Administration
|
Ja
|
|
Kølesystem
|
135 mm ventilator
|
|
Udstyr inkluderet
|
Skruer
|
|
Dimensioner (B x D x H)
|
15 cm x 15 cm x 8.6 cm
|
|
Producentgaranti
|
10-års garanti
|
Effective Friday, July 3, 2026, the office will close at 4:30 PM on Fridays. From Monday to Thursday, Sales contact hours remain unchanged from 9:00 AM to 5:00 PM, while contact hours for Accounting, Purchasing, and RMA remain unchanged in general.
To gain full access to our webshop, find our entire product range and see our prices, you need to be logged in.
Log in to your account here or sign up as a customer here.

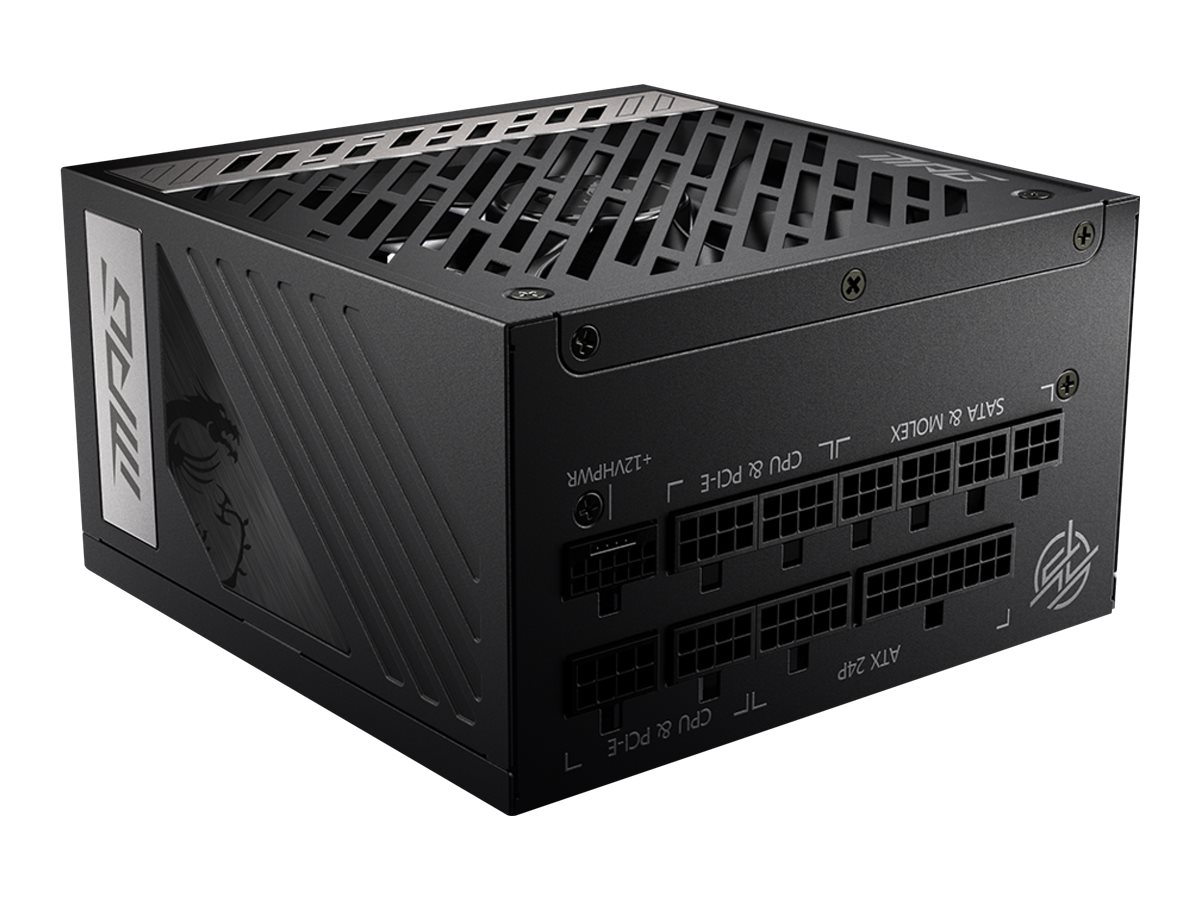

MSI MPG A850G PCIE5 850Watt 80 PLUS Gold
MSI MPG A850G PCIE5 - Strømforsyning (intern) - ATX12V / EPS12V - 80 PLUS Gold - AC 100-240 V - 850 watt - aktiv PFC
Varenummer:
1000909340
Model:
306-7ZP7B11-CE0
EAN:
4719072972189
Brand:
Vægt:
3.22 kg
Specifications
Full specifications
|
General
|
|
|---|---|
|
Device Type
|
Power supply - active Power Factor Correction (PFC) - internal
|
|
PSU Form Factor
|
ATX
|
|
Specification Compliance
|
ATX12V / EPS12V
|
|
Power Device
|
|
|
80 PLUS Certification
|
80 PLUS Gold
|
|
Efficiency
|
90%
|
|
Frequency Required
|
50 - 60 Hz
|
|
Input Voltage
|
AC 100-240 V
|
|
Modular Cable Management
|
Yes
|
|
Output Current
|
+3.3V - 22 A | +5V - 22 A | -12V - 0.3 A | +12V - 70.8 A | +5VSB - 3 A
|
|
Output Voltage
|
+3.3, +5, ±12 V
|
|
Power Capacity
|
850 Watt
|
|
Power Output Connectors Details
|
1 x power 24 pin ATX | 2 x power 8 pin EPS12V with detachable 4 pin ATX12V section | 1 x 12+4 pin PCI Express 5.0 power 650 W | 6 x 8 pin PCI Express power with detachable 2 pin section | 8 x 15 pin Serial ATA power | 4 x 4 pin internal power | 1 x 4
|
|
Miscellaneous
|
|
|
Cables Included
|
ATX power cable 60 cm | 16-pin 12VHPWR power cable 60 cm | 16-pin 12VHPWR to 2x8 pin PCI Express power adapter 60 cm | 2 x 2x 8 pin PCI Express power with detachable 2 pin section modular cable 60 cm | Power 8 pin +12V with detachable 4 pin section m
|
|
Compliant Standards
|
KC
|
|
Cooling System
|
135 mm fan
|
|
Features
|
Overheat protection, overcurrent protection, overvoltage protection, overpower protection, undervoltage protection, short-circuit protection, single 12V rail, DC-DC technology, Zero RPM fan mode, fluid dynamic bearing cooling fan, fully modular, LLC
|
|
Included Accessories
|
Screws
|
|
Manufacturer Warranty
|
|
|
Service & Support
|
Limited warranty - 10 years
|
|
Dimensions & Weight
|
|
|
Depth
|
15 cm
|
|
Height
|
8.6 cm
|
|
Width
|
15 cm
|
