MikroTik RB5009UPR+S+IN Router 8-port switch Kabling

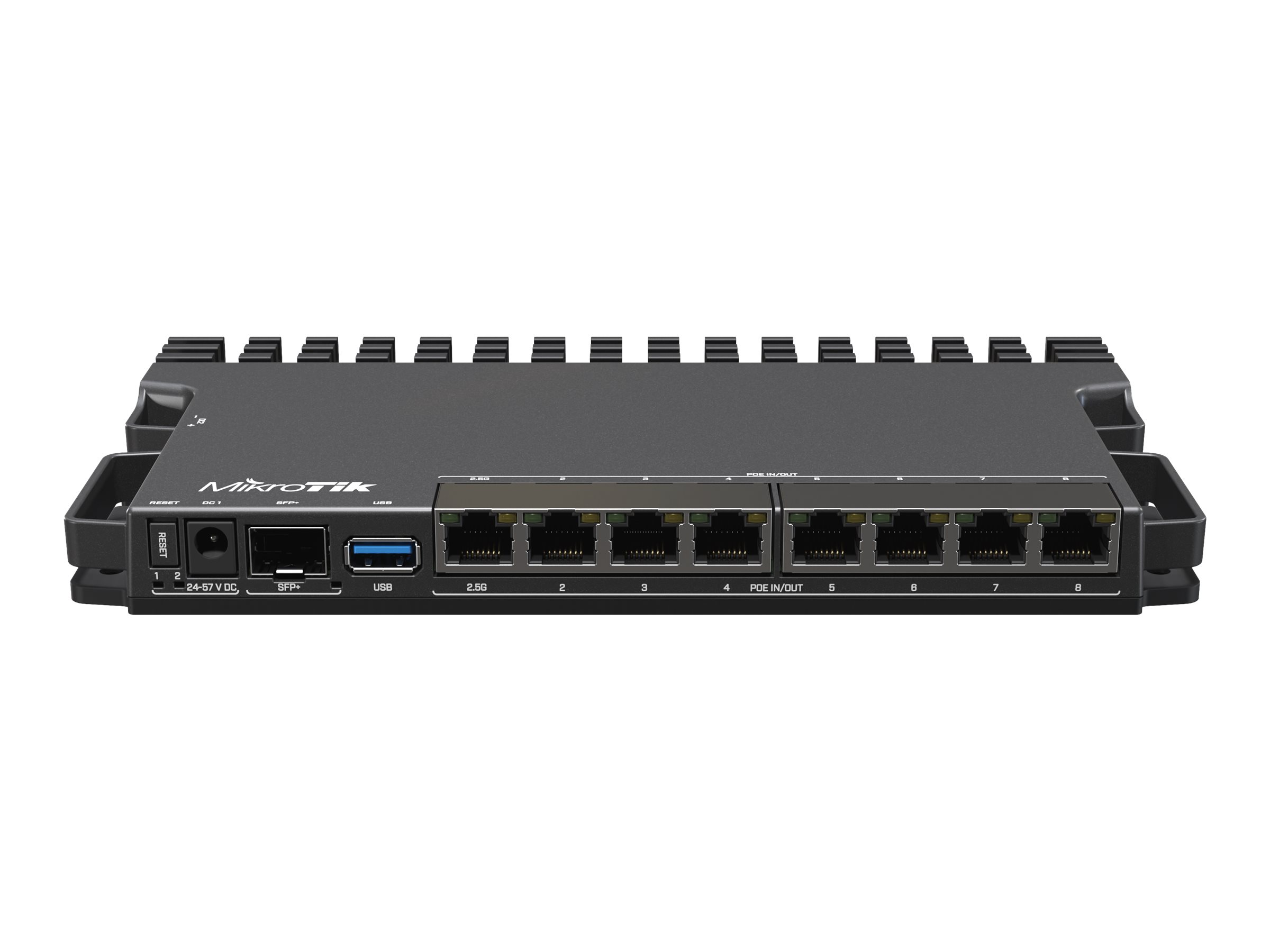

MikroTik RB5009UPR+S+IN - Router 8-port switch - 1GbE, 2.5GbE
Product information and specifications are guiding only. Without notice, these can be subject to change by the manufacturer. This applies for product images as well.
Specifications
|
Produktbeskrivelse
|
MikroTik RB5009UPR+S+IN - router - desktop
|
|
Enhedstype
|
Router - 8-port switch (integreret)
|
|
Pakningstype
|
Desktop
|
|
Dataforbindelsesprotokol
|
Ethernet, Fast Ethernet, Gigabit Ethernet, 2.5 Gigabit Ethernet
|
|
Netværks/overføselsprotokol
|
IPSec
|
|
Egenskaber
|
Metalkabinet, PoE-drevet, spændingsovervågning, PCB-temperaturmåler, USB-strømnulstilling, CPU-temperaturovervåger
|
|
Effekt
|
AC 100-240/ DC 48 V
|
|
Dimensioner (B x D x H)
|
22 cm x 12.5 cm x 2.15 cm
|
Full specifications
|
General
|
|
|---|---|
|
Compliant Standards
|
RoHS, EAC, IEEE 802.3af, IEEE 802.3at
|
|
Connectivity Technology
|
Wired
|
|
Data Link Protocol
|
Ethernet, Fast Ethernet, Gigabit Ethernet, 2.5 Gigabit Ethernet
|
|
Device Type
|
Router - 8-port switch (integrated)
|
|
Enclosure Type
|
Desktop
|
|
Features
|
Metal housing, PoE powered, voltage monitoring, PCB temperature monitor, USB power reset, CPU temperature monitor
|
|
Flash Memory
|
1 GB
|
|
Network / Transport Protocol
|
IPSec
|
|
Processor
|
1 x Marvell 88F7040 1.4 GHz
|
|
RAM
|
1 GB
|
|
Expansion / Connectivity
|
|
|
Interfaces
|
LAN: 7 x 10Base-T/100Base-TX/1000Base-T (PoE) - RJ-45 | LAN: 1 x 2.5GBase-T (PoE) - RJ-45 | 1 x Fibre Channel - SFP+ | USB 3.0: 1 x 9 pin USB Type A
|
|
Power
|
|
|
Power Device
|
External power adapter
|
|
Voltage Required
|
AC 100-240/ DC 48 V
|
|
Miscellaneous
|
|
|
Included Accessories
|
Terminal block connector, power cord, K-55 fastening set
|
|
MTBF
|
200,000 hours
|
|
Software / System Requirements
|
|
|
OS Provided
|
MikroTik RouterOS v7
|
|
Dimensions & Weight
|
|
|
Depth
|
12.5 cm
|
|
Height
|
2.15 cm
|
|
Width
|
22 cm
|
|
Environmental Parameters
|
|
|
Max Operating Temperature
|
60 °C
|
|
Min Operating Temperature
|
-40 °C
|
