MikroTik Cloud Core Router CCR2004-1G-12S 2XS Router Kabling
MikroTik Cloud Core Router CCR2004-1G-12S+2XS - Router 10GbE, 25GbE - monterbar på stativ
-
Product no 995942535
Model CCR2004-1G-12S+2XS
Brand MikroTik
EAN 4752224000019
Weight 2.37 kg
-
Product information and specifications are guiding only. Without notice, these can be subject to change by the manufacturer. This applies for product images as well.
| Produktbeskrivelse | MikroTik Cloud Core Router CCR2004-1G-12S+2XS - router - desktop, monterbar på stativ |
| Enhedstype | Router |
| Pakningstype | Desktop, monterbar på stativ |
| Dataforbindelsesprotokol | Ethernet, Fast Ethernet, Gigabit Ethernet, 10 Gigabit Ethernet, 25 Gigabit Ethernet |
| Præstation | Gennemløb (enkelt tunnel): up to 3.4 Gbps |
| Netværks/overføselsprotokol | IPSec |
| Routingprotokol | BGP |
| Egenskaber | Nulstillingsknap, 2 blæsere, AES-kryptering |
| Effekt | AC 100 - 240 V (50/60 Hz) |
| Dimensioner (B x D x H) | 44.3 cm x 22.4 cm x 4.4 cm |
| General | |
|---|---|
| Built-in Devices | Temperature sensor |
| Compliant Standards | RoHS, EAC, RED |
| Connectivity Technology | Wired |
| Data Link Protocol | Ethernet, Fast Ethernet, Gigabit Ethernet, 10 Gigabit Ethernet, 25 Gigabit Ethernet |
| Device Type | Router |
| Enclosure Type | Desktop, rack-mountable |
| Encryption Algorithm | SHA-1, 256-bit SHA, 128-bit AES-CBC |
| Features | Reset button, 2 fans, AES encryption |
| Flash Memory | 128 MB |
| Network / Transport Protocol | IPSec |
| Performance | Throughput (single tunnel): up to 3.4 Gbps |
| Processor | 1 x Annapurna Labs AL32400 1.7 GHz |
| RAM | DDR4 SDRAM |
| Routing Protocol | BGP |
| Status Indicators | Link/activity, fault, 10G device connected, user, power 1, power 2 |
| Expansion / Connectivity | |
| Interfaces | 12 x 10Gb Ethernet - SFP+ | 2 x 25Gb Ethernet - SFP28 | LAN: 1 x 10Base-T/100Base-TX/1000Base-T - RJ-45 | Console: 1 x RJ-45 |
| Power | |
| Installed Qty | 2 (installed) / 2 (max) |
| Power Consumption Operational | 49 Watt |
| Power Device | Internal power supply |
| Power Redundancy | Yes |
| Voltage Required | AC 100 - 240 V (50/60 Hz) |
| Miscellaneous | |

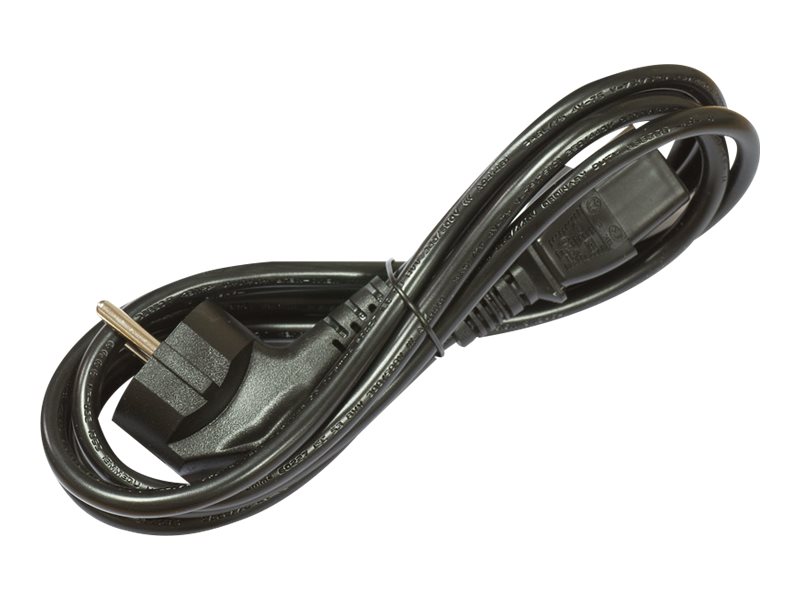

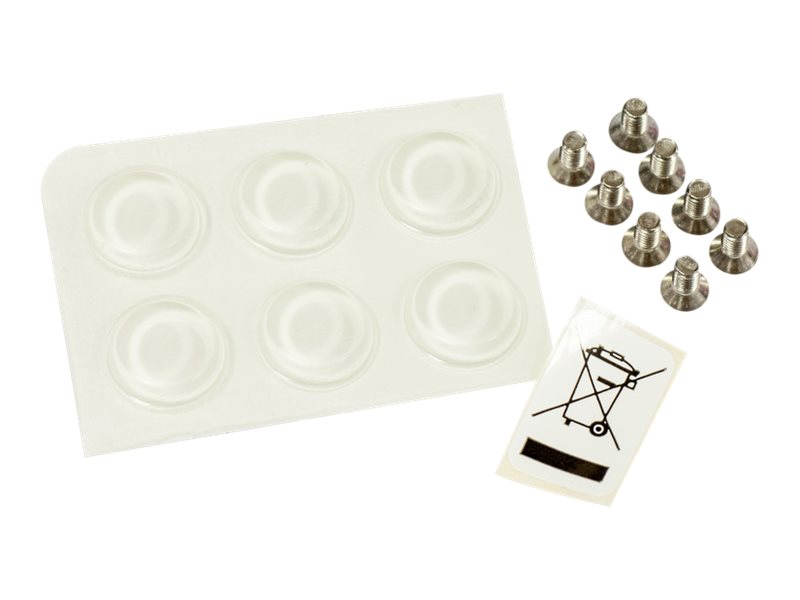

| Included Accessories | Feet set, 8 screws, 2 x power cords |

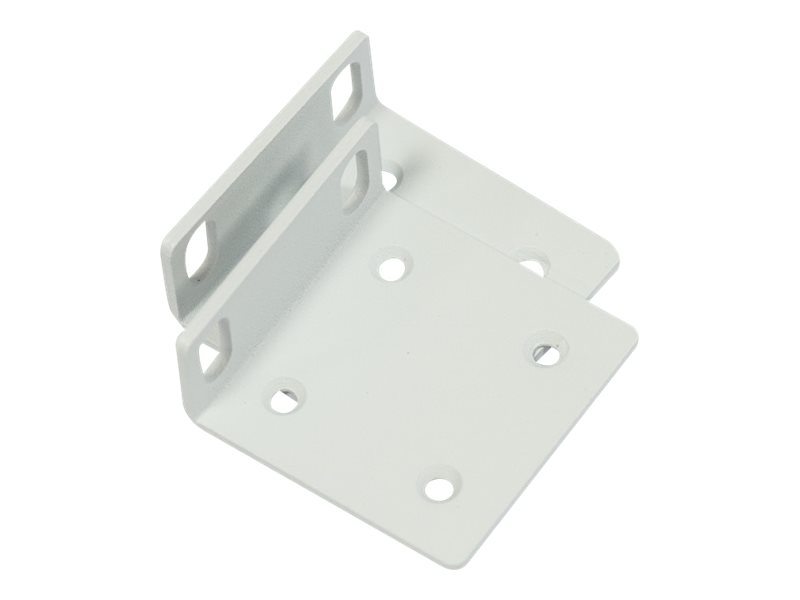

| Rack Mounting Kit | Included |
| Software / System Requirements | |
| OS Provided | MikroTik RouterOS |
| Dimensions & Weight | |
| Depth | 22.4 cm |
| Height | 4.4 cm |
| Width | 44.3 cm |
| Environmental Parameters | |
| Max Operating Temperature | 60 °C |
| Min Operating Temperature | -20 °C |
